Shift And Selector Cables

NOTE:

Lubricate the bearing areas and the sliding surfaces.

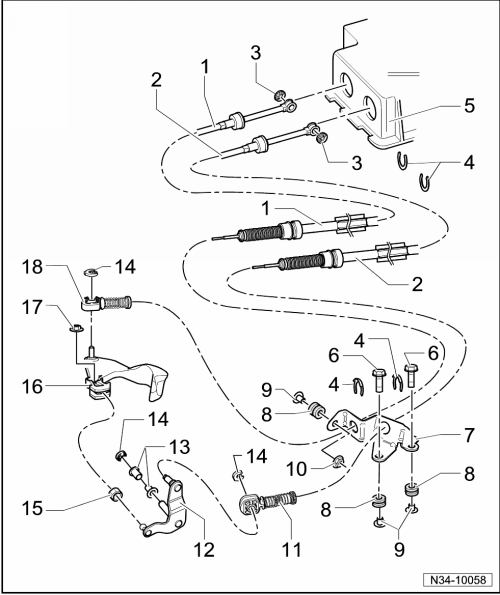

Fig 1: Operating Cables - Assembly Overview, Removing And Installing
GWWN34-10058Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Shift Cable
  2. Selector Cable
  3. Lock Washer
  4. Lock Washer
    • Always replace.
    • Be careful not to damage the cables when removing them.
  5. Shift Housing
  6. Bolt
    • 20 Nm
    • For the cable bracket to transmission
    • Quantity 2
    • The nut is then deleted.
  7. Cable Bracket
    • Can be made of plastic or metal.
    • For the Passat, CC and Golf/GTI from 2010 bracket is made of plastic.
  8. Grommet
    • For the cable bracket to transmission.
  9. Spacer
  10. Nuts
    • 20 Nm
    • For the cable bracket on 4 cylinder vehicles.
  11. Cable Retainer
    • Adjust the shift mechanism after installation. Refer to SHIFT MECHANISM, ADJUSTING .
    • For attaching the selector cable to the relay lever.
    • Do not interchange, the cable locking mechanisms for the selector cable to the relay lever and for the shift cable to the transmission shift lever are different.
    • From 03.07 installed with a plastic relay lever, refer to PLASTIC RELAY LEVER .
    • Removing from the plastic relay lever. Refer to PLASTIC RELAY LEVER .
    • Installing to the plastic relay lever. Refer to PLASTIC RELAY LEVER
    • Allocation, refer to Fig 2.
  12. Relay Lever
    • Installed position, refer to Fig 5.
    • Adjust the shift mechanism after installation. Refer to SHIFT MECHANISM, ADJUSTING .
    • Can be made of plastic or metal.
    • For the CC and Golf/GTI from 2010 the lever is made out of plastic.
    • Install the metal relay lever into the bushings and secure it with a lock washer.
    • Plastic relay lever as of 03.07. Refer to PLASTIC RELAY LEVER .
    • Plastic relay lever, removing and installing with cable retainer. Refer to PLASTIC RELAY LEVER .
    • The bushings and lock washers are not needed with the plastic relay lever.
  13. Bushing
    • Not needed with the plastic relay lever.
  14. Lock Washer
    • Always replace.
    • Not needed with the plastic relay lever.
  15. Sliding Shoe
  16. Transmission Shift Lever
    • Installing, refer to Fig 4.
    • Installed position, refer to Fig 5.
    • Adjust the shift mechanism after installation. Refer to SHIFT MECHANISM, ADJUSTING .
    • As of 06.06 smaller pin diameter for the cable retainer. Refer to Fig 3.
  17. Nut, Self-Locking
    • 23 Nm
    • Always replace
  18. Cable Retainer
    • Adjust the shift mechanism after installation. Refer to SHIFT MECHANISM, ADJUSTING .
    • For attaching the shift cable to the transmission shift lever.
    • Do not interchange, the cable locking mechanisms for the selector cable to the relay lever and for the shift cable to the transmission shift lever are different.
    • Allocation, refer to Fig 2.
Fig 2: Allocation Of Cable Retainers
GWWN34-10747Courtesy of VOLKSWAGEN UNITED STATES, INC.

These holes have different diameters.

Cable retainer for: Dimension "a"
1. - shift cable to transmission shift lever from 06.06 8.5 mm
2. - shift cable to transmission shift lever to 05.06 10 mm
2. - Selector lever cable to metal relay lever 8 mm
2. - Selector lever cable to plastic relay lever, refer to PLASTIC RELAY LEVER . 10 mm
Fig 3: From 06/06, Smaller Diameter Of Shift Cable Retainer Mounting Bolt
GWWN34-10748Courtesy of VOLKSWAGEN UNITED STATES, INC.

As of 02.06, Smaller Pin Diameter for the Shift Cable Retainer

Shift Cable Retainer Pins Dimension "a"
Through 05.06 10 mm
From 06.06 8.5 mm

Transmission Shift Lever, Installing

Fig 4: Installing the Transmission Shift Lever
GWWA34-0513Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- When positioning the transmission shift lever, make sure the gap -arrow A- is placed over the missing selector shaft teeth -arrow B-.

Selector Lever/Relay Lever, Installed Position

Fig 5: Installation Position Of Transmission Selector Lever/Relay Lever
GWWN34-10061Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Shift lever

2 - The relay lever fits into the sliding rail on the transmission shift lever via the sliding shoe -arrow-.

Cable Retainer, Replacing

Fig 6: Pulling Securing Mechanism Toward Front Then Lock Toward Left
GWWN34-10062Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Pull the locking mechanism forward at the cable retainer from the shift cable and selector cable as far as the stop -arrows 1- and then release it to the left -arrows 2-.

-- Remove the shift cable lock washer -3- from the transmission shift lever -1-.

-- Remove the shift cable from the pin.

Fig 7: Removing/Installing Shift Cable Lock Washer From Transmission Shift Lever And Cable From Pins
GWWN34-10000Courtesy of VOLKSWAGEN UNITED STATES, INC.

With a Metal Relay Lever:

-- Remove the selector cable lock washer -4- from the relay lever -2-.

-- Remove the selector cable from the pin.

With a Plastic Relay Lever:

-- Remove the relay lever with the cable retainer. Refer to Figure.

-- Pry the cable retainer out Figure.

Continuation for all Vehicles:

-- Apply a small amount of grease on the pin on the transmission shift lever -arrows- -1- and on the relay lever -2-.

-- Replace the lock washer -3- and the lock washer -4- on the metal relay lever each time they are removed.

-- Attach the shift cable with lock washer -3- (metal relay lever) and selector cable with lock washer -4-.

NOTE:

If a plastic relay lever is installed, then it must be installed together with the cable retainer. Refer to Figure.

Adjust the shift mechanism. Refer to SHIFT MECHANISM, ADJUSTING .
