Accessing The J519 Vehicle Electrical System Control Module (TT 68-08-02)
WARNING: This page is about the Passat 2.0T, Automatic, which is a different variant/trim than selected.
Publication date: 2008-01-01Reference number: TT 68-08-02
ACCESSING THE J519 VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
TECH TIPS
Reference Number(s): TT 68-08-02
| VOLKSWAGEN: | 2006> Passat |
| GROUP: | 68 - Interior Equipment |
SERVICE INFORMATION
2006> Passat - Accessing the J519 Vehicle Electrical System Control Module

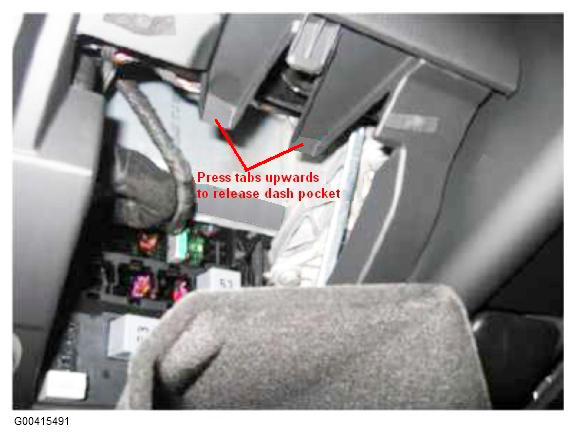

During a diagnosis, it may be necessary to access the Vehicle Electrical System Control Module (J519). To do this, remove the foot well cover on the driver's side (just left of the steering column). Then use 2 fingers to press the tabs upward to release the pocket.
