Electronic Damping Control Module

WARNING: This page is about a different car, the 2010 Volkswagen Passat and 2009 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

Removing

NOTE:

Component location: Behind the right side luggage compartment trim.

-- Switch off all electrical consumers.

-- Remove the ignition key.

-- Remove the right luggage compartment side trim. Refer to Removal and Installation .

-- Remove the electronic damping control module -J250- -1- from the compartment.

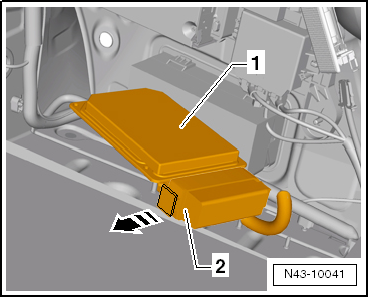

Fig 1: Electronic Damping Control Module

Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Release and disconnect the connector -2-.

Installing

Installation is the reverse of removal, with special attention to the following:

-- Perform a basic setting on the adaptive chassis DCC. Refer to ADAPTIVE CHASSIS DCC, BASIC SETTING .
