Relays On E-Box High: Notes

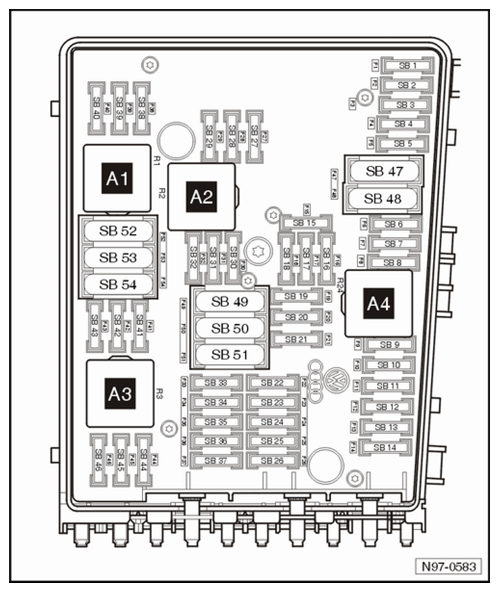

G12750303Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. A1  - Current bridge
  2. A2  - Recirculation pump relay -J160- (100)
  3. A3  - Motronic engine Control Module power supply relay 2 -J670- (167)
  4. A4  - Motronic engine Control Module power supply relay -J271- (100)
    • Only gasoline engines
  5. A4  - Terminal 30 Power Supply Relay -J317- (100)
    • Only diesel engines
