Overview Of Fuses

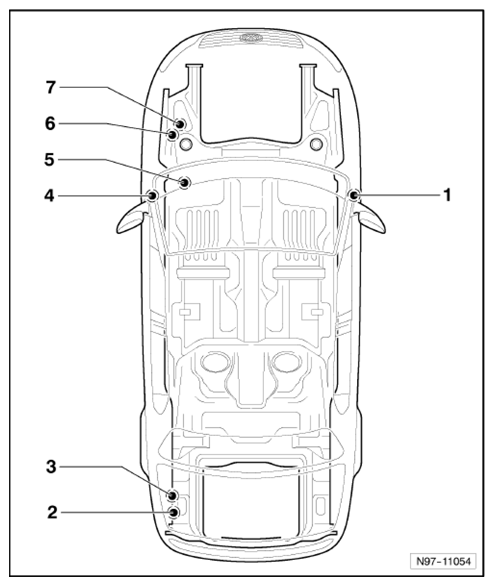

G12750300

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fuse panel D -SD-
- → "FUSE PANEL D SD, THROUGH APRIL 2008 "
- → "FUSE PANEL D SD, FROM MAY 2008 "
Fuse panel F -SF-
- → "FUSE PANEL F SF, (AXZ, BLV, BWS) "
Fuse 2 (30) -S205-
- → "FUSE 2 (30) S205 "
Fuse panel C -SC-
- → "FUSE PANEL C SC, THROUGH APRIL 2008 "
- → "FUSE PANEL C SC, FROM MAY 2008 "
Circuit breakers, under left instrument panel
- → "CIRCUIT BREAKERS, UNDER INSTRUMENT PANEL, LEFT "
Fuse panel B -SB-
- → "FUSE PANEL B SB (NOT FOR AXX, AXZ, BLV, BPY, BWA) THROUGH APRIL 2005 "
- → "FUSE PANEL B SB ON E-BOX HIGH "
- → "FUSE PANEL B SB ON E-BOX LOW, FROM MAY 2005 "
Fuse panel A -SA-
- → "FUSE PANEL A SA ON E-BOX HIGH "
- → "FUSE PANEL A SA ON E-BOX LOW "
