Accident Repairs

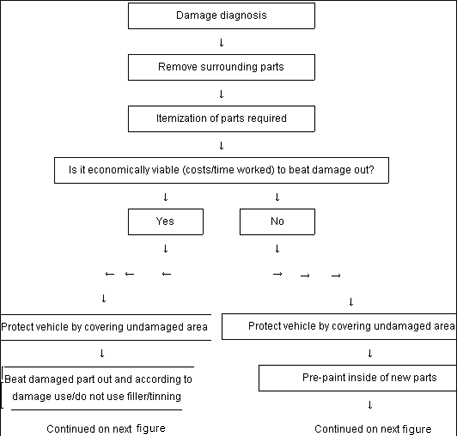

Fig 1: Accident Repairs Flow Chart (1 Of 2)
GW00009289Courtesy of VOLKSWAGEN UNITED STATES, INC.

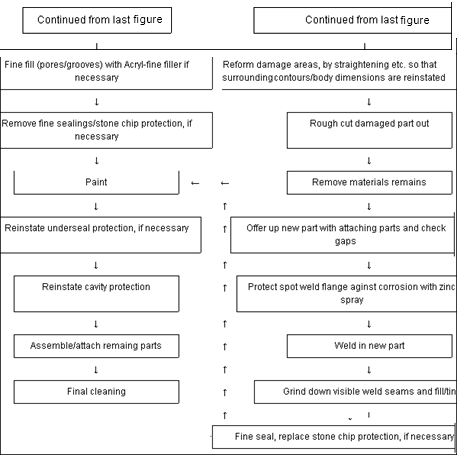

Fig 2: Accident Repairs Flow Chart (2 Of 2)
GW00009290Courtesy of VOLKSWAGEN UNITED STATES, INC.
