Side Window Assembly Overview, Wagon

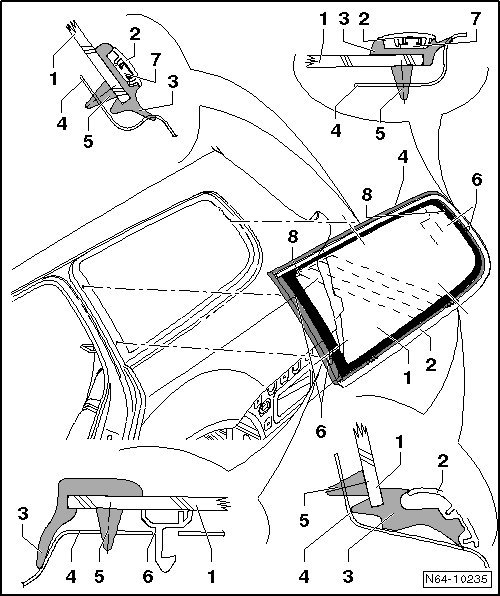

Fig 1: Side Window, Wagon - Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Side Window
- Remove side window, refer to UNDAMAGED WAGON SIDE WINDOW, REMOVING
- Installing side window, refer to WAGON SIDE WINDOW, INSTALLING
Decorative trim strip
- Component part of side window.
Seal
- Component part of side window.
Side panel
PUR adhesive sealant
- Bead diameter: width = 6.5 mm, height = 10 mm (including pre-coating, residual material on window glass and window flange)
- Minimum curing time, refer to MINIMUM CURING TIME .
Retaining clip
- Component part of side window.
Clips
- Component part of side window.
Electrical connections
- Connections for various Infotainment systems
