Plenum Chamber Cover Assembly Overview

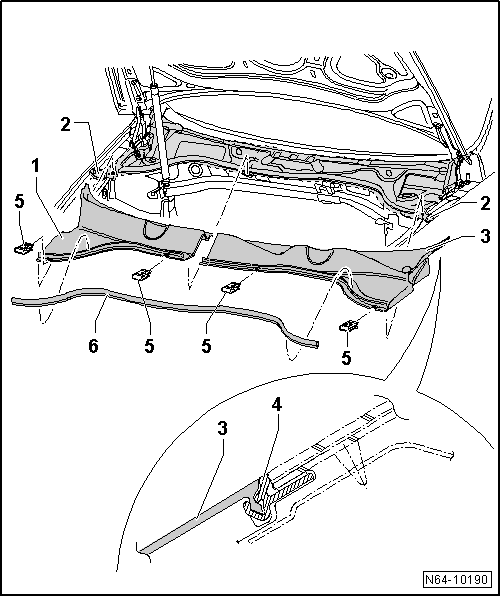

Fig 1: Plenum Chamber Cover - Assembly Overview
GWWN64-10190Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Right plenum chamber cover
  2. Molded foam part
  3. Left plenum chamber cover
  4. Retainer
    • Part of the windshield
  5. Retaining clip
  6. Seal
