Transmission Control Module -J217-
Transmission Systems - Connector Views

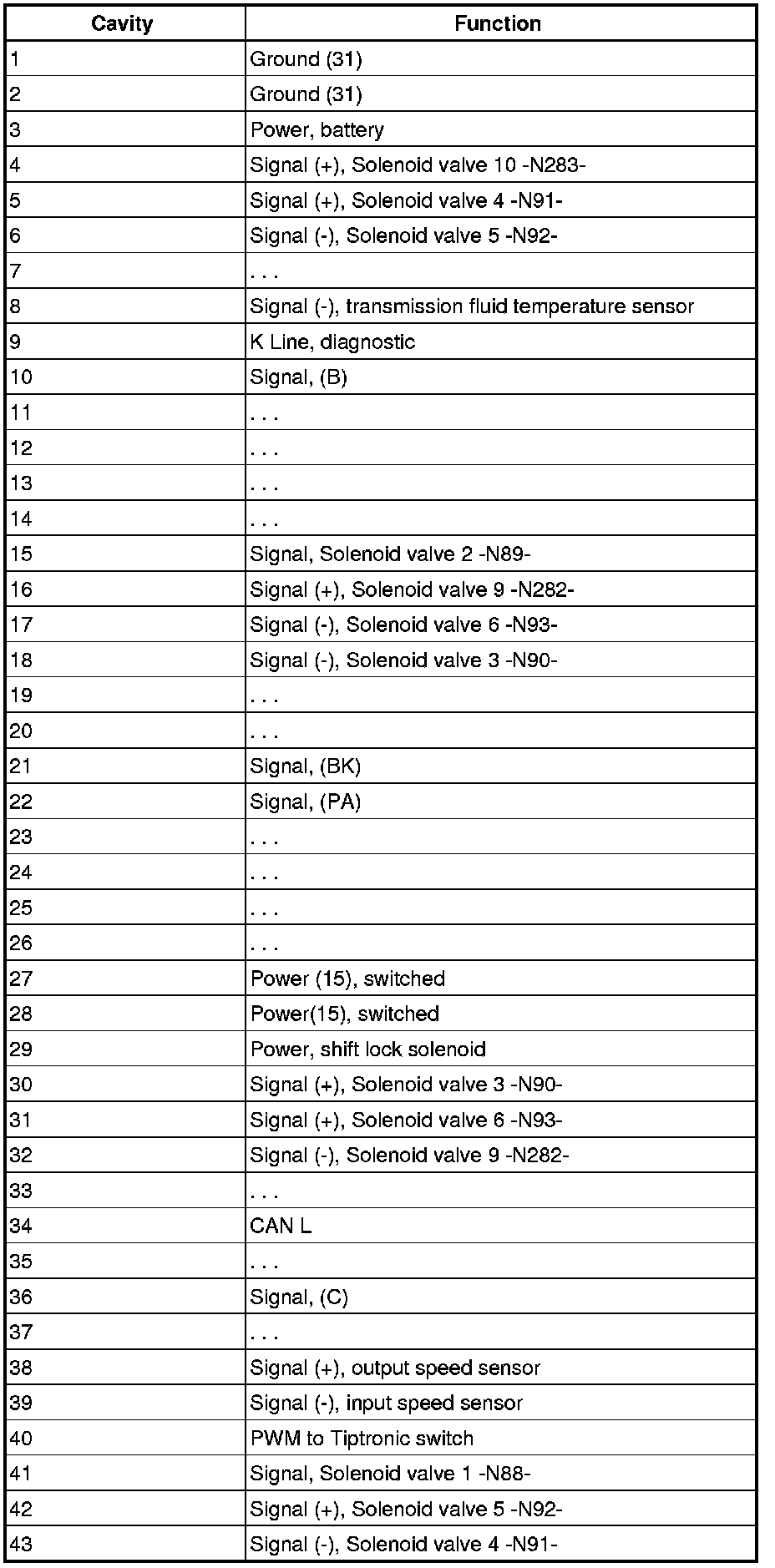

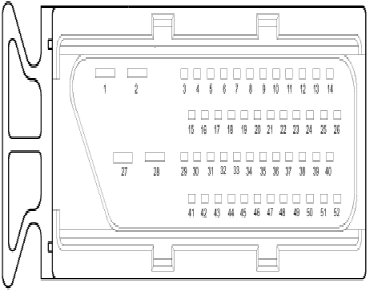

Transmission control module -J217-
09G, 09M Transmissions
