System Specifications

Fastener Tightening Specifications





• 1 Always replace

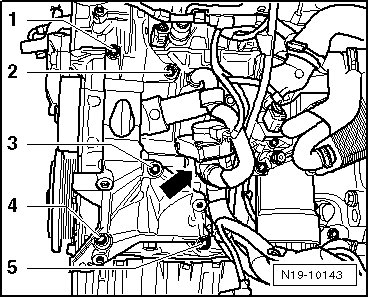

Accessory Bracket Bolt Tightening Sequence and Specification





- Tighten bolt - 2 and 4 - by hand.

- Tighten bolts - 1, 3 and 5 - by hand.

- Tighten all bolts uniformly and in a diagonal sequence to 23 Nm
