Electronic Throttle Control Indicator: Locations

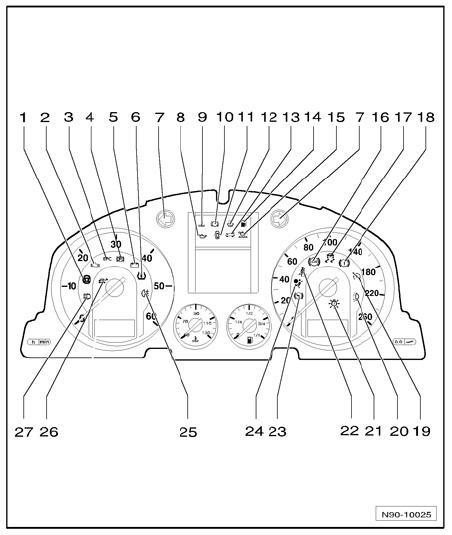

Instrument Cluster Warning And Indicator Lamps, Overview

NOTE:
- Applicability and layout of instrument cluster warning and indicator lamps depend on engine, vehicle equipment and market version.
- Different instrument clusters are used, depending on vehicle equipment. Some lamps illustrated here may not apply to US/CDN models.







1 - Electro-mechanical power steering
2 - Malfunction Indicator Lamp(MIL)
3 - EPC - Electronic Power Control
- Warning lamp only present in vehicles with gasoline engine
4 - Electronic parking brake
5 - Generator(GEN)
6 - Tire pressure monitoring (TPM)
7 - Turn signal indicator (turn signal/emergency flasher system)
8 - Engine oil pressure
9 - Engine coolant temperature / level
10 - Brake pad wear indicator
11 - Indicator lamp "doors open"
12 - Washer fluid level
13 - Indicator lamp "front hood open"
14 - Low fuel level
15 - Engine oil pressure
16 - Anti-lock braking system (ABS)
17 - Electronic Stabilization Program (ESP)
18 - Parking brake / brake system
19 - Cruise Control System (CCS)
20 - Fog lamps
21 - Bulb failure
22 - Safety belts
23 - Indicator lamp "foot brake engaged"
- Warning lamp only present in vehicles with automatic transmission
24 - Airbag / safety belt tensioner
25 - Rear fog lamp
26 - Indicator lamp "fuel tank cap open"
27 - High beam
