Rear Subframe: Service and Repair

Front Wheel Drive (FWD)

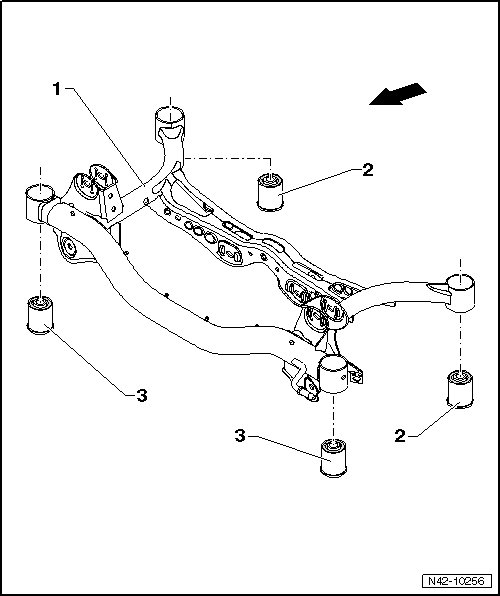

Subframe Assembly Overview

The - arrow - points in driving direction.





1 Subframe

2 Rear Bonded Rubber Bushing

• Replacing, refer to => [ Subframe Bonded Rubber Bushings ] Front Wheel Drive (FWD).

3 Front Bonded Rubber Bushing

• Replacing, refer to => [ Subframe Bonded Rubber Bushings ] Front Wheel Drive (FWD).
