Selector Lever Manual Release

Do not remove the handle.

-- Press the brake pedal or set the parking brake.

In case of an emergency:

Vehicles through 02.09

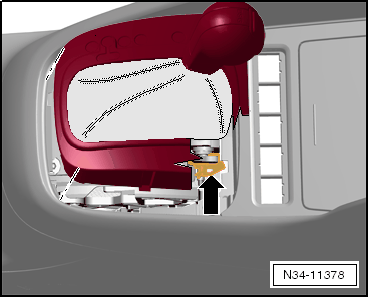

Fig 1: Identifying Leather Boot And Trim
GWWN34-11378Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Hold the leather boot and remove the trim.

-- Press on the yellow plastic piece from the right to the left.

Vehicles from 03.09

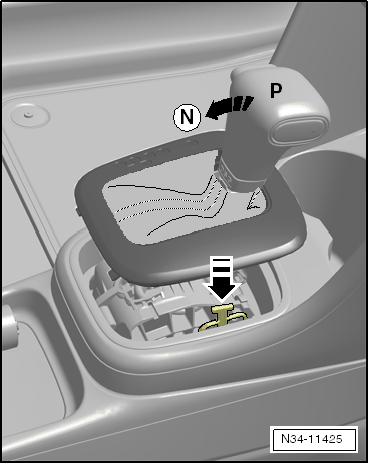

Fig 2: Identifying Yellow Plastic Piece And Lever Moved Out Of "P" Position
GWWN34-11425Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Unclip the shift cover and move it to the side.

-- Push down -arrow- on the yellow plastic piece.

The lever can not be moved out of the "P" position.
