Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

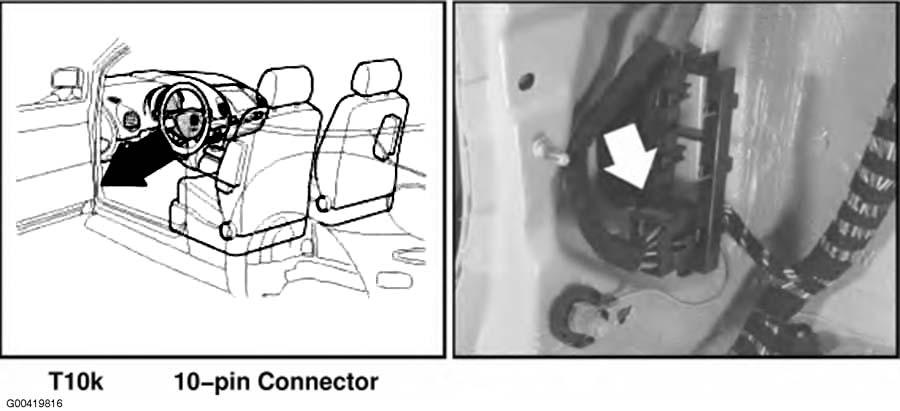

Fig 1: Left Kick Panel

G00419816

Courtesy of VOLKSWAGEN UNITED STATES, INC.

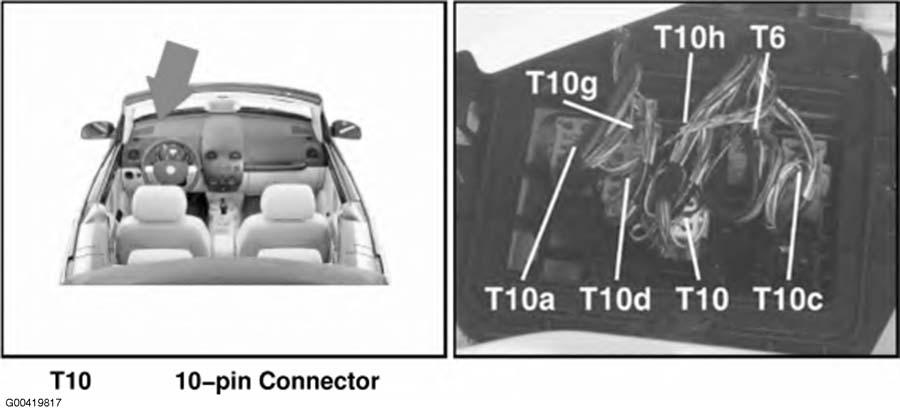

Fig 2: Behind Left Side Of Dash

G00419817

Courtesy of VOLKSWAGEN UNITED STATES, INC.

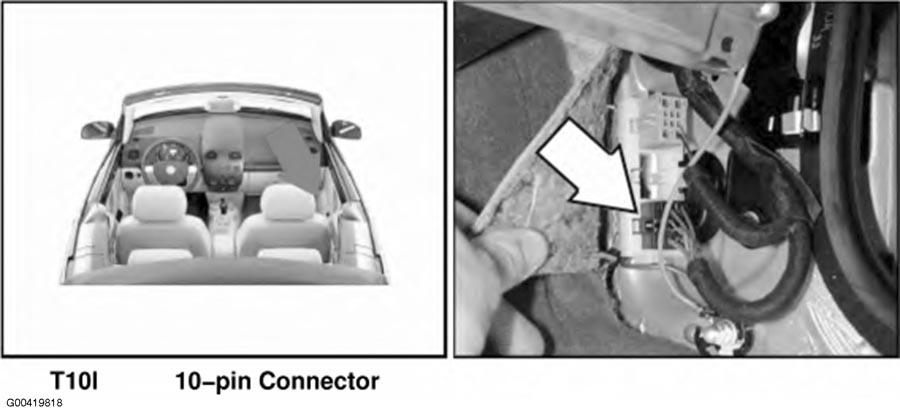

Fig 3: Right Kick Panel

G00419818

Courtesy of VOLKSWAGEN UNITED STATES, INC.

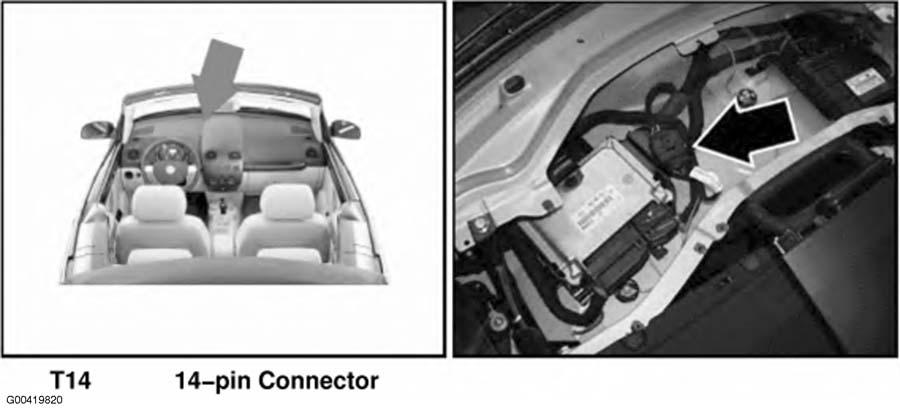

Fig 4: Rear Of Engine Compartment

G00419820

Courtesy of VOLKSWAGEN UNITED STATES, INC.

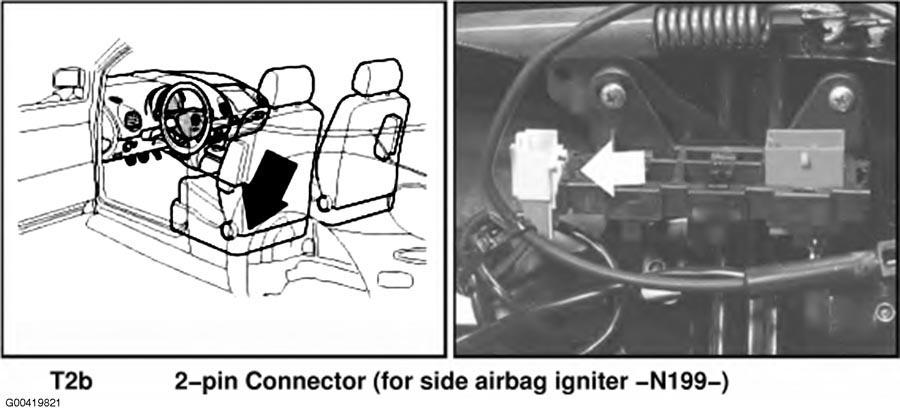

Fig 5: Below Driver's Seat

G00419821

Courtesy of VOLKSWAGEN UNITED STATES, INC.

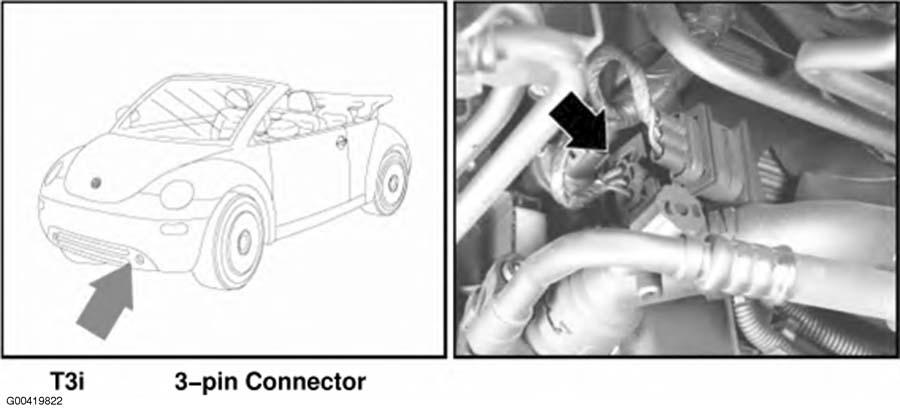

Fig 6: Left Front Of Vehicle

G00419822

Courtesy of VOLKSWAGEN UNITED STATES, INC.

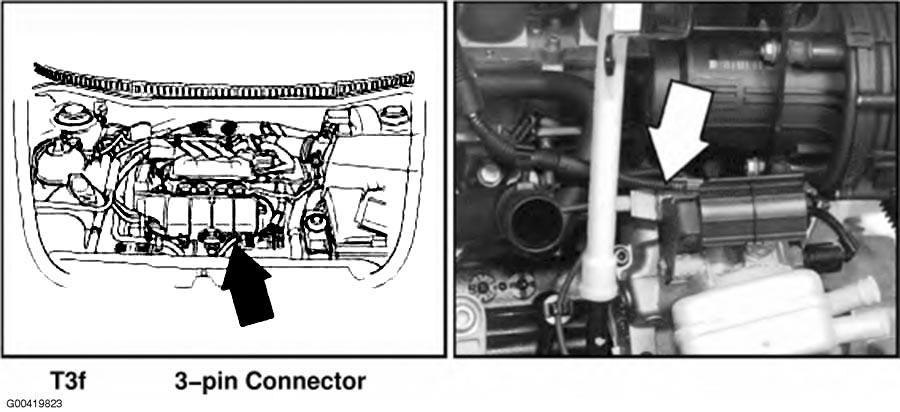

Fig 7: Left Side Of Engine

G00419823

Courtesy of VOLKSWAGEN UNITED STATES, INC.

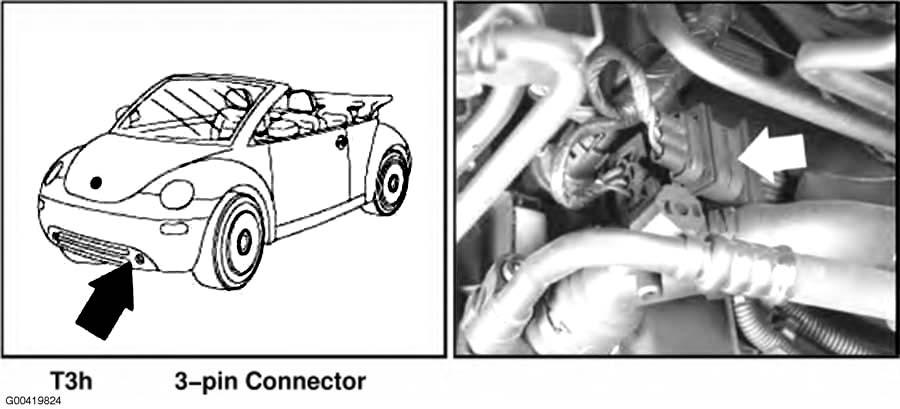

Fig 8: Left Front Of Vehicle

G00419824

Courtesy of VOLKSWAGEN UNITED STATES, INC.

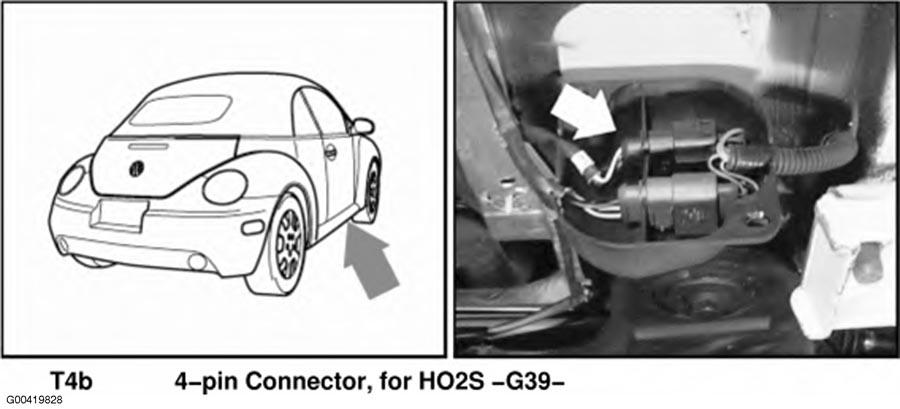

Fig 9: Under Right Side Of Vehicle

G00419828

Courtesy of VOLKSWAGEN UNITED STATES, INC.

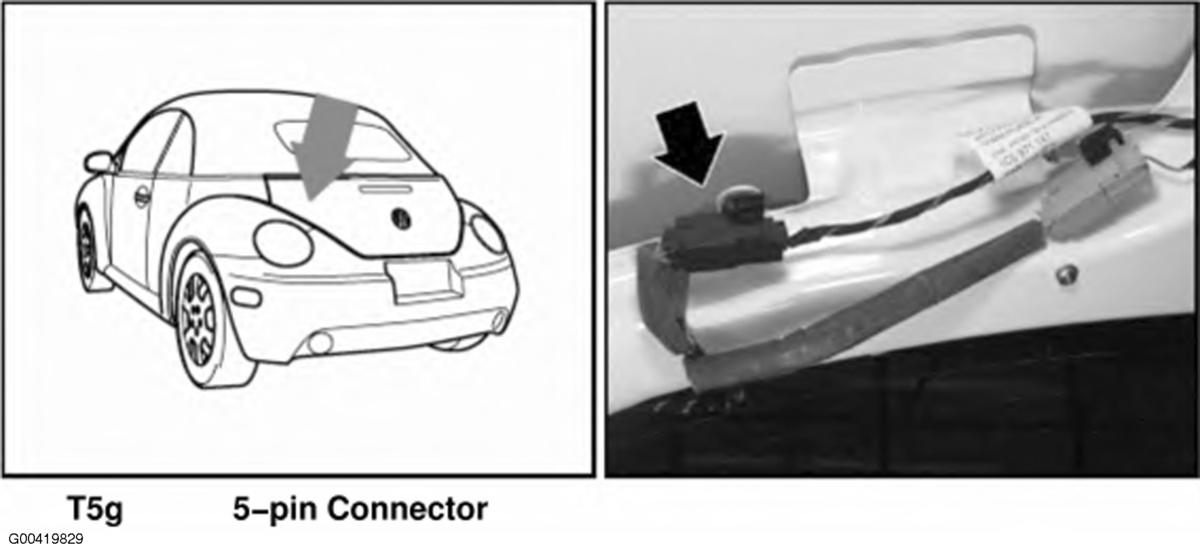

Fig 10: Left Side Of Luggage Compartment

G00419829

Courtesy of VOLKSWAGEN UNITED STATES, INC.

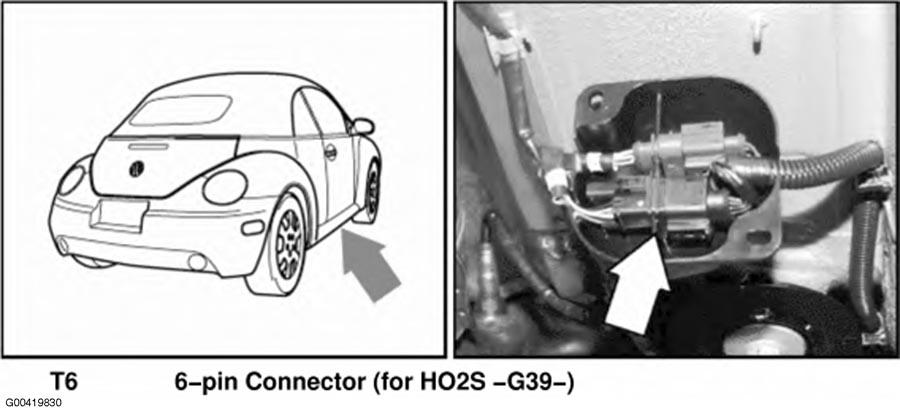

Fig 11: Under Right Side Of Vehicle

G00419830

Courtesy of VOLKSWAGEN UNITED STATES, INC.

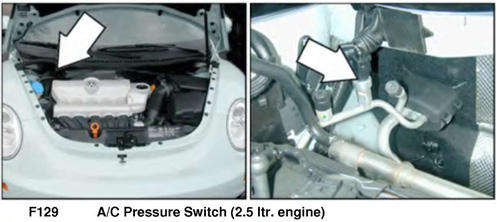

Fig 12: Right Rear Of Engine Compartment (2.5L)

G00451572

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 13: Left Side Of Engine Compartment

G00451573

Courtesy of VOLKSWAGEN UNITED STATES, INC.

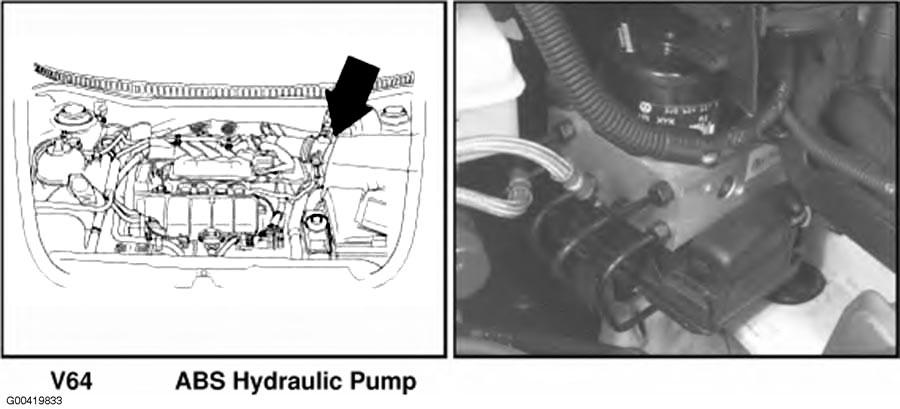

Fig 14: Left Side Of Engine Compartment

G00419833

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 15: Left Side Of Engine Compartment

G00451574

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 16: Under Center Of Dash

G00419835

Courtesy of VOLKSWAGEN UNITED STATES, INC.

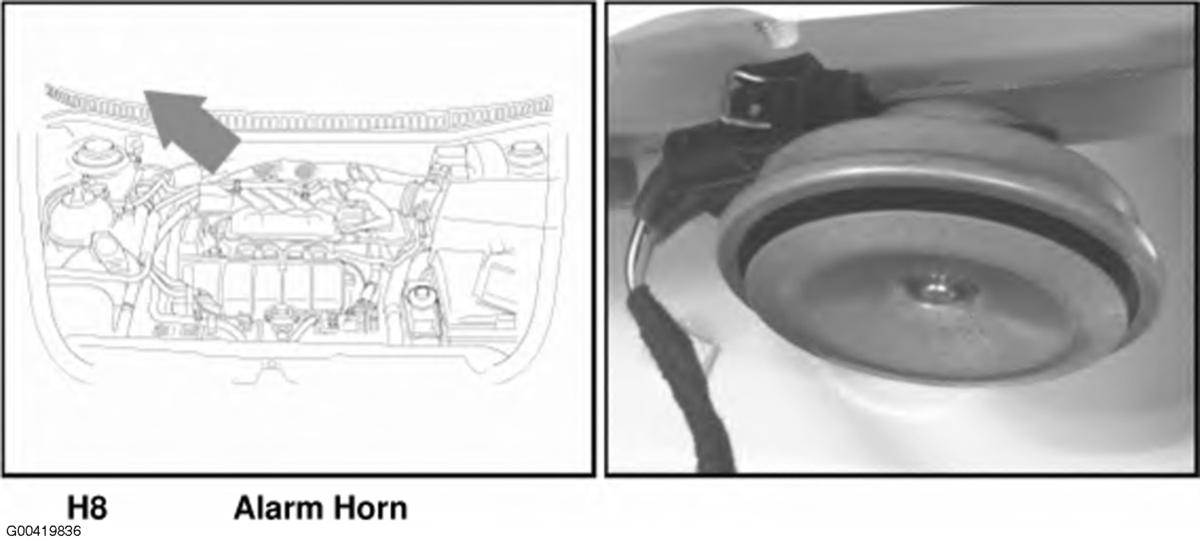

Fig 17: Right Rear Of Engine Compartment

G00419836

Courtesy of VOLKSWAGEN UNITED STATES, INC.

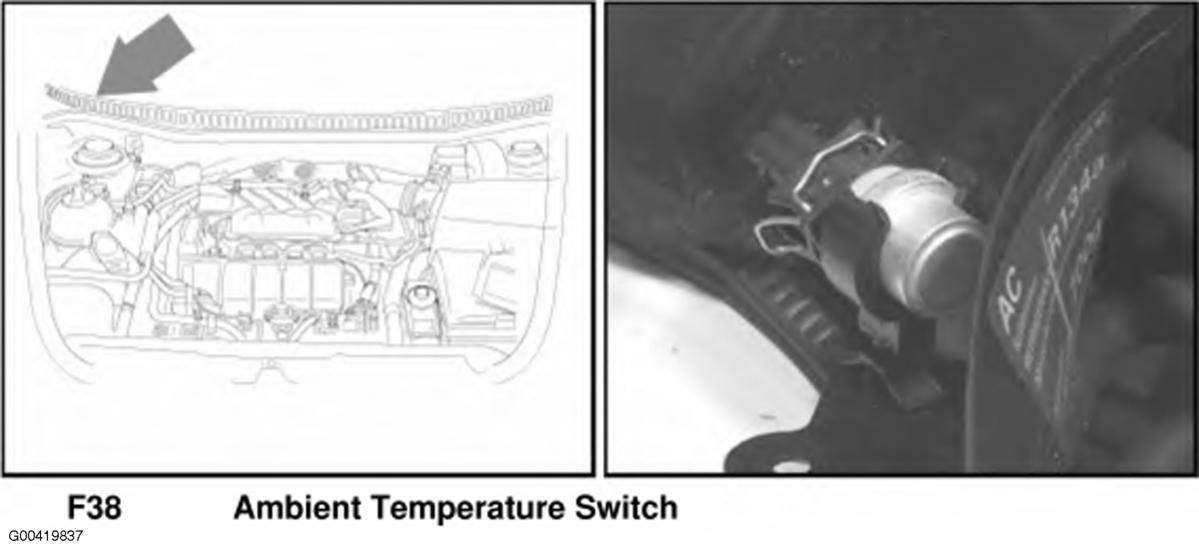

Fig 18: Right Rear Of Engine Compartment

G00419837

Courtesy of VOLKSWAGEN UNITED STATES, INC.

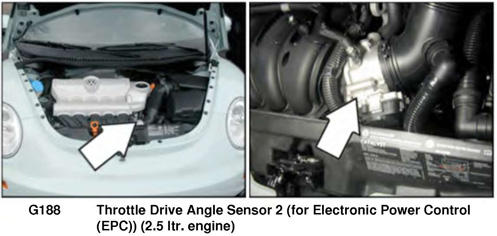

Fig 19: Rear Of Engine (2.5L)

G00451576

Courtesy of VOLKSWAGEN UNITED STATES, INC.

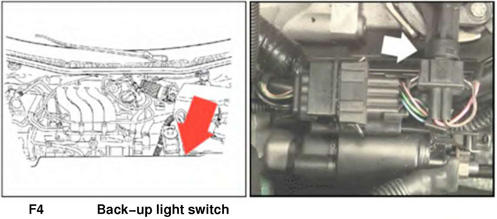

Fig 20: Left Side Of Engine Compartment

G00451577

Courtesy of VOLKSWAGEN UNITED STATES, INC.

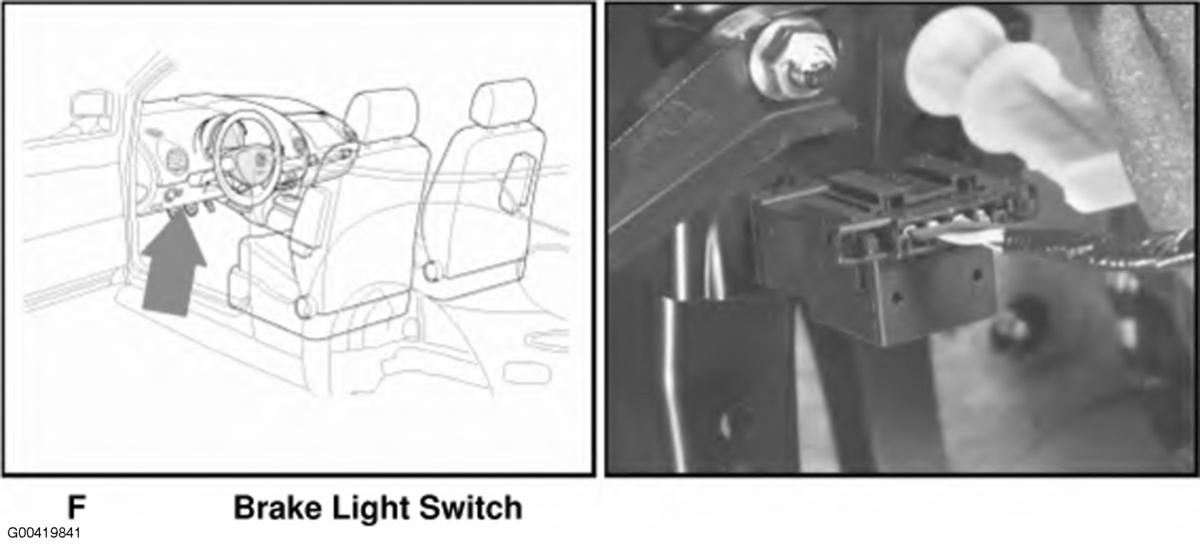

Fig 21: Under Left Side Of Dash

G00419841

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 22: Behind Left Side Of Dash

G00419843

Courtesy of VOLKSWAGEN UNITED STATES, INC.

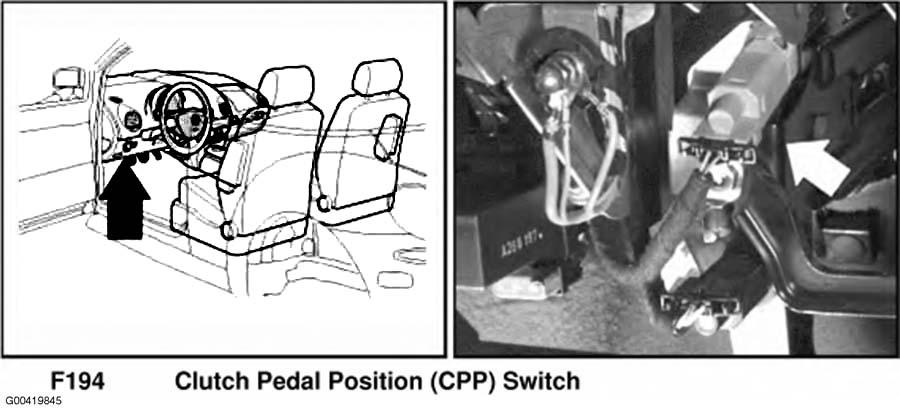

Fig 23: Under Left Side Of Dash

G00419845

Courtesy of VOLKSWAGEN UNITED STATES, INC.

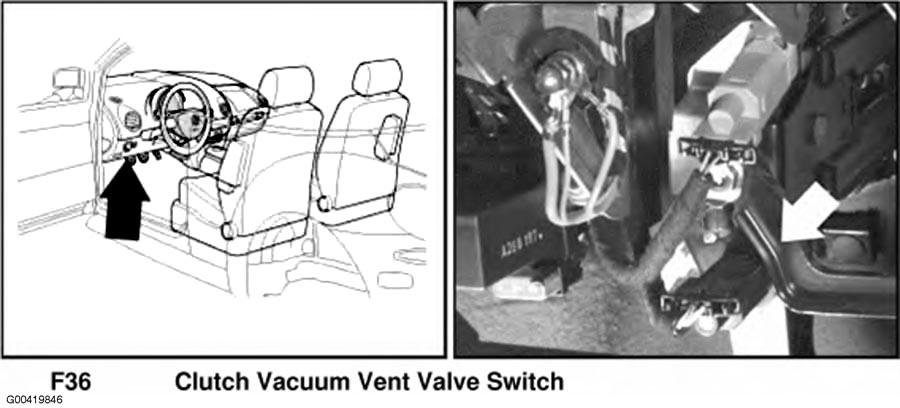

Fig 24: Under Left Side Of Dash

G00419846

Courtesy of VOLKSWAGEN UNITED STATES, INC.

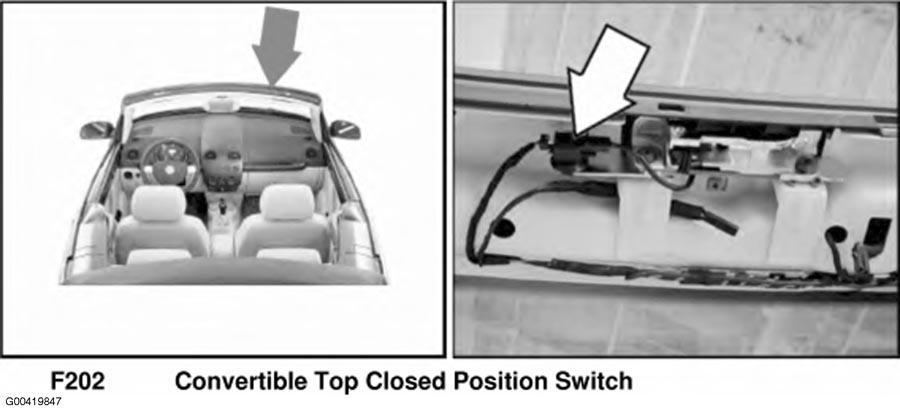

Fig 25: Windshield Header

G00419847

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 26: Right Side Of Luggage Compartment

G00419848

Courtesy of VOLKSWAGEN UNITED STATES, INC.

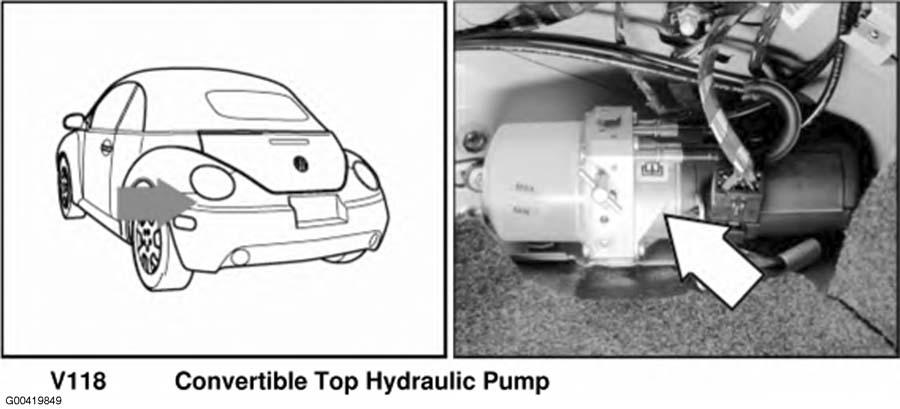

Fig 27: Left Side Of Luggage Compartment

G00419849

Courtesy of VOLKSWAGEN UNITED STATES, INC.

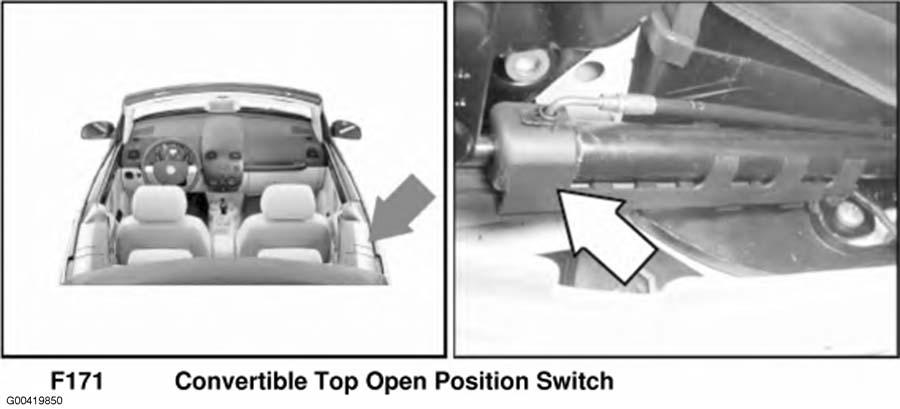

Fig 28: Top Of Right Quarter Panel

G00419850

Courtesy of VOLKSWAGEN UNITED STATES, INC.

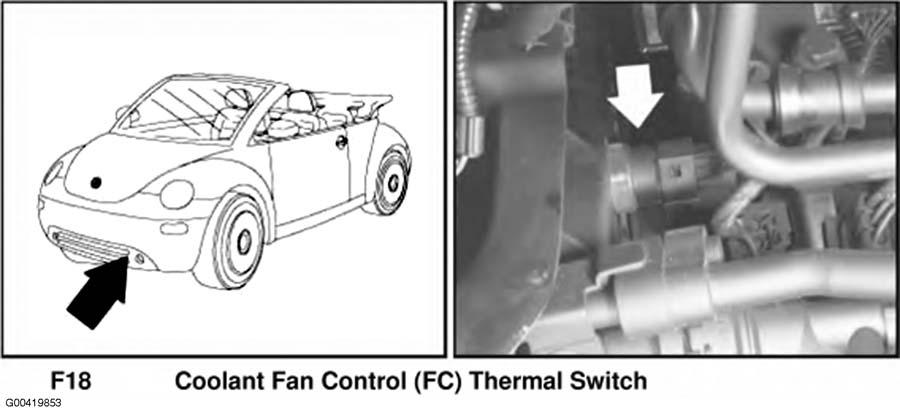

Fig 29: Left Side Of Radiator

G00419853

Courtesy of VOLKSWAGEN UNITED STATES, INC.

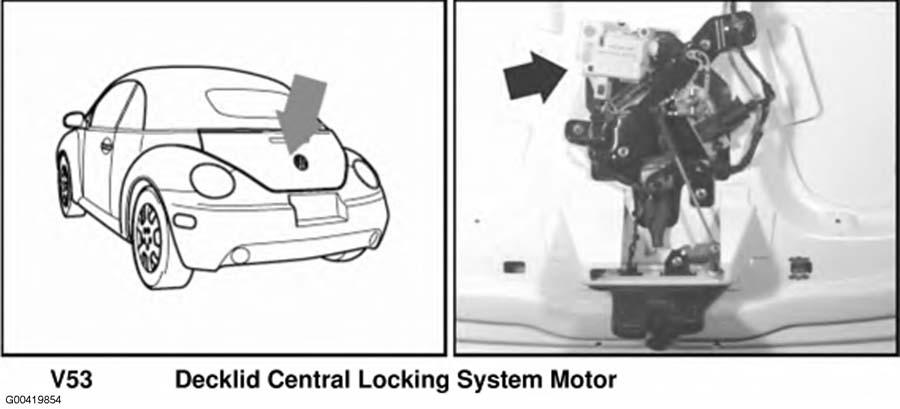

Fig 30: Center Of Decklid

G00419854

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 31: Left Rear Of Engine Compartment

G00451583

Courtesy of VOLKSWAGEN UNITED STATES, INC.

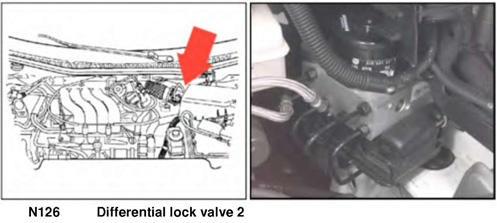

Fig 32: Left Rear Of Engine Compartment

G00451584

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 33: Driver's Door

G00419857

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 34: Passenger's Door

G00419858

Courtesy of VOLKSWAGEN UNITED STATES, INC.

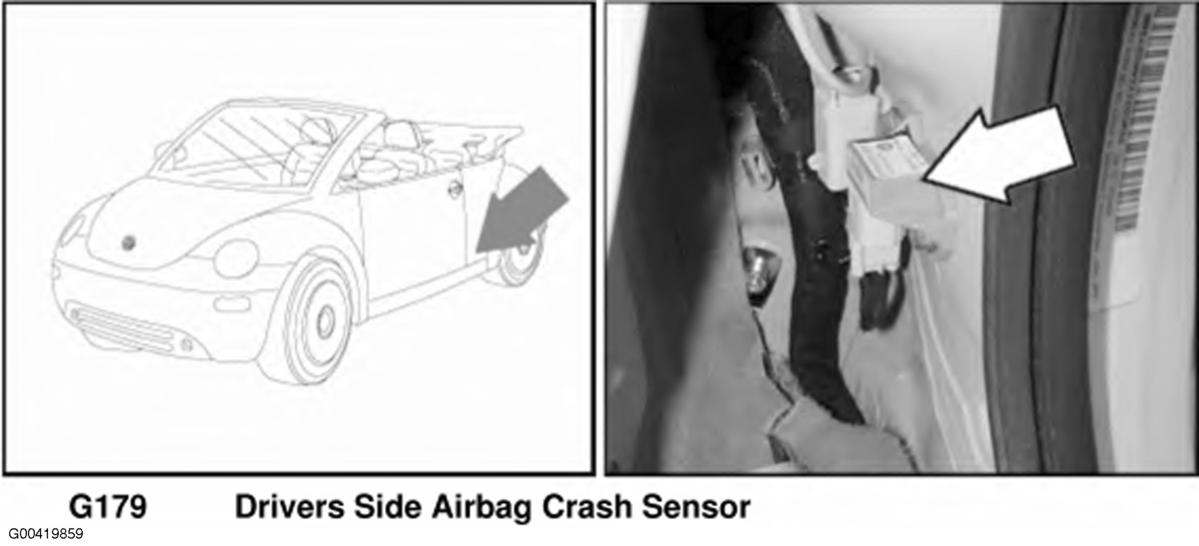

Fig 35: Left "B" Pillar

G00419859

Courtesy of VOLKSWAGEN UNITED STATES, INC.

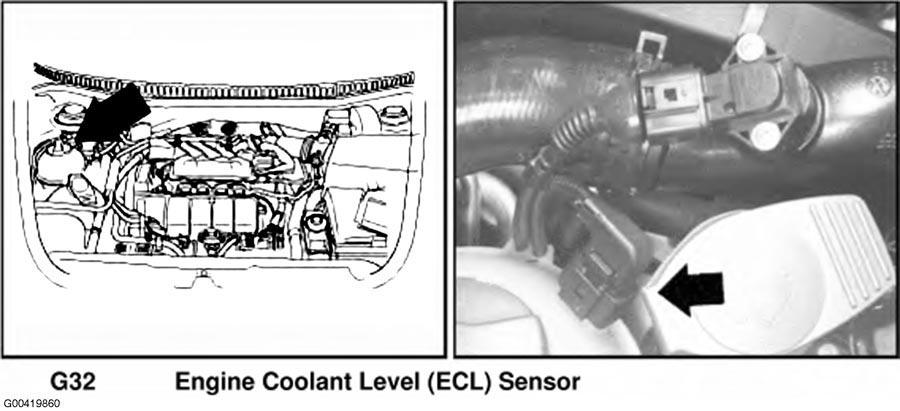

Fig 36: Right Side Of Engine Compartment

G00419860

Courtesy of VOLKSWAGEN UNITED STATES, INC.

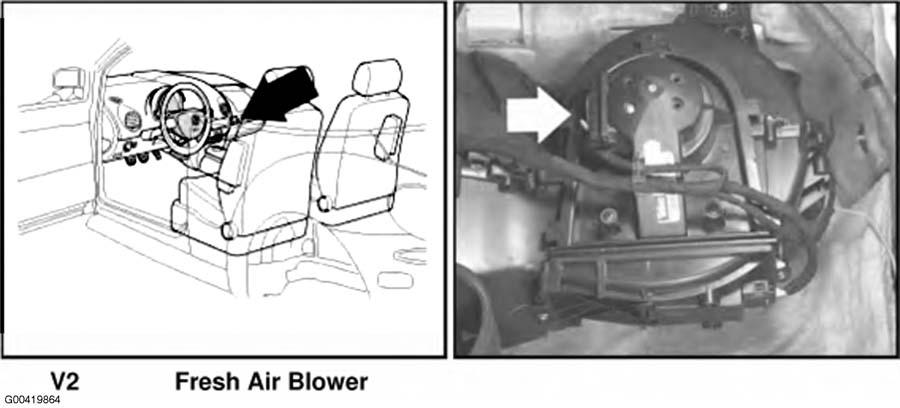

Fig 37: Behind Right Side Of Dash

G00419864

Courtesy of VOLKSWAGEN UNITED STATES, INC.

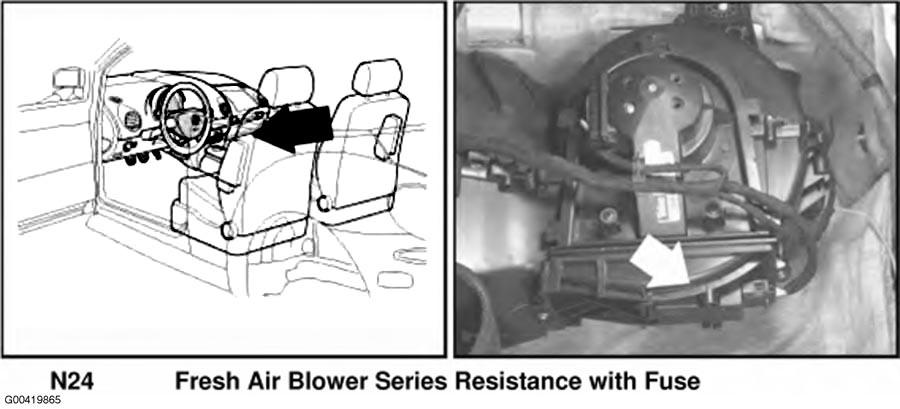

Fig 38: Under Right Side Of Dash

G00419865

Courtesy of VOLKSWAGEN UNITED STATES, INC.

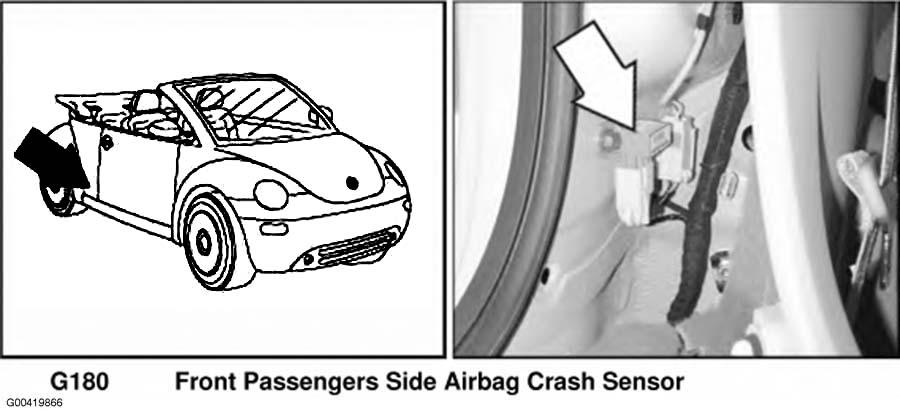

Fig 39: Right "B" Pillar

G00419866

Courtesy of VOLKSWAGEN UNITED STATES, INC.

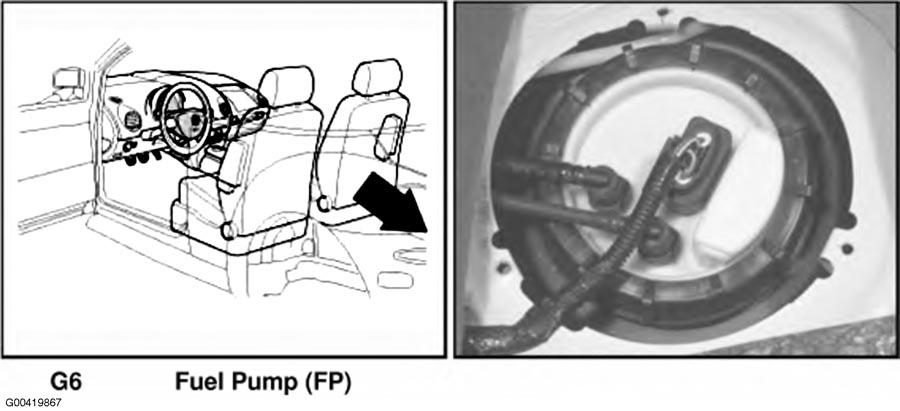

Fig 40: Under Rear Seat

G00419867

Courtesy of VOLKSWAGEN UNITED STATES, INC.

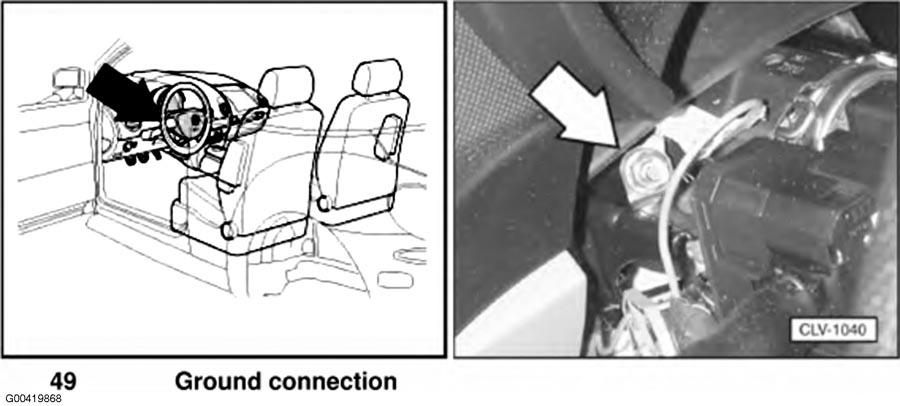

Fig 41: Steering Column

G00419868

Courtesy of VOLKSWAGEN UNITED STATES, INC.

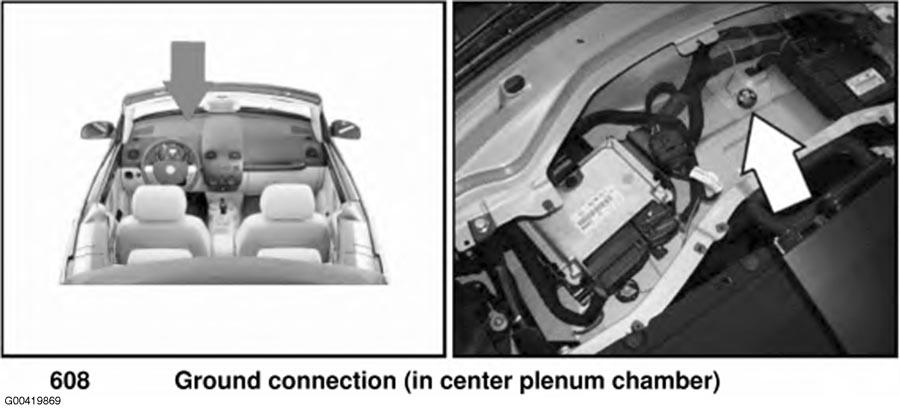

Fig 42: Plenum Chamber

G00419869

Courtesy of VOLKSWAGEN UNITED STATES, INC.

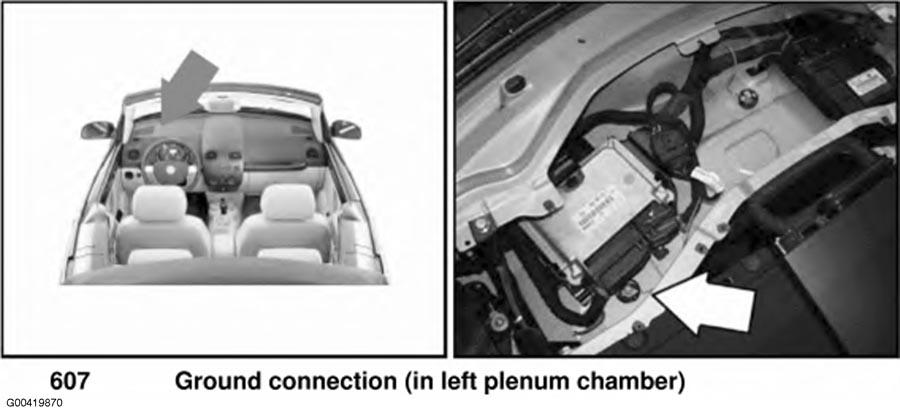

Fig 43: Plenum Chamber

G00419870

Courtesy of VOLKSWAGEN UNITED STATES, INC.

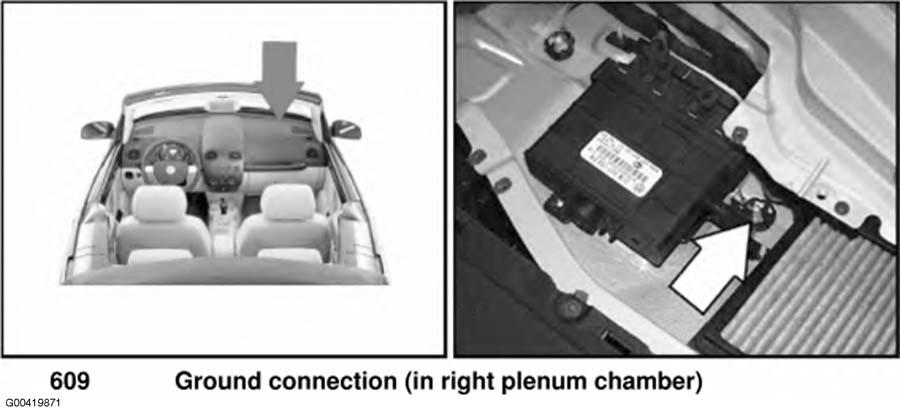

Fig 44: Plenum Chamber

G00419871

Courtesy of VOLKSWAGEN UNITED STATES, INC.

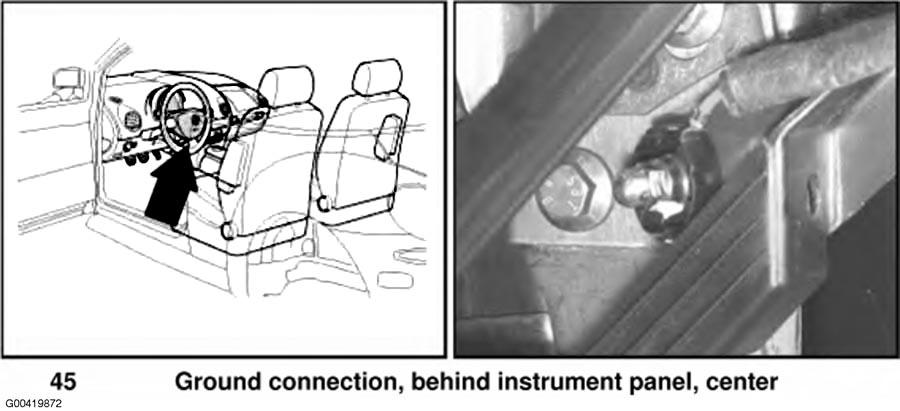

Fig 45: Behind Center Of Dash

G00419872

Courtesy of VOLKSWAGEN UNITED STATES, INC.

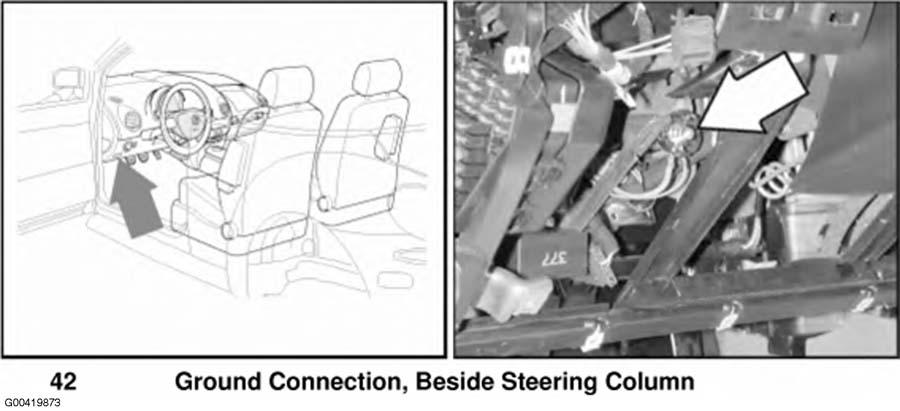

Fig 46: Behind Left Side Of Dash

G00419873

Courtesy of VOLKSWAGEN UNITED STATES, INC.

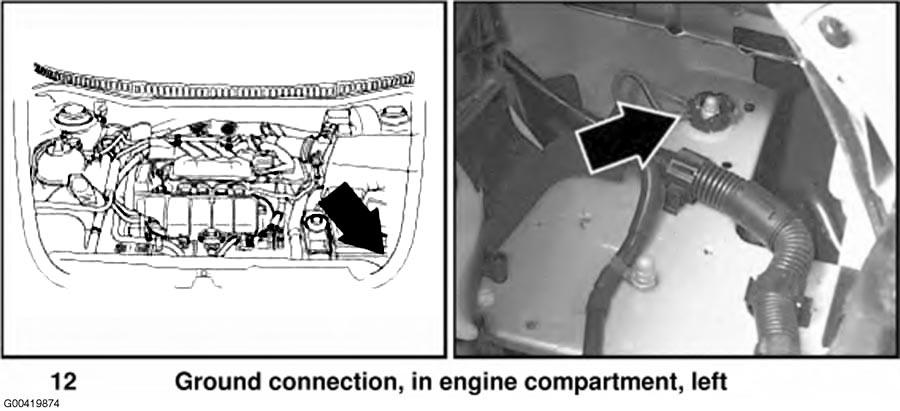

Fig 47: Left Front Of Engine Compartment

G00419874

Courtesy of VOLKSWAGEN UNITED STATES, INC.

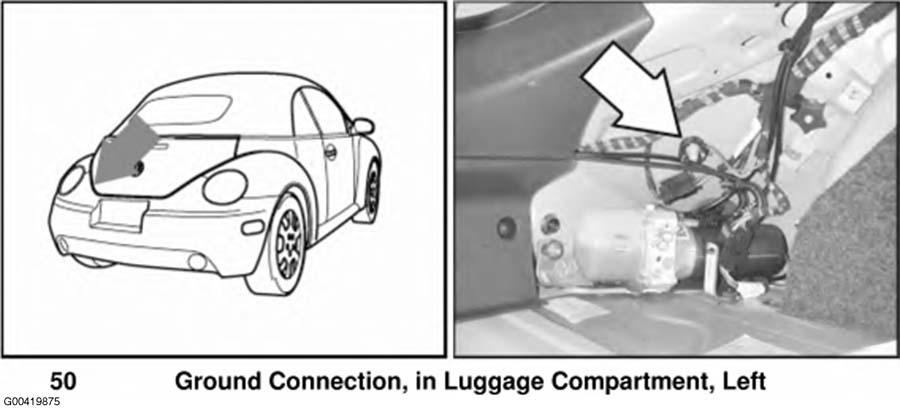

Fig 48: Left Side Of Luggage Compartment

G00419875

Courtesy of VOLKSWAGEN UNITED STATES, INC.

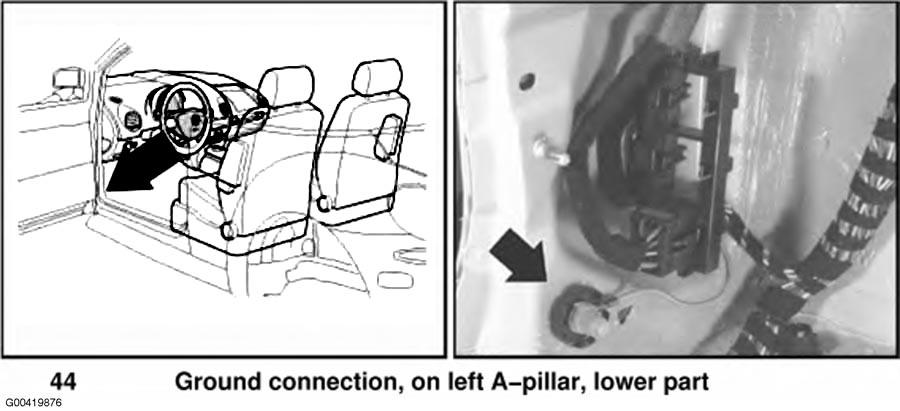

Fig 49: Left Kick Panel

G00419876

Courtesy of VOLKSWAGEN UNITED STATES, INC.

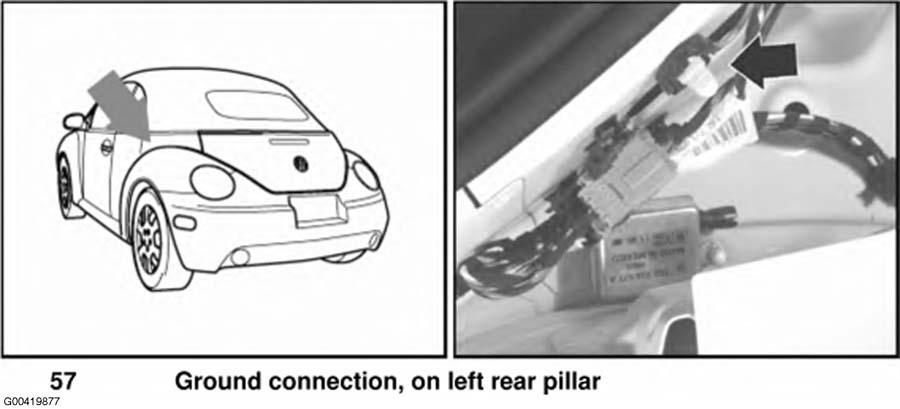

Fig 50: Left Rear Pillar

G00419877

Courtesy of VOLKSWAGEN UNITED STATES, INC.

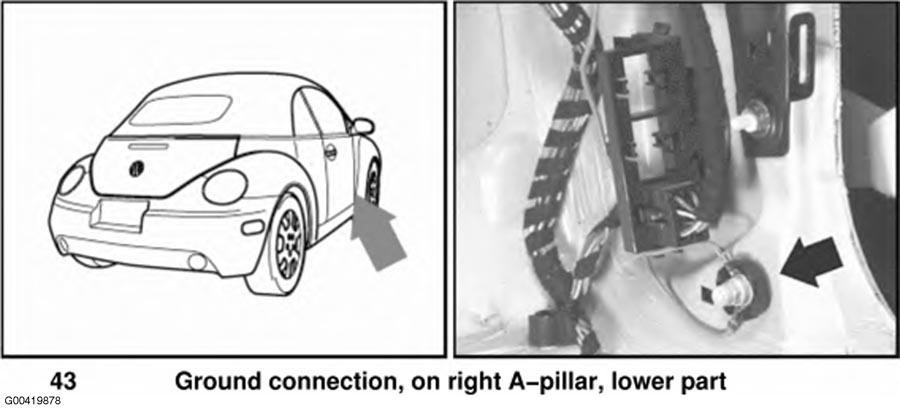

Fig 51: Right Kick Panel

G00419878

Courtesy of VOLKSWAGEN UNITED STATES, INC.

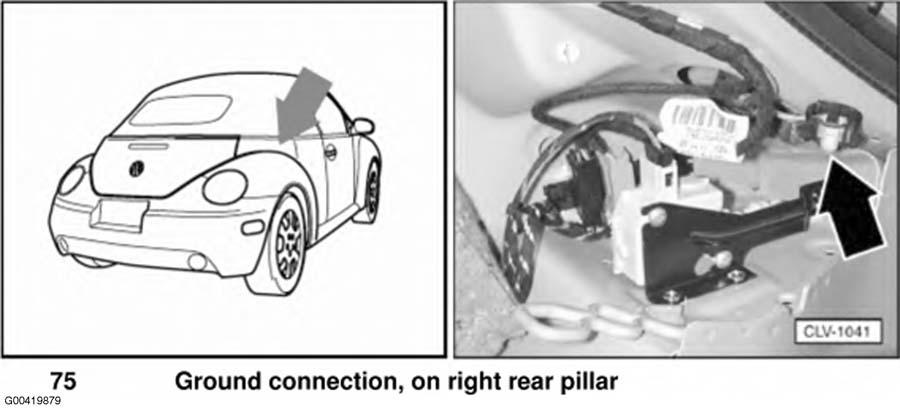

Fig 52: Right Rear Pillar

G00419879

Courtesy of VOLKSWAGEN UNITED STATES, INC.

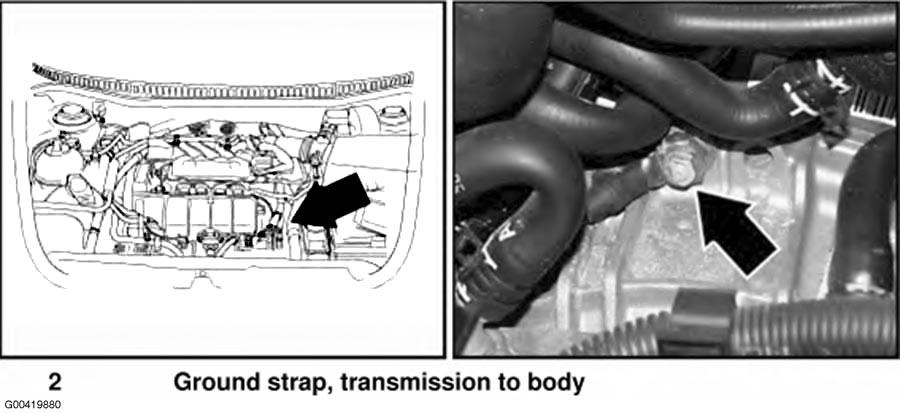

Fig 53: Top Of Transmission

G00419880

Courtesy of VOLKSWAGEN UNITED STATES, INC.

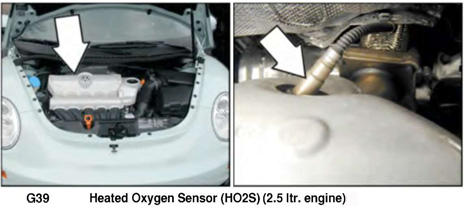

Fig 54: Rear Of Engine Compartment (2.5L)

G00451590

Courtesy of VOLKSWAGEN UNITED STATES, INC.

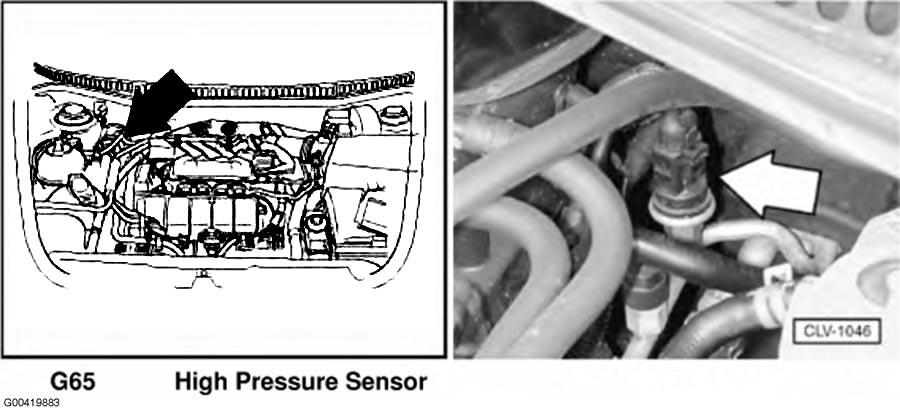

Fig 55: Right Rear Of Engine Compartment

G00419883

Courtesy of VOLKSWAGEN UNITED STATES, INC.

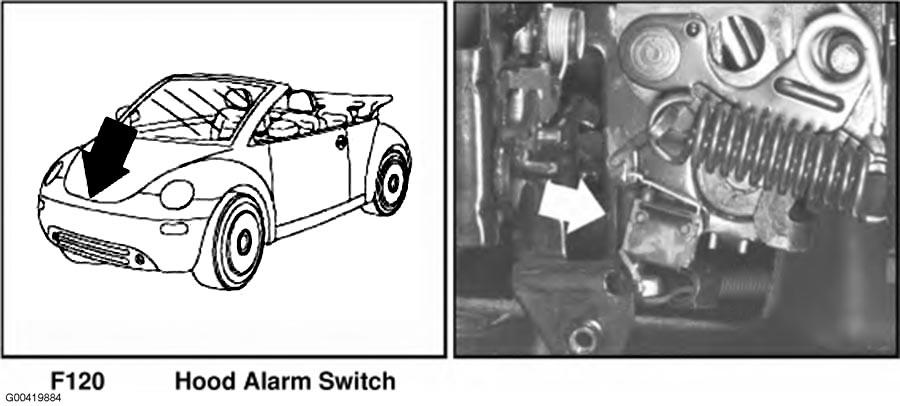

Fig 56: Engine Compartment Hood

G00419884

Courtesy of VOLKSWAGEN UNITED STATES, INC.

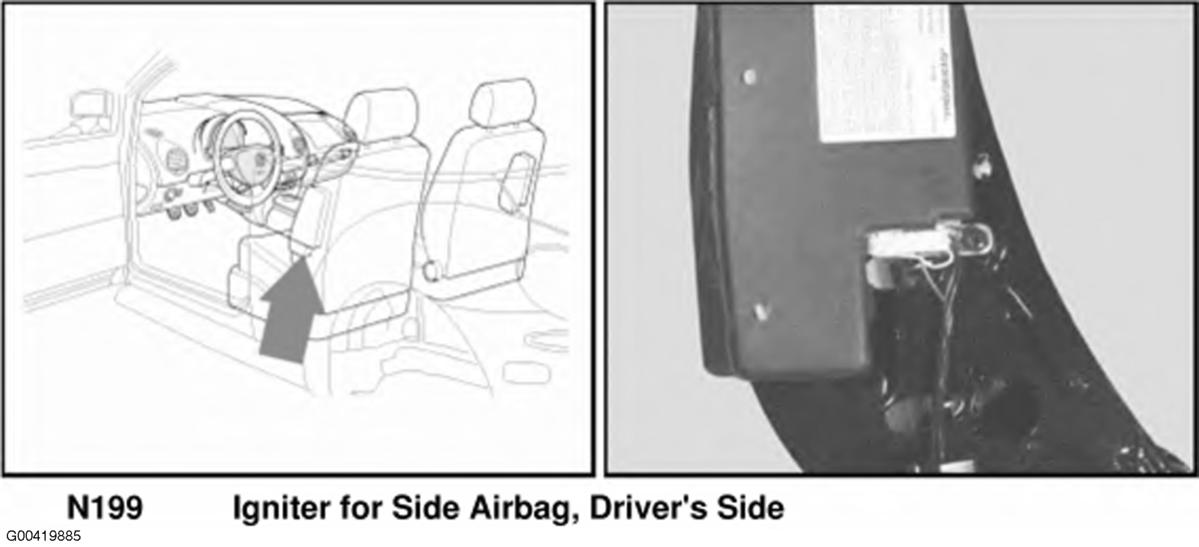

Fig 57: Driver's Seat

G00419885

Courtesy of VOLKSWAGEN UNITED STATES, INC.

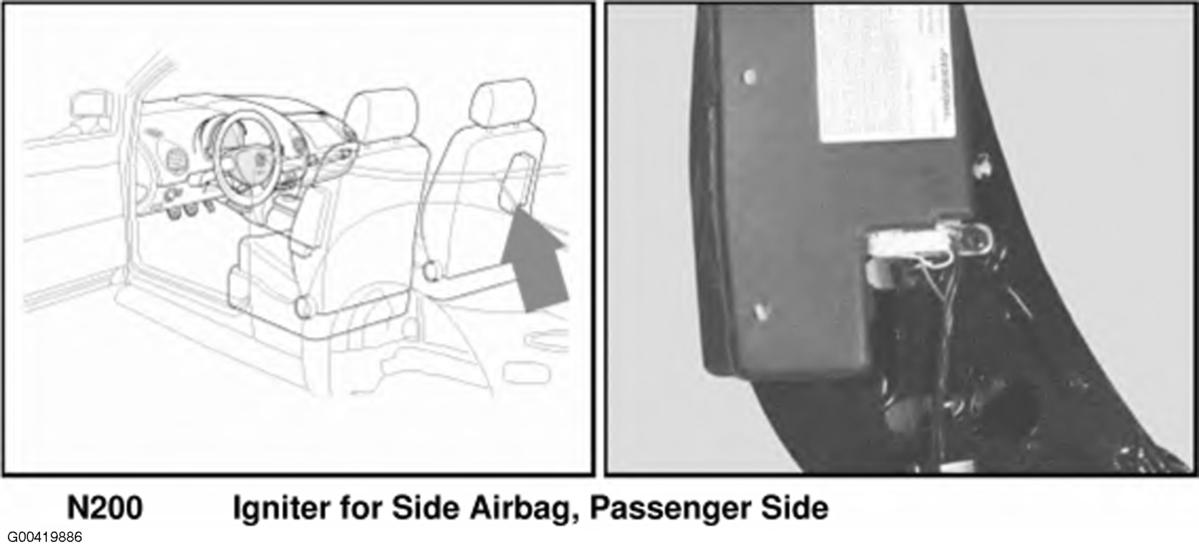

Fig 58: Passenger's Seat

G00419886

Courtesy of VOLKSWAGEN UNITED STATES, INC.

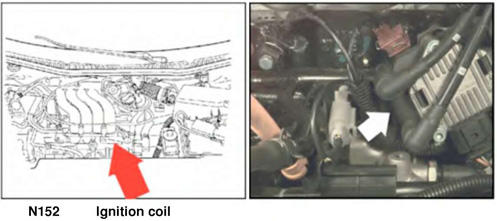

Fig 59: Left Side Of Engine (2.5L)

G00451591

Courtesy of VOLKSWAGEN UNITED STATES, INC.

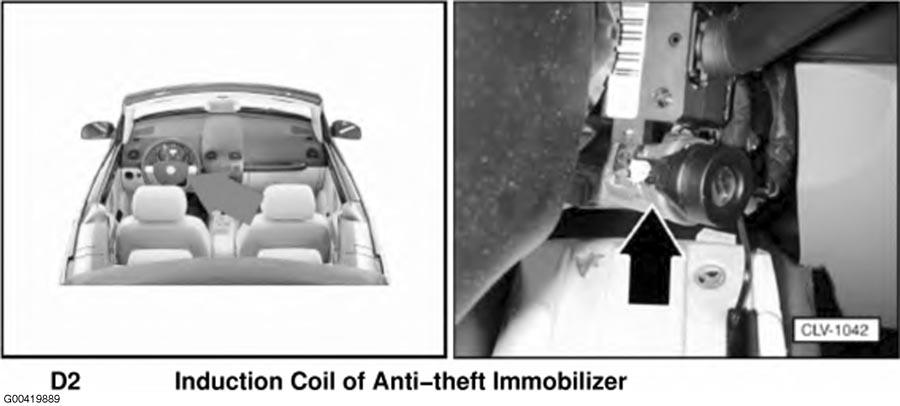

Fig 60: Steering Column

G00419889

Courtesy of VOLKSWAGEN UNITED STATES, INC.

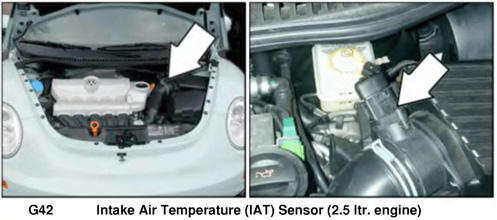

Fig 61: Left Rear Of Engine Compartment (2.5L)

G00451592

Courtesy of VOLKSWAGEN UNITED STATES, INC.

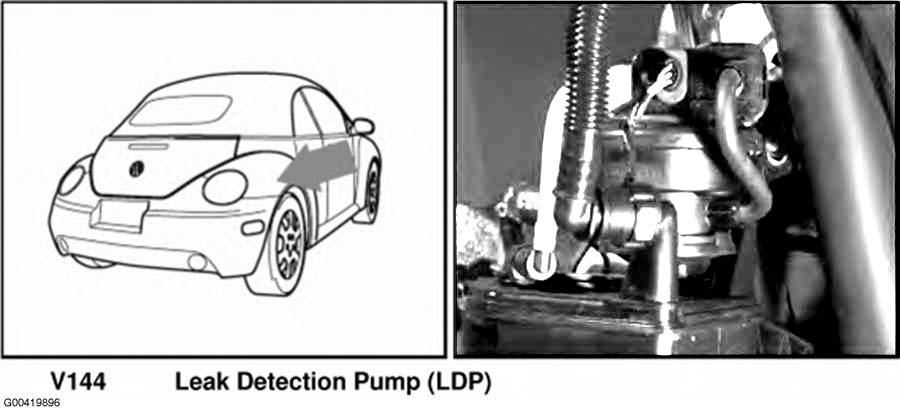

Fig 62: Right Rear Of Vehicle

G00419896

Courtesy of VOLKSWAGEN UNITED STATES, INC.

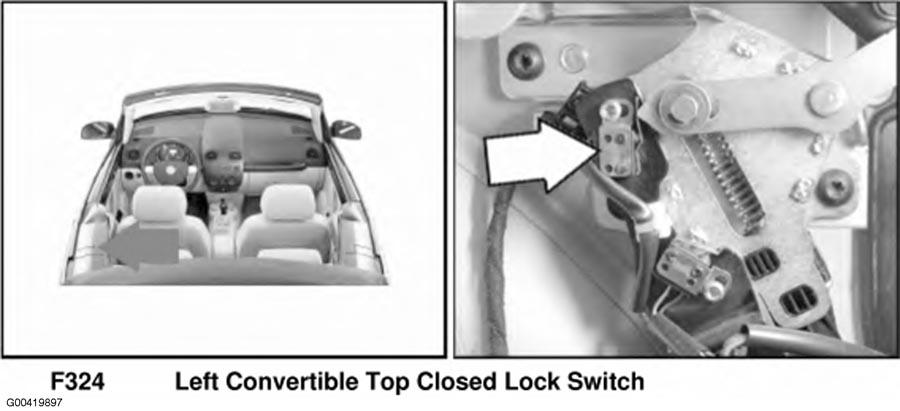

Fig 63: Left Side Of Rear Seat

G00419897

Courtesy of VOLKSWAGEN UNITED STATES, INC.

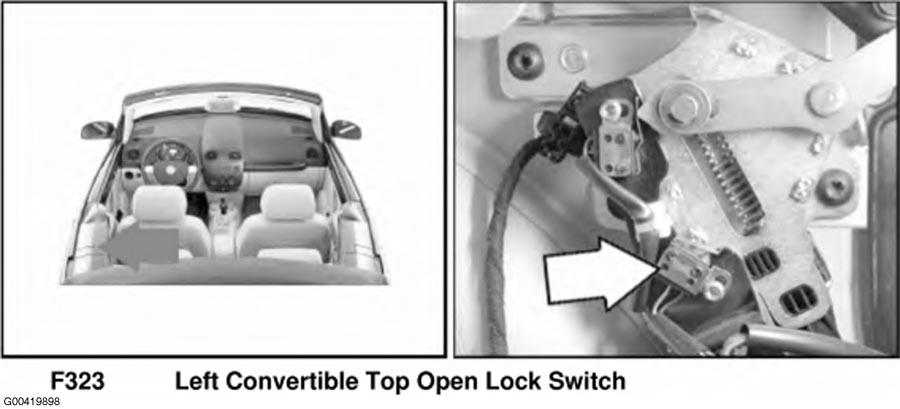

Fig 64: Left Side Of Rear Seat

G00419898

Courtesy of VOLKSWAGEN UNITED STATES, INC.

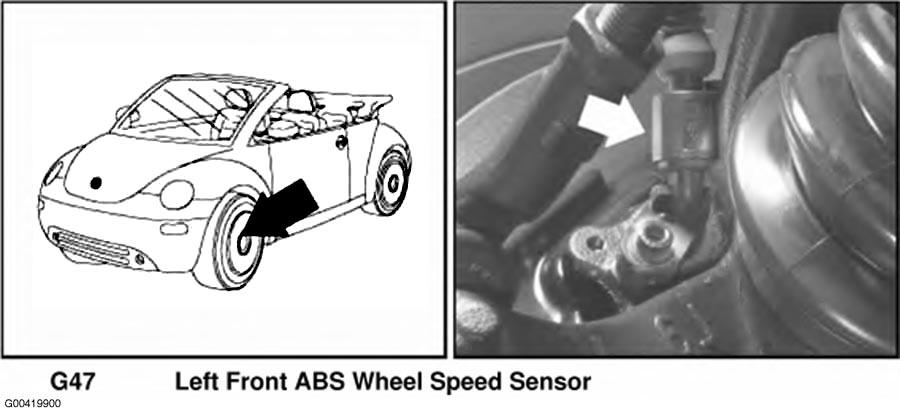

Fig 65: Left Front Wheel

G00419900

Courtesy of VOLKSWAGEN UNITED STATES, INC.

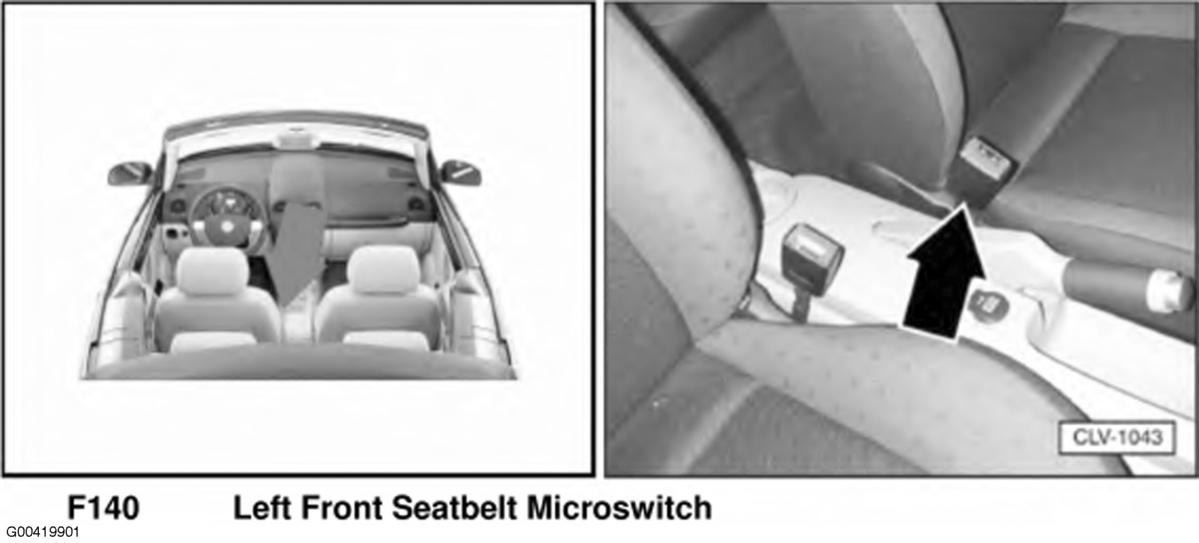

Fig 66: Driver's Seat Belt

G00419901

Courtesy of VOLKSWAGEN UNITED STATES, INC.

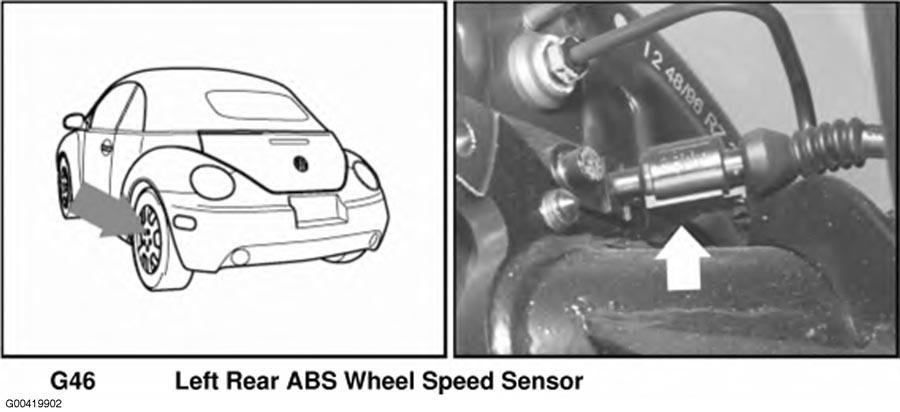

Fig 67: Left Rear Wheel

G00419902

Courtesy of VOLKSWAGEN UNITED STATES, INC.

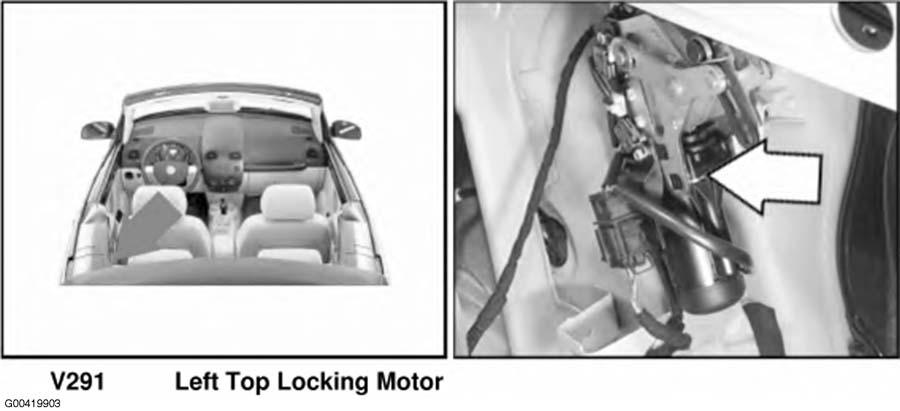

Fig 68: Left Side Of Rear Seat

G00419903

Courtesy of VOLKSWAGEN UNITED STATES, INC.

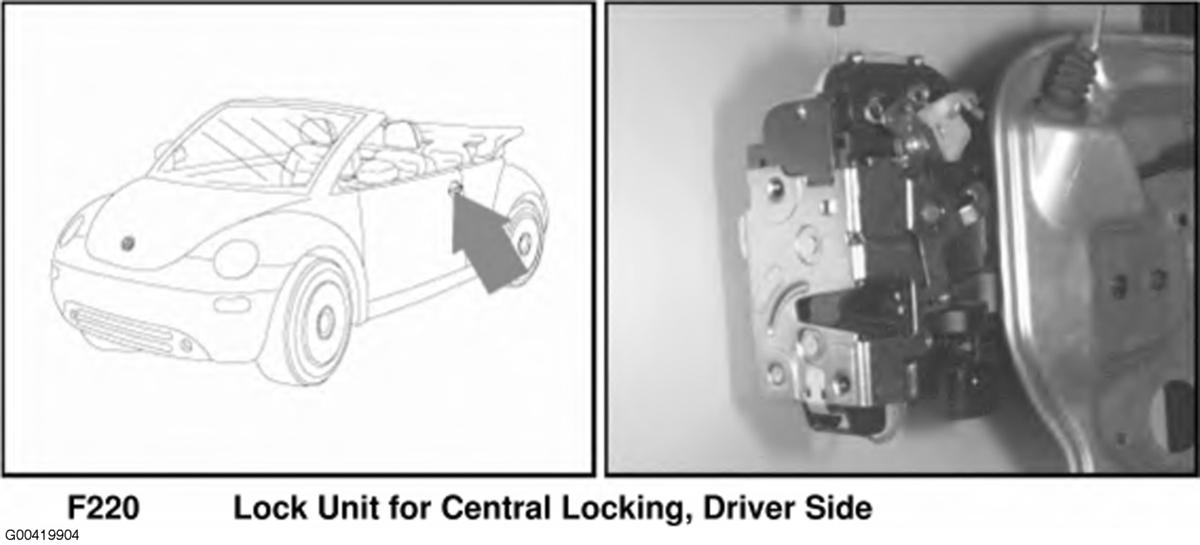

Fig 69: Driver's Door

G00419904

Courtesy of VOLKSWAGEN UNITED STATES, INC.

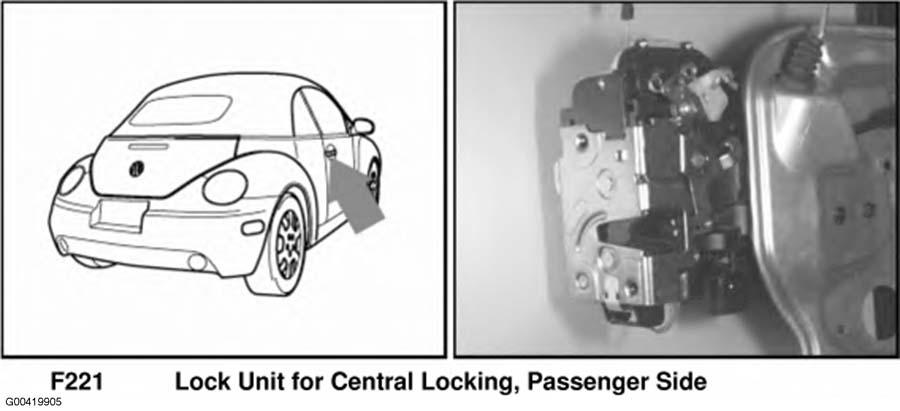

Fig 70: Passenger's Door

G00419905

Courtesy of VOLKSWAGEN UNITED STATES, INC.

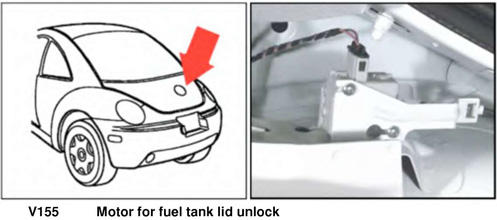

Fig 71: Right Rear Of Vehicle

G00451596

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 72: Left Side Of Plenum Chamber

G00419908

Courtesy of VOLKSWAGEN UNITED STATES, INC.

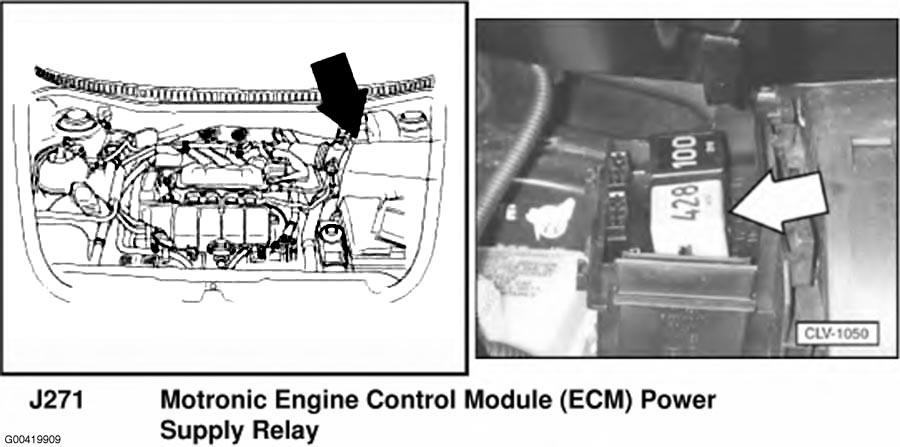

Fig 73: Left Rear Of Engine Compartment

G00419909

Courtesy of VOLKSWAGEN UNITED STATES, INC.

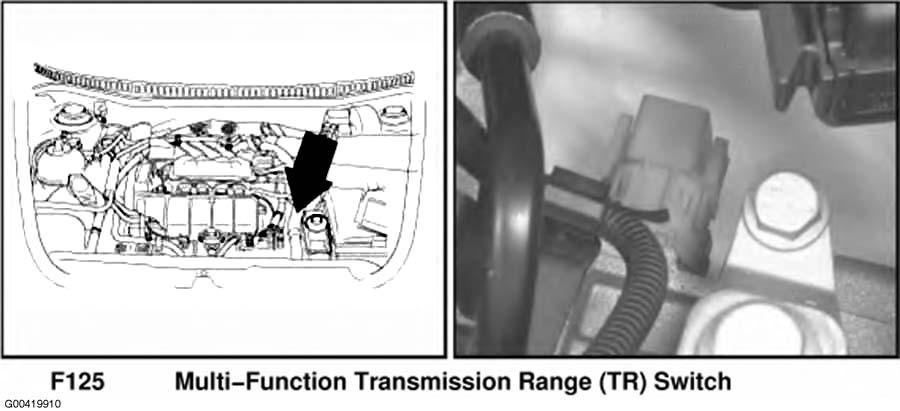

Fig 74: Top Of Transmission (A/T)

G00419910

Courtesy of VOLKSWAGEN UNITED STATES, INC.

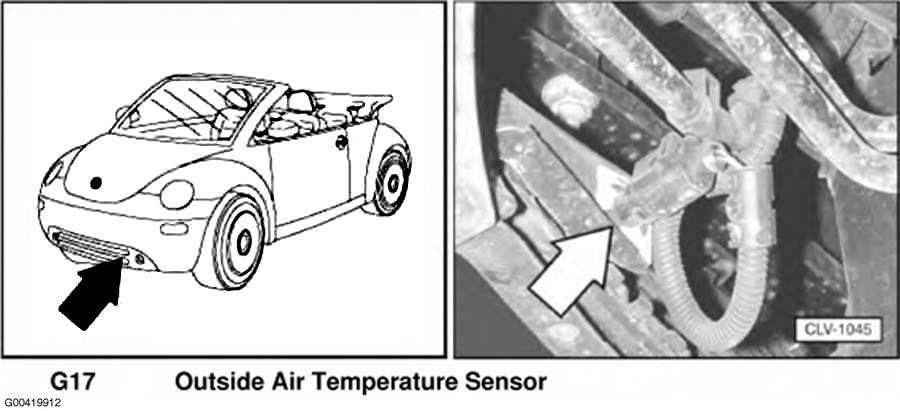

Fig 75: Left Front Of Vehicle

G00419912

Courtesy of VOLKSWAGEN UNITED STATES, INC.

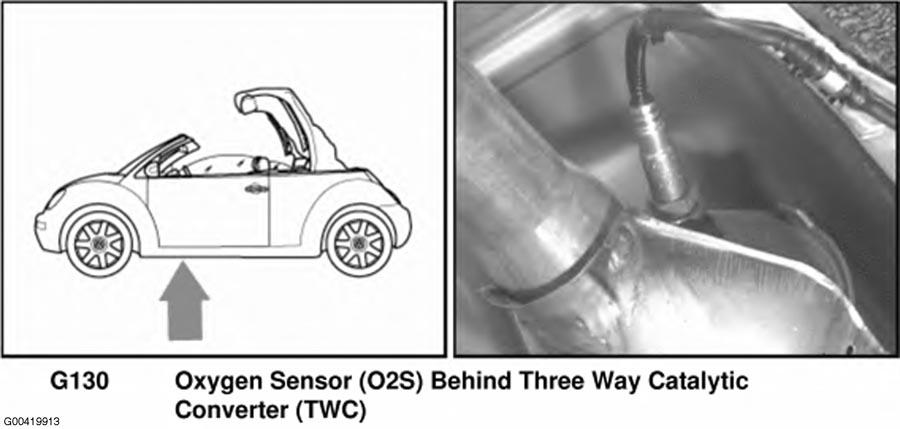

Fig 76: Under Center Of Vehicle

G00419913

Courtesy of VOLKSWAGEN UNITED STATES, INC.

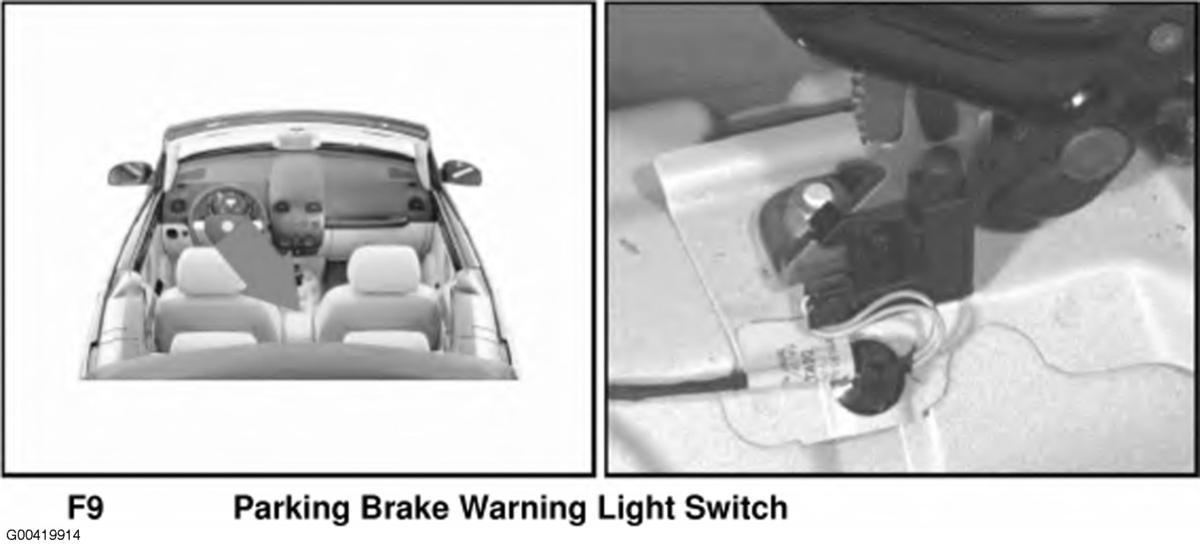

Fig 77: Center Console

G00419914

Courtesy of VOLKSWAGEN UNITED STATES, INC.

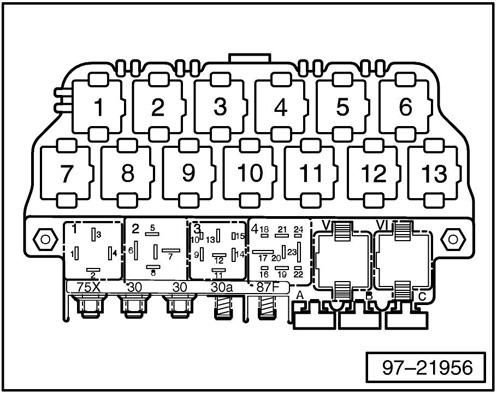

Fig 78: Micro-Electric Central

G00451599

Courtesy of VOLKSWAGEN UNITED STATES, INC.

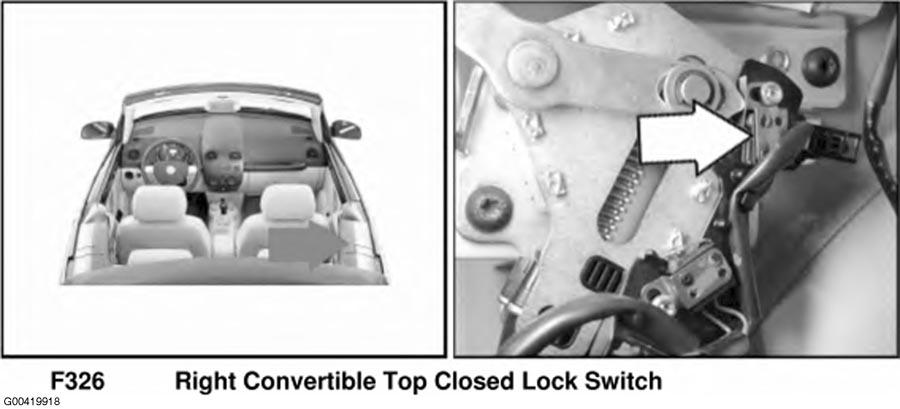

Fig 79: Right Side Of Rear Seat

G00419918

Courtesy of VOLKSWAGEN UNITED STATES, INC.

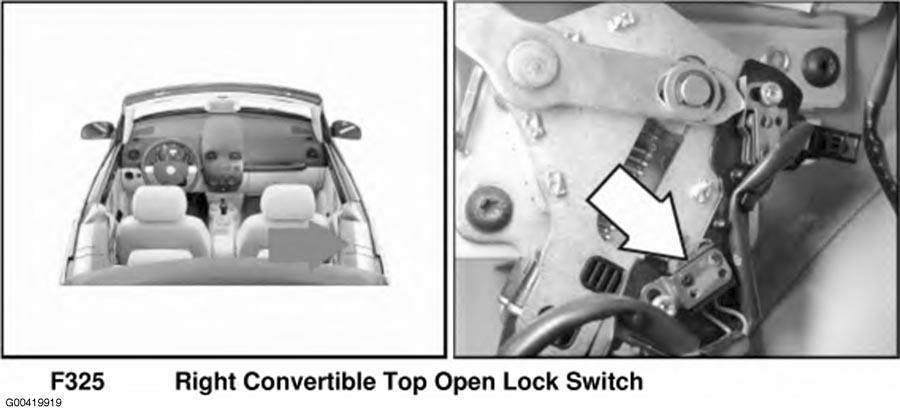

Fig 80: Right Side Of Rear Seat

G00419919

Courtesy of VOLKSWAGEN UNITED STATES, INC.

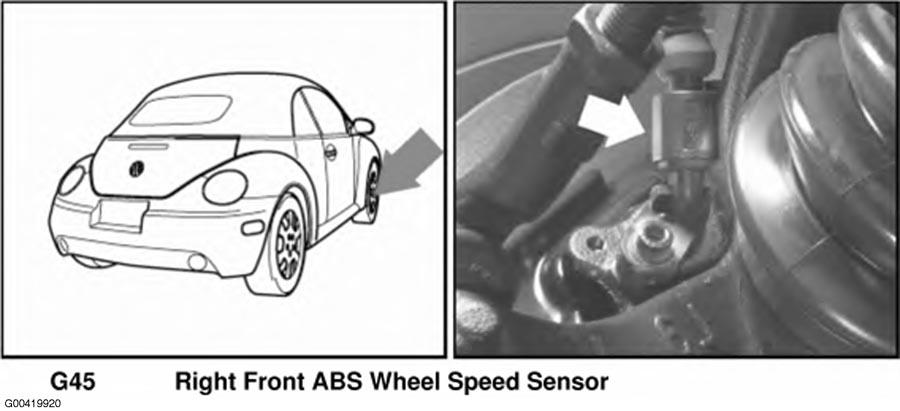

Fig 81: Right Front Wheel

G00419920

Courtesy of VOLKSWAGEN UNITED STATES, INC.

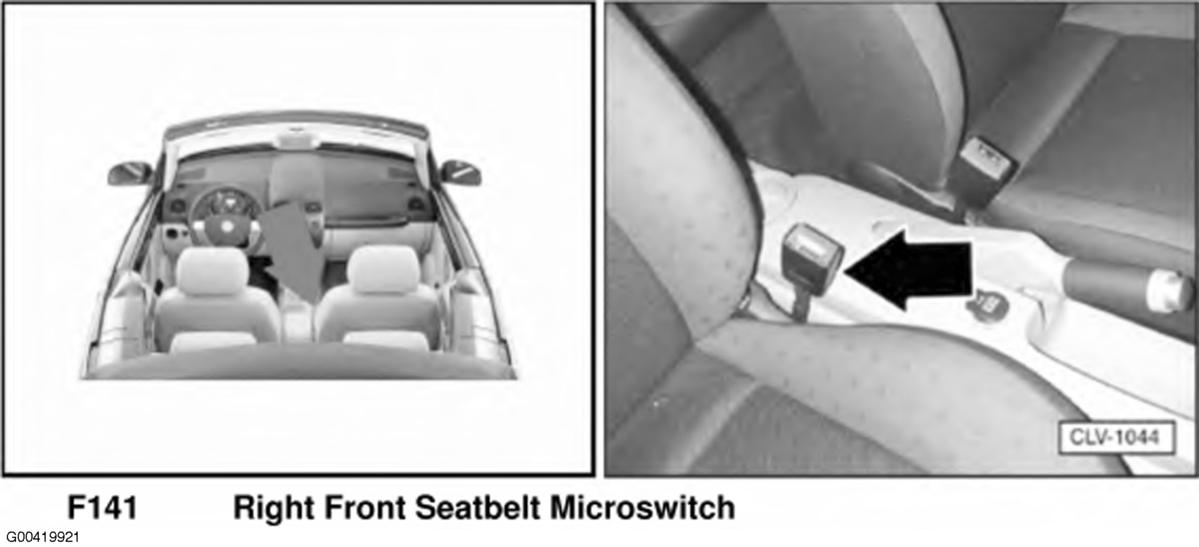

Fig 82: Passenger's Seat Belt

G00419921

Courtesy of VOLKSWAGEN UNITED STATES, INC.

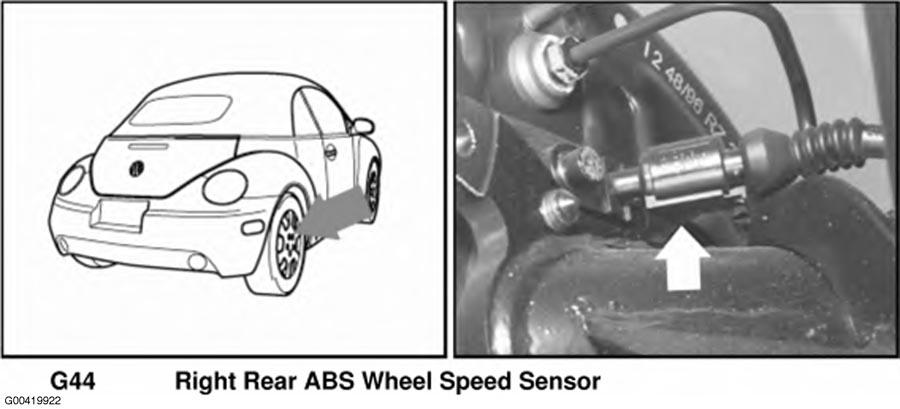

Fig 83: Right Rear Wheel

G00419922

Courtesy of VOLKSWAGEN UNITED STATES, INC.

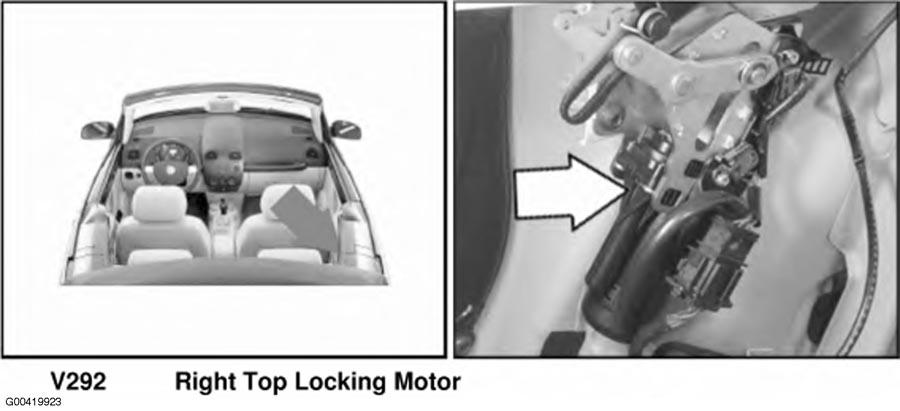

Fig 84: Right Side Of Rear Seat

G00419923

Courtesy of VOLKSWAGEN UNITED STATES, INC.

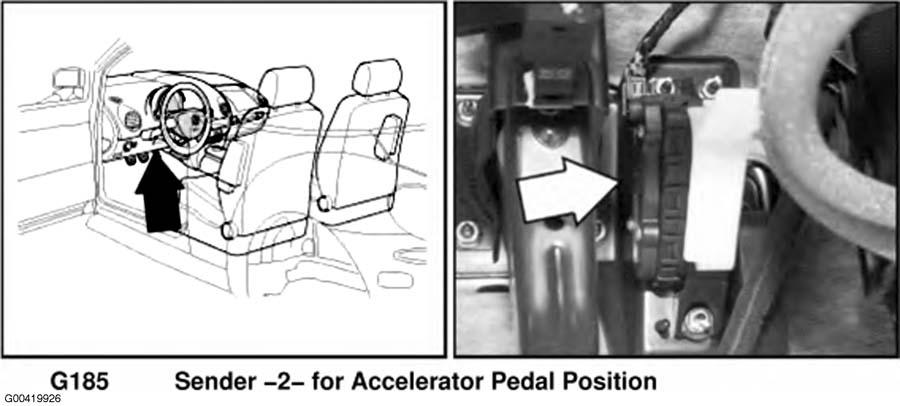

Fig 85: Under Left Side Of Dash

G00419926

Courtesy of VOLKSWAGEN UNITED STATES, INC.

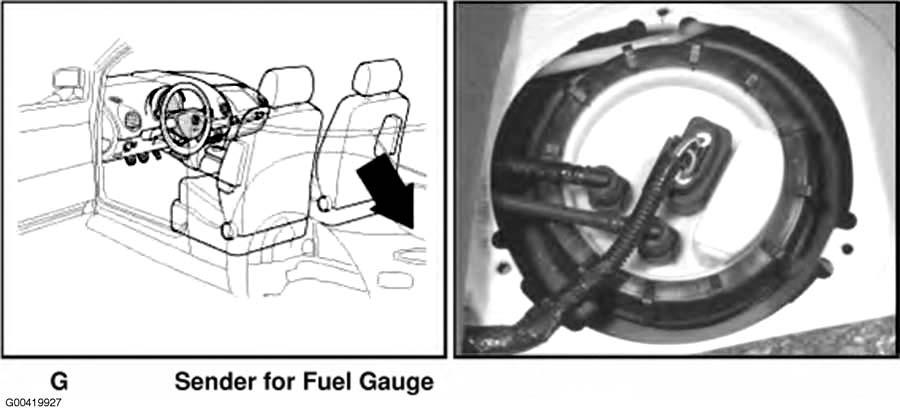

Fig 86: Under Right Rear Seat

G00419927

Courtesy of VOLKSWAGEN UNITED STATES, INC.

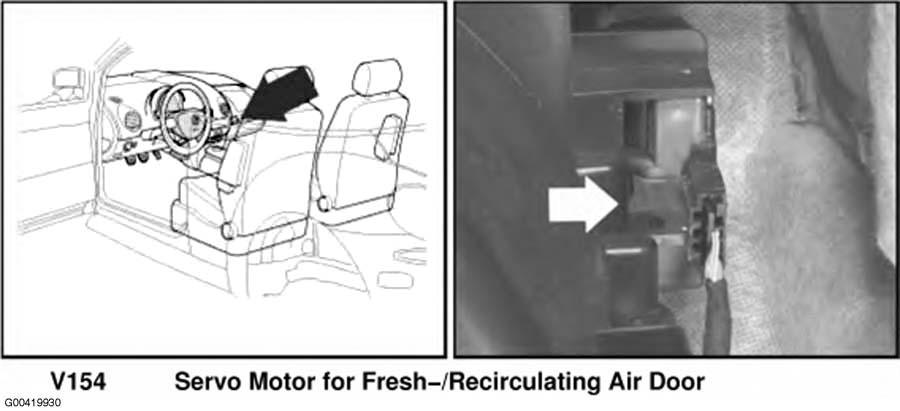

Fig 87: Under Right Side Of Dash

G00419930

Courtesy of VOLKSWAGEN UNITED STATES, INC.

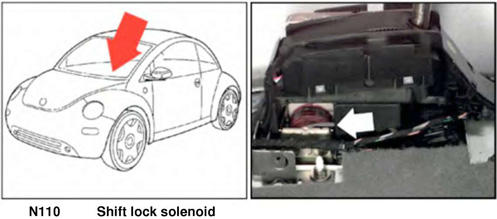

Fig 88: In Center Console

G00451601

Courtesy of VOLKSWAGEN UNITED STATES, INC.

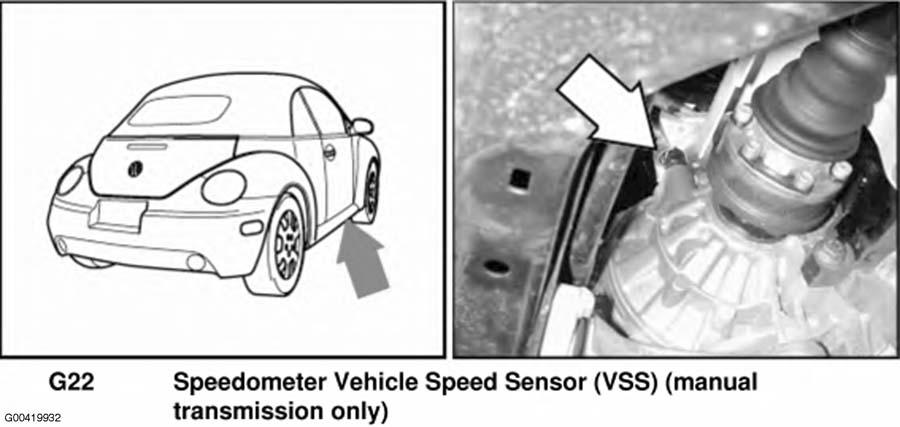

Fig 89: Under Front Of Vehicle

G00419932

Courtesy of VOLKSWAGEN UNITED STATES, INC.

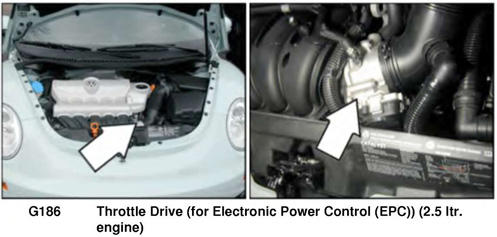

Fig 90: Left Rear Of Engine

G00451602

Courtesy of VOLKSWAGEN UNITED STATES, INC.

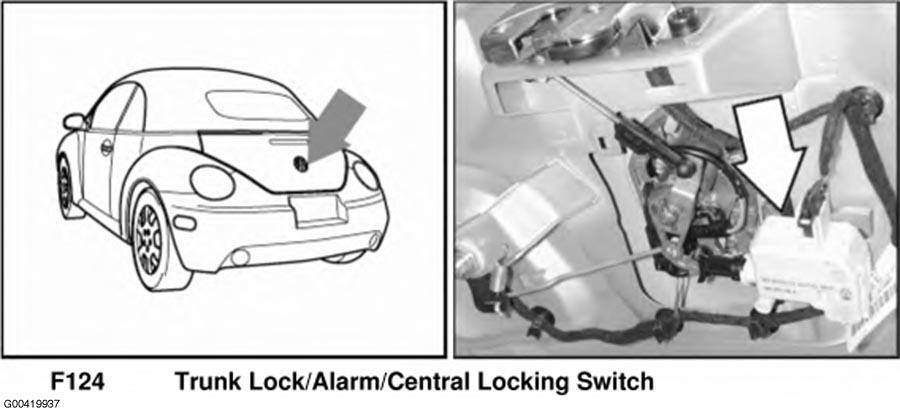

Fig 91: Rear Of Trunk Lid

G00419937

Courtesy of VOLKSWAGEN UNITED STATES, INC.

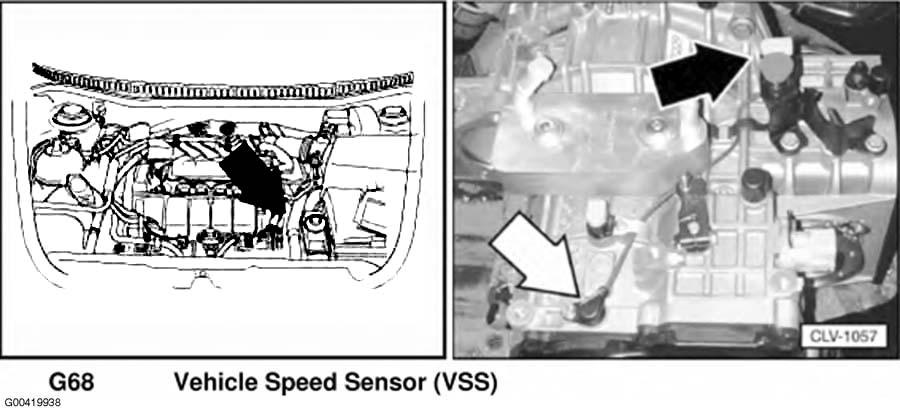

Fig 92: Top Of Transmission

G00419938

Courtesy of VOLKSWAGEN UNITED STATES, INC.

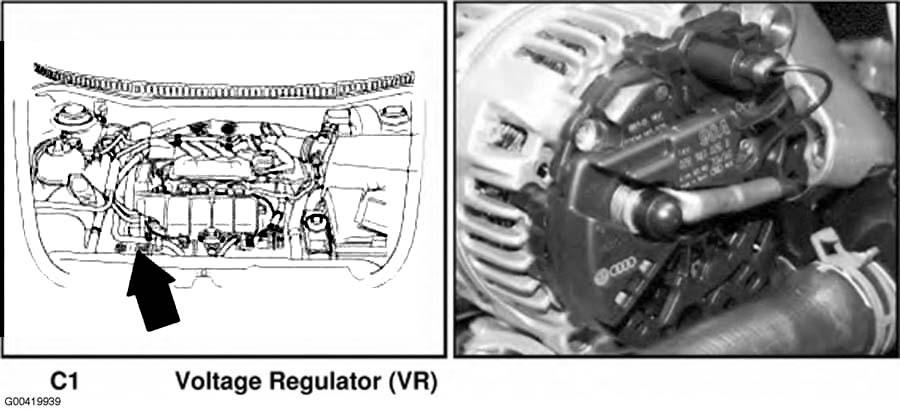

Fig 93: Right Front Of Engine Compartment

G00419939

Courtesy of VOLKSWAGEN UNITED STATES, INC.

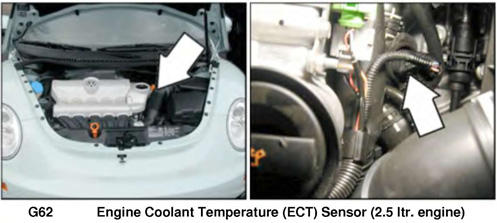

Fig 94: Rear Of Engine

G00451587

Courtesy of VOLKSWAGEN UNITED STATES, INC.

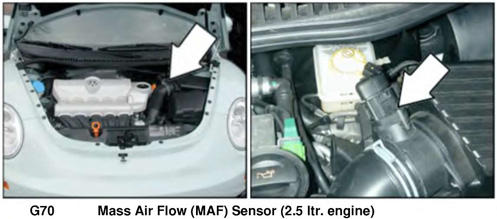

Fig 95: Left Side Of Engine Compartment (2.5L)

G00451595

Courtesy of VOLKSWAGEN UNITED STATES, INC.

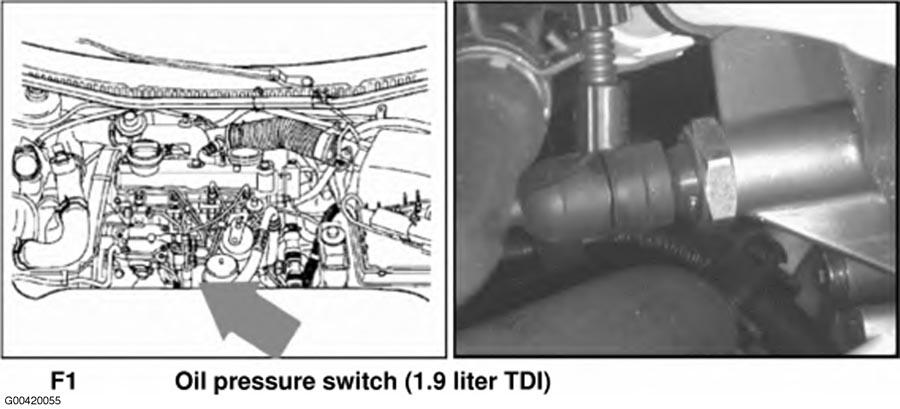

Fig 96: Left Side Of Engine (1.9L)

G00420055

Courtesy of VOLKSWAGEN UNITED STATES, INC.

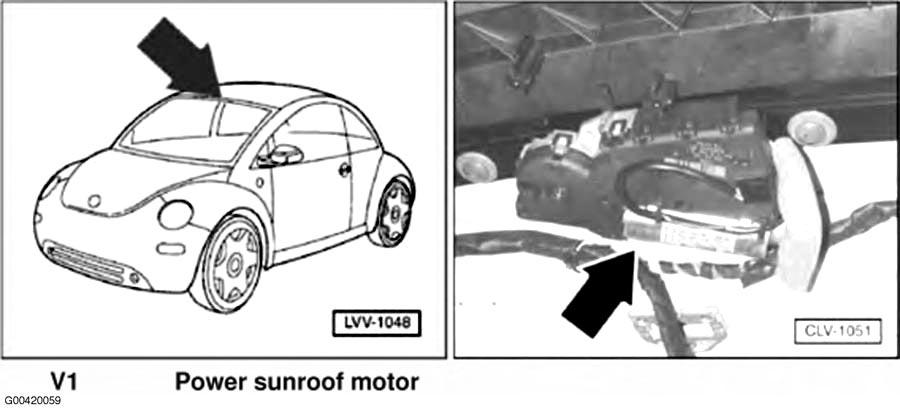

Fig 97: Center Of Roof

G00420059

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 98: Rear Of Vehicle

G00420061

Courtesy of VOLKSWAGEN UNITED STATES, INC.

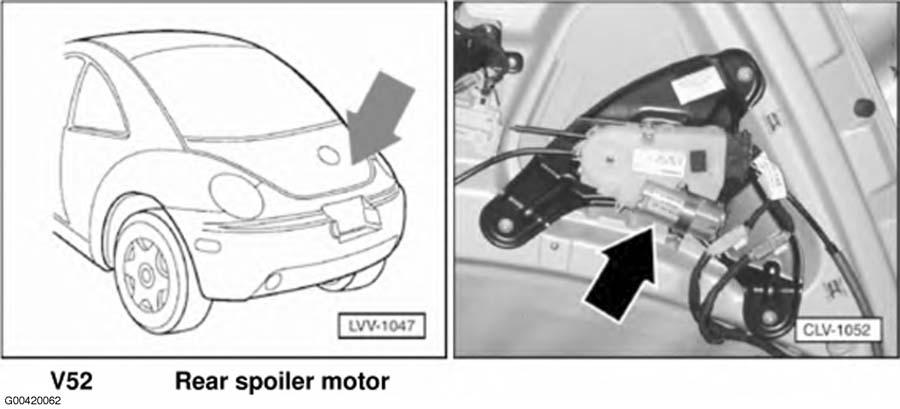

Fig 99: Rear Of Vehicle

G00420062

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 100: Thirteen Position Auxiliary Relay Panel (Except Convertible)

G00451600

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 101: Left Rear Of Engine (2.5L)

G00451604

Courtesy of VOLKSWAGEN UNITED STATES, INC.

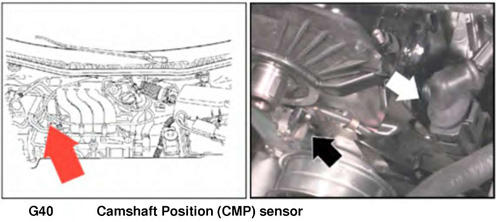

Fig 102: Front Of Engine (2.5L)

G00451578

Courtesy of VOLKSWAGEN UNITED STATES, INC.

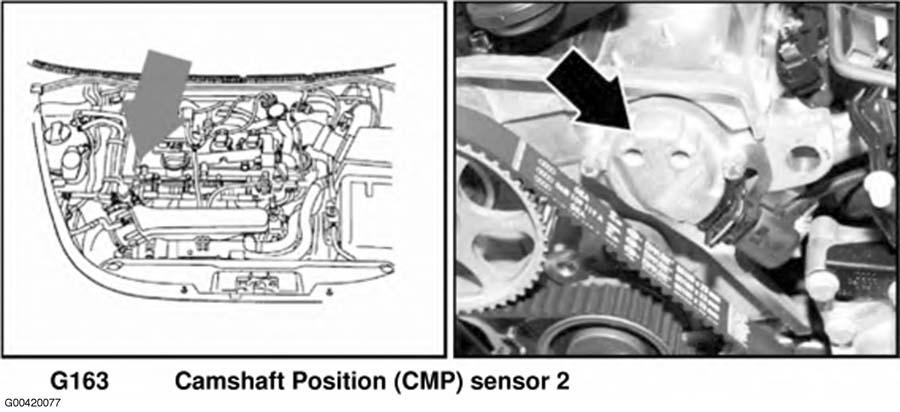

Fig 103: Front Of Engine (2.5L)

G00420077

Courtesy of VOLKSWAGEN UNITED STATES, INC.

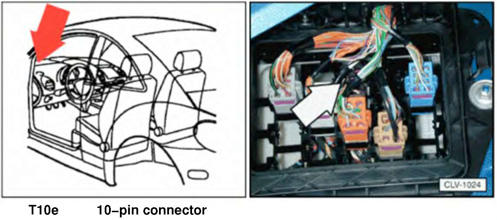

Fig 104: Behind Left Side Of Dash

G00451565

Courtesy of VOLKSWAGEN UNITED STATES, INC.

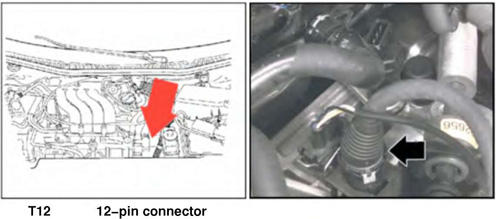

Fig 105: Top Of Transmission

G00451566

Courtesy of VOLKSWAGEN UNITED STATES, INC.

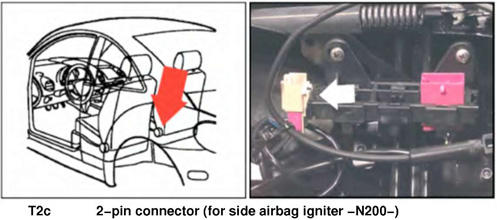

Fig 106: Under Front Passenger's Seat

G00451567

Courtesy of VOLKSWAGEN UNITED STATES, INC.

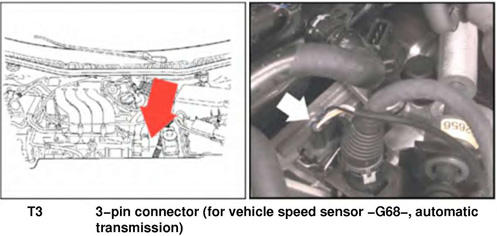

Fig 107: Top Of Differential Housing

G00451568

Courtesy of VOLKSWAGEN UNITED STATES, INC.

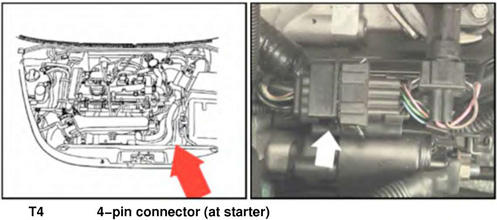

Fig 108: Left Rear Of Engine

G00451569

Courtesy of VOLKSWAGEN UNITED STATES, INC.

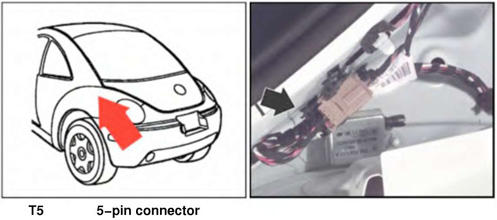

Fig 109: Left "C" Pillar

G00451570

Courtesy of VOLKSWAGEN UNITED STATES, INC.

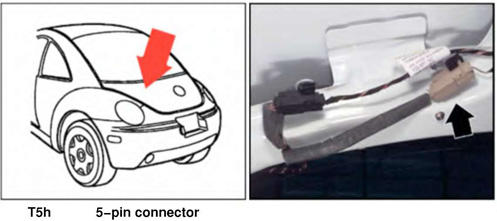

Fig 110: In Rear Lid

G00451571

Courtesy of VOLKSWAGEN UNITED STATES, INC.

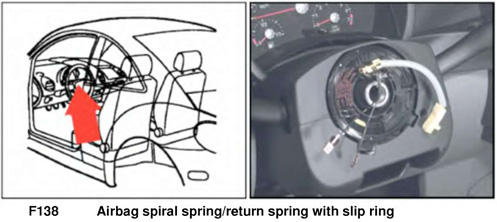

Fig 111: Top Of Steering Column

G00451575

Courtesy of VOLKSWAGEN UNITED STATES, INC.

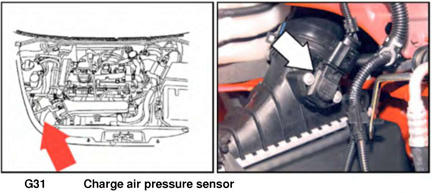

Fig 112: Right Front Of Engine Compartment

G00451579

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 113: Left Side Of Engine Compartment

G00451580

Courtesy of VOLKSWAGEN UNITED STATES, INC.

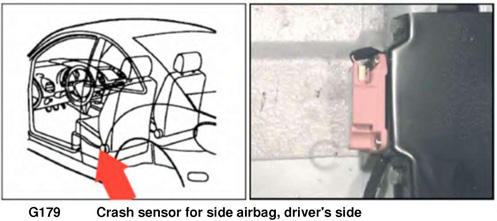

Fig 114: Under Driver's Seat

G00451581

Courtesy of VOLKSWAGEN UNITED STATES, INC.

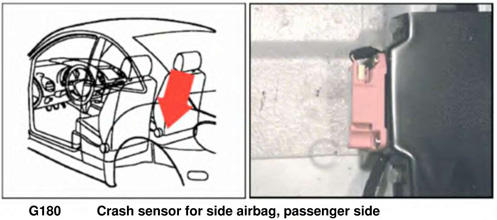

Fig 115: Under Front Passenger's Seat

G00451582

Courtesy of VOLKSWAGEN UNITED STATES, INC.

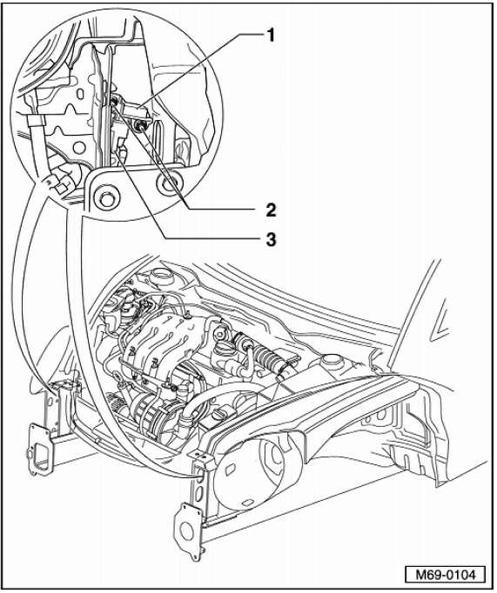

Fig 116: Front Of Vehicle

G00451585

Courtesy of VOLKSWAGEN UNITED STATES, INC.

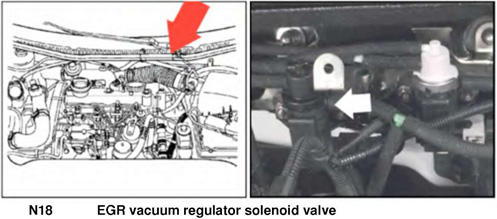

Fig 117: Left Rear Of Engine Compartment

G00451586

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 118: Left Front Of Engine Compartment

G00451588

Courtesy of VOLKSWAGEN UNITED STATES, INC.

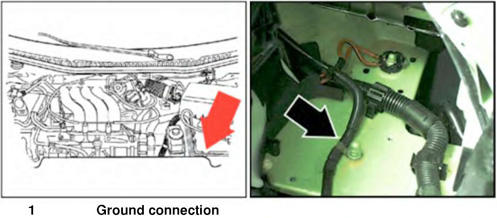

Fig 119: Left Side Of Engine Compartment

G00451589

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 120: Left Rear Of Engine Compartment

G00451593

Courtesy of VOLKSWAGEN UNITED STATES, INC.

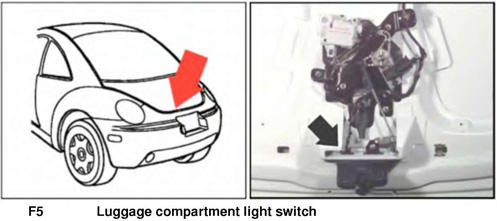

Fig 121: In Rear Lid

G00451594

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 122: Center Front Of Roof

G00451597

Courtesy of VOLKSWAGEN UNITED STATES, INC.

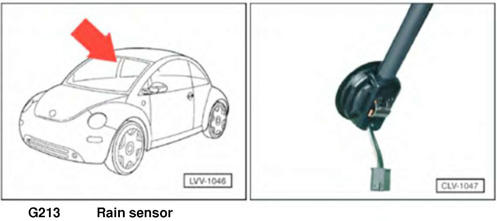

Fig 123: Center Front Of Roof

G00451598

Courtesy of VOLKSWAGEN UNITED STATES, INC.

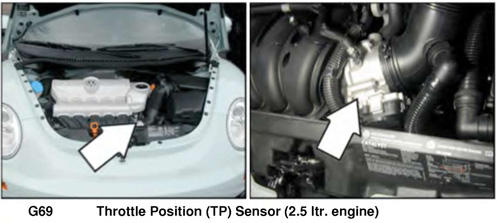

Fig 124: Left Rear Of Engine (2.5L)

G00451603

Courtesy of VOLKSWAGEN UNITED STATES, INC.

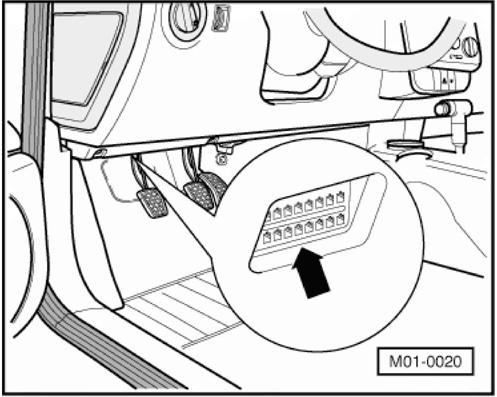

Fig 125: Under Left Side Of Dash

G00451605

Courtesy of VOLKSWAGEN UNITED STATES, INC.

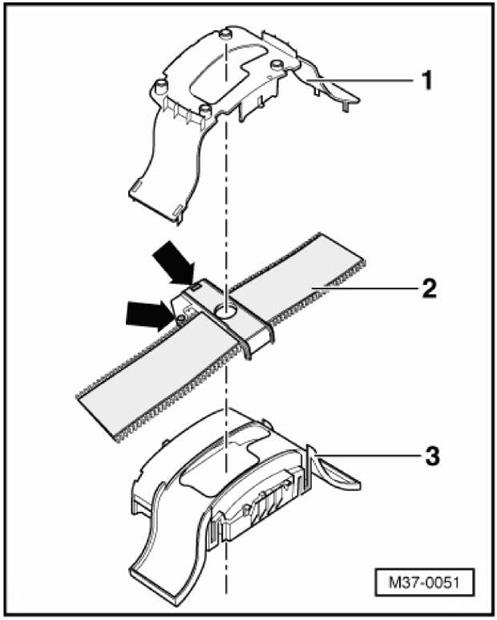

Fig 126: Under Center Console

G00451606

Courtesy of VOLKSWAGEN UNITED STATES, INC.

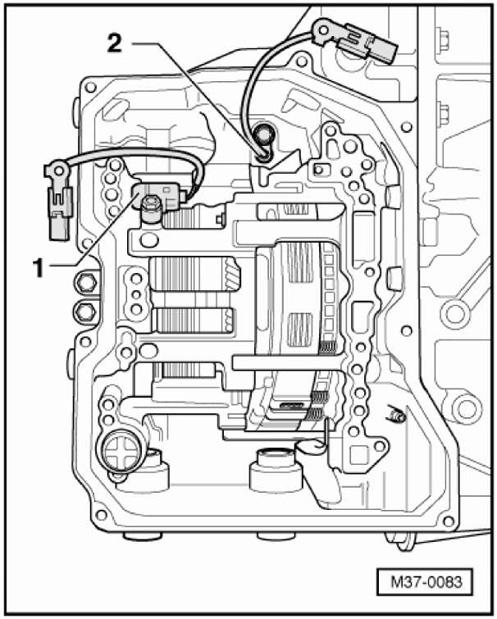

Fig 127: Transmission Housing

G00451607

Courtesy of VOLKSWAGEN UNITED STATES, INC.

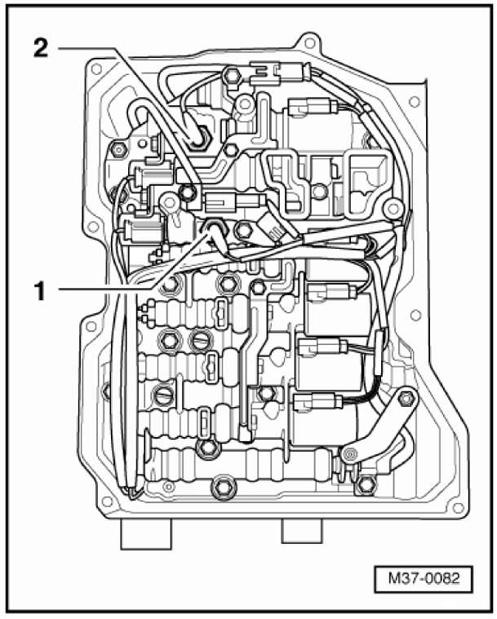

Fig 128: Transmission Housing

G00451608

Courtesy of VOLKSWAGEN UNITED STATES, INC.

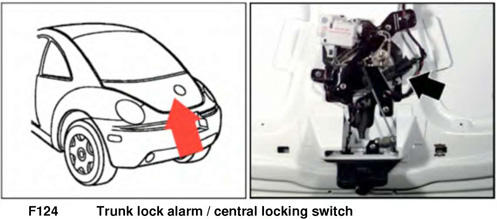

Fig 129: Luggage Compartment Lid

G00451609

Courtesy of VOLKSWAGEN UNITED STATES, INC.

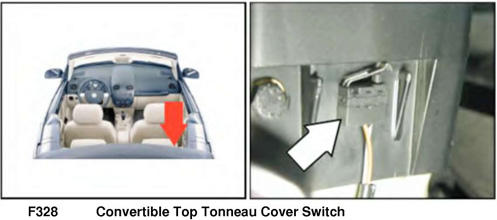

Fig 130: Behind Rear Seats

G00451610

Courtesy of VOLKSWAGEN UNITED STATES, INC.

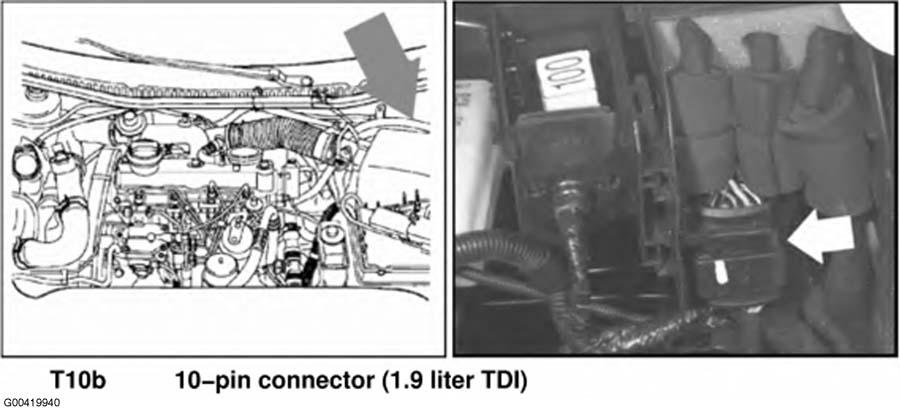

Fig 131: Left Rear Of Engine Compartment (1.9L)

G00419940

Courtesy of VOLKSWAGEN UNITED STATES, INC.

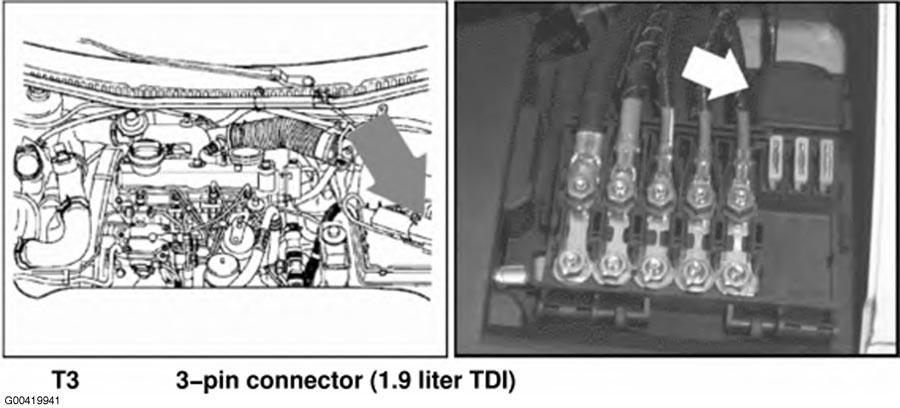

Fig 132: Left Side Of Engine Compartment (1.9L)

G00419941

Courtesy of VOLKSWAGEN UNITED STATES, INC.

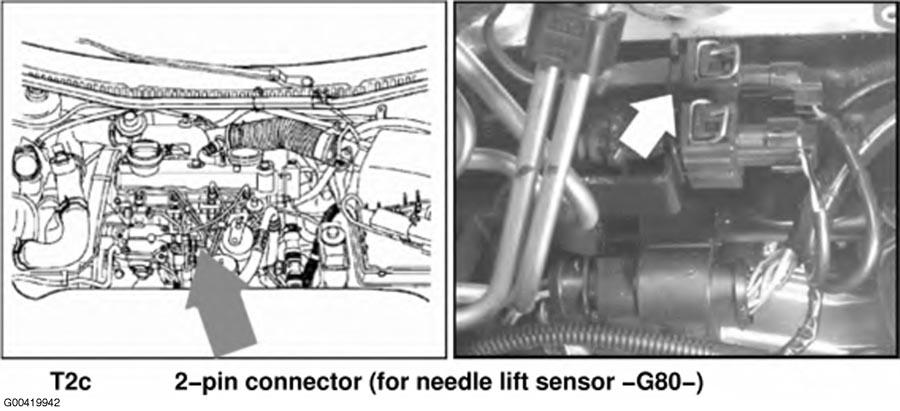

Fig 133: Left Side Of Engine (1.9L)

G00419942

Courtesy of VOLKSWAGEN UNITED STATES, INC.

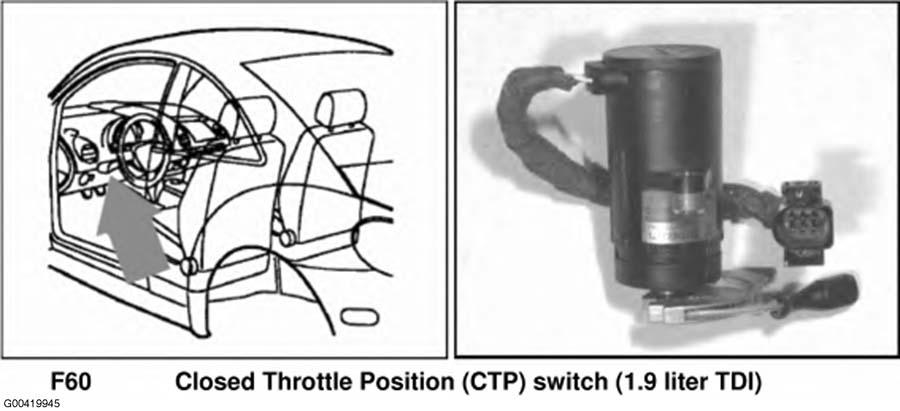

Fig 134: Under Left Side Of Dash

G00419945

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 135: Left Rear Of Engine Compartment (1.9L)

G00419946

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 136: Left Rear Of Engine Compartment (1.9L)

G00419947

Courtesy of VOLKSWAGEN UNITED STATES, INC.

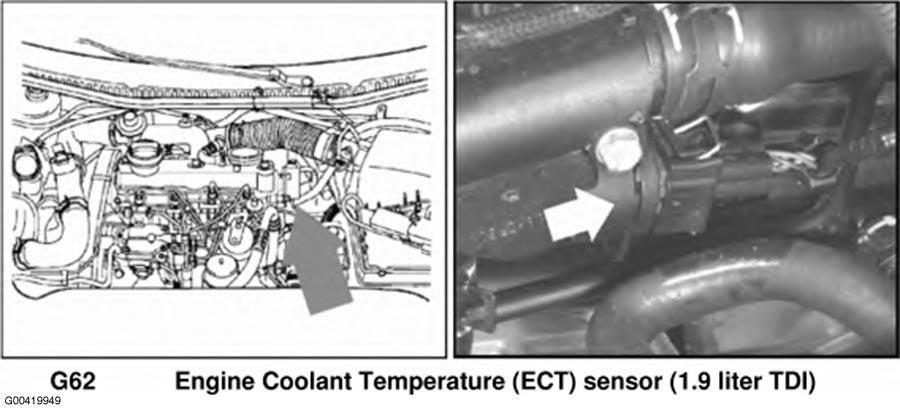

Fig 137: Rear Of Engine (1.9L)

G00419949

Courtesy of VOLKSWAGEN UNITED STATES, INC.

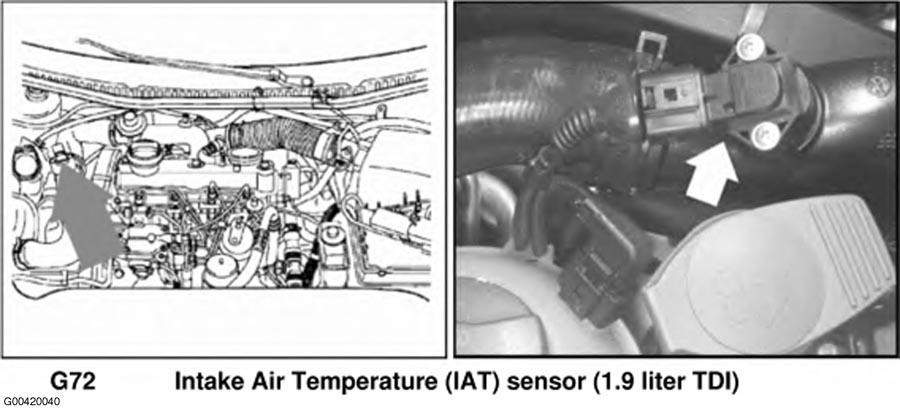

Fig 138: Right Side Of Engine Compartment (1.9L)

G00420040

Courtesy of VOLKSWAGEN UNITED STATES, INC.

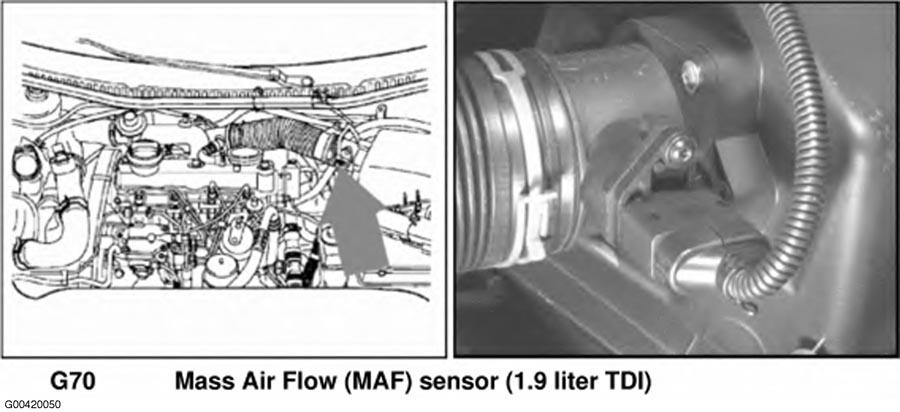

Fig 139: Left Side Of Engine Compartment (1.9L)

G00420050

Courtesy of VOLKSWAGEN UNITED STATES, INC.

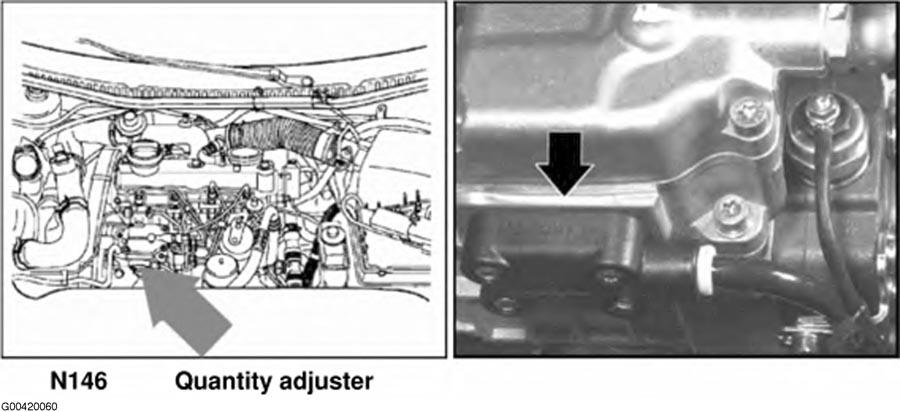

Fig 140: Left Side Of Engine (1.9L)

G00420060

Courtesy of VOLKSWAGEN UNITED STATES, INC.

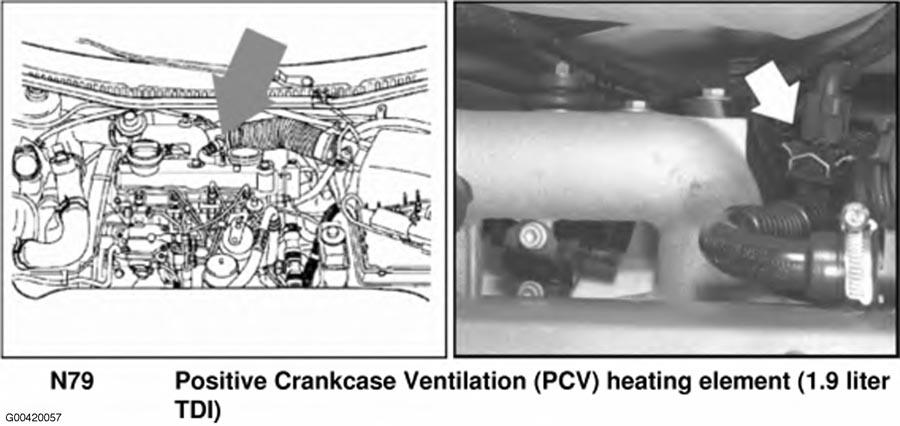

Fig 141: Rear Of Engine Compartment (1.9L)

G00420057

Courtesy of VOLKSWAGEN UNITED STATES, INC.

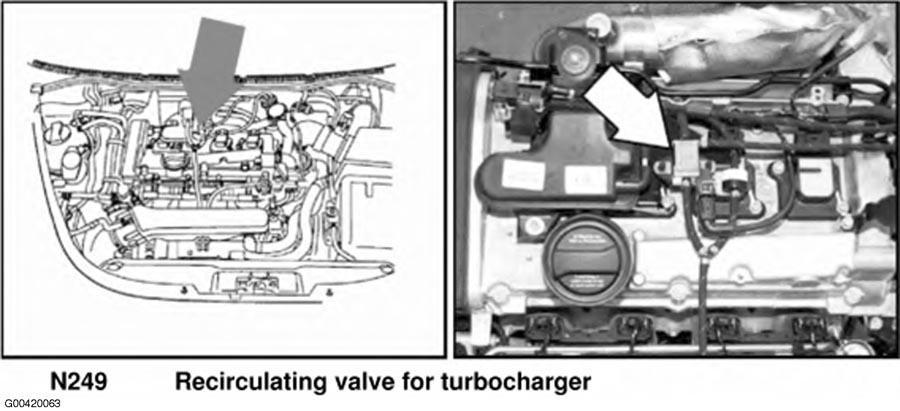

Fig 142: Top Of Engine

G00420063

Courtesy of VOLKSWAGEN UNITED STATES, INC.

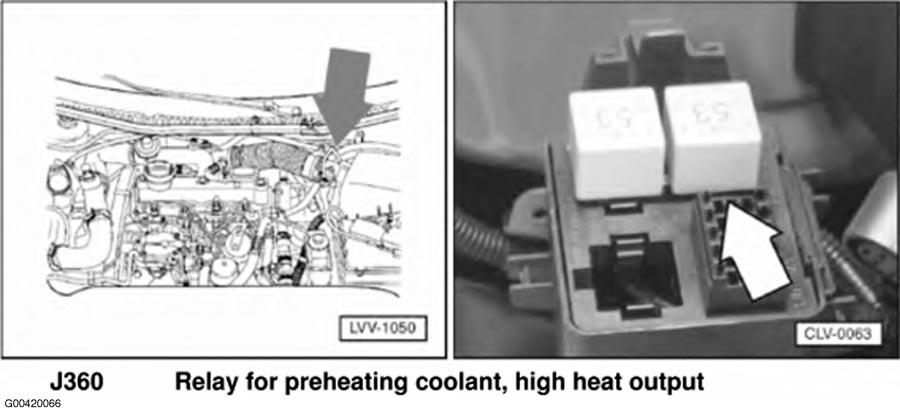

Fig 143: Left Rear Of Engine Compartment (1.9L)

G00420066

Courtesy of VOLKSWAGEN UNITED STATES, INC.

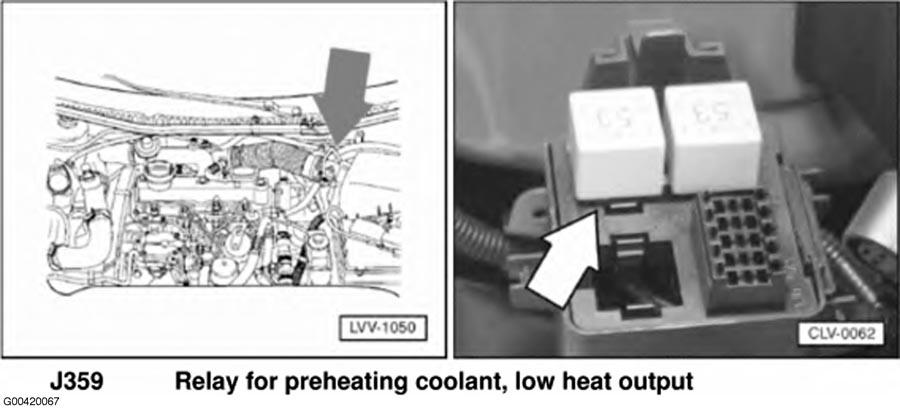

Fig 144: Left Rear Of Engine Compartment (1.9L)

G00420067

Courtesy of VOLKSWAGEN UNITED STATES, INC.

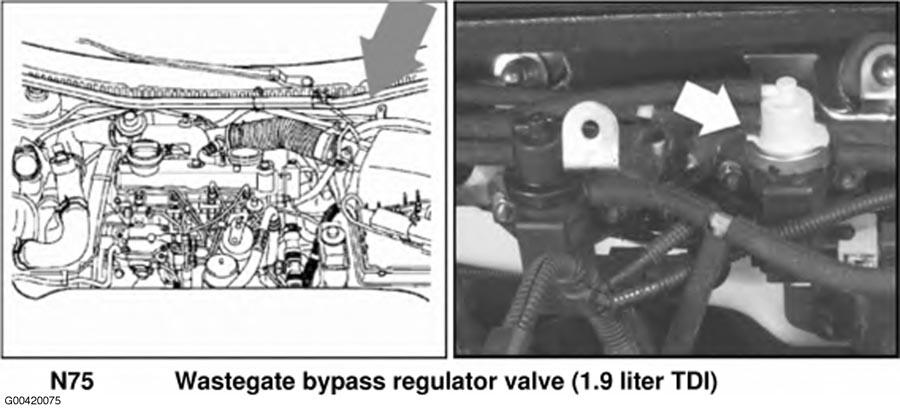

Fig 145: Rear Of Engine Compartment (1.9L)

G00420075

Courtesy of VOLKSWAGEN UNITED STATES, INC.

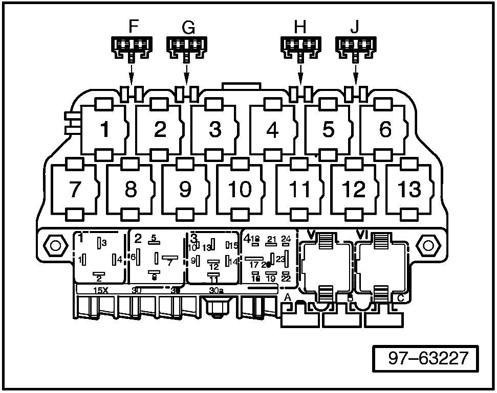

Fig 146: Thirteen Position Auxiliary Relay Panel (Convertible)

G00451611

Courtesy of VOLKSWAGEN UNITED STATES, INC.

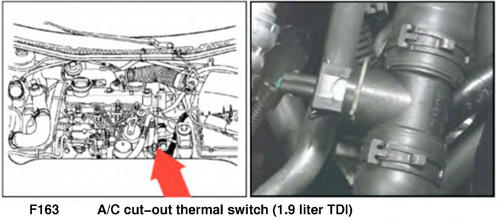

Fig 147: Left Rear Of Engine (1.9L)

G00451647

Courtesy of VOLKSWAGEN UNITED STATES, INC.

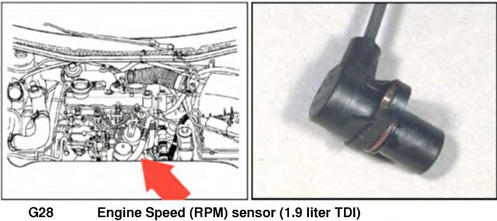

Fig 148: Left Rear Of Engine (1.9L)

G00451648

Courtesy of VOLKSWAGEN UNITED STATES, INC.

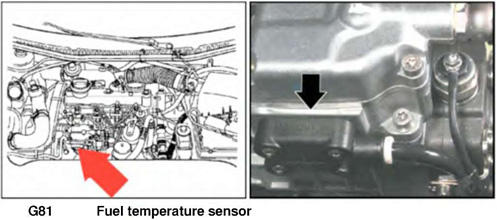

Fig 149: Left Front Of Engine (1.9L)

G00451649

Courtesy of VOLKSWAGEN UNITED STATES, INC.

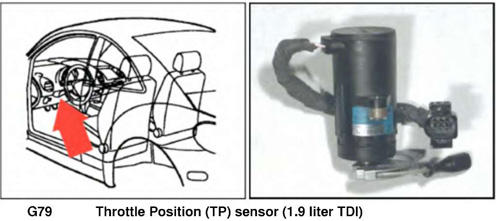

Fig 150: Under Left Side Of Dash

G00451650

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 151: Under Inner Plenum Chamber Cover

G00582478

Courtesy of VOLKSWAGEN UNITED STATES, INC.
