Selector Mechanism Frame

1 - Frame, upper section

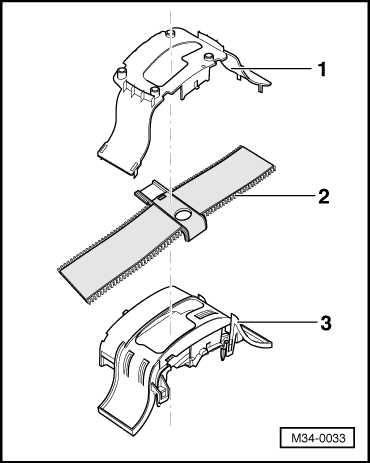

Fig 1: Identifying Selector Mechanism, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

2 - Cover strips

3 - Frame, lower section

-- Removing and installing selector mechanism cover and circuit board SELECTOR MECHANISM COVER AND CIRCUIT BOARD .

Disassembling

-- Carefully pry off retaining tabs -arrows-.

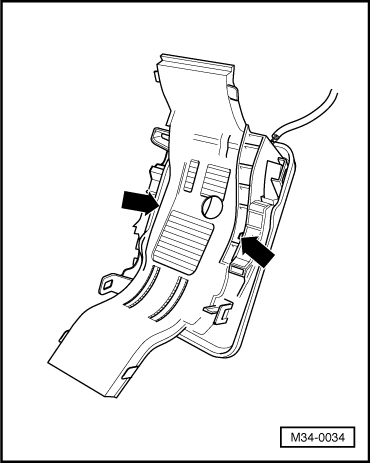

Fig 2: Identifying Frame Retaining Tabs

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Frame must be replaced if retaining tabs are damaged.

-- Remove upper section of frame -1-.

Fig 3: Identifying Selector Mechanism, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove cover strip -2- from lower section of frame -3-.

Assembling

-- Insert cover strip -2- into lower section of frame -3-.

Fig 4: Identifying Selector Mechanism, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install upper section of frame -1- on to lower section of frame.

-- Carefully engage upper and lower sections of frame to each other -arrows-.

Fig 5: Identifying Frame Retaining Tabs

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Frame must be replaced if retaining tabs are damaged.

-- Install cover.
