Selector Lever Cable, Adjusting: Notes

Special tools and workshop equipment required

• Torque Wrench V.A.G 1410
• Socket and Key T40031

-- Place selector lever in position "P".

-- Disconnect intake hose -1- and connector -2- from Mass Air Flow (MAF) sensor.

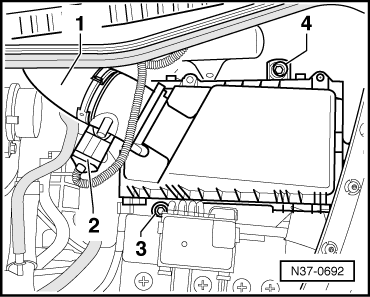

Fig 1: Identifying Air Filter Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bolts -3- and -4-.

-- Remove air filter completely.

-- Check whether bolt -2- is present on selector lever cable -3-.

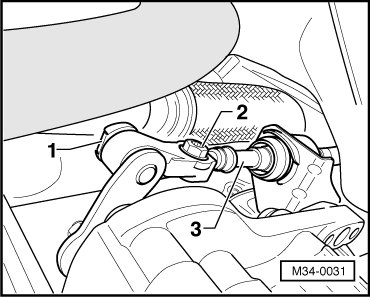

Fig 2: Identifying Selector Lever Cable

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for vehicles with bolt -2- on selector lever cable -3- (adjustment of selector lever cable on transmission). Refer To Vehicles with selector lever cable adjustment on transmission .

Continuation for vehicles without bolt -2- on selector lever cable -3- (adjustment of selector lever cable on selector mechanism). Refer to Vehicles with selector lever adjustment on selector mechanism .
