Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Left rear of engine compartment. See Figure. |

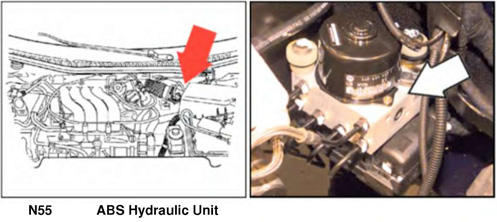

| ABS Hydraulic Unit | On left side of engine compartment, left of vacuum brake booster. See Figure. |

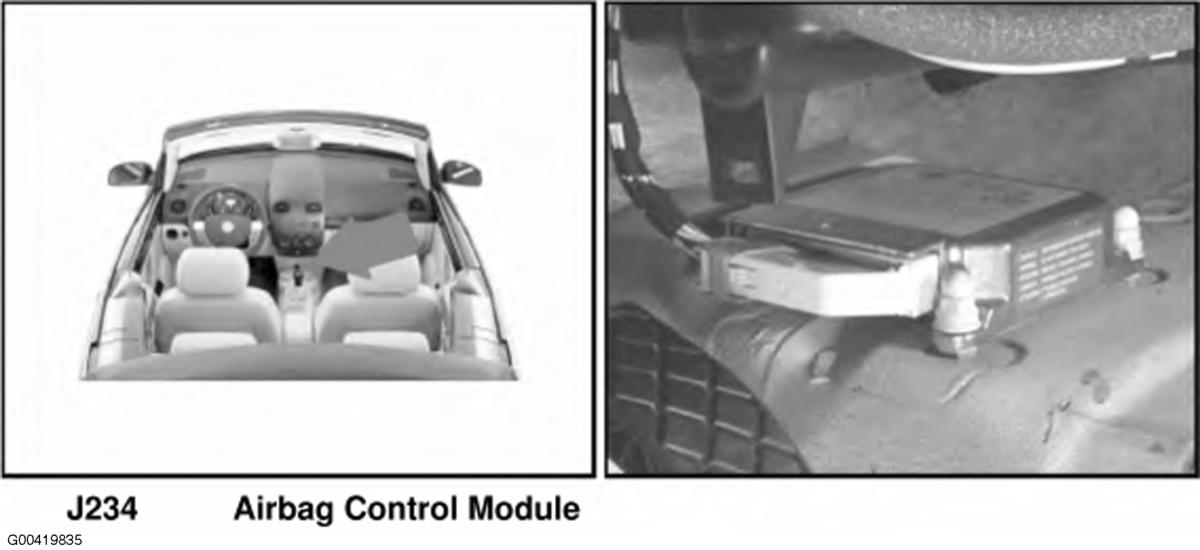

| Airbag Control Module | On center floor tunnel, below heater core housing. See Figure. |

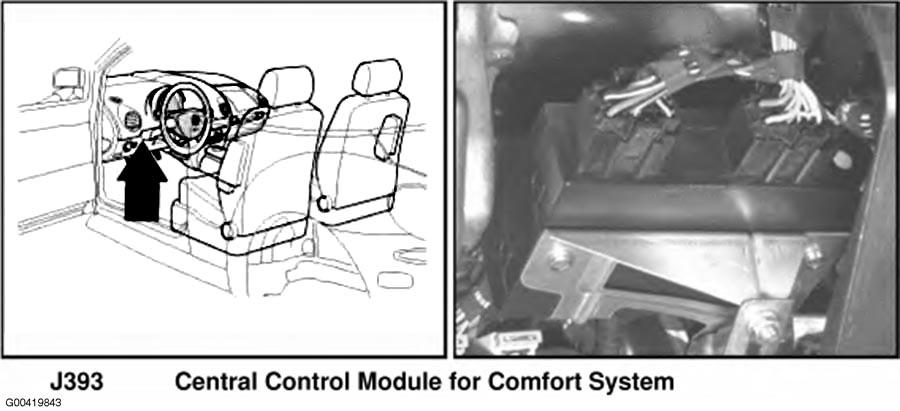

| Comfort System Central Control Module | Below left side of dash, left of steering column. See Figure. |

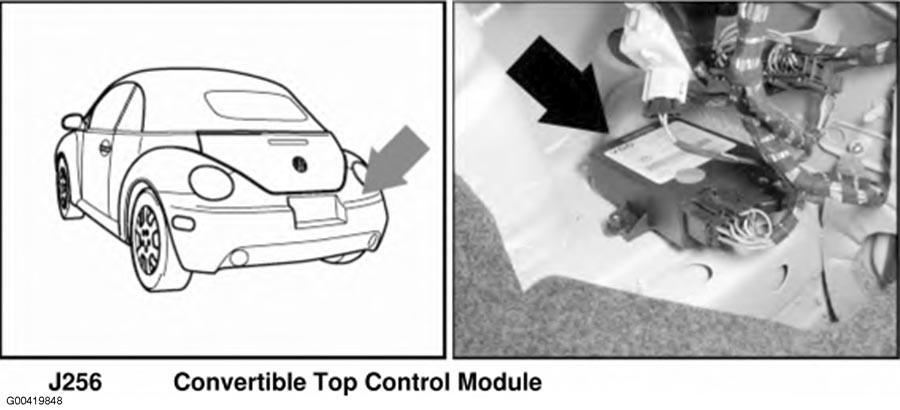

| Convertible Top Control Module | On right side of luggage compartment. See Figure. |

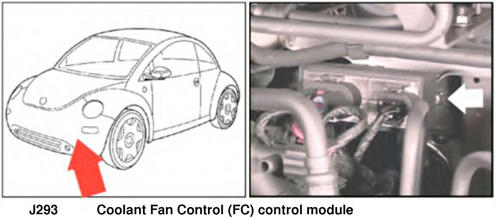

| Coolant Fan Control (FC) Control Module | Left of radiator. See Figure. |

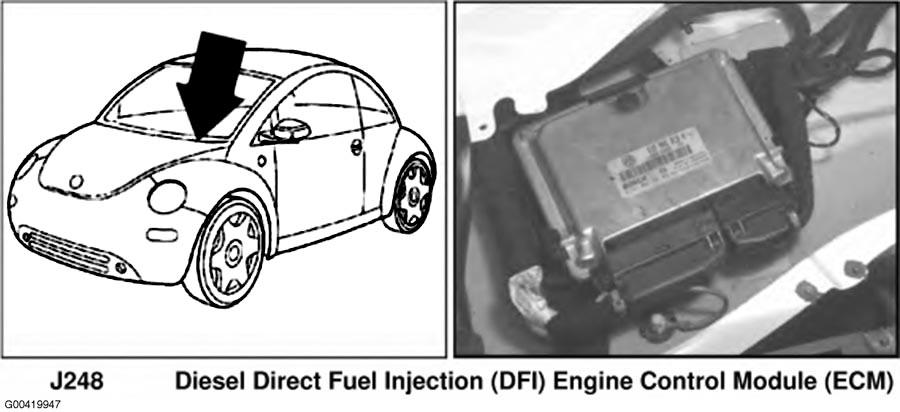

| Diesel Direct Fuel Injection Engine Control Module | Below left side of dash panel cover. See Figure. |

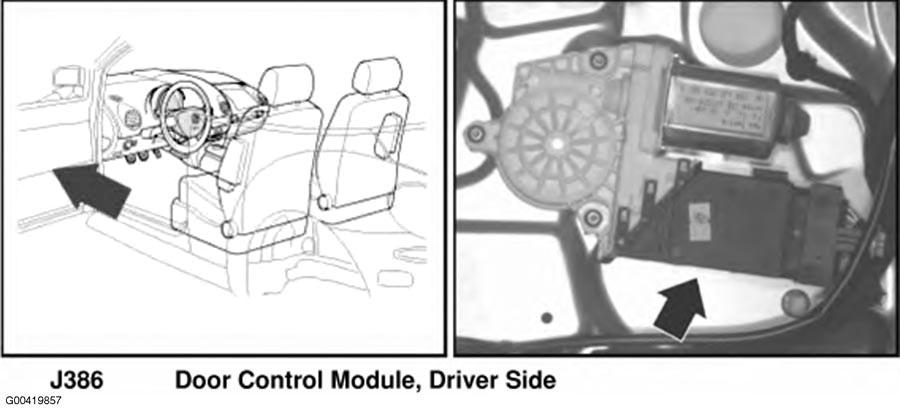

| Door Control Module (Driver Side) | In driver's door, integral to window motor. See Figure. |

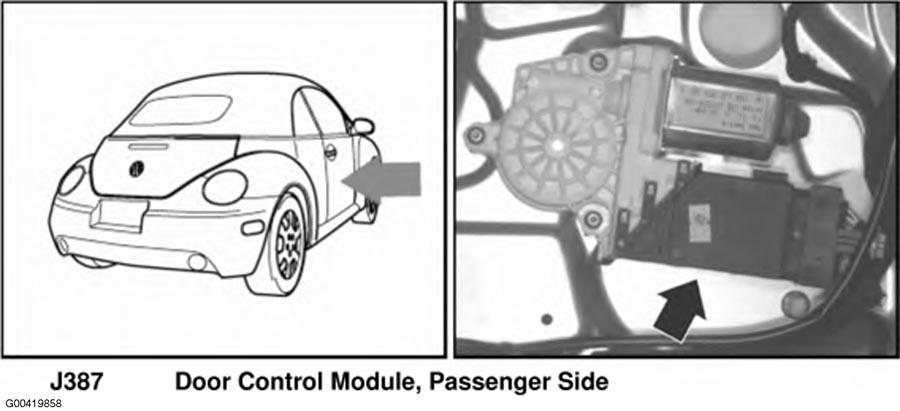

| Door Control Module (Passenger Side) | In passenger's door, integral to window motor. See Figure. |

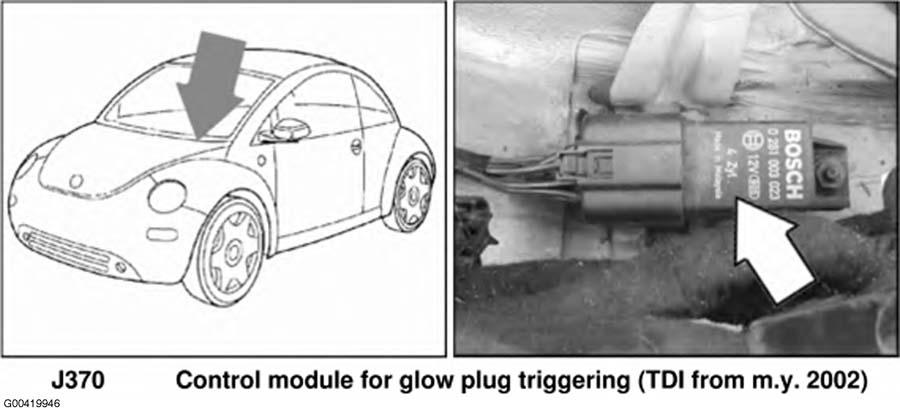

| Glow Plug Triggering Control Module | Left rear of engine compartment. See Figure. |

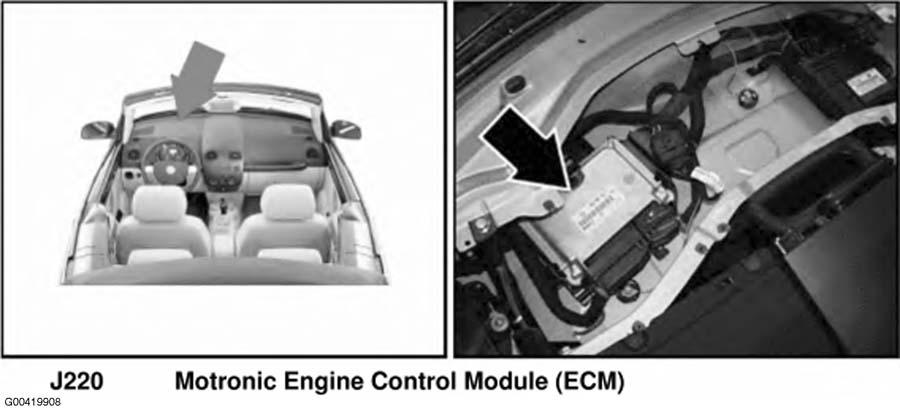

| Motronic Engine Control Module | Below left side of dash cover. See Figure. |

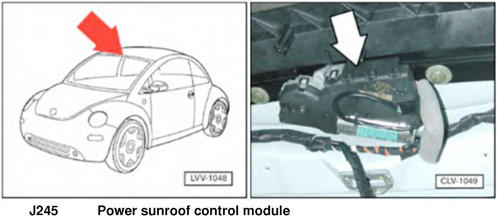

| Power Sunroof Control Module | Center front of roof. See Figure. |

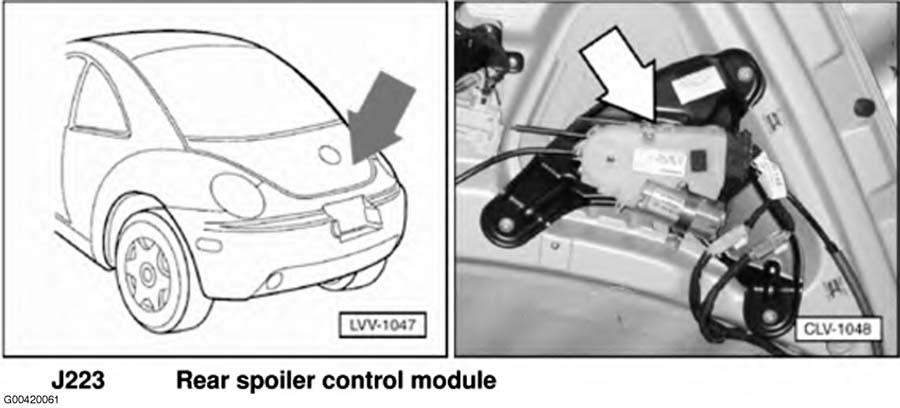

| Rear Spoiler Control Module | On right side of rear lid. See Figure. |

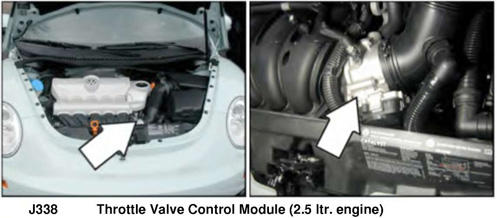

| Throttle Valve Control Module | On throttle body. See Figure. |
| Transmission control module (TCM) | Under inner plenum chamber cover. See Figure. |
