Turn Signal Switch

Turn Signal Switch

The "turn signal switch" consists of the turn signal switch (E2) / headlamp dimmer/flasher switch (E4) and the cruise control switch (E45).

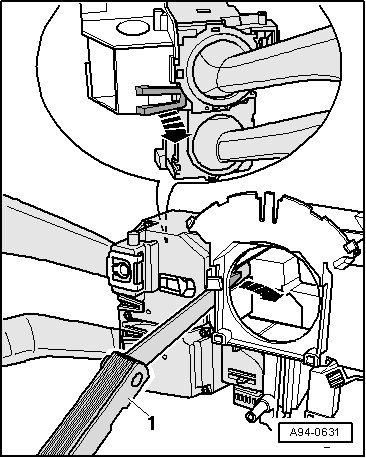

• The illustration shows the steering column switch and cruise control switch (E45) removed.

Removal

- Open the clips - arrows - with a 1.0 mm feeler gauge - 1 - and remove the "turn signal switch" to the rear.






Installation

Installation is performed in the reverse order of removal. Note the following:

The "turn signal switch" must engage audibly.
