LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Volkswagen
>>
2006
>>
Jetta Sedan (1K2) L5-2.5L (BGP)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
>>
Relay Arrangements on Electronics Box (E-Box), In Engine Compartment, Left, From July 2006
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

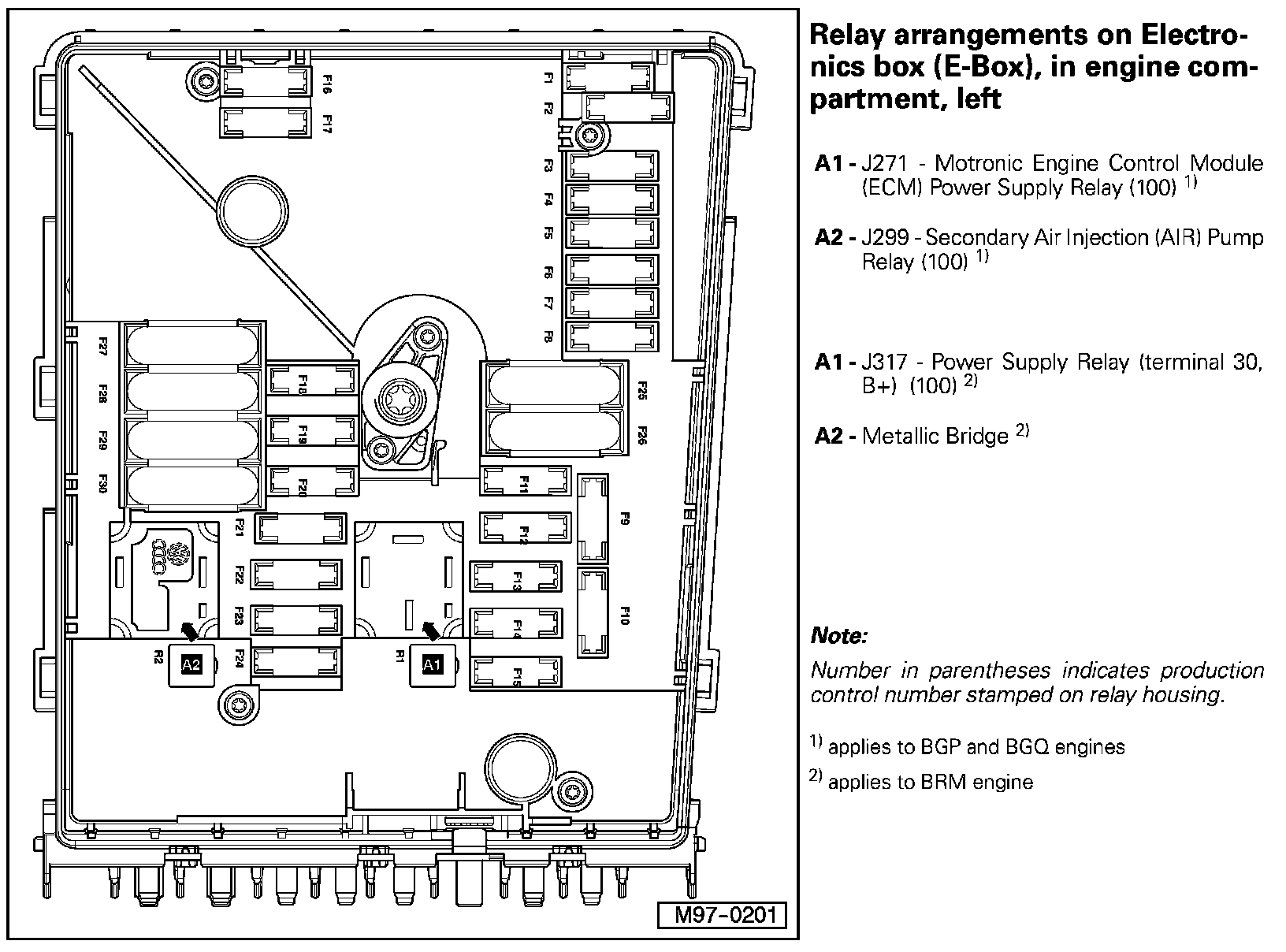

Relay Arrangements on Electronics Box (E-Box), In Engine Compartment, Left, From July 2006
Relay Arrangements On Electronics Box (E-Box), In Engine Compartment, Left:
