Rear Subframe: Service and Repair

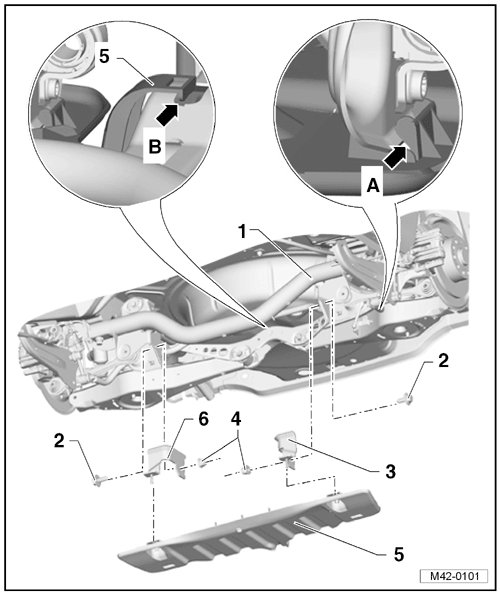

Subframe Components Assembly Overview, Jetta Blue Motion






1 Subframe

2 Bolt

3 Angle

• With pop rivet.

4 Nut

• 20 Nm

5 Right Shield

• Tighten the nuts to 2 Nm.

• Removal and installation, refer to => [ Heat Shield ] Removal and Replacement.

• When installing the shield must be attached from underneath to the subframe - arrow A - and attached from the top - arrow B -.

6 Angle

• With pop rivet.
