Driver's Door Control Module Connector End Views (J386, T32a, T16a, T20a)

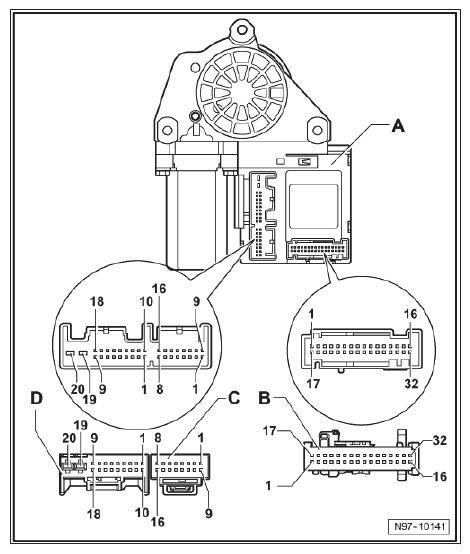

Fig 1: Driver's Door Control Module Connector End Views (J386, T32a, T16a, T20a)
A
Driver's Door Control Module -J386- Connector
B
32-Pin Connector, in wiring harness (T32a)
C
16-Pin Connector, under instrument panel, left, Data Link Connector (DLC), in wiring harness (T16a)
D
20-Pin Connector, in wiring harness (T20a)
