Airbag Control Module Connector End Views (J234-T50)

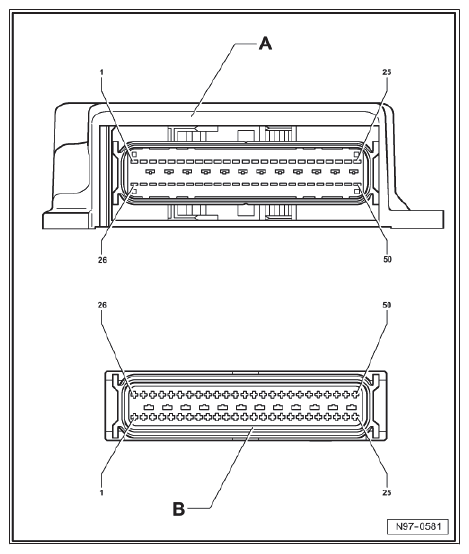

Fig 1: Airbag Control Module Connector End Views (J234-T50)
A
Airbag Control Module -J234- Connector
B
50-Pin Connector, -T50-, in wiring harness
