Heating and Ventilation Controls, Assembly

Heating And Ventilation Controls, Assembly

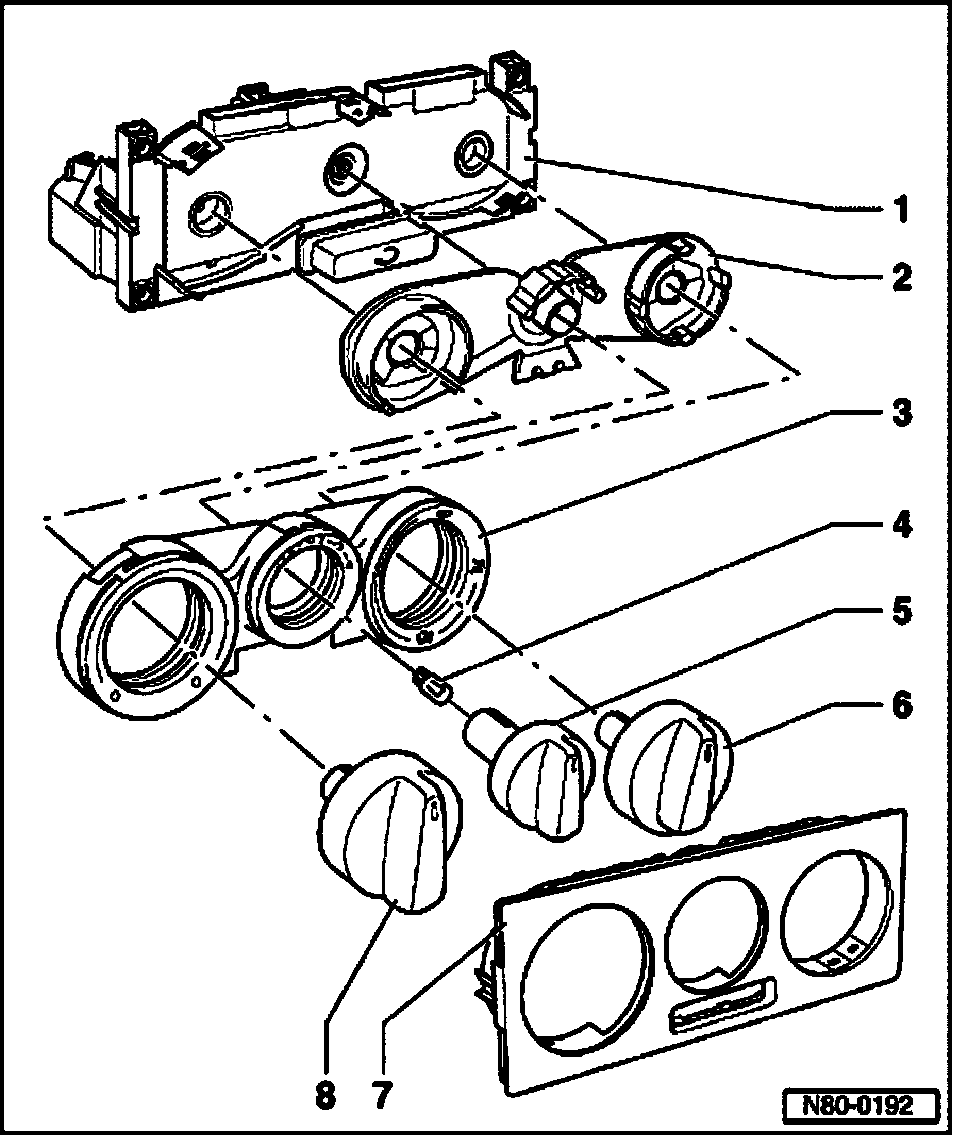

1. Heating and ventilation controls
- With fresh air blower switch -E9-
- With fresh air/recirculating flap switch -E159-
2. Illumination filter
3. Trim panel
4. Fresh air control lever light -L16-
- 12 V, 1.2 W
- Replacing:
- Unclip trim panel -item 7- and rotary control -item 5-.
- Pull out bulb using a piece of fuel hose.
5. Rotary control
- For blower speed
- To remove: Use pliers with suitable plastic or rubber protection on jaws
6. Rotary control
- For air distribution
- To remove: Use pliers with suitable plastic or rubber protection on jaws
7. Trim panel
8. Rotary control
- For interior temperature control
- To remove: Use pliers with suitable plastic or rubber protection for jaws
