Accelerator Mechanism, Servicing

Accelerator Mechanism, Servicing

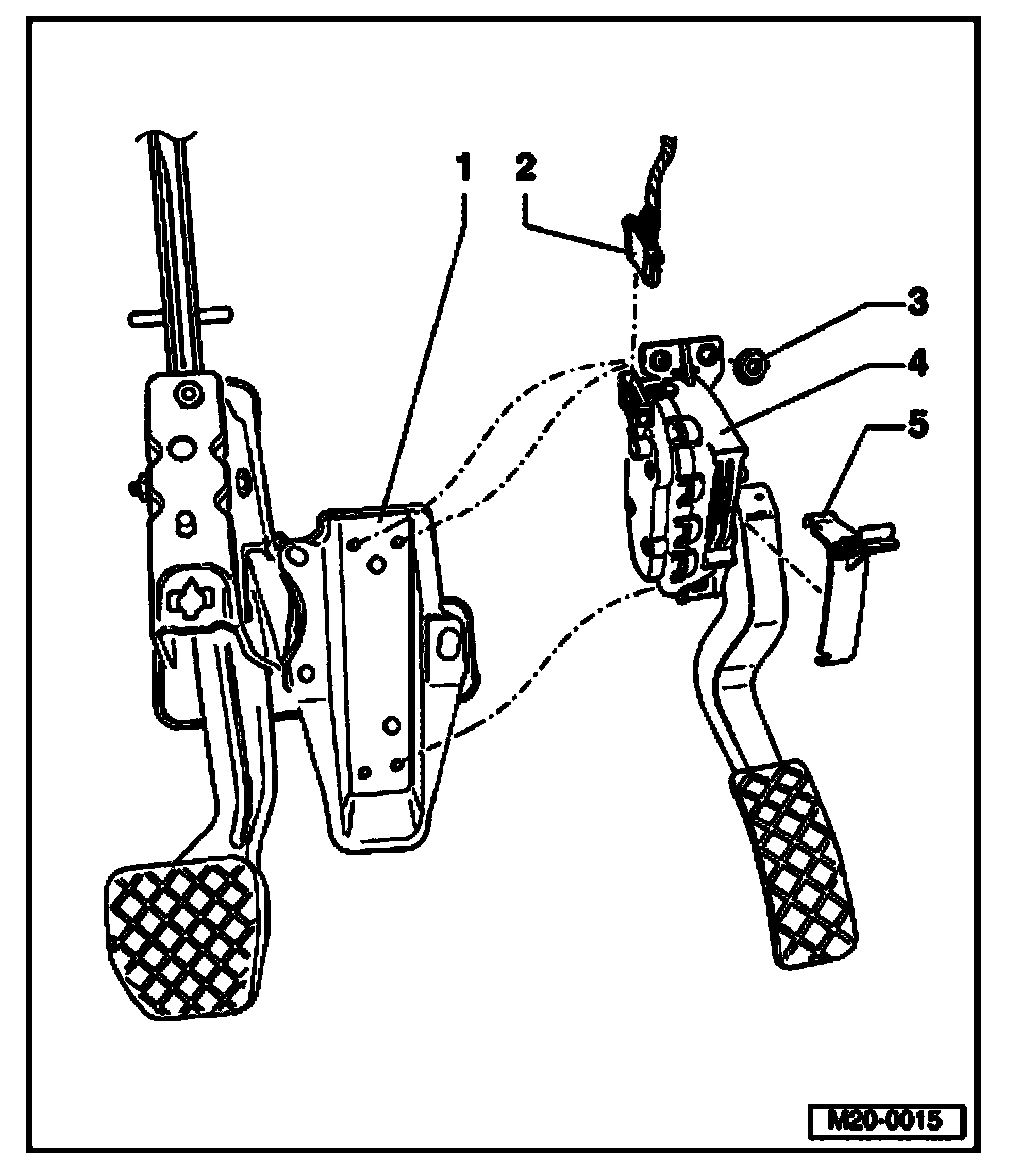

1. Mounting bracket
2. Connector
- Black, 6-pin
3. 10 Nm
4. Throttle Position (TP) sensor -G79-
- Cannot be adjusted
- TP sensor passes position of pedal on to engine control module
- Remove footwell cover to remove sensor
5. Bracket
- For footwell cover
- Clipped firmly onto throttle position sensor.
