Throttle Position Sensor: Locations: Overview

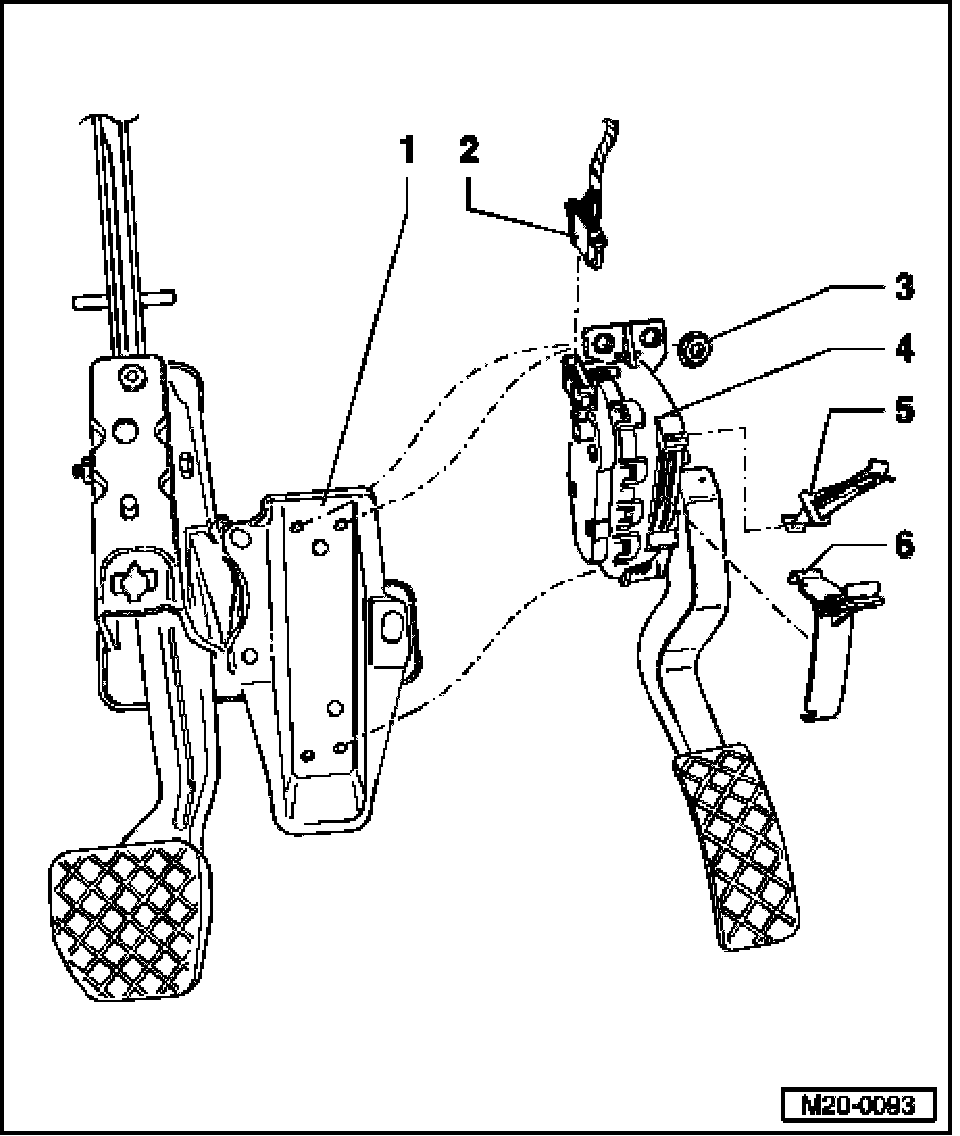

Electronic Engine Power Control (EPC) Components, Servicing







1. Mounting bracket
2. Connector
- Black, 6-pin
- Terminals are gold-plated
3. 10 Nm
4. Throttle Position (TP) Sensor -G79- and Sender -2- for accelerator pedal position -G185-*
- Not adjustable.
- Throttle Position (TP) sensor communicates the driver's intentions to the Engine Control Module (ECM)
- To remove sensor, remove cover in footwell
5. Bracket
- For footwell cover
- For model year 2002 >
- Clipped in at Throttle Position (TP) Sensor
6. Bracket
- For footwell cover
- For model year >2001
- Clipped in at Throttle Position (TP) Sensor
