Secondary Air Injection Valve, Checking

Solenoid valve is closed when no voltage is present.

Special tools and workshop equipment required

• Multimeter VAG1526 or multimeter VAG1715
• Connector test kit VAG1594
• Wiring diagram

Test requirements

• Fuses in E-box (in plenum chamber, left) must be OK: Refer to SYSTEM WIRING DIAGRAM
  Fig 1: Identifying Fuses In E-Box (In Plenum Chamber, Left)

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Motronic Engine Control Module (ECM) Power Supply Relay -J271- must be OK, check: Refer to SYSTEM WIRING DIAGRAM
• Ground (GND) connections between engine and chassis must be OK.
• Ignition switched off.

Test sequence

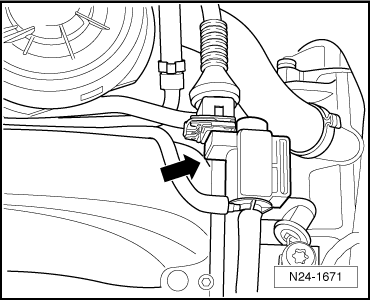

-- Disconnect 2-pin connector from Secondary Air Injection (AIR) Solenoid Valve -N112- (arrow).

Checking resistance

-- Measure resistance between terminals of solenoid valve.

Specified value: 55.0 to 65.0 Ω

If specified value is not obtained:

-- Replace Secondary Air Injection (AIR) Solenoid Valve -N112-.

-- Erase DTC memory of Engine Control Module (ECM), Diagnostic mode 4: Reset/erase diagnostic data.

-- Generate readiness code.

If specified value is obtained:

-- Check wires according to wiring diagram.

Check wiring

-- Connect test box to control module wiring harness, connect test box for wiring test.

-- Check wire between test box socket 44+2-pin connector terminal 2 for open circuit according to wiring diagram.

Wire resistance: max. 1.5 Ω

-- Also check the wire for short circuit to B+ and Ground (GND).

Specified value: ∞ Ω

-- Check wire between 2-pin connector terminal 1 and Motronic Engine Control Module (ECM) Power Supply Relay -J271- for open circuit according to wiring diagram

Wire resistance: max. 1.5 Ω

-- Erase DTC memory of Engine Control Module (ECM), Diagnostic mode 4: Reset/erase diagnostic data.

-- Generate readiness code.

If no malfunctions are found in wires:

-- Replace Motronic Engine Control Module (ECM) -J220- ENGINE CONTROL MODULE, REPLACING .
