Mode 6

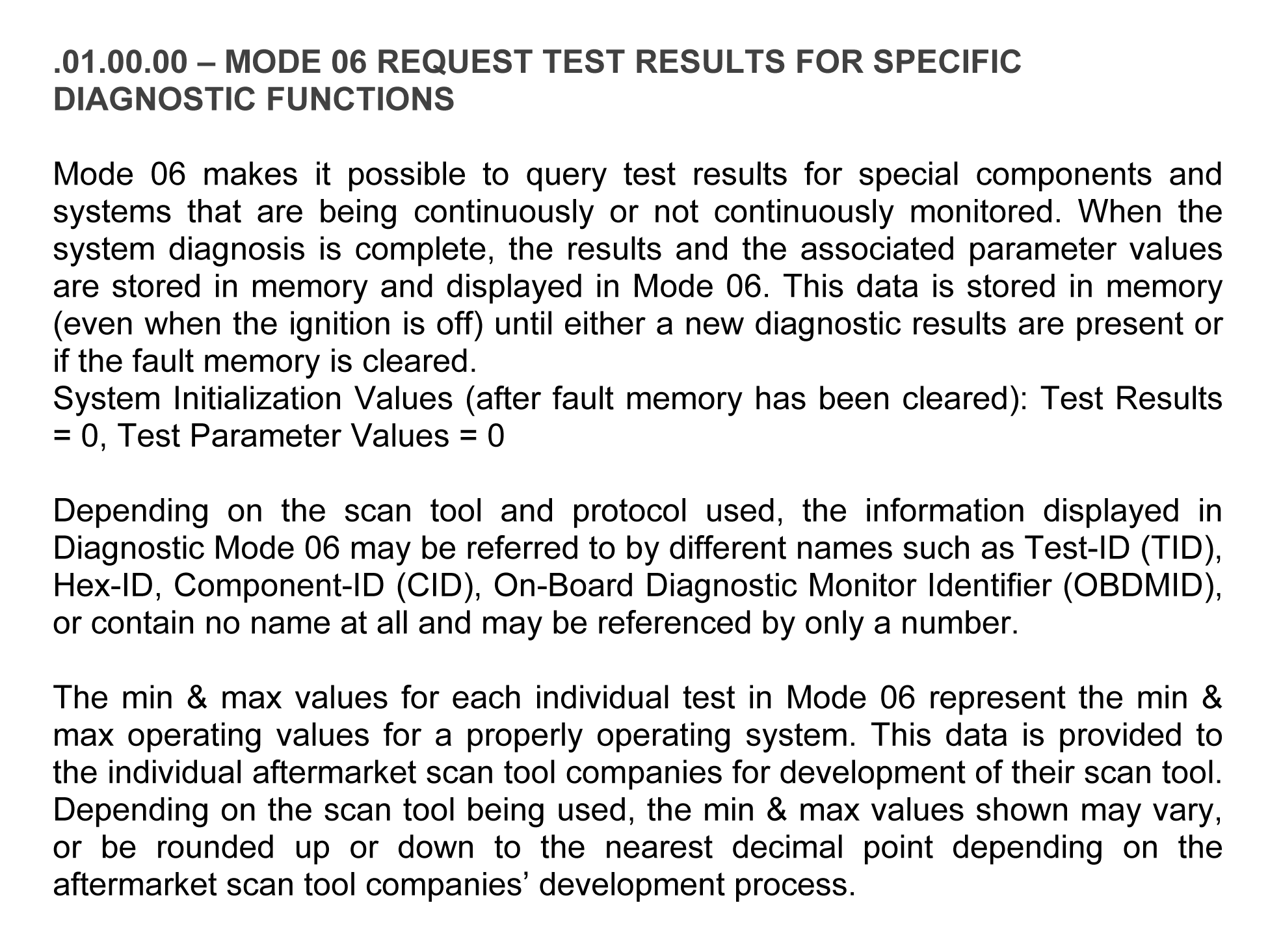

Fig 1: Mode 6 Data (2004 3.2L BAA) (1 Of 7)

G00105262

Courtesy of VOLKSWAGEN UNITED STATES, INC.

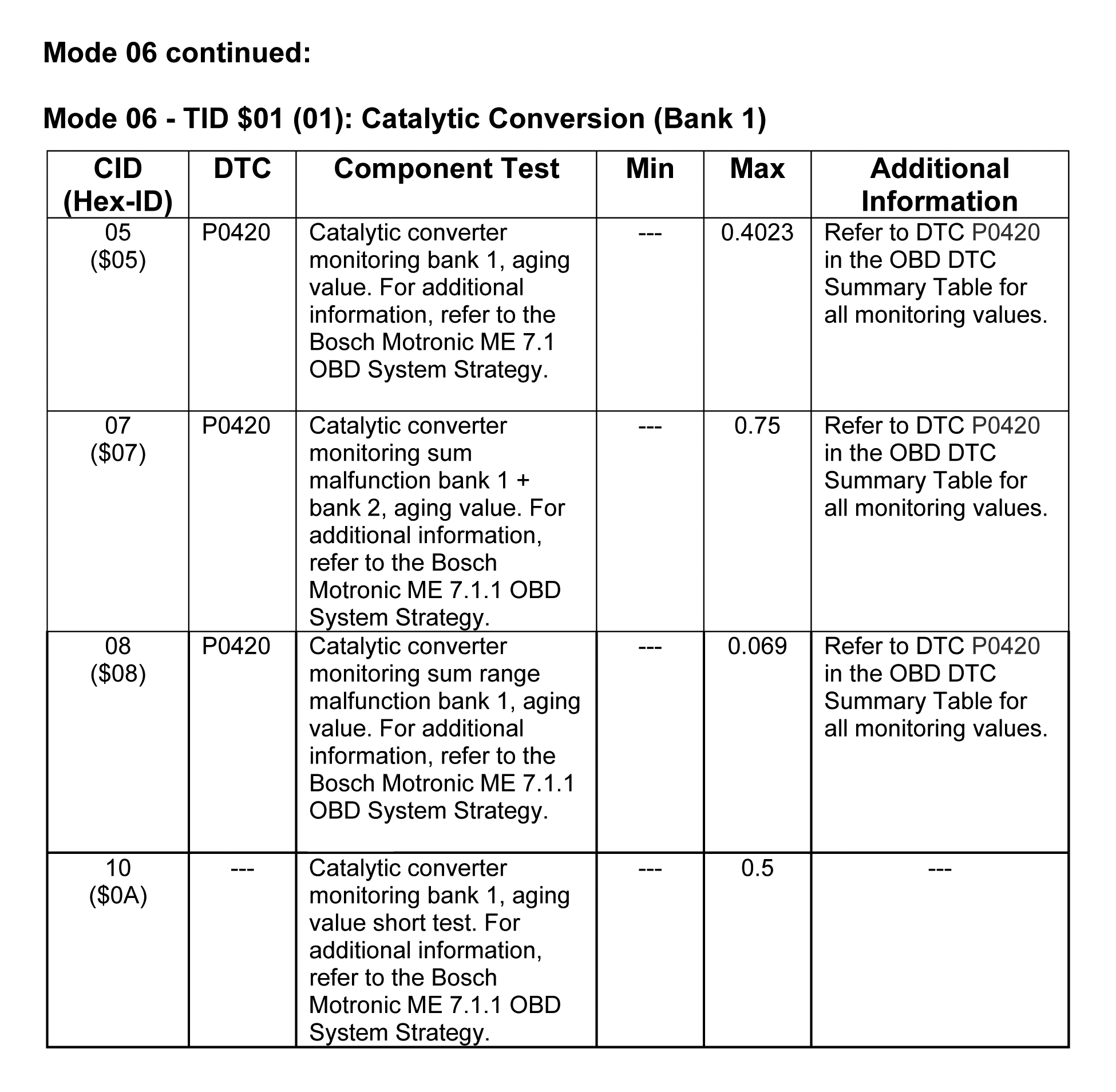

Fig 2: Mode 6 Data (2004 3.2L BAA) (2 Of 7)

G00105263

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Mode 6 Data (2004 3.2L BAA) (3 Of 7)

G00105264

Courtesy of VOLKSWAGEN UNITED STATES, INC.

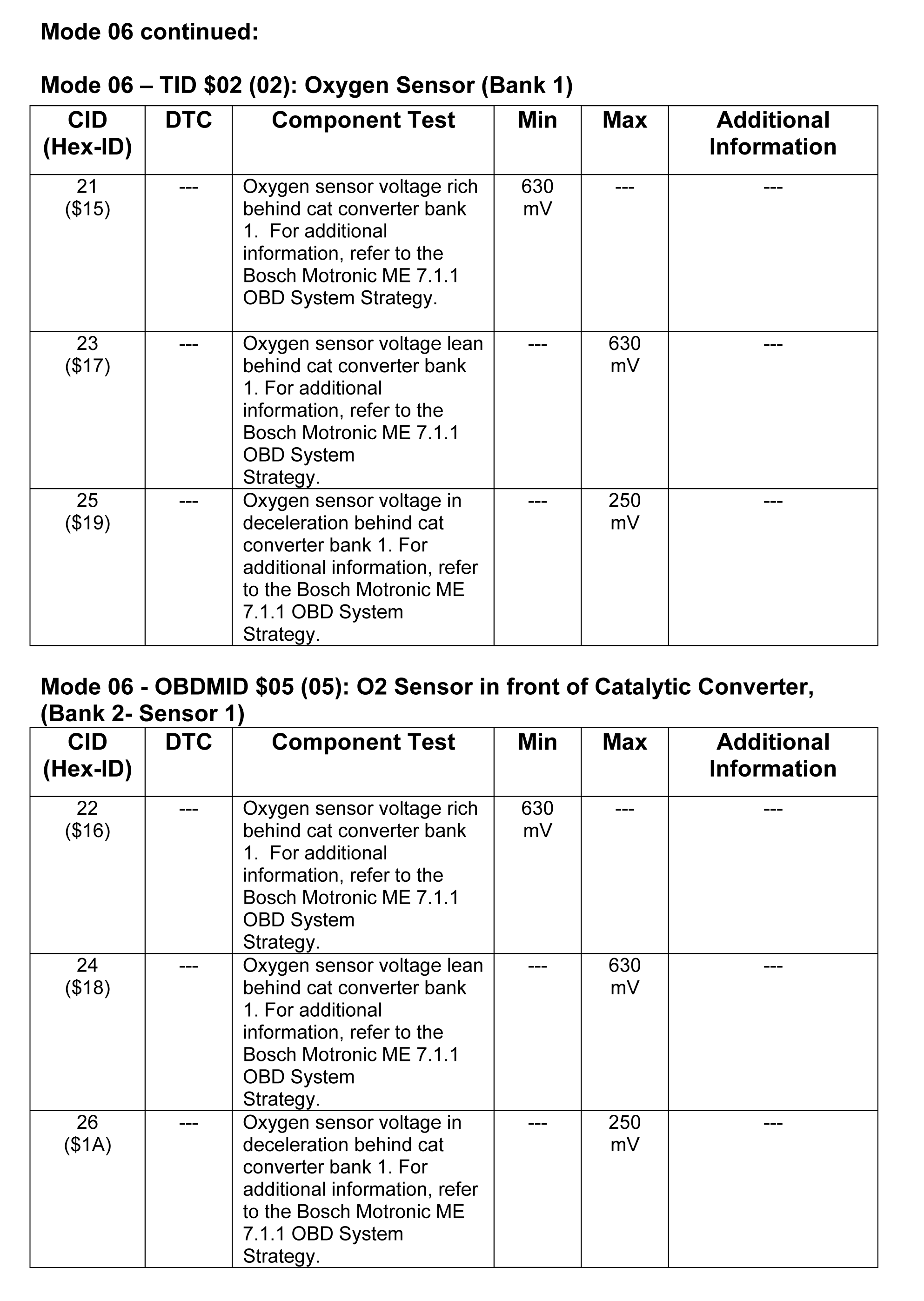

Fig 4: Mode 6 Data (2004 3.2L BAA) (4 Of 7)

G00105265

Courtesy of VOLKSWAGEN UNITED STATES, INC.

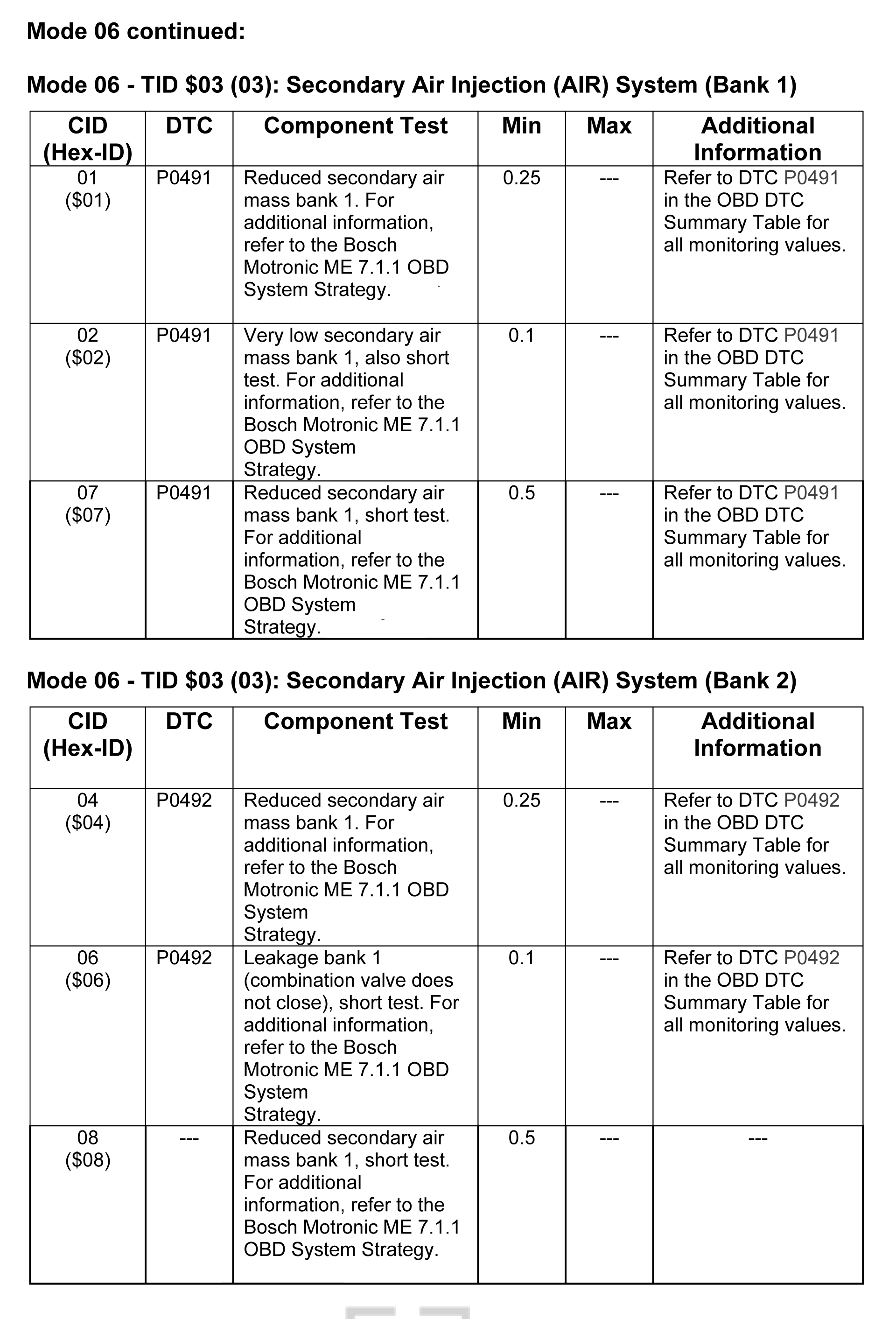

Fig 5: Mode 6 Data (2004 3.2L BAA) (5 Of 7)

G00105266

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 6: Mode 6 Data (2004 3.2L BAA) (6 Of 7)

G00105267

Courtesy of VOLKSWAGEN UNITED STATES, INC.

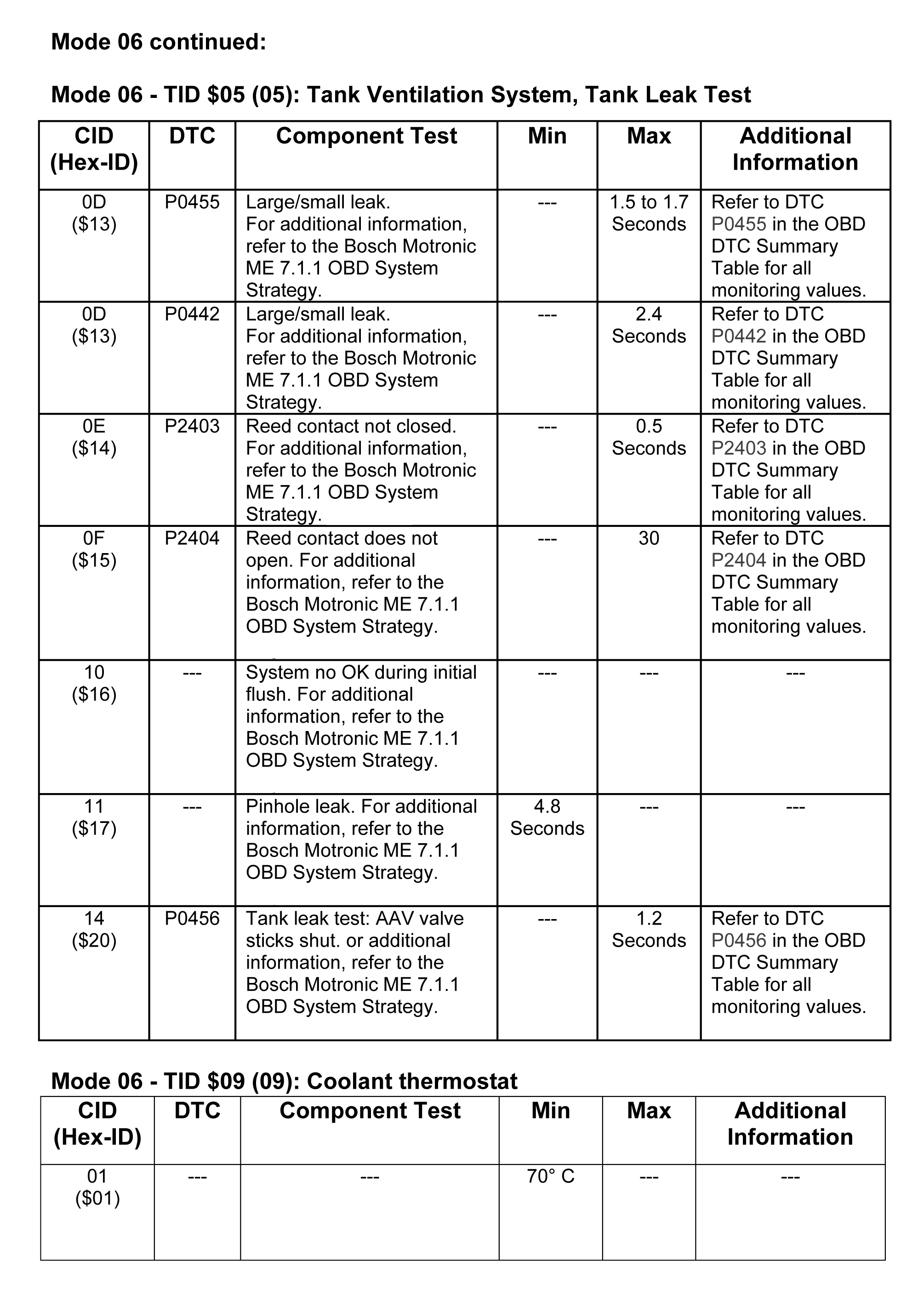

Fig 7: Mode 6 Data (2004 3.2L BAA) (7 Of 7)

G00105268

Courtesy of VOLKSWAGEN UNITED STATES, INC.

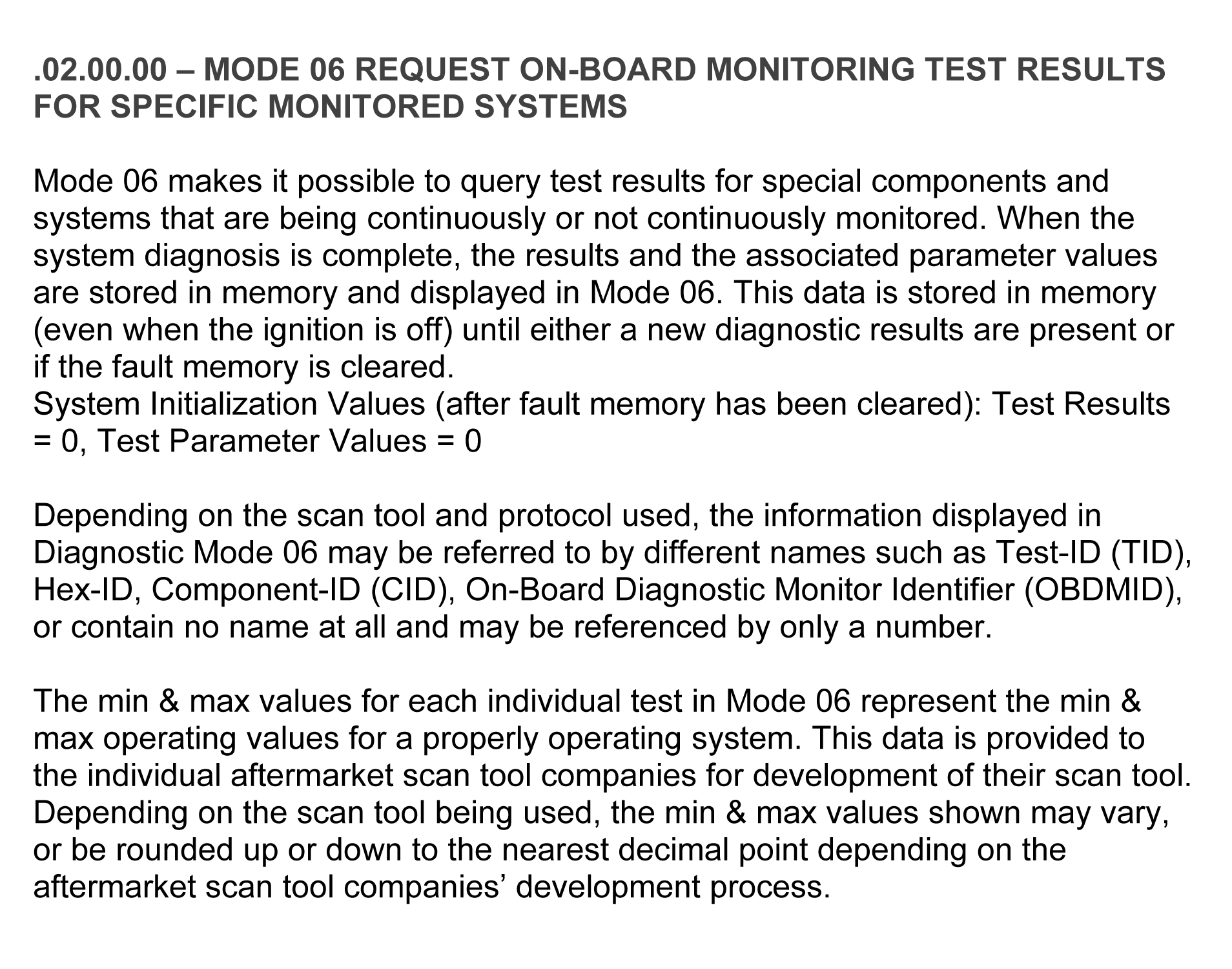

Fig 8: Mode 6 Data (2003-06 4.2L AXQ, BHX) (1 Of 3)

G00105269

Courtesy of VOLKSWAGEN UNITED STATES, INC.

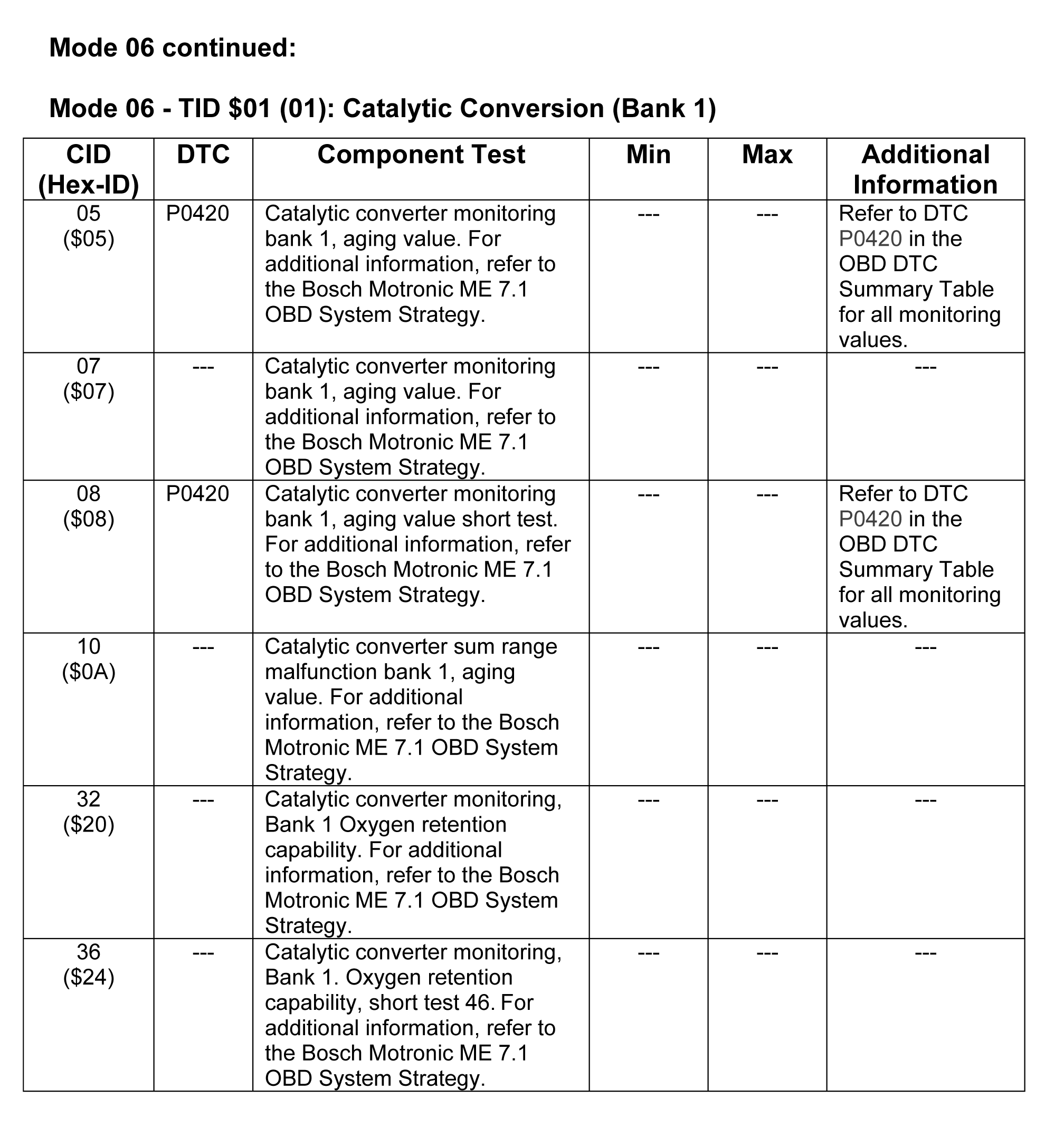

Fig 9: Mode 6 Data (2003-06 4.2L AXQ, BHX) (2 Of 3)

G00105270

Courtesy of VOLKSWAGEN UNITED STATES, INC.

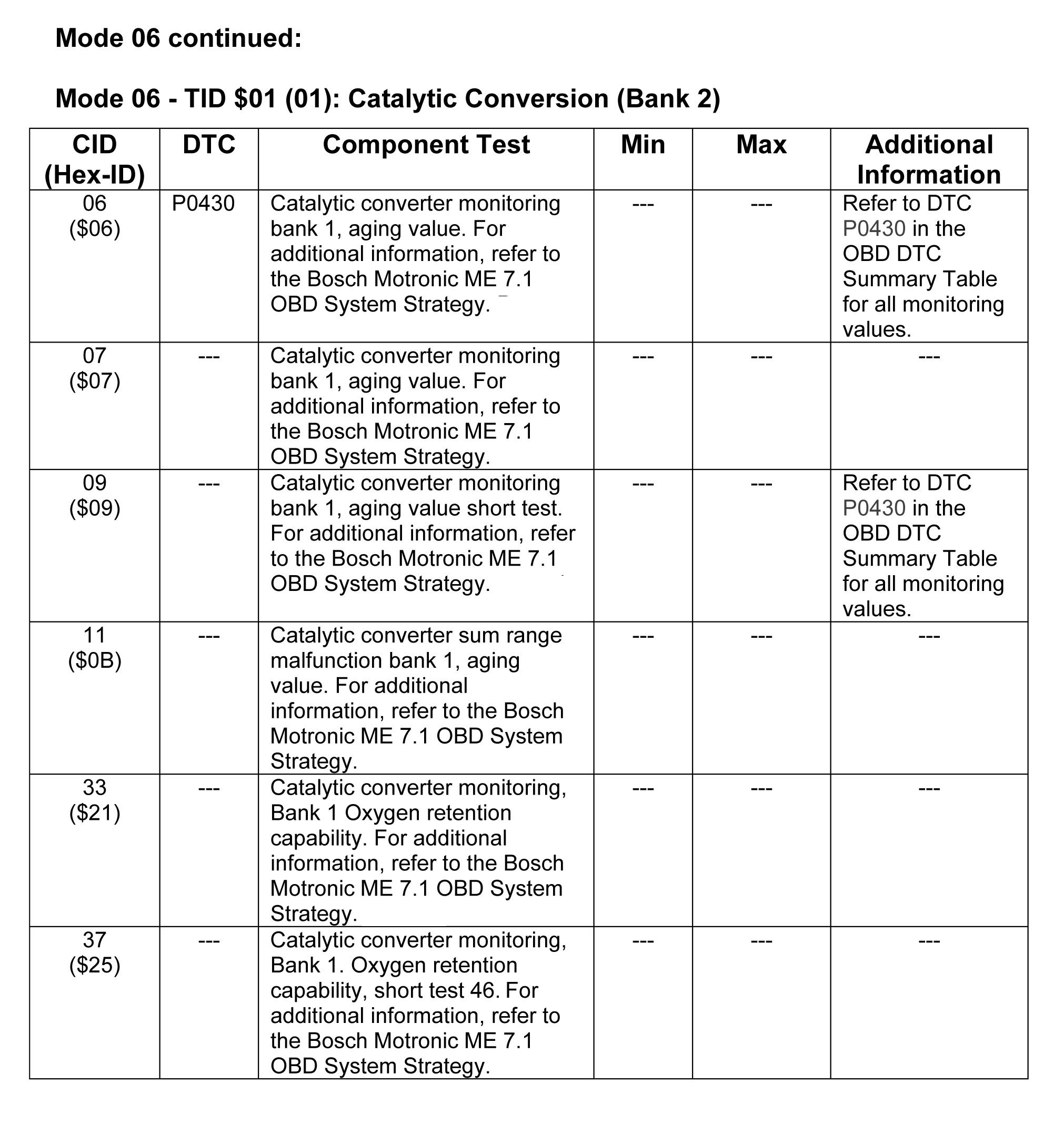

Fig 10: Mode 6 Data (2003-06 4.2L AXQ, BHX) (3 Of 3)

G00105271

Courtesy of VOLKSWAGEN UNITED STATES, INC.

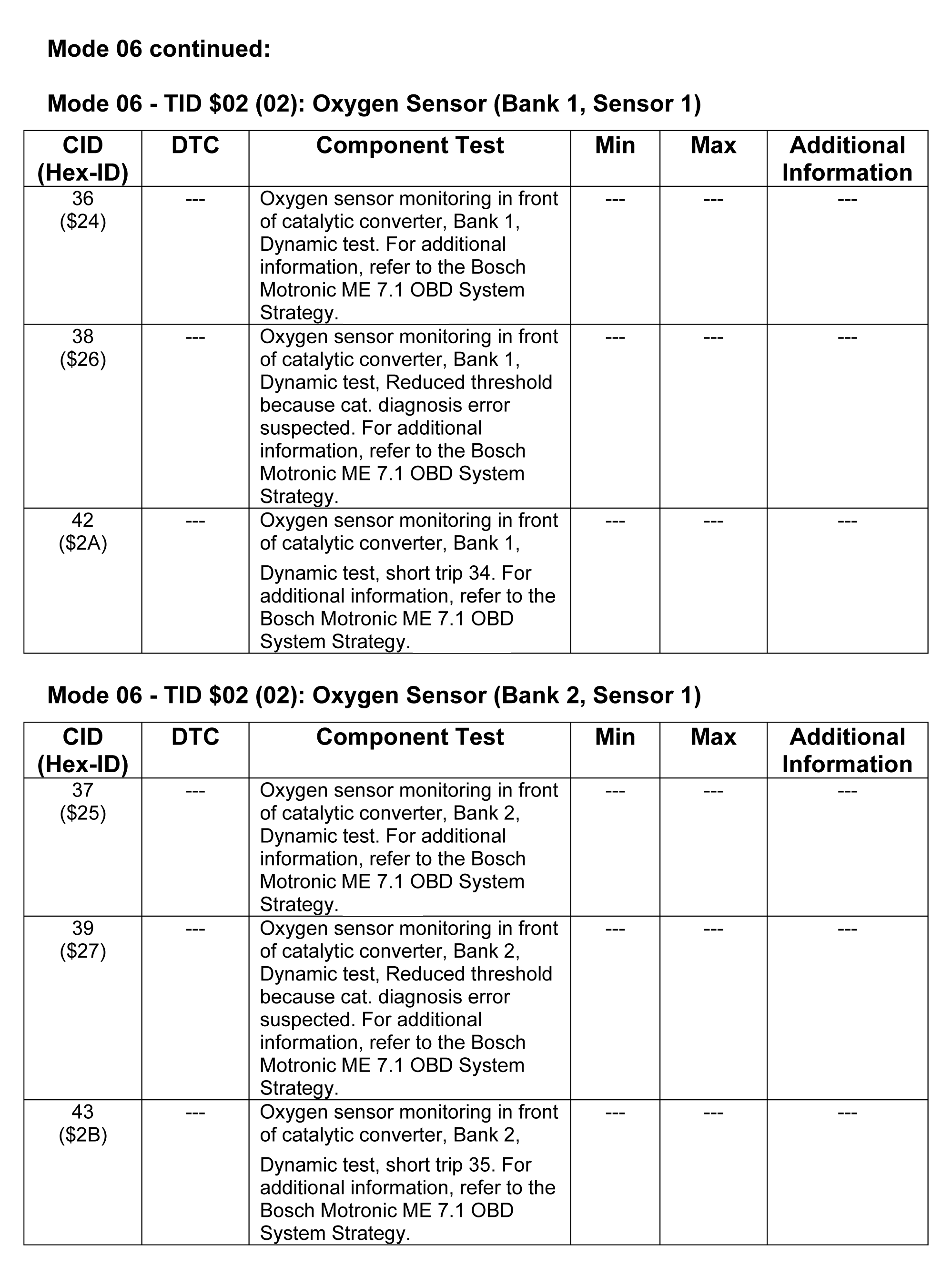

Fig 11: Mode 6 Data (2003-06 AXQ, BHX) (1 Of 2)

G00105272

Courtesy of VOLKSWAGEN UNITED STATES, INC.

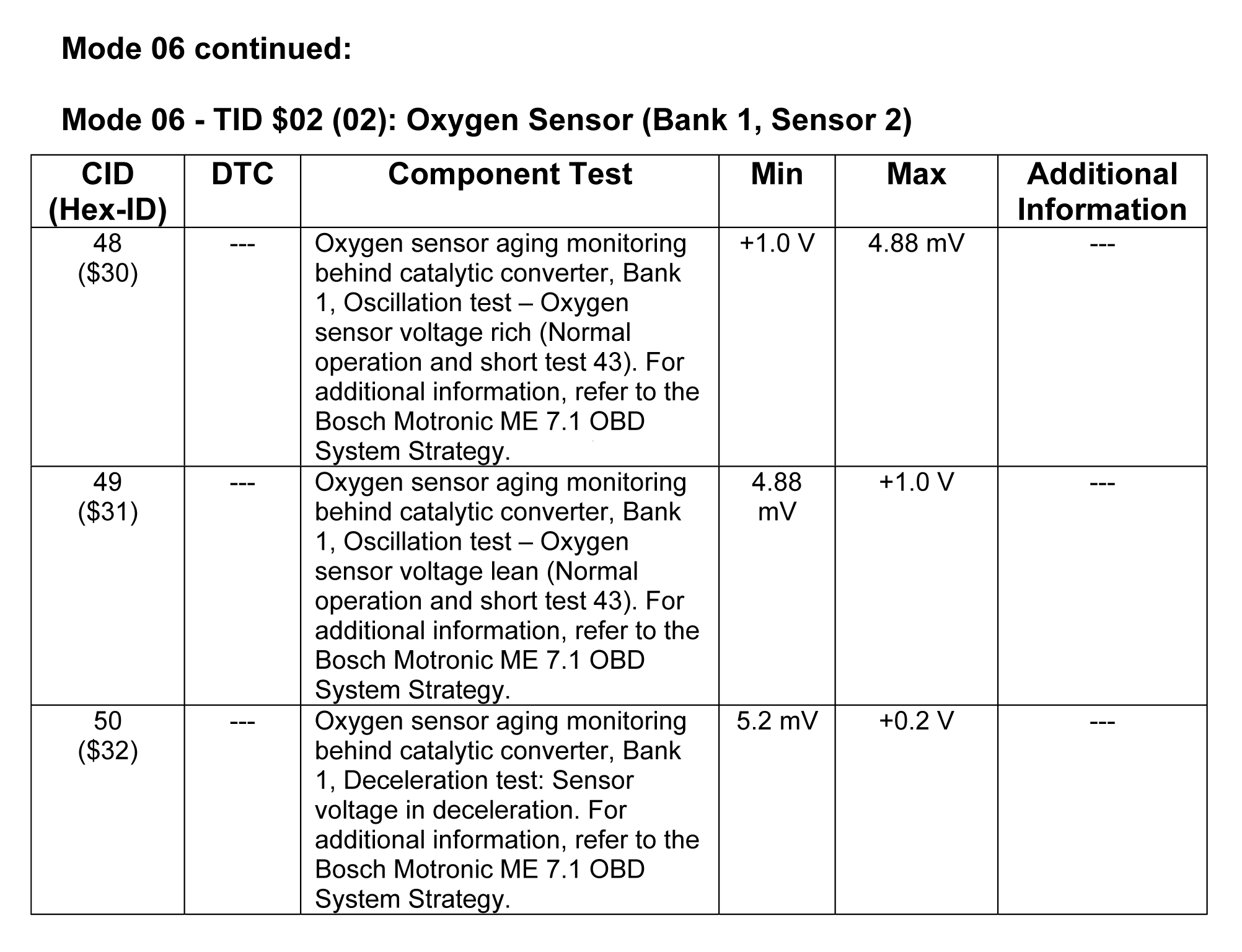

Fig 12: Mode 6 Data (2003-06 AXQ, BHX) (2 Of 2)

G00105273

Courtesy of VOLKSWAGEN UNITED STATES, INC.

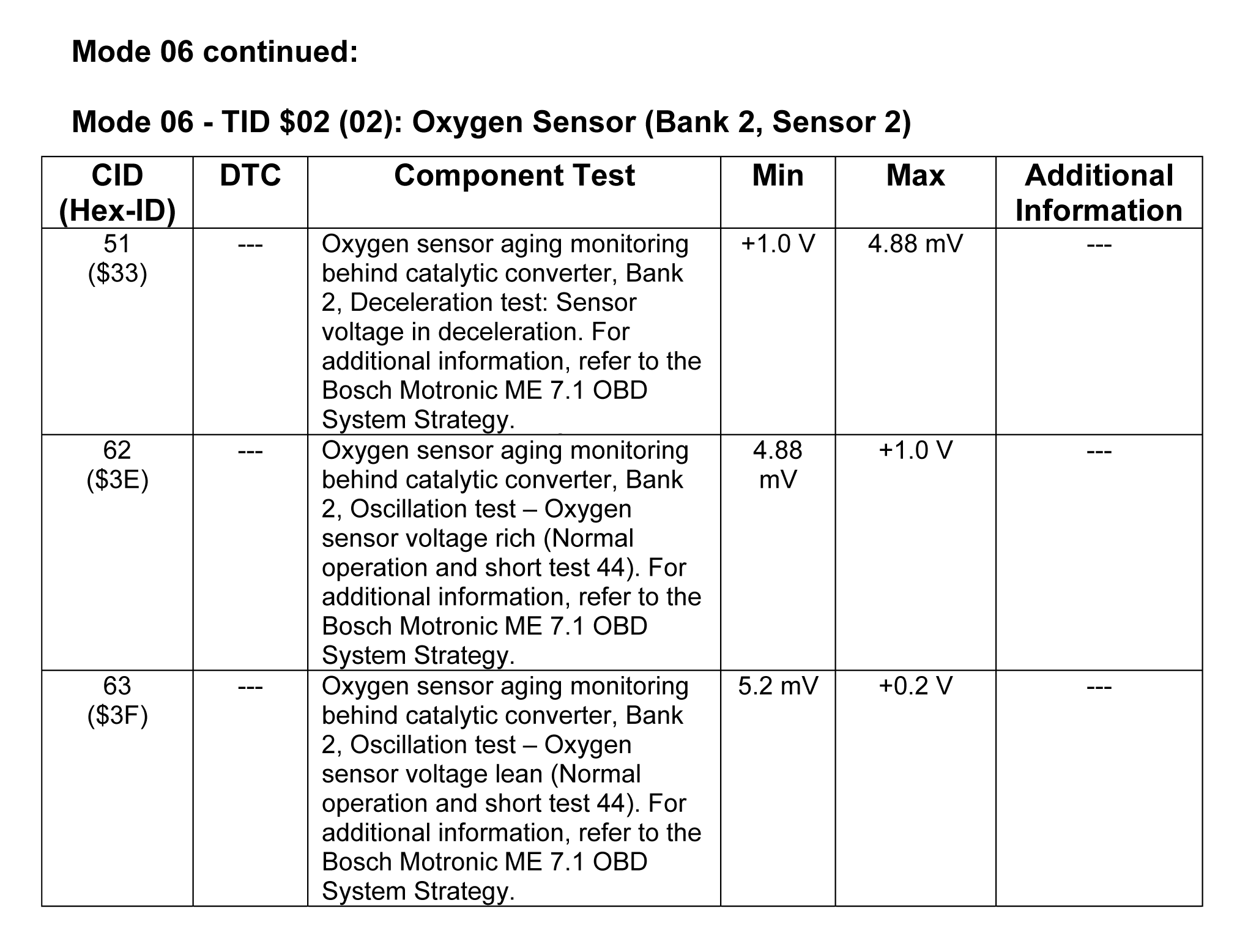

Fig 13: Mode 6 Data (2003-06 AXQ, BHX) (3 Of 3)

G00105274

Courtesy of VOLKSWAGEN UNITED STATES, INC.

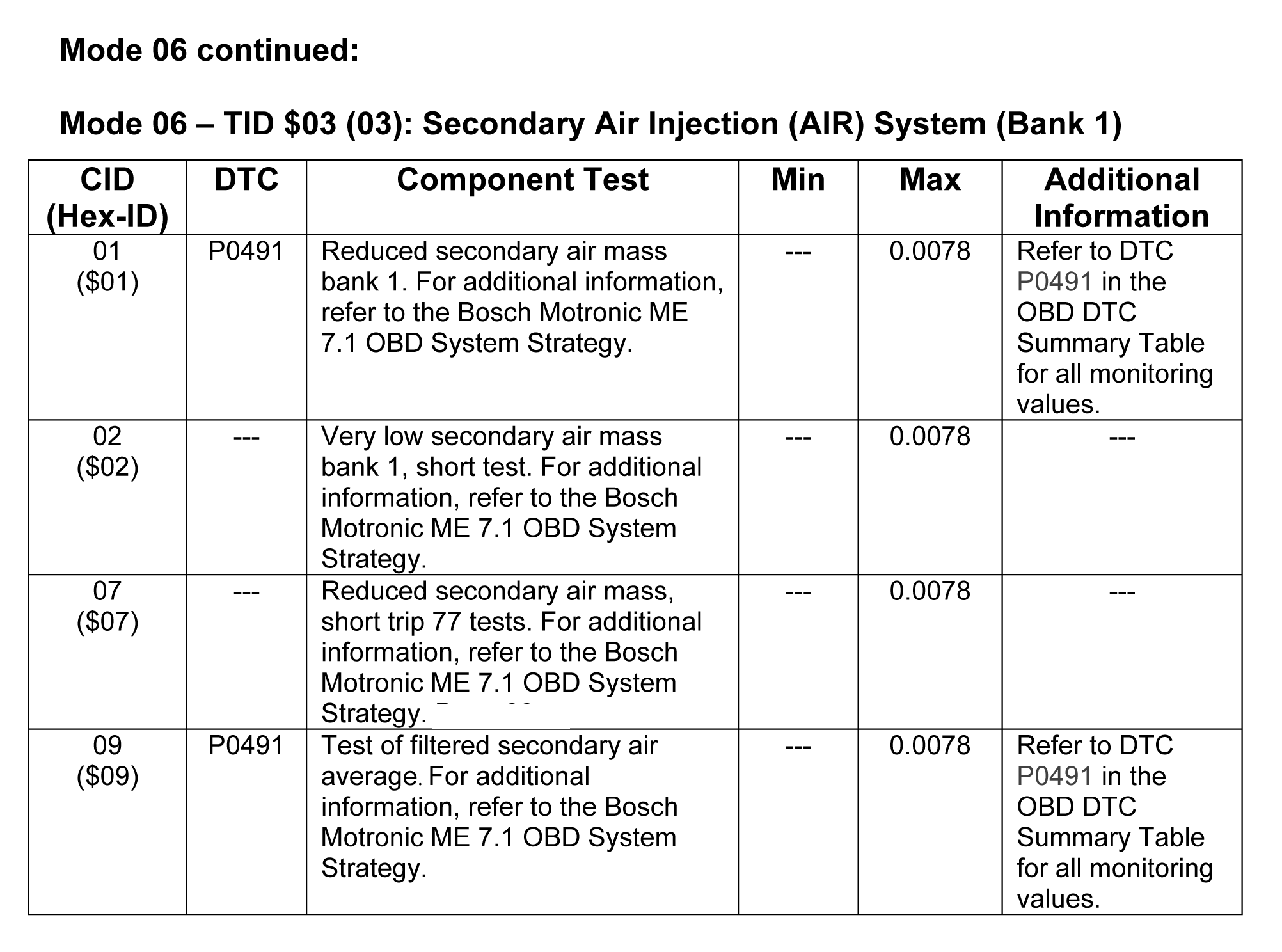

Fig 14: Mode 6 Data (2003-06 AXQ, BHX) (1 Of 6)

G00105275

Courtesy of VOLKSWAGEN UNITED STATES, INC.

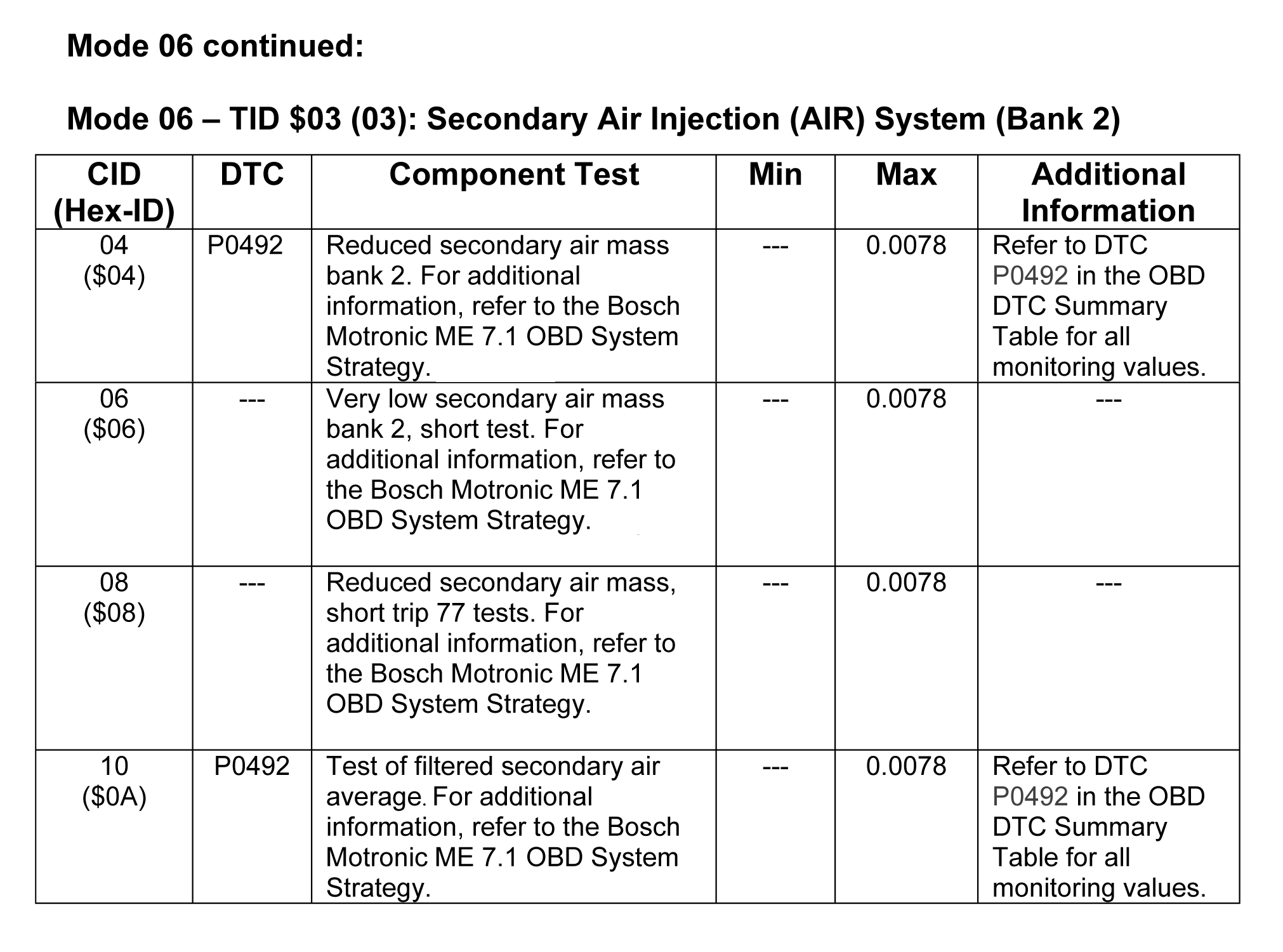

Fig 15: Mode 6 Data (2003-06 AXQ, BHX (2 Of 6))

G00105276

Courtesy of VOLKSWAGEN UNITED STATES, INC.

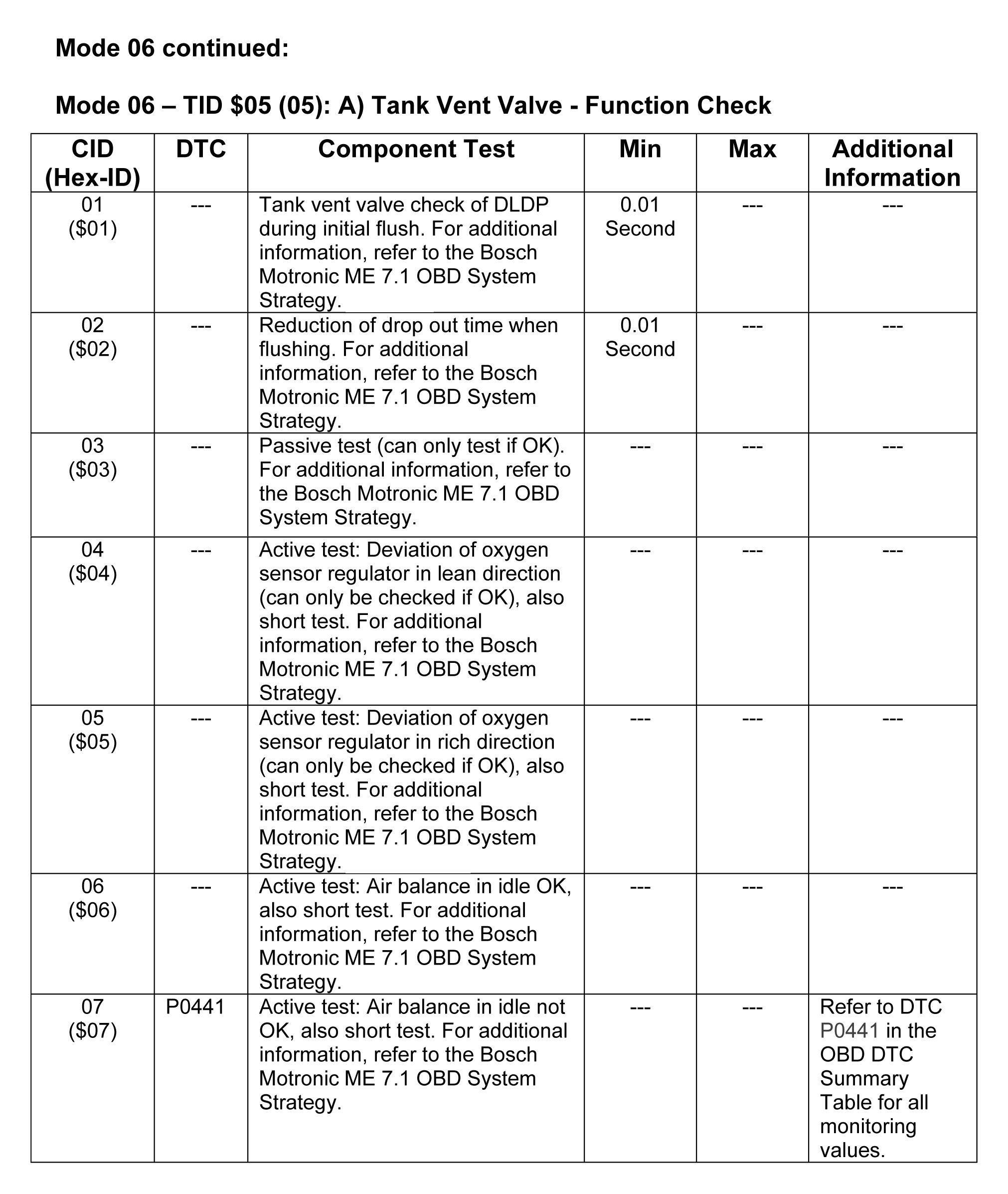

Fig 16: Mode 6 Data (2003-06 AXQ, BHX) (3 Of 6)

G00105277

Courtesy of VOLKSWAGEN UNITED STATES, INC.

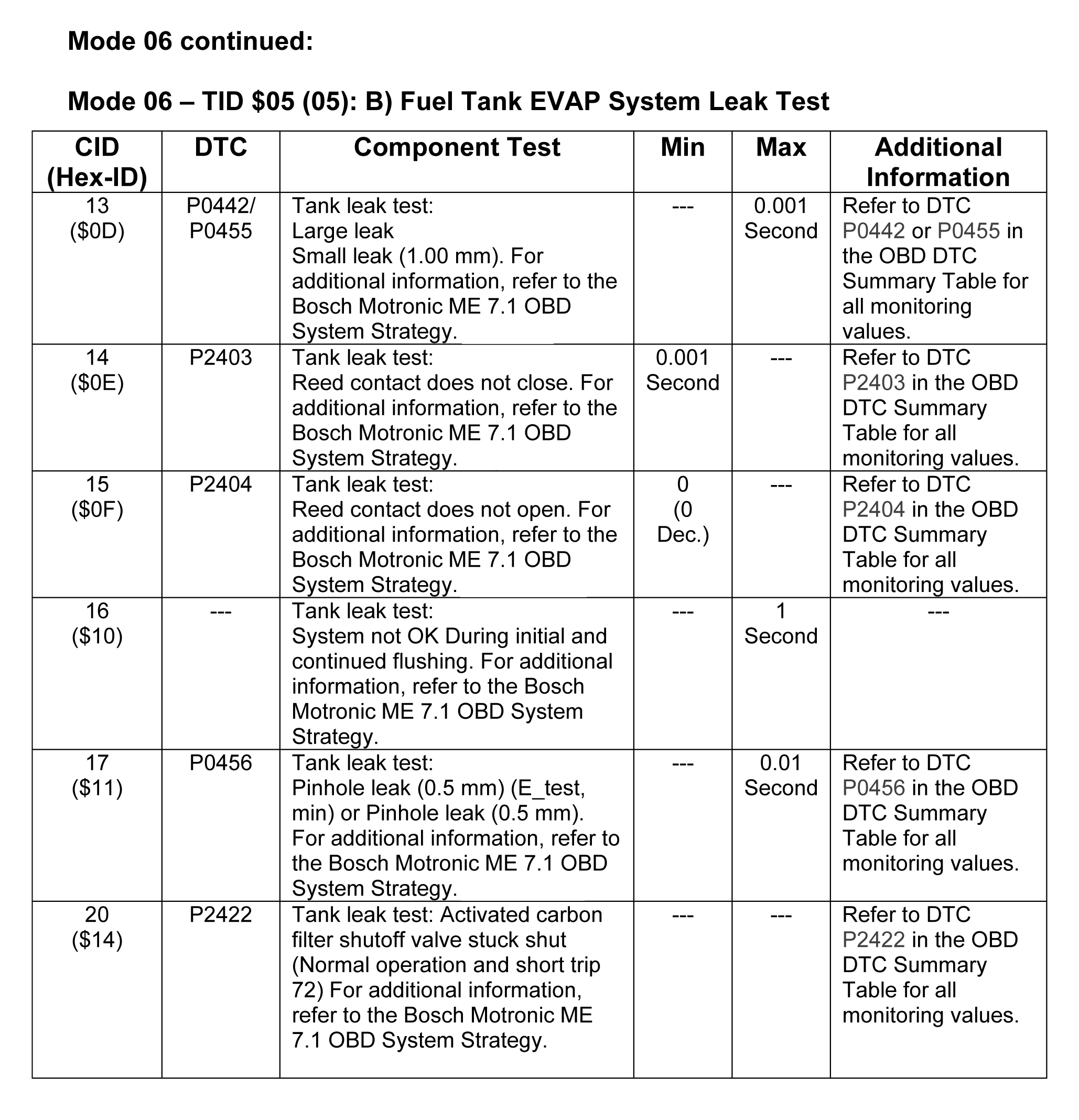

Fig 17: Mode 6 Data (2003-06 AXQ, BHX (4 Of 6)

G00105278

Courtesy of VOLKSWAGEN UNITED STATES, INC.

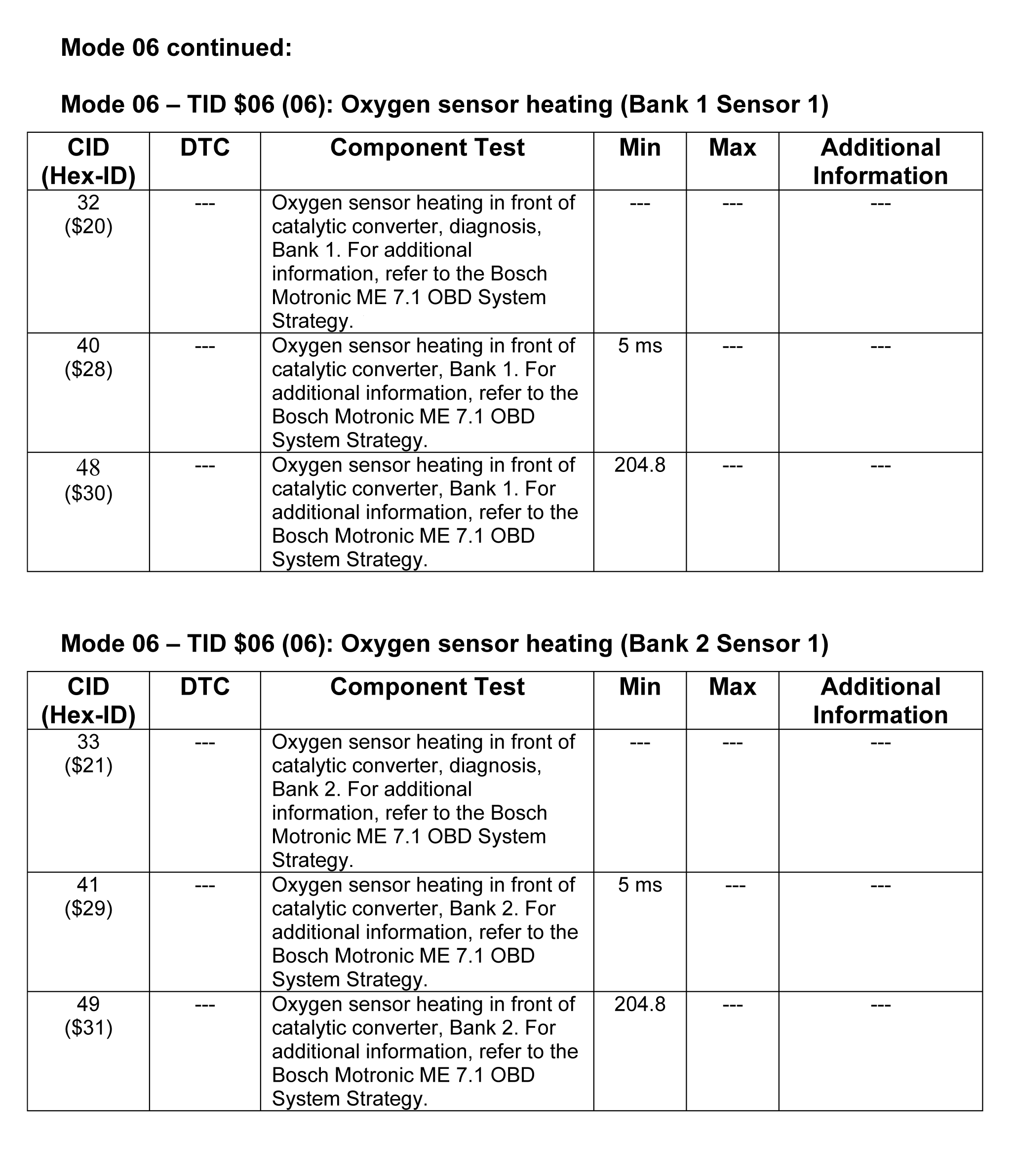

Fig 18: Mode 6 Data (2003-06 AXQ, BHX) (5 Of 6)

G00105279

Courtesy of VOLKSWAGEN UNITED STATES, INC.

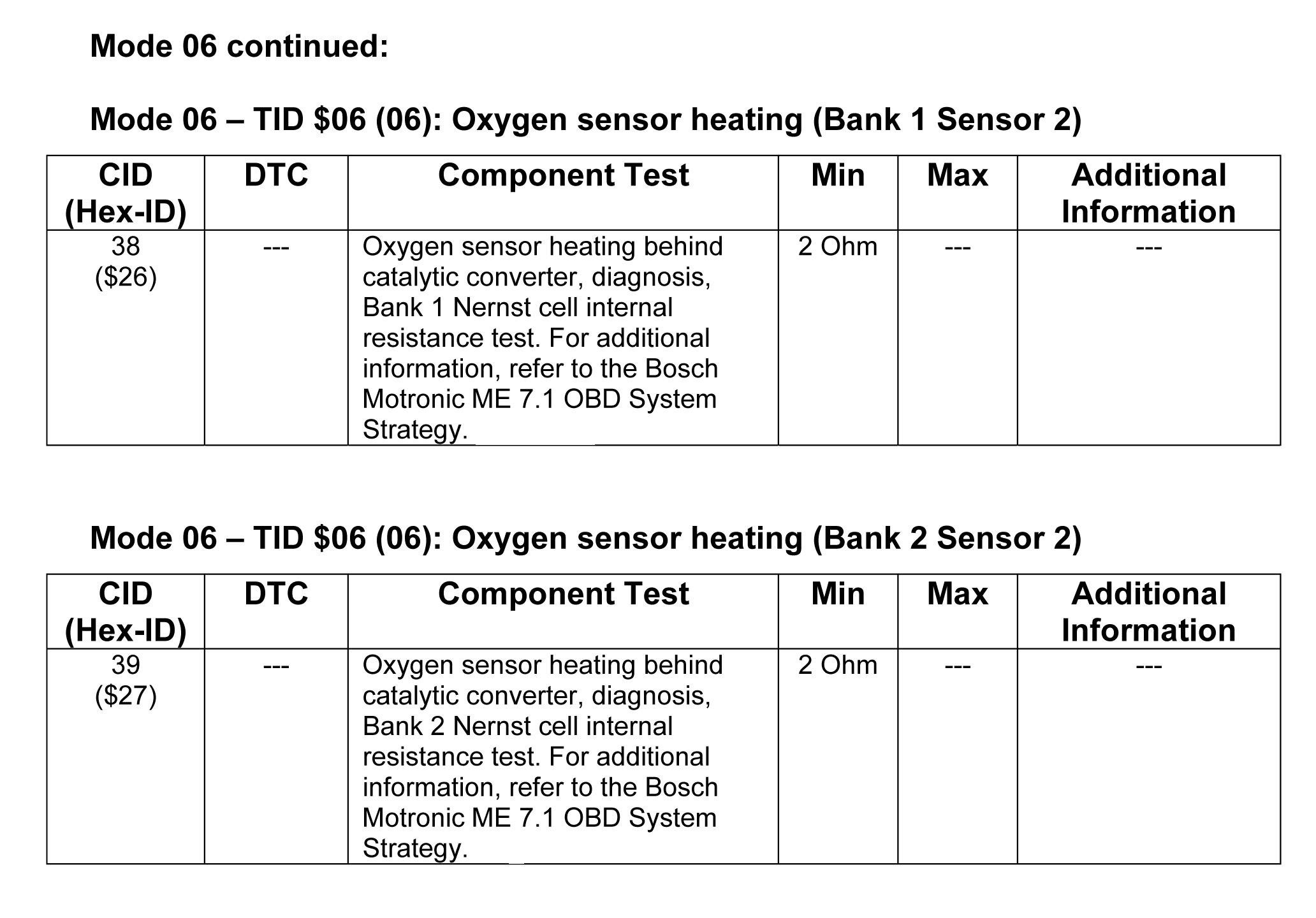

Fig 19: Mode 6 Data (2003-06 AXQ, BHX) (6 Of 6)

G00105280

Courtesy of VOLKSWAGEN UNITED STATES, INC.

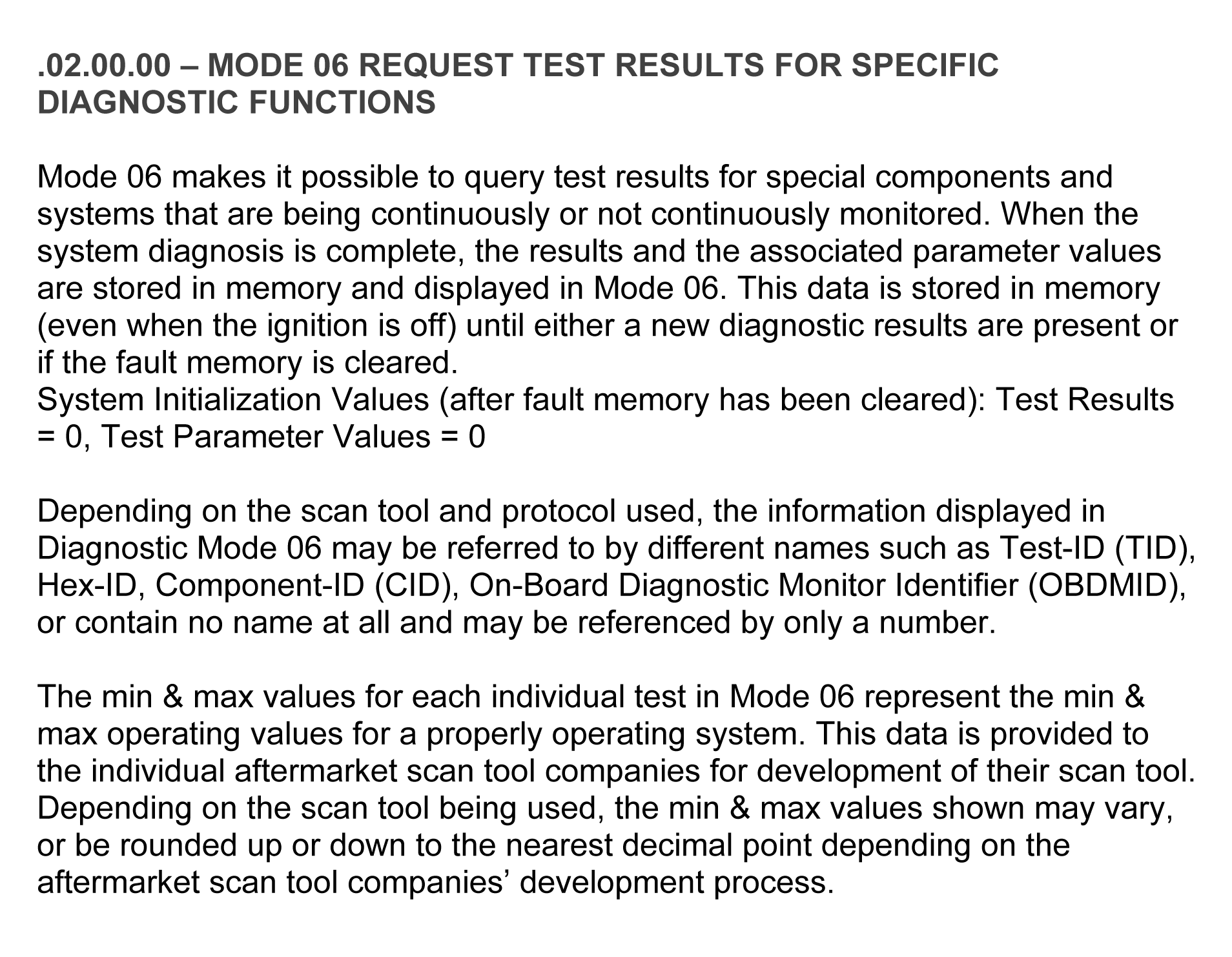

Fig 20: Mode 6 Data (2005 3.2L BMX) (1 Of 7)

G00105281

Courtesy of VOLKSWAGEN UNITED STATES, INC.

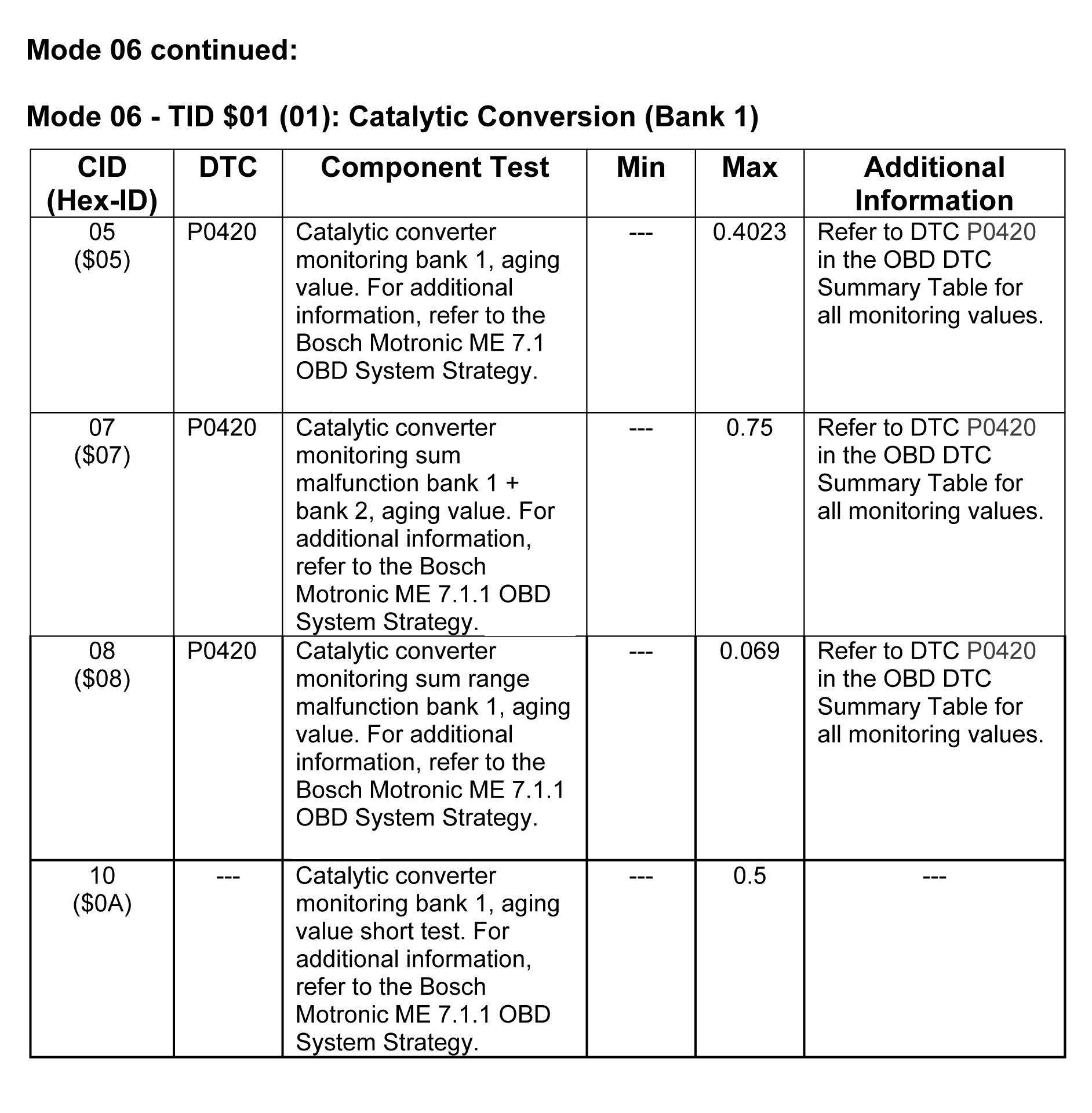

Fig 21: Mode 6 Data (2005 3.2L BMX) (2 Of 7)

G00105282

Courtesy of VOLKSWAGEN UNITED STATES, INC.

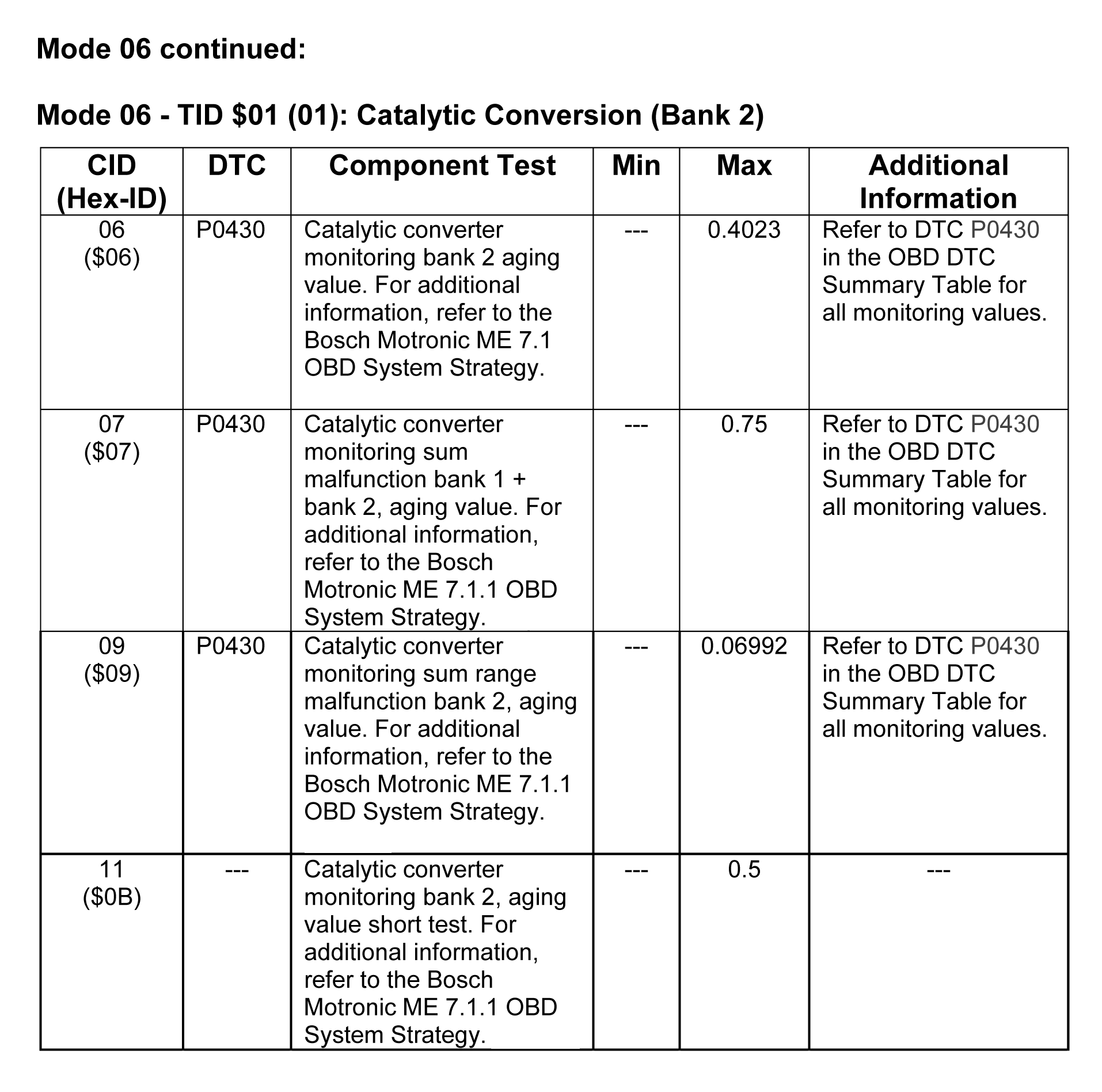

Fig 22: Mode 6 Data (2005 3.2L BMX) (3 Of 7)

G00105283

Courtesy of VOLKSWAGEN UNITED STATES, INC.

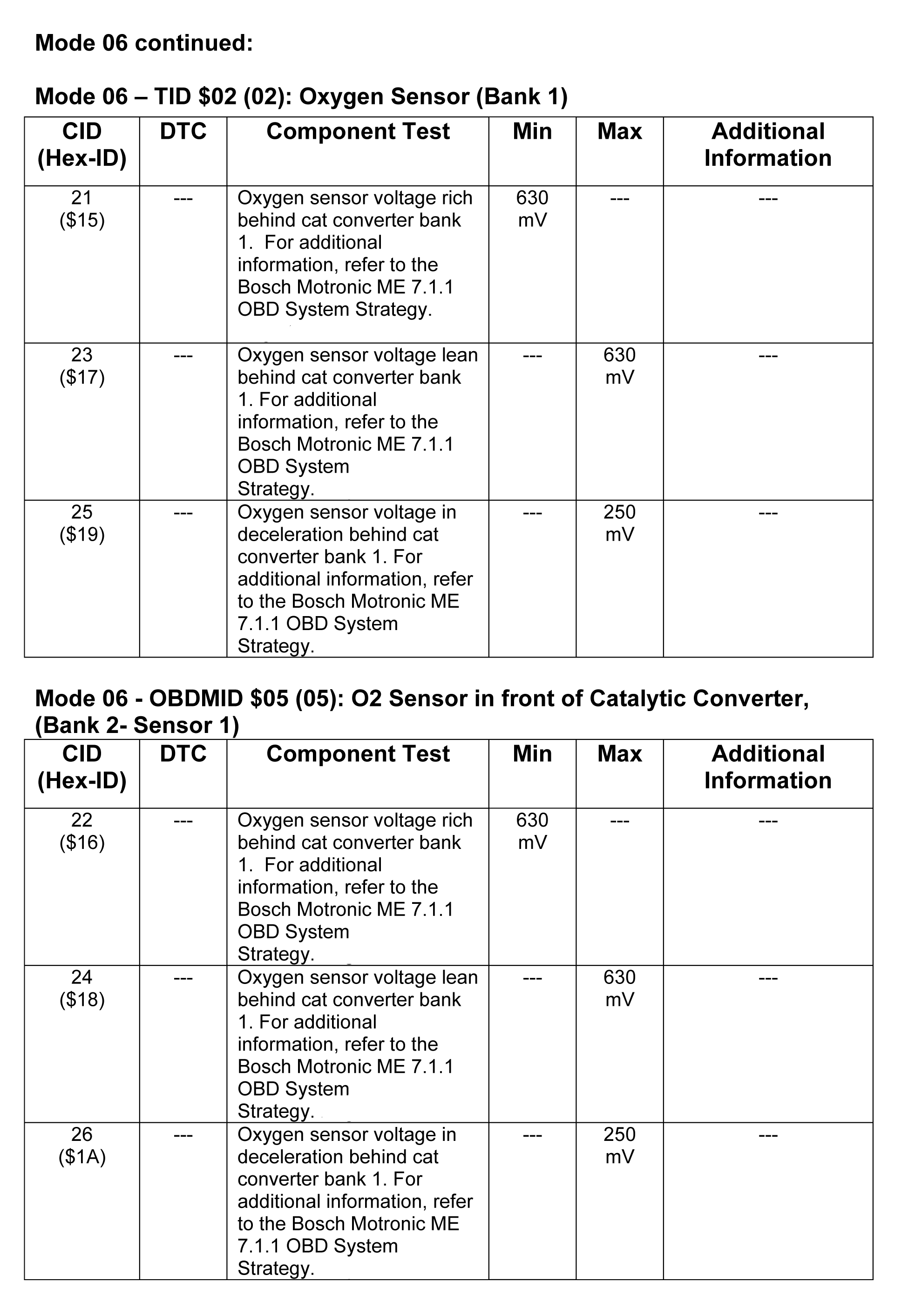

Fig 23: Mode 6 Data (2005 3.2L BMX (4 Of 7)

G00105284

Courtesy of VOLKSWAGEN UNITED STATES, INC.

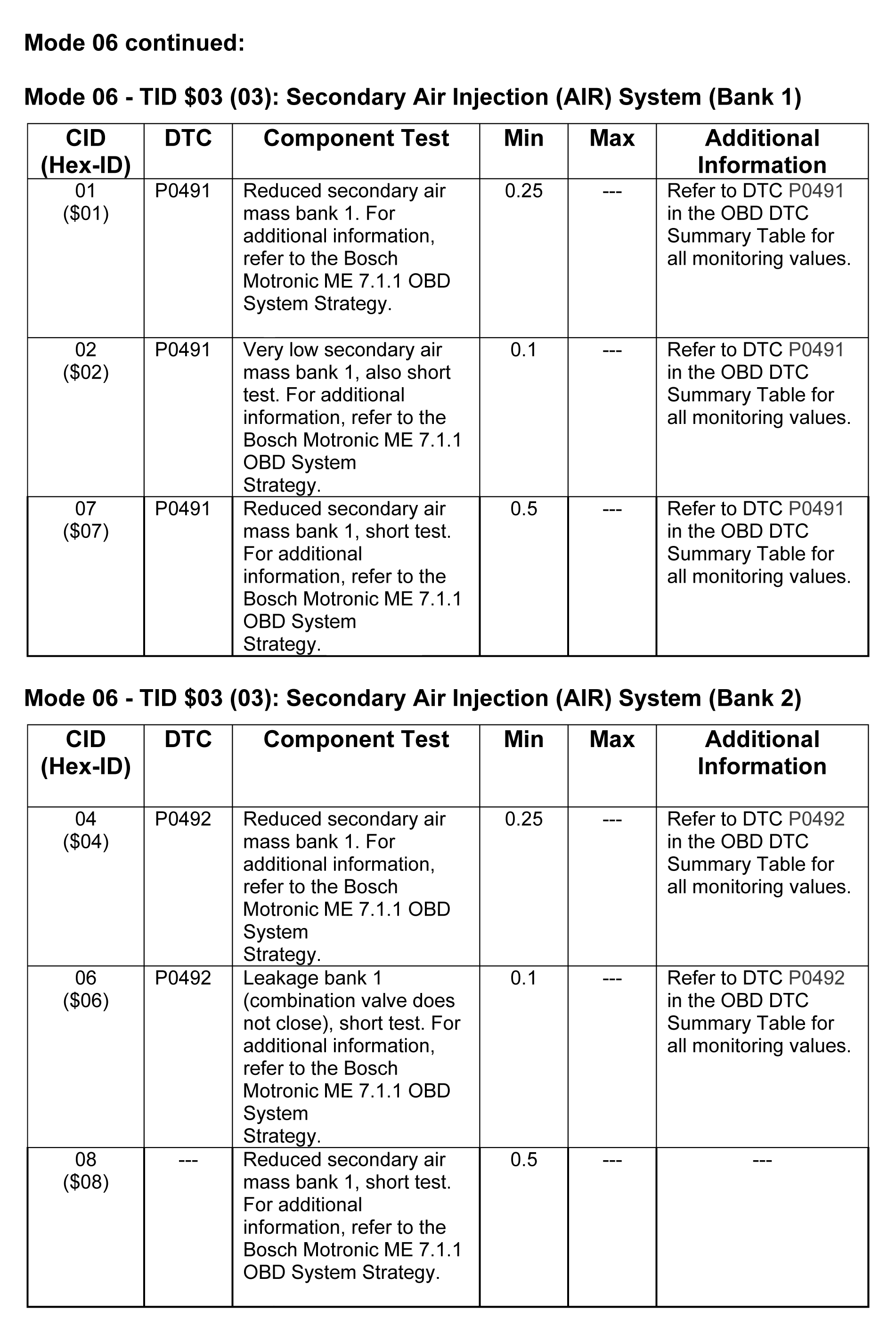

Fig 24: Mode 6 Data (2005 3.2L BMX) (5 Of 7)

G00105285

Courtesy of VOLKSWAGEN UNITED STATES, INC.

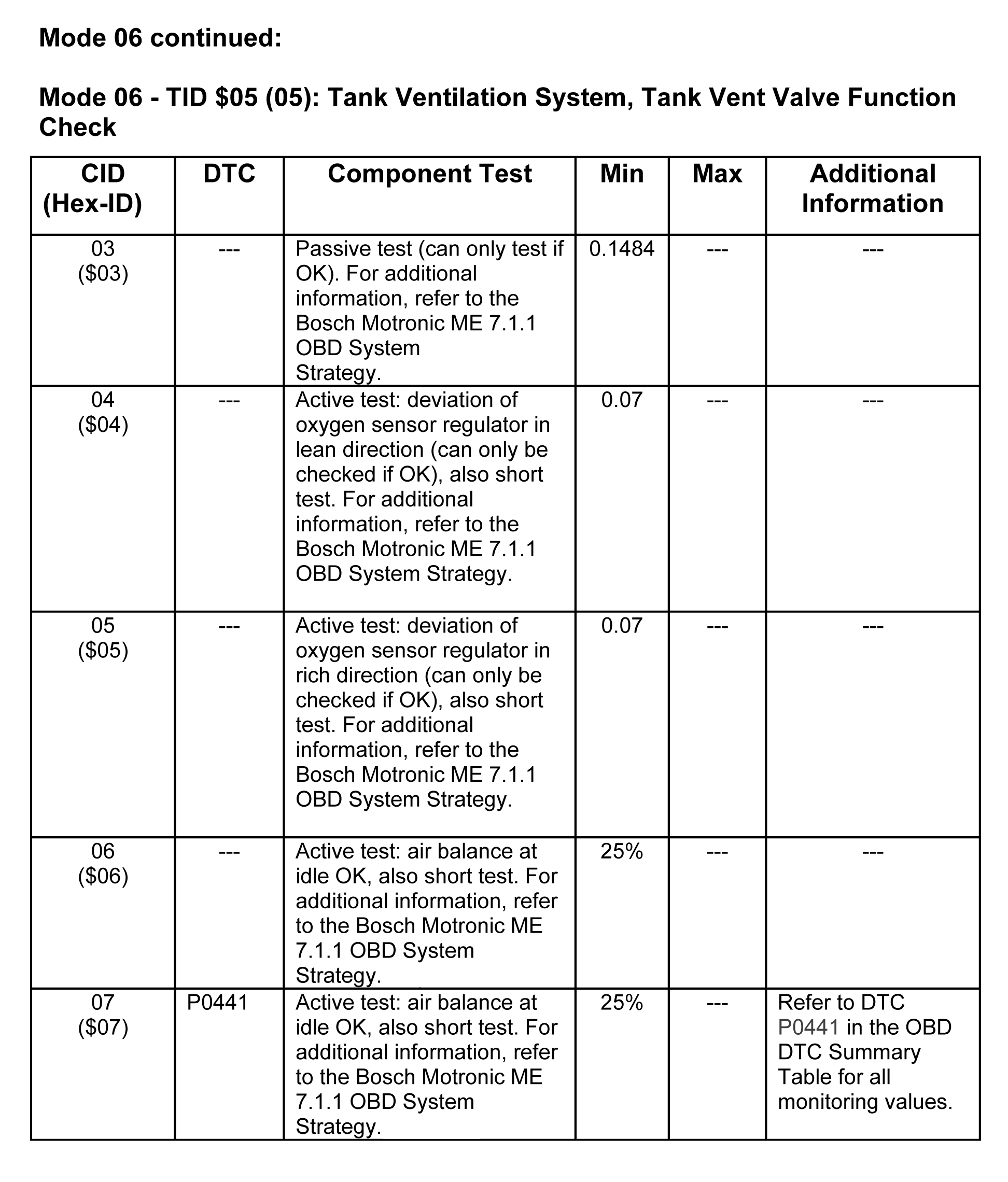

Fig 25: Mode 6 Data (2005 3.2L BMX) (6 Of 7)

G00105286

Courtesy of VOLKSWAGEN UNITED STATES, INC.

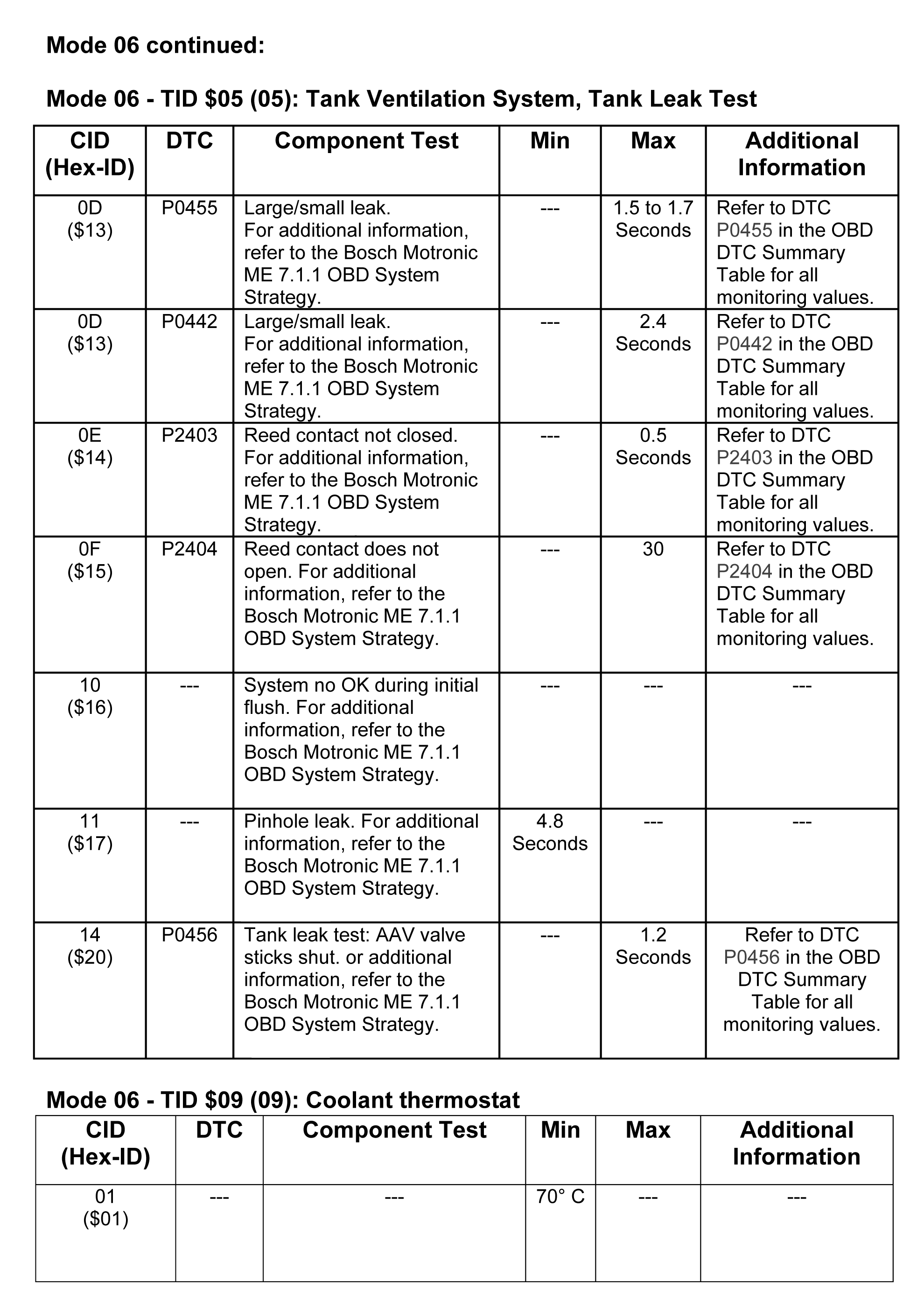

Fig 26: Mode 6 Data (2005 3.2L BMX (7 Of 7)

G00105287

Courtesy of VOLKSWAGEN UNITED STATES, INC.

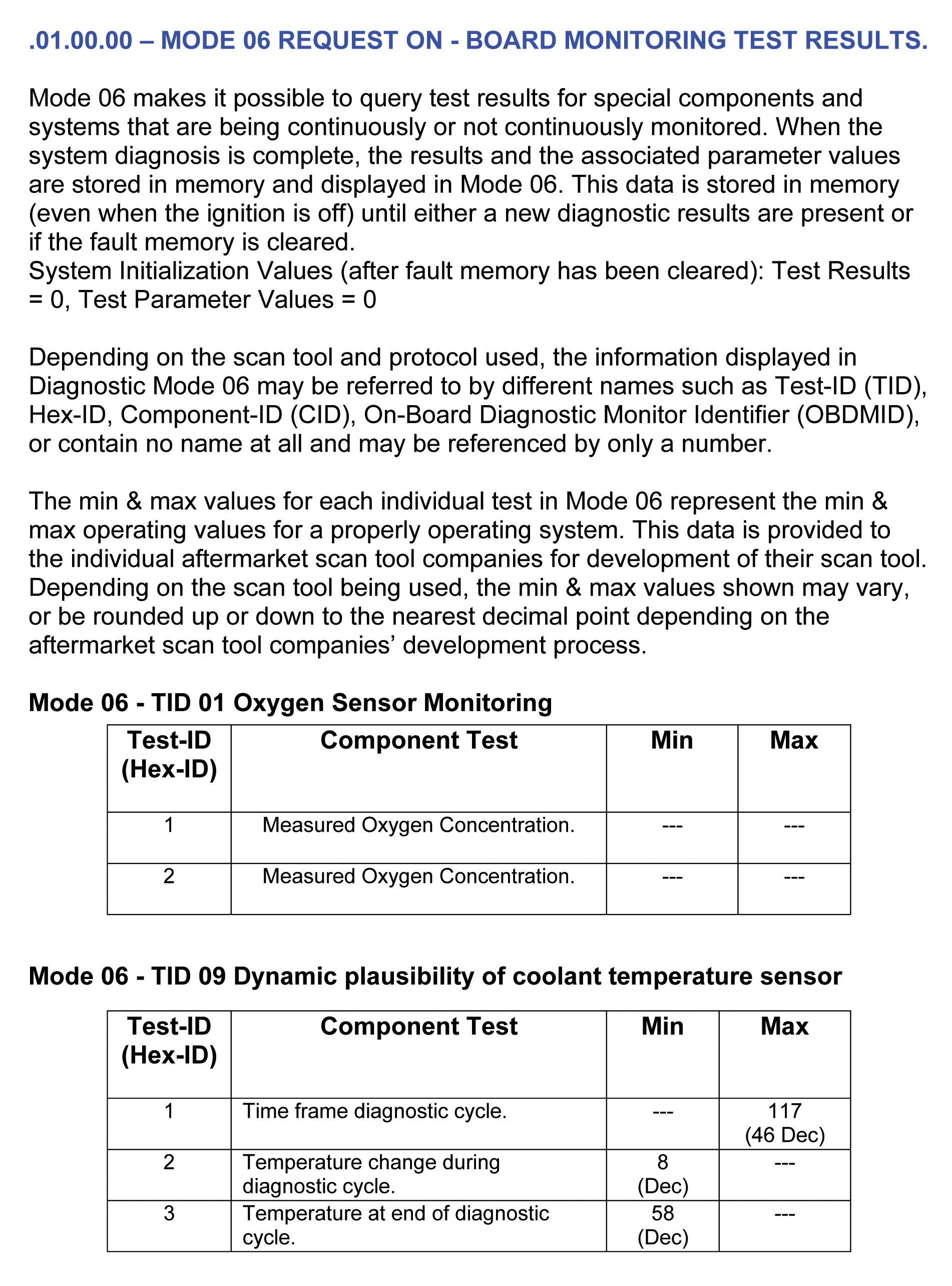

Fig 27: Mode 6 Data (2004-05 5.0L BMX) (1 Of 2)

G00105288

Courtesy of VOLKSWAGEN UNITED STATES, INC.

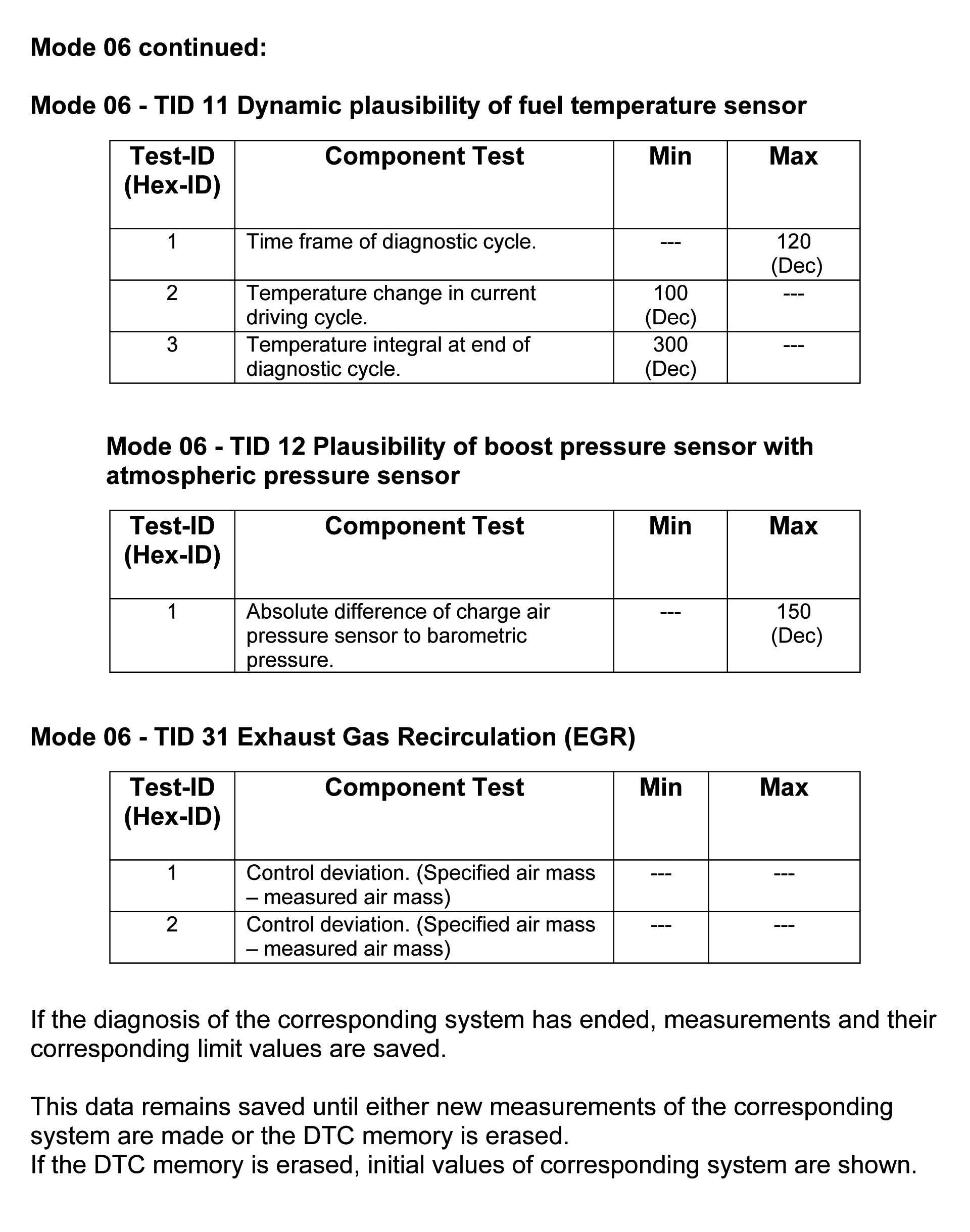

Fig 28: Mode 6 Data (2004-05 5.0L BMX) (2 Of 2)

G00105289

Courtesy of VOLKSWAGEN UNITED STATES, INC.
