Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

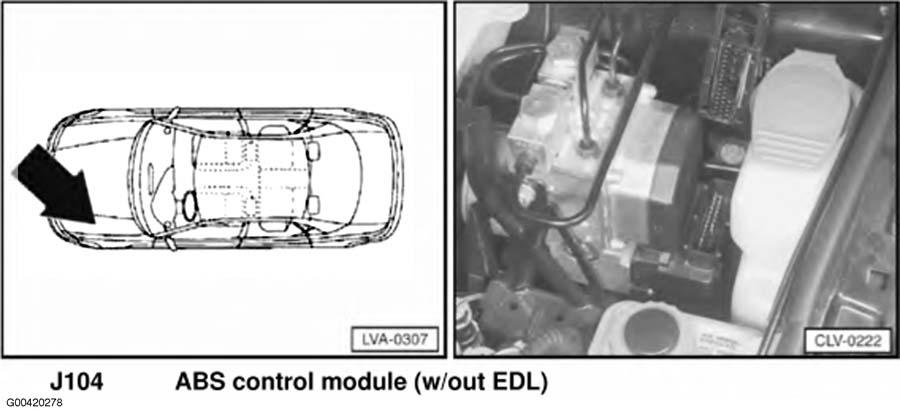

| ABS Control Module (W/O EDL) | Left side of engine compartment. See Figure . |

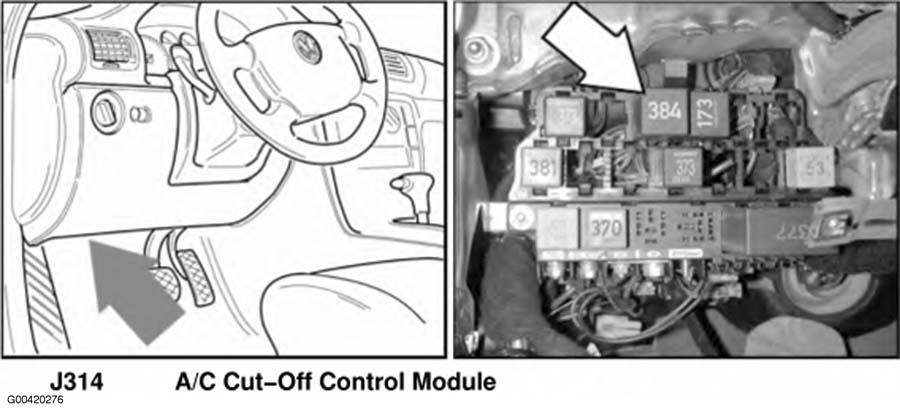

| A/C Cut-Off Control Module | On thirteenfold (thirteen position) auxiliary relay panel. See Figure . |

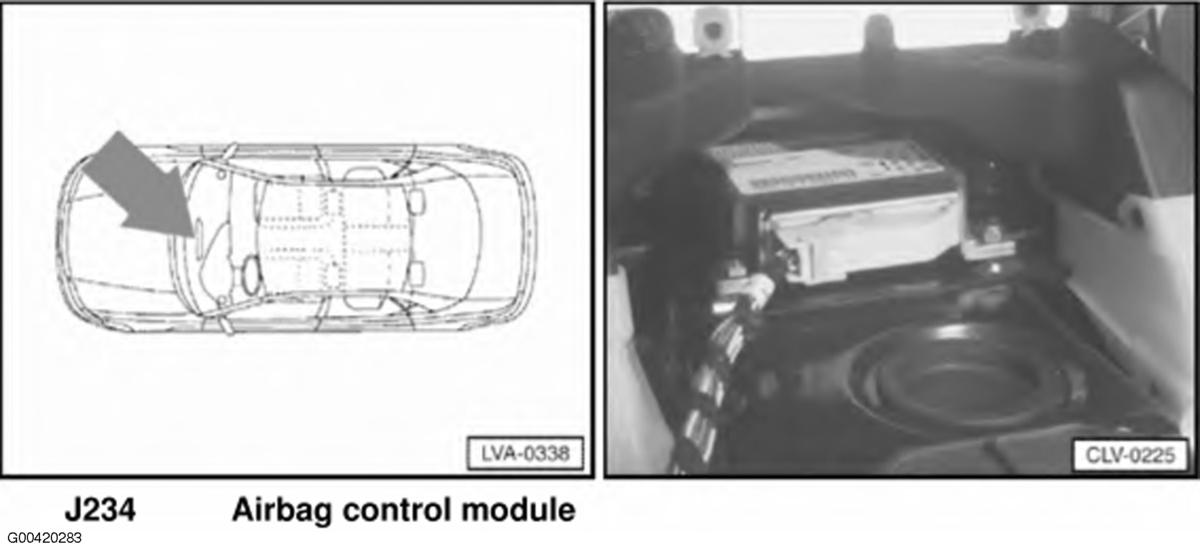

| Airbag Control Module | Mounted on floor in front of center console. See Figure . |

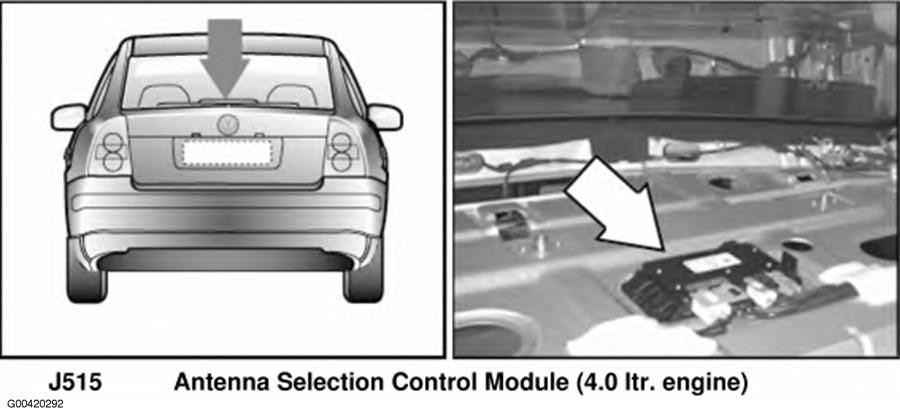

| Antenna Selection Control Module | Under center of rear speaker shelf. See Figure . |

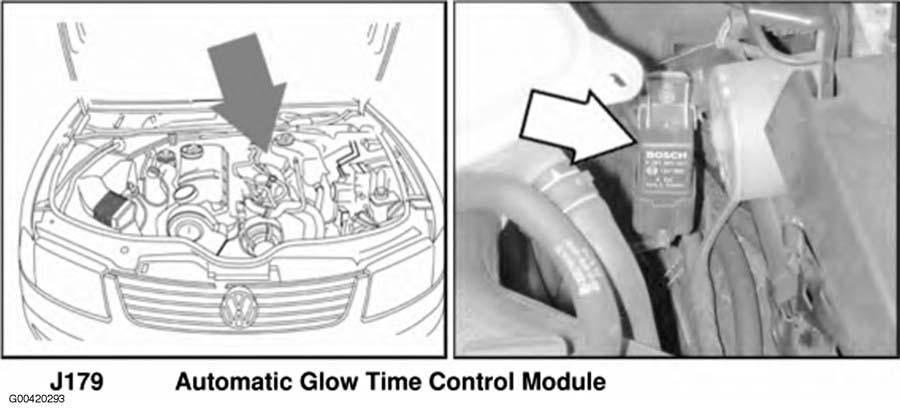

| Automatic Glow Time Control Module | Rear of engine compartment. See Figure . |

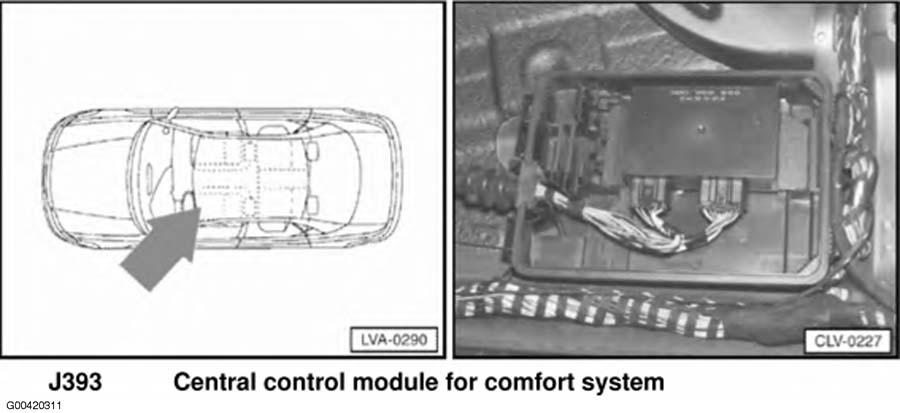

| Comfort System Central Control Module | Mounted on floorpan in protective box, under driver's seat & carpet. See Figure . |

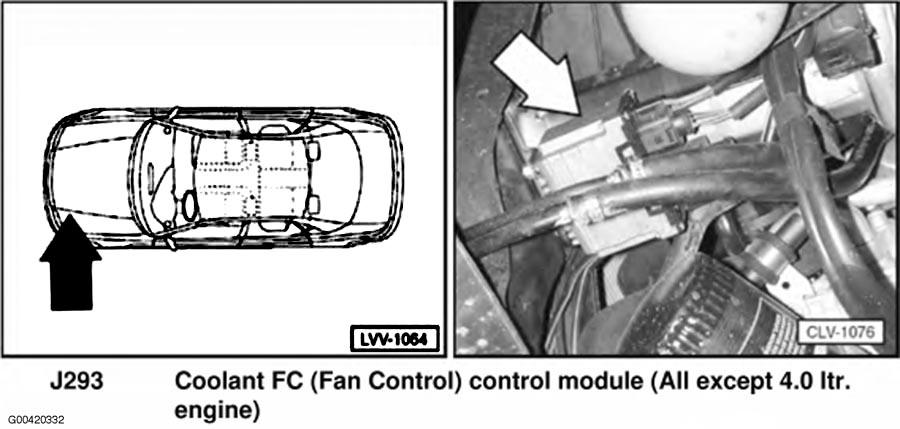

| Coolant Fan Control Module | Left front of engine compartment. See Figure . |

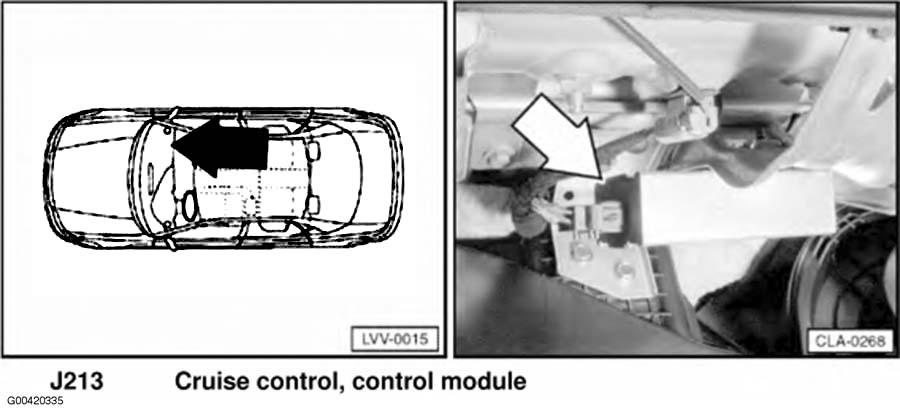

| Cruise Control Module | Behind right side of dash. See Figure . |

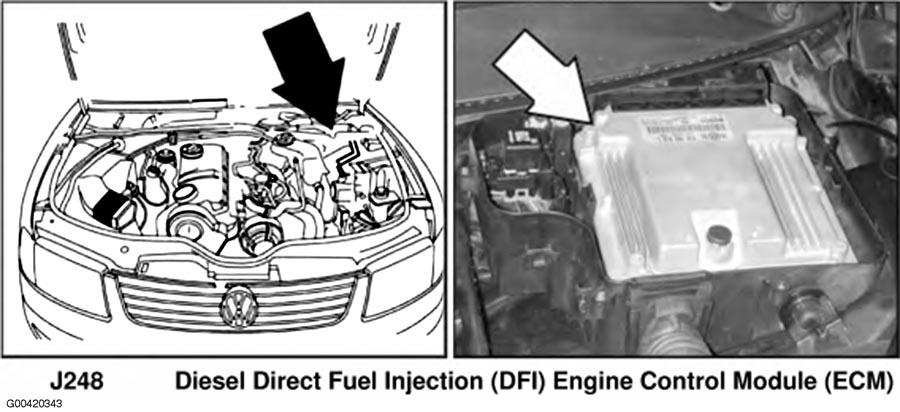

| Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) | Left rear of engine compartment. See Figure . |

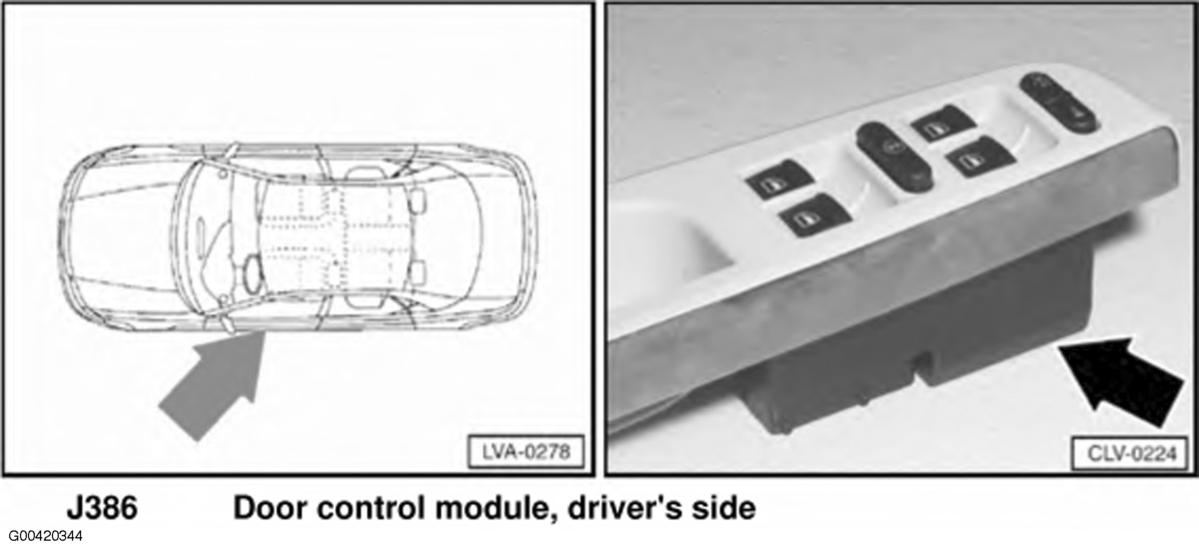

| Door Control Module (Driver's Side) | Part of power window assembly, in driver's door. See Figure . |

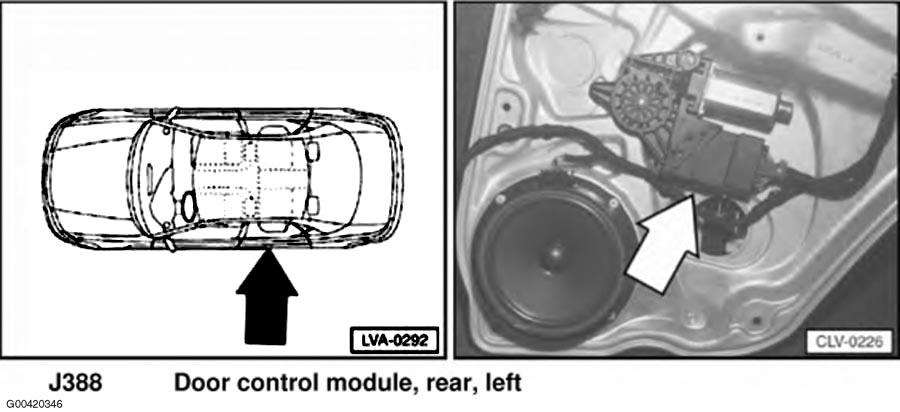

| Door Control Module (Left Rear) | Part of power window motor assembly, in left rear door. See Figure . |

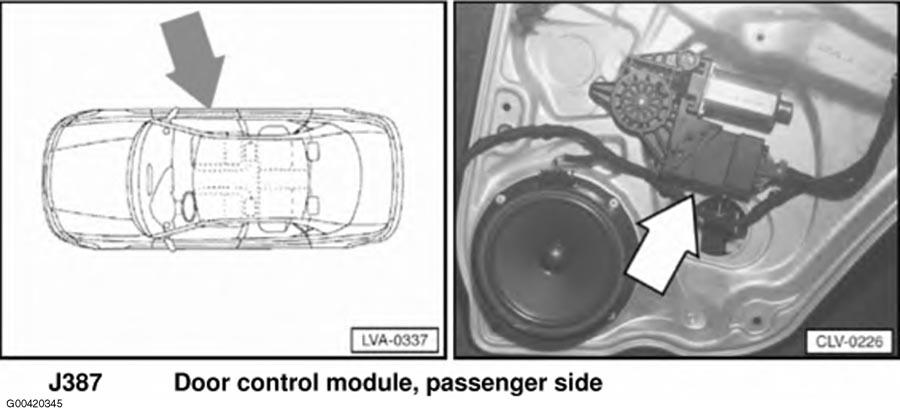

| Door Control Module (Passenger's Side) | Part of power window motor assembly, in passenger's front door. See Figure . |

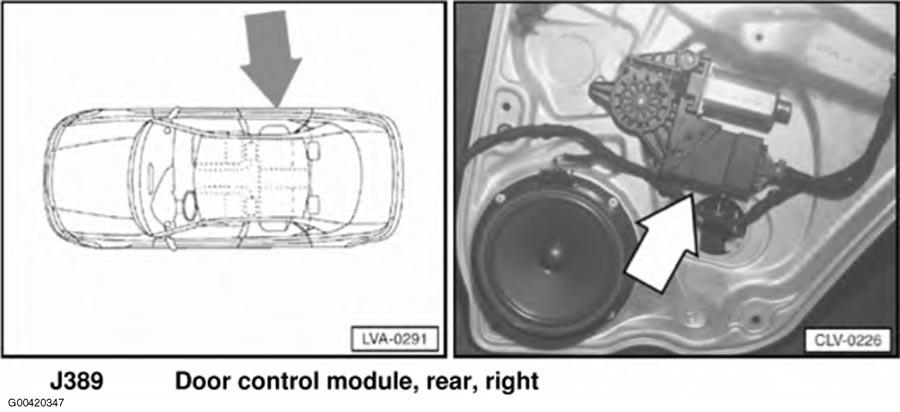

| Door Control Module (Right Rear) | Part of power window motor assembly, in right rear door. See Figure . |

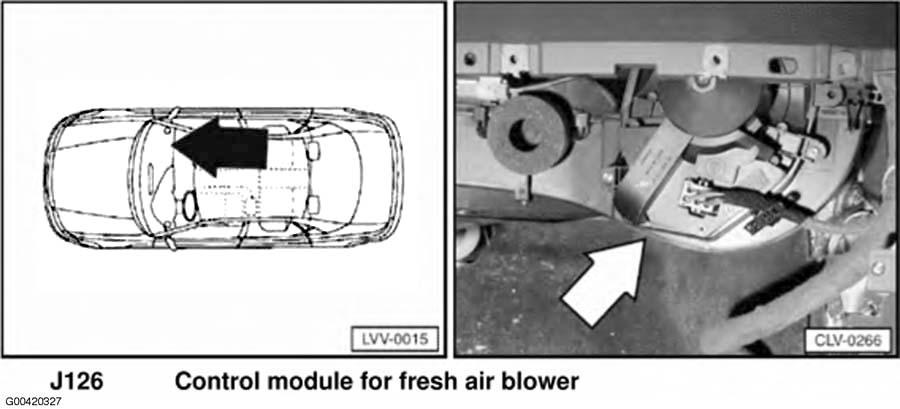

| Fresh Air Blower Control Module | Integral to fresh air blower, under right side of dash. See Figure . |

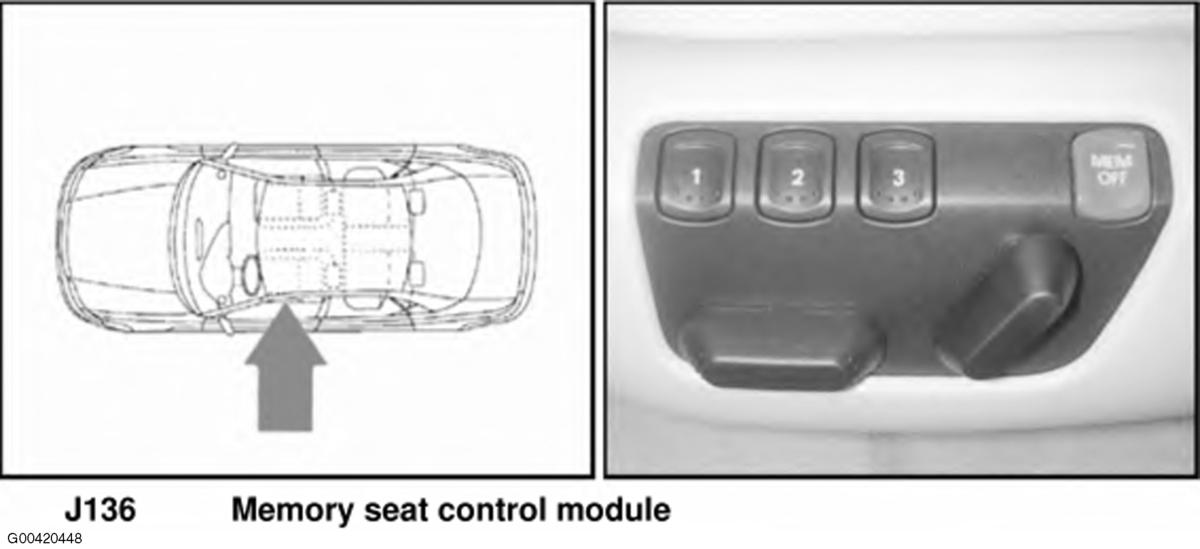

| Memory Seat Control Module | Left side of driver's seat. See Figure . |

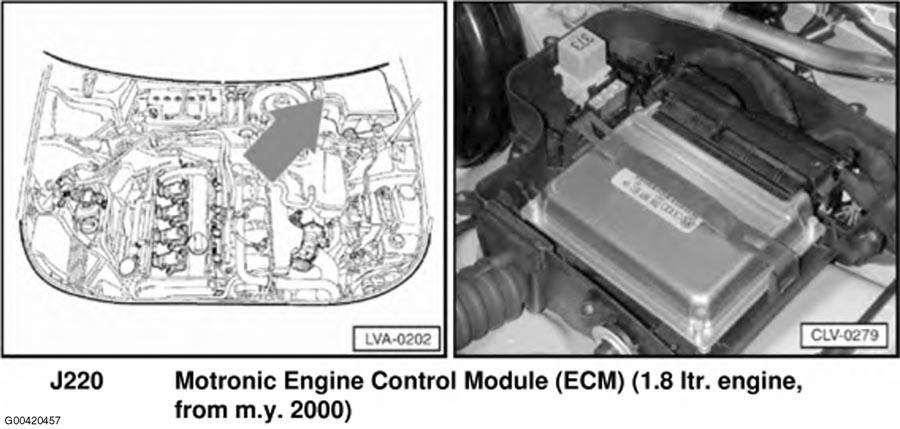

| Motronic Engine Control Module (1.8L) | In protective box, in left rear corner of engine compartment. See Figure . |

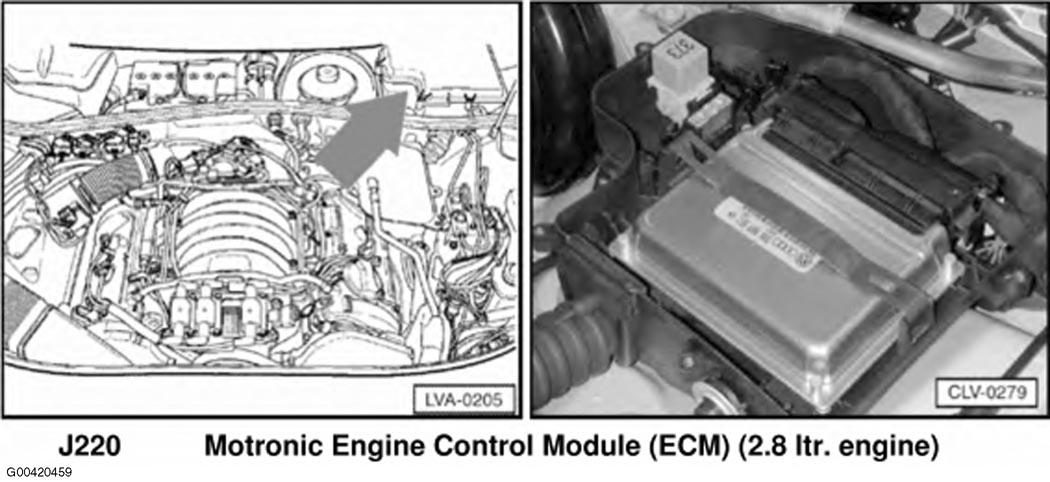

| Motronic Engine Control Module (2.8L) | In protective box, in left rear corner of engine compartment. See Figure . |

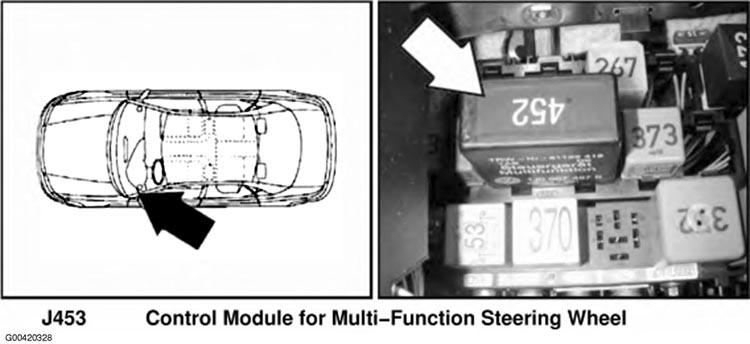

| Multi-Function Steering Wheel Control Module | On thirteenfold auxiliary relay panel. See Figure . |

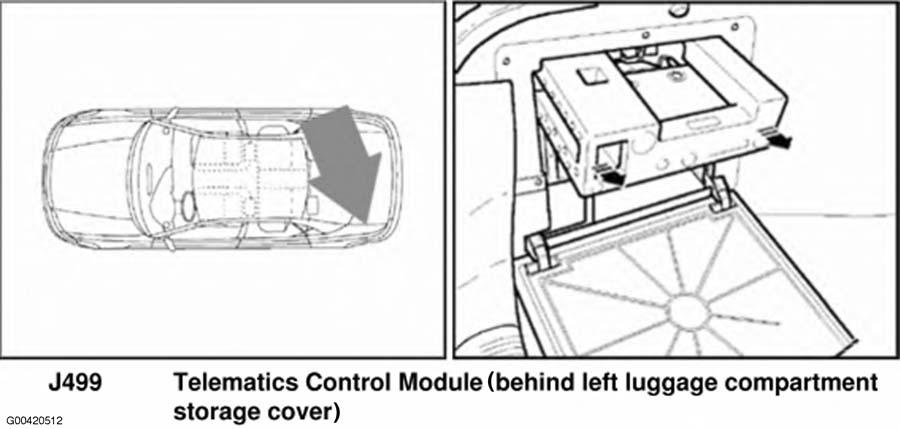

| Telematics Control Module | Left side of luggage compartment. See Figure . |

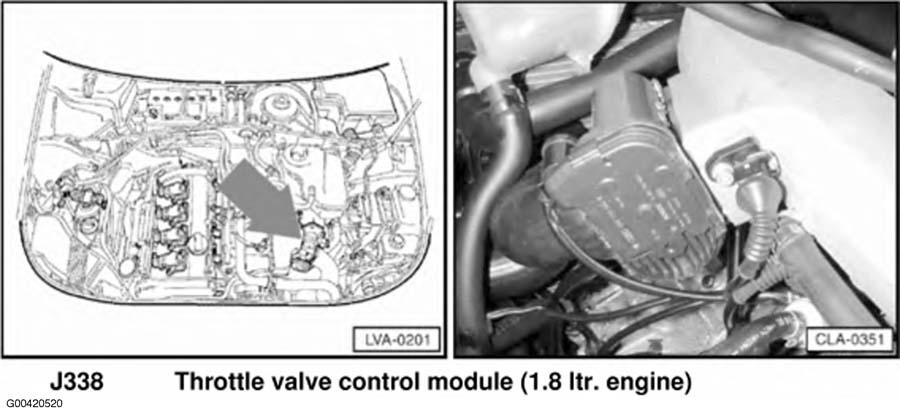

| Throttle Valve Control Module (1.8L) | On throttle body. See Figure . |

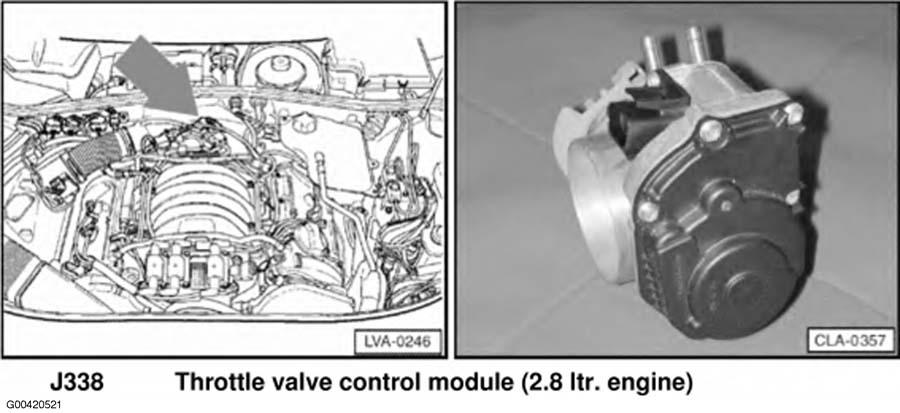

| Throttle Valve Control Module (2.8L) | On throttle body, on rear of intake manifold. See Figure . |

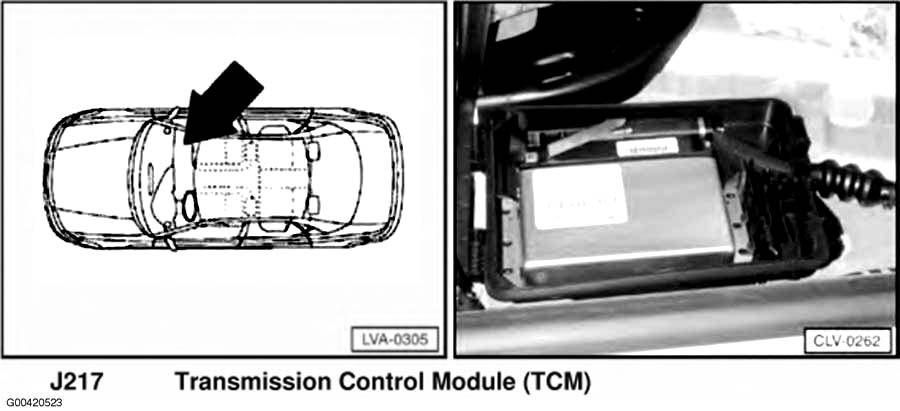

| Transmission Control Module | On passenger's side floor cavity. See Figure . |
