Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Control Module Housing (Protective Housing) | On left side of engine compartment, near master cylinder. |
| Eightfold Auxiliary Relay Panel | Under left side of dash. |
| Fuse Panel | Under left side of dash. |

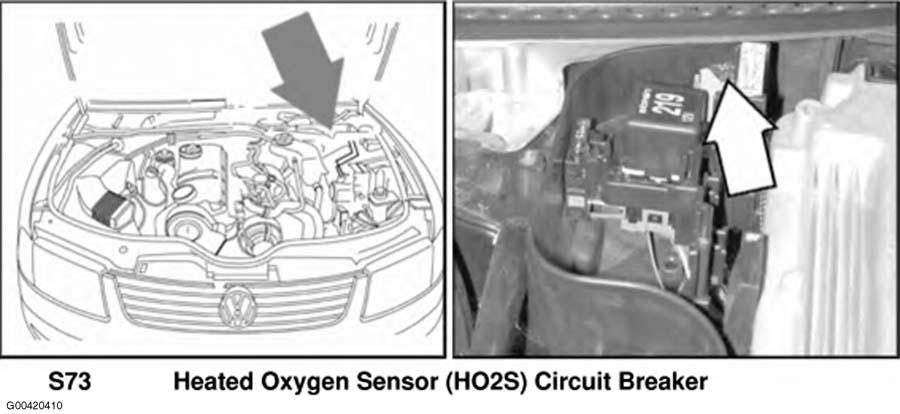

| Heated Oxygen Sensor (HO2S) Circuit Breaker | Left rear of engine compartment. See Figure . |
| Relay Panel | Under left side of dash. |
| Thirteenfold Auxiliary Relay Panel | Under left side of dash. |
