Engine code AWM

Connect VAG1551 scan tool (or VAG1552). Start engine and select Engine Control Module (ECM) using address word 01. (connecting scan tool and selecting ECM, see SCAN TOOL (ST), CONNECTING )

Indicated on display:

Fig 1: Identifying Rapid Data Transfer Display (Engine Code AWM)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press buttons -0- and -4- to select "Basic Setting" function 04. Press -Q- button to confirm input.

Indicated on display:

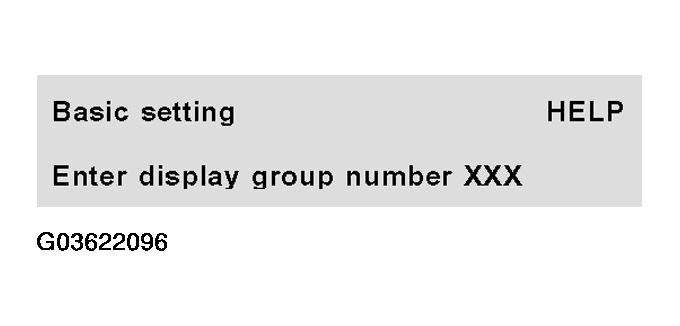

Fig 2: Identifying Basic Setting Display (Engine Code AWM)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press buttons -0-, -2- and -8- to select "Display group number 28". Press -Q- button to confirm input.

Indicated on display:

Fig 3: Identifying System In Basic Setting 28 (Engine Code AWM)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Use VAG1788/10 speed adjuster tool to adjust engine RPM to at least 2600 RPM:
Maintain engine speed until indication in display field 4 jumps from "Test OFF" to "Test ON".
Continue to maintain engine speed until display field 4 indicates specified value: "Syst. OK".

If specified values are obtained:

Press --> button.
Press buttons -0- and -6- to select "End Output" function 06. Press -Q- button to confirm input.
Switch ignition off.

If specified values are not obtained:
