Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Left Kick Panel

G00419816

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 2: Behind Left Side Of Dash

G00419817

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Right Kick Panel

G00419818

Courtesy of VOLKSWAGEN UNITED STATES, INC.

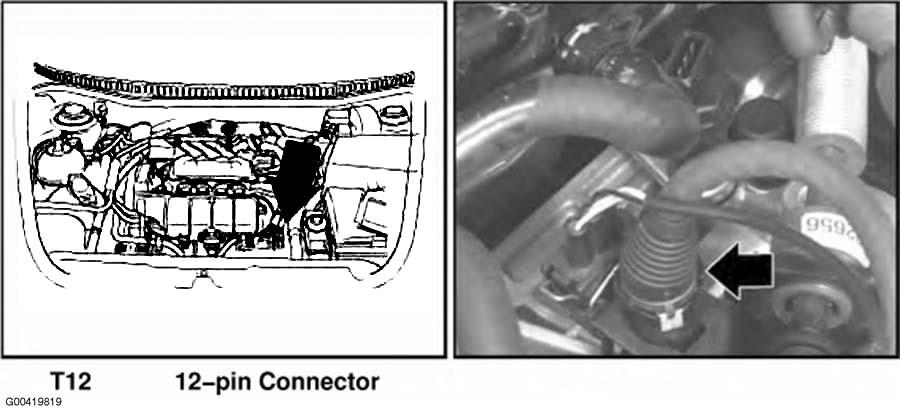

Fig 4: Left Side Of Engine Compartment

G00419819

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 5: Rear Of Engine Compartment

G00419820

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 6: Below Driver's Seat

G00419821

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 7: Left Front Of Vehicle

G00419822

Courtesy of VOLKSWAGEN UNITED STATES, INC.

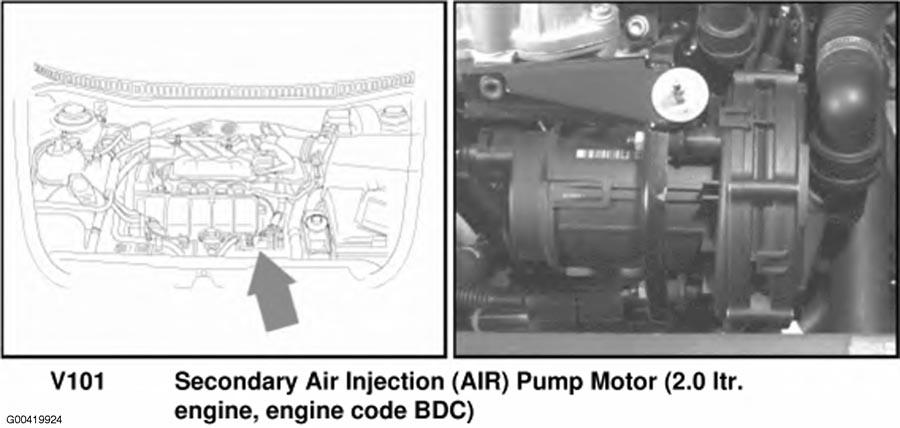

Fig 8: Left Side Of Engine

G00419823

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 9: Left Front Of Vehicle

G00419824

Courtesy of VOLKSWAGEN UNITED STATES, INC.

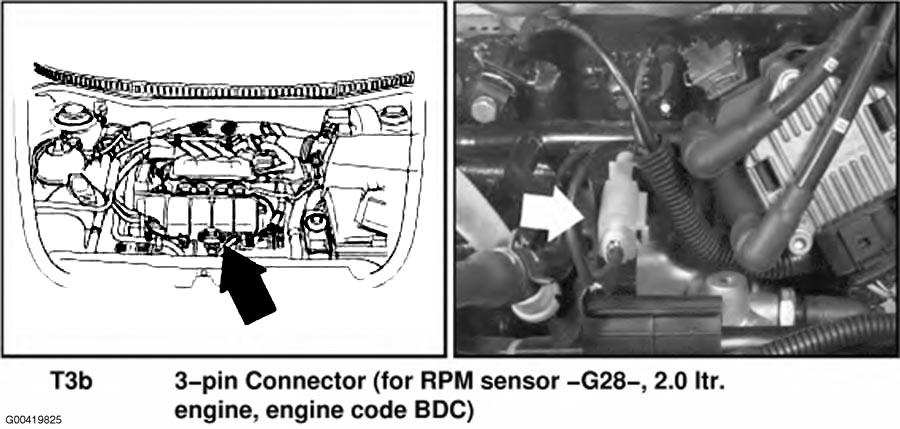

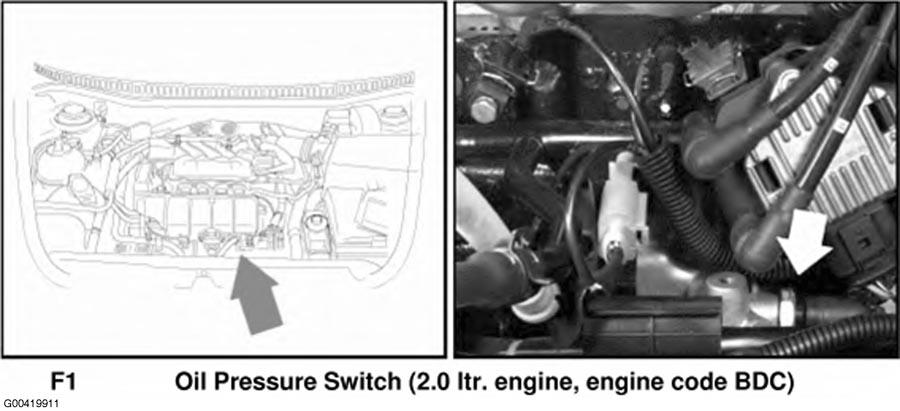

Fig 10: Left Side Of Engine

G00419825

Courtesy of VOLKSWAGEN UNITED STATES, INC.

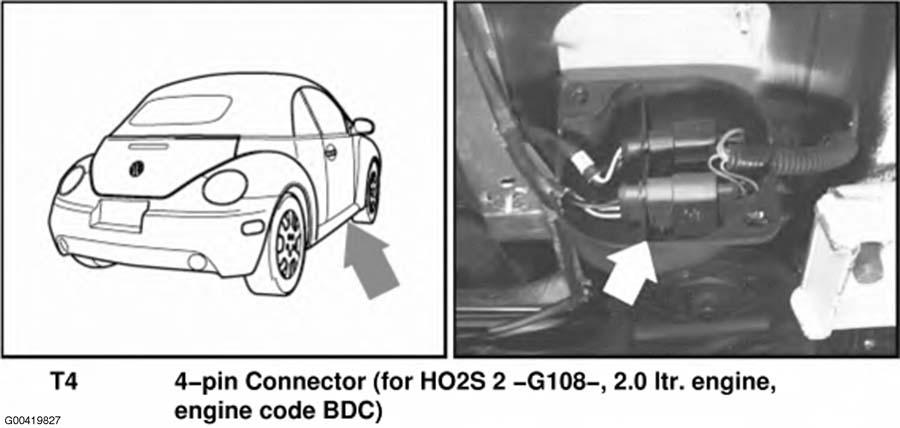

Fig 11: Under Right Side Of Vehicle

G00419827

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 12: Under Right Side Of Vehicle

G00419828

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 13: Left Side Of Luggage Compartment

G00419829

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 14: Under Right Side Of Vehicle

G00419830

Courtesy of VOLKSWAGEN UNITED STATES, INC.

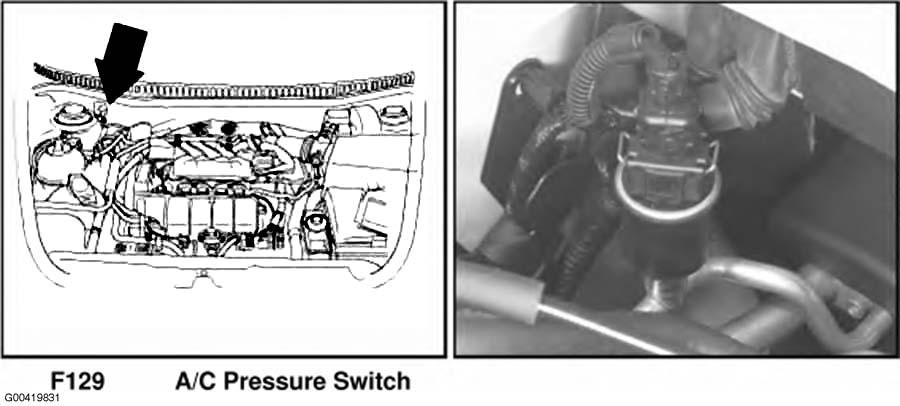

Fig 15: Right Rear Of Engine Compartment

G00419831

Courtesy of VOLKSWAGEN UNITED STATES, INC.

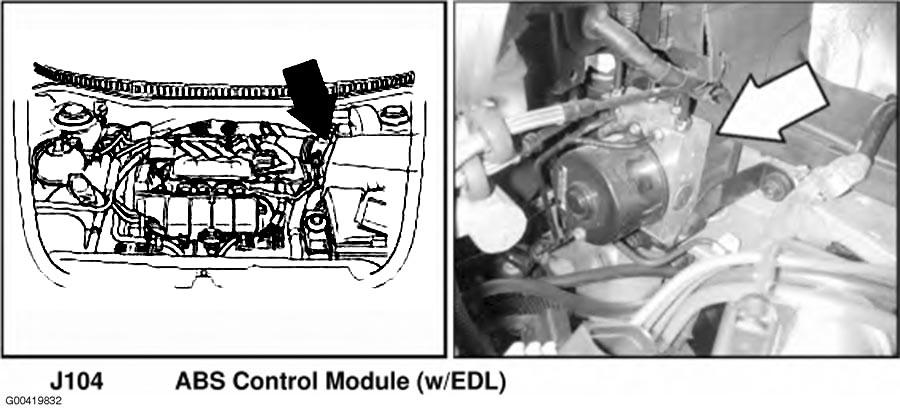

Fig 16: Left Side Of Luggage Compartment

G00419832

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 17: Left Side Of Engine Compartment

G00419833

Courtesy of VOLKSWAGEN UNITED STATES, INC.

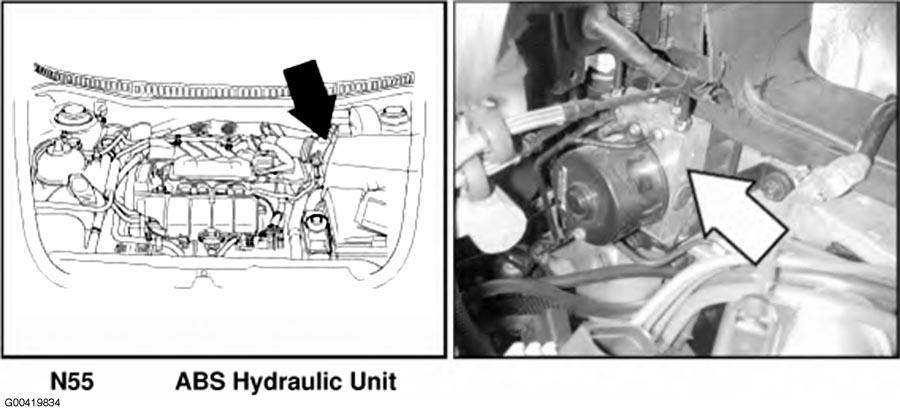

Fig 18: Left Side Of Engine Compartment

G00419834

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 19: Under Center Of Dash

G00419835

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 20: Right Rear Of Engine Compartment

G00419836

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 21: Right Rear Of Engine Compartment

G00419837

Courtesy of VOLKSWAGEN UNITED STATES, INC.

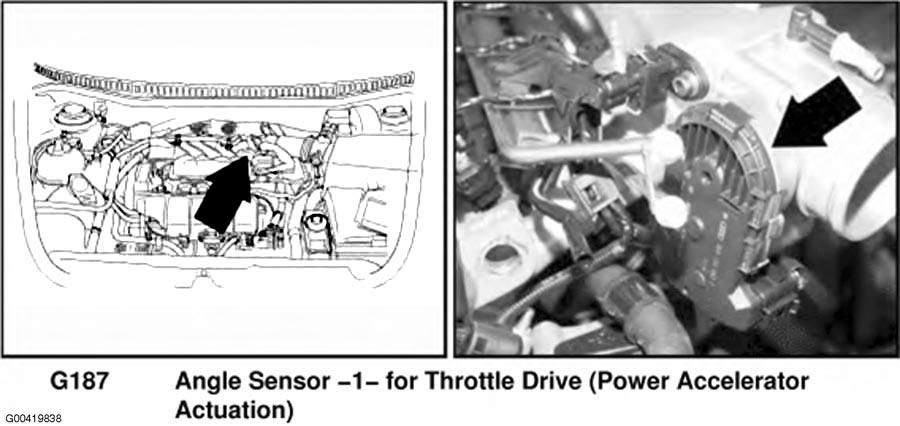

Fig 22: Rear Of Engine Compartment

G00419838

Courtesy of VOLKSWAGEN UNITED STATES, INC.

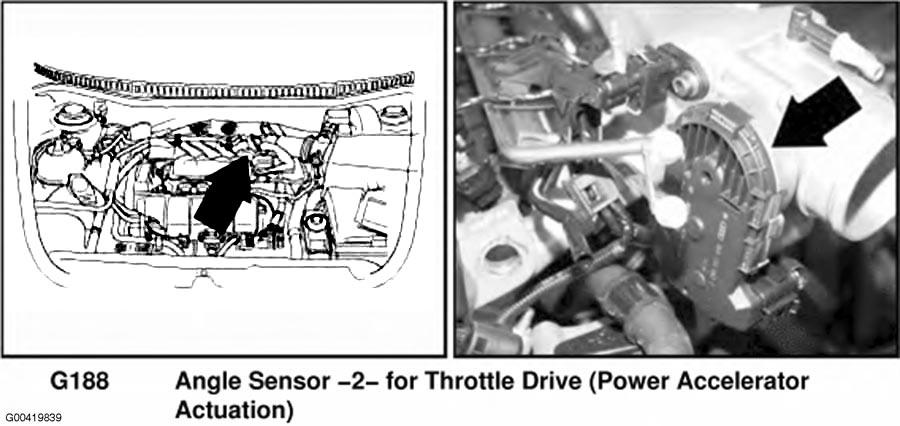

Fig 23: Rear Of Engine Compartment

G00419839

Courtesy of VOLKSWAGEN UNITED STATES, INC.

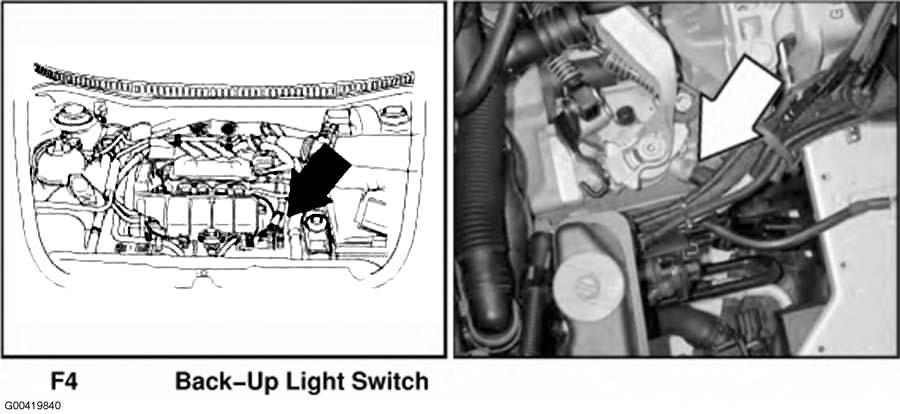

Fig 24: Left Side Of Engine Compartment

G00419840

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 25: Under Left Side Of Dash

G00419841

Courtesy of VOLKSWAGEN UNITED STATES, INC.

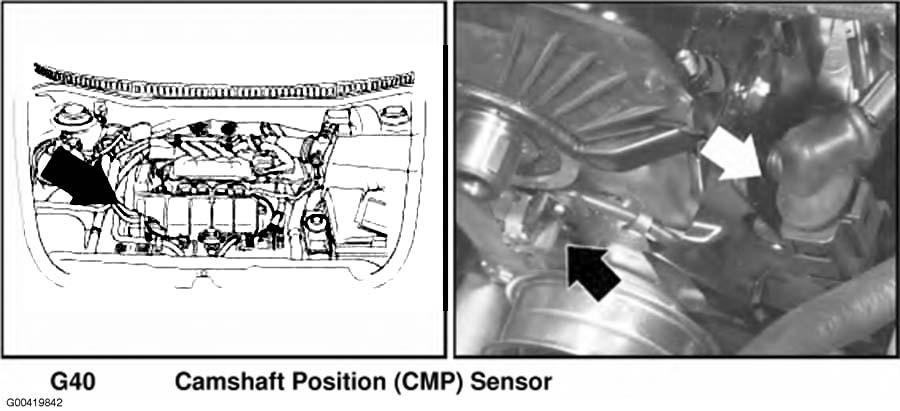

Fig 26: Front Of Engine (2.0L BDC)

G00419842

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 27: Behind Left Side Of Dash

G00419843

Courtesy of VOLKSWAGEN UNITED STATES, INC.

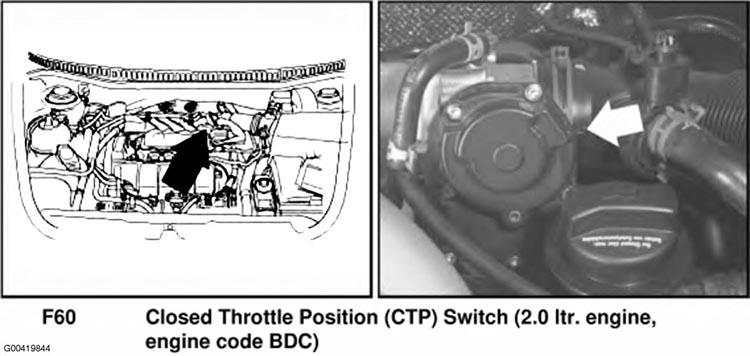

Fig 28: Rear Of Engine Compartment

G00419844

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 29: Under Left Side Of Dash

G00419845

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 30: Under Left Side Of Dash

G00419846

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 31: Windshield Header

G00419847

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 32: Right Side Of Luggage Compartment

G00419848

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 33: Left Side Of Luggage Compartment

G00419849

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 34: Top Of Right Quarter Panel

G00419850

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 35: Left Side Of Radiator

G00419853

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 36: Center Of Decklid

G00419854

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 37: Left Rear Of Engine Compartment

G00419855

Courtesy of VOLKSWAGEN UNITED STATES, INC.

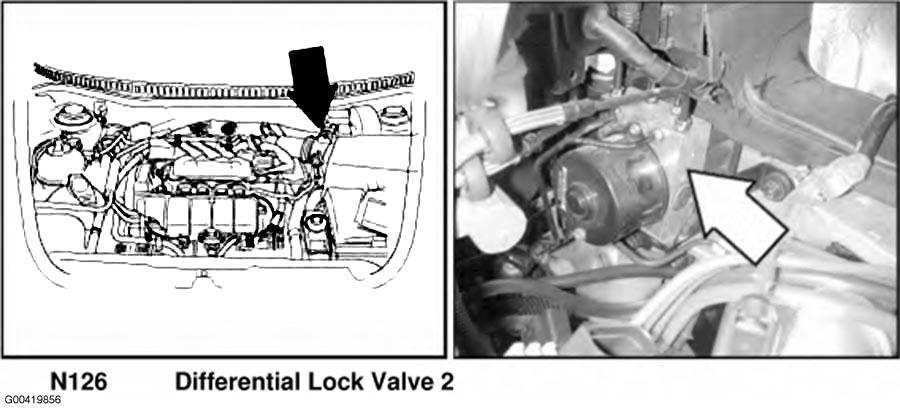

Fig 38: Left Rear Of Engine Compartment

G00419856

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 39: Driver's Door

G00419857

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 40: Passenger's Door

G00419858

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 41: Left "B" Pillar

G00419859

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 42: Right Side Of Engine Compartment

G00419860

Courtesy of VOLKSWAGEN UNITED STATES, INC.

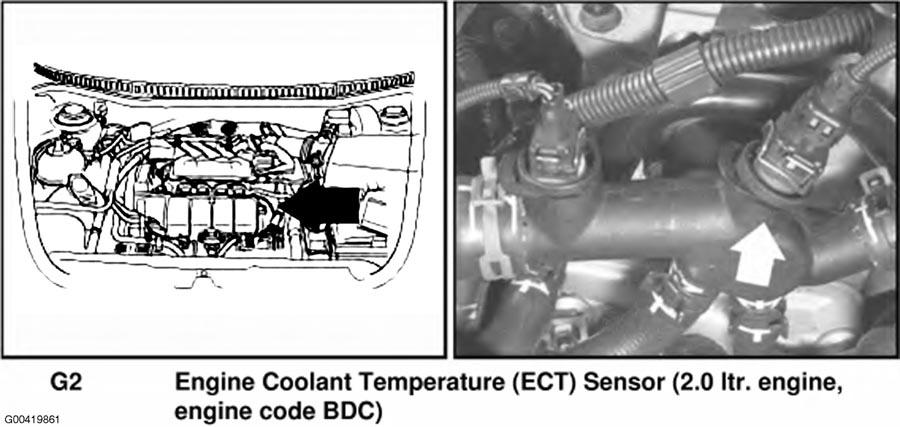

Fig 43: Engine Compartment (2.0L BDC)

G00419861

Courtesy of VOLKSWAGEN UNITED STATES, INC.

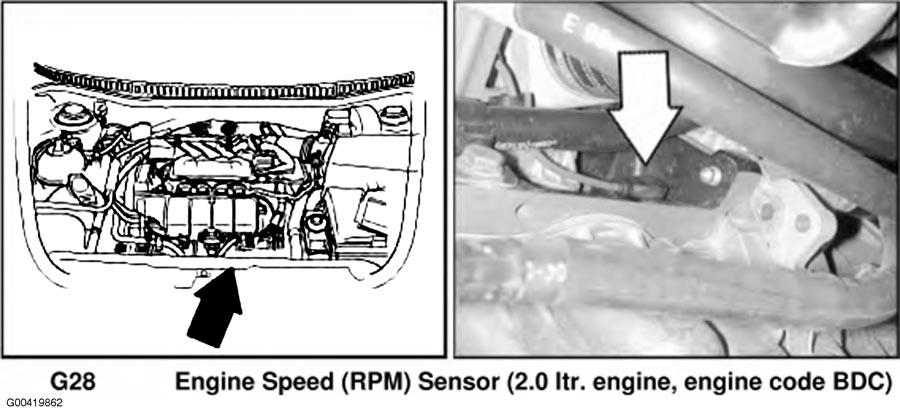

Fig 44: Left Side Of Engine (2.0L BDC)

G00419862

Courtesy of VOLKSWAGEN UNITED STATES, INC.

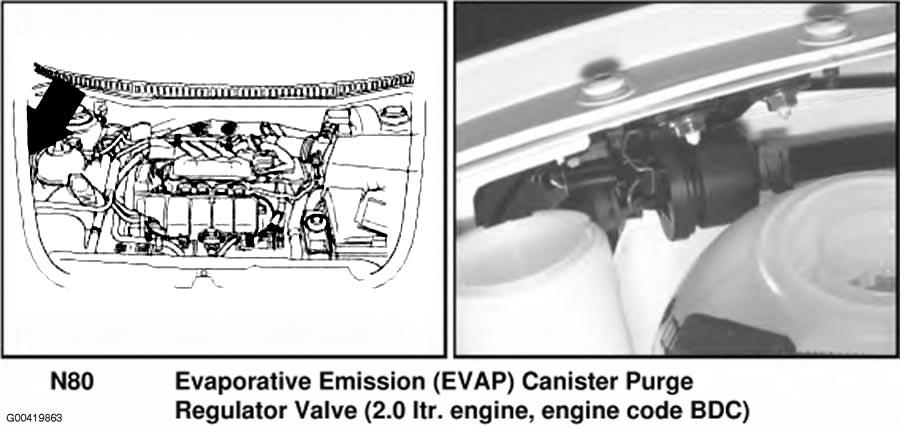

Fig 45: Right Side Of Engine Compartment

G00419863

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 46: Behind Right Side Of Dash

G00419864

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 47: Under Right Side Of Dash

G00419865

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 48: Right "B" Pillar

G00419866

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 49: Under Rear Seat

G00419867

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 50: Steering Column

G00419868

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 51: Plenum Chamber

G00419869

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 52: Plenum Chamber

G00419870

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 53: Plenum Chamber

G00419871

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 54: Behind Center Of Dash

G00419872

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 55: Behind Left Side Of Dash

G00419873

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 56: Left Front Of Engine Compartment

G00419874

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 57: Left Side Of Luggage Compartment

G00419875

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 58: Left Kick Panel

G00419876

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 59: Left Rear Pillar

G00419877

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 60: Right Kick Panel

G00419878

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 61: Right Rear Pillar

G00419879

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 62: Top Of Transmission

G00419880

Courtesy of VOLKSWAGEN UNITED STATES, INC.

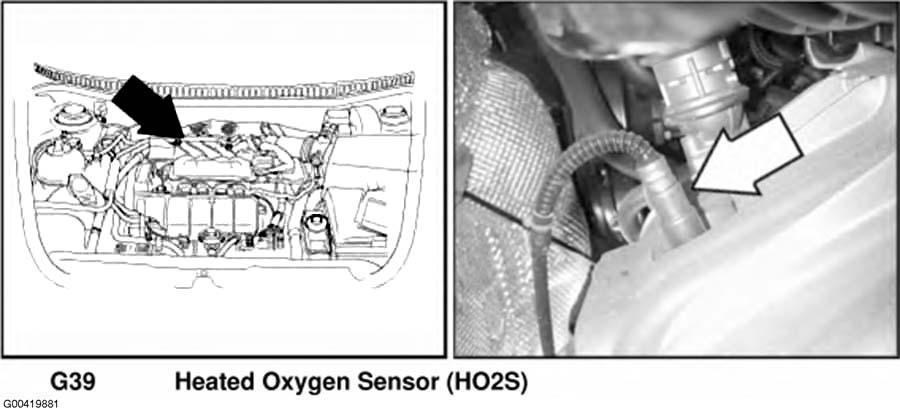

Fig 63: Lower Rear Of Engine Compartment

G00419881

Courtesy of VOLKSWAGEN UNITED STATES, INC.

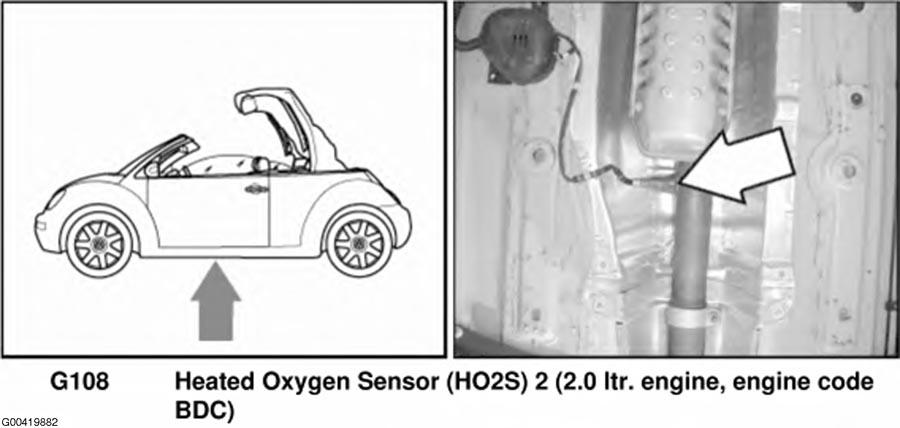

Fig 64: Under Center Of Vehicle

G00419882

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 65: Right Rear Of Engine Compartment

G00419883

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 66: Front Of Hood

G00419884

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 67: Driver's Seat

G00419885

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 68: Passenger's Seat

G00419886

Courtesy of VOLKSWAGEN UNITED STATES, INC.

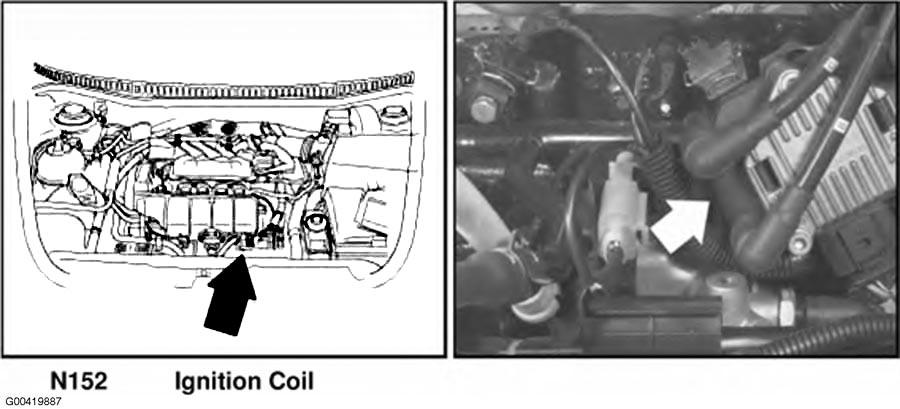

Fig 69: Front Of Engine Compartment

G00419887

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 70: Steering Column

G00419889

Courtesy of VOLKSWAGEN UNITED STATES, INC.

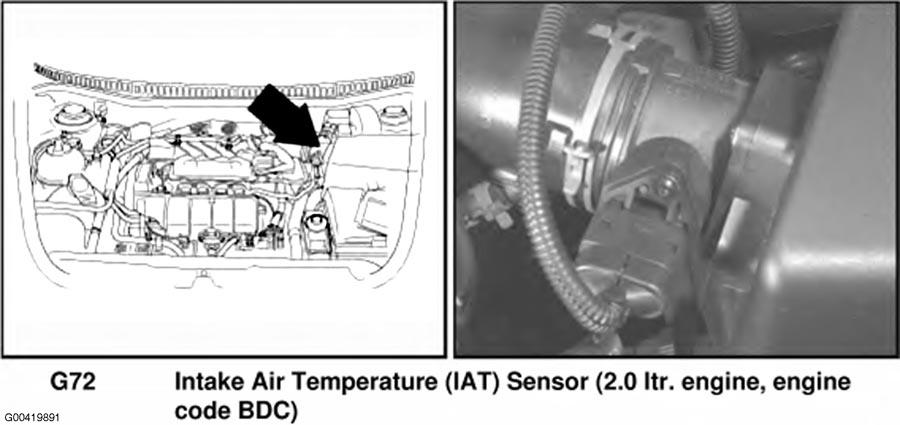

Fig 71: Rear Of Engine Compartment

G00419891

Courtesy of VOLKSWAGEN UNITED STATES, INC.

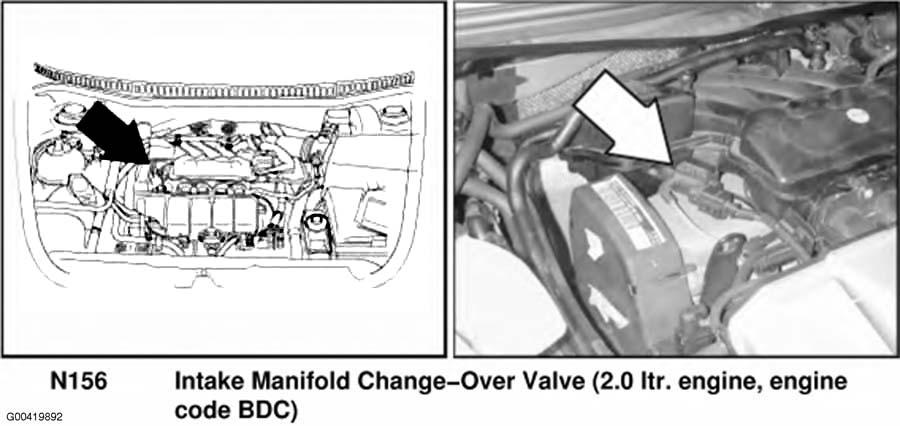

Fig 72: Right Side Of Engine Compartment

G00419892

Courtesy of VOLKSWAGEN UNITED STATES, INC.

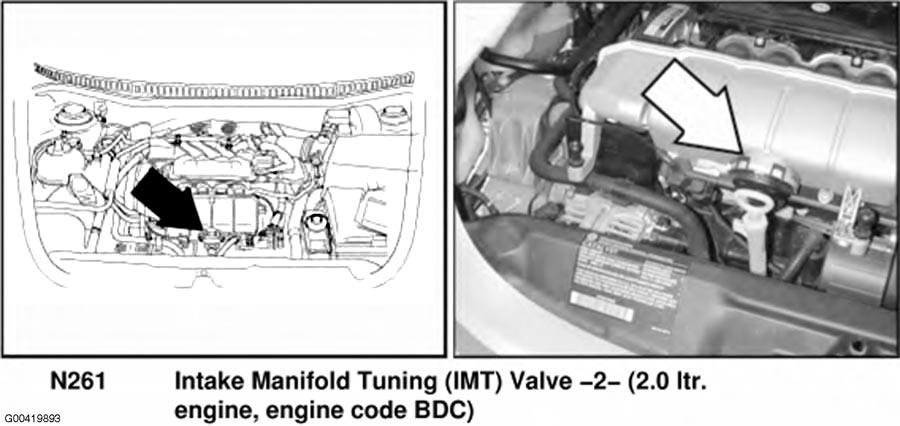

Fig 73: Left Side Of Engine

G00419893

Courtesy of VOLKSWAGEN UNITED STATES, INC.

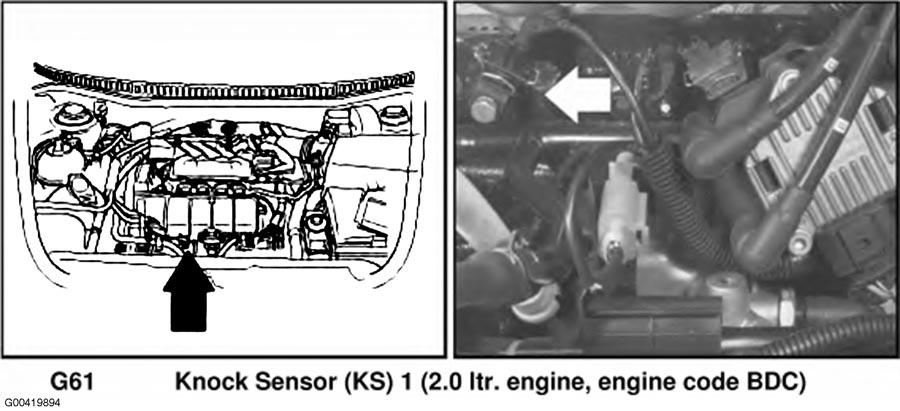

Fig 74: Left Side Of Engine

G00419894

Courtesy of VOLKSWAGEN UNITED STATES, INC.

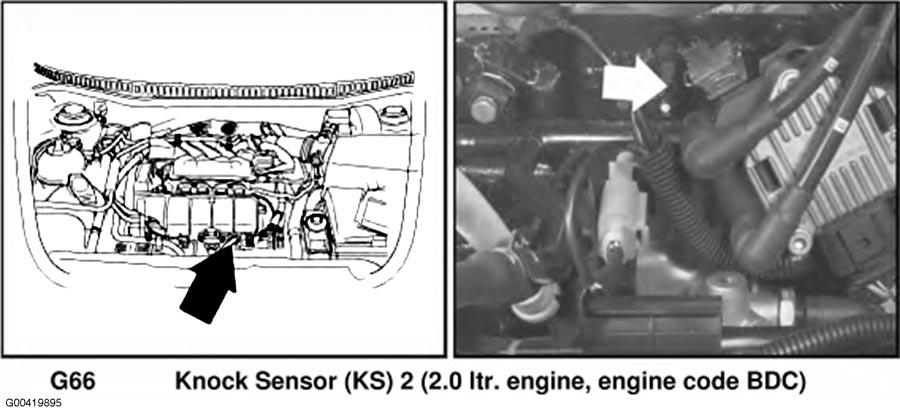

Fig 75: Left Side Of Engine

G00419895

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 76: Right Rear Of Vehicle

G00419896

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 77: Left Side Of Rear Seat

G00419897

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 78: Left Side Of Rear Seat

G00419898

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 79: Left Front Wheel

G00419900

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 80: Driver's Seat Belt

G00419901

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 81: Left Rear Wheel

G00419902

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 82: Left Side Of Rear Seat

G00419903

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 83: Driver's Door

G00419904

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 84: Passenger's Door

G00419905

Courtesy of VOLKSWAGEN UNITED STATES, INC.

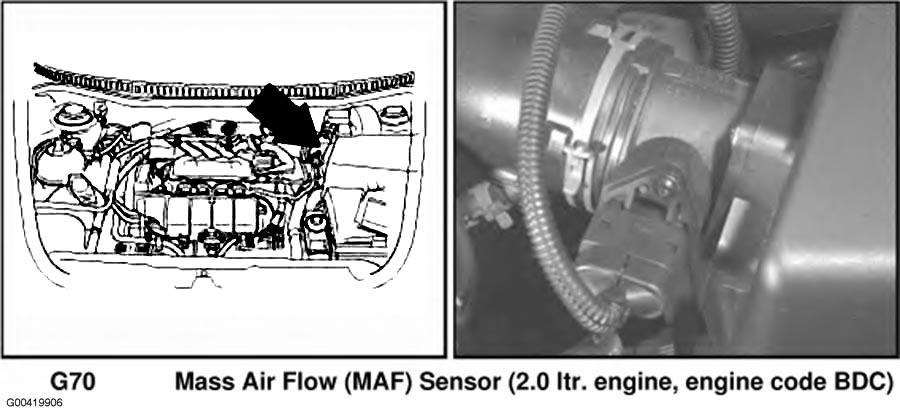

Fig 85: Left Rear Of Engine Compartment

G00419906

Courtesy of VOLKSWAGEN UNITED STATES, INC.

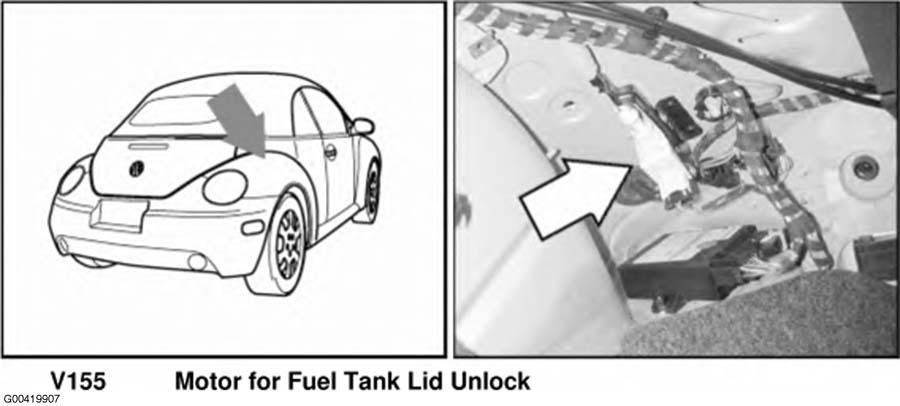

Fig 86: Right Rear Of Vehicle

G00419907

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 87: Left Side Of Plenum Chamber

G00419908

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 88: Left Rear Of Engine Compartment

G00419909

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 89: Top Of Transmission (A/T)

G00419910

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 90: Left Side Of Engine

G00419911

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 91: Left Front Of Vehicle

G00419912

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 92: Under Center Of Vehicle

G00419913

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 93: Center Console

G00419914

Courtesy of VOLKSWAGEN UNITED STATES, INC.

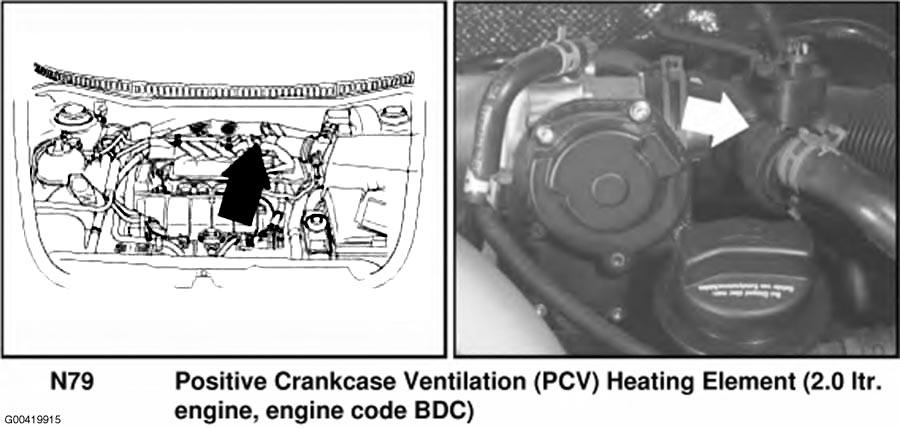

Fig 94: Rear Of Engine Compartment

G00419915

Courtesy of VOLKSWAGEN UNITED STATES, INC.

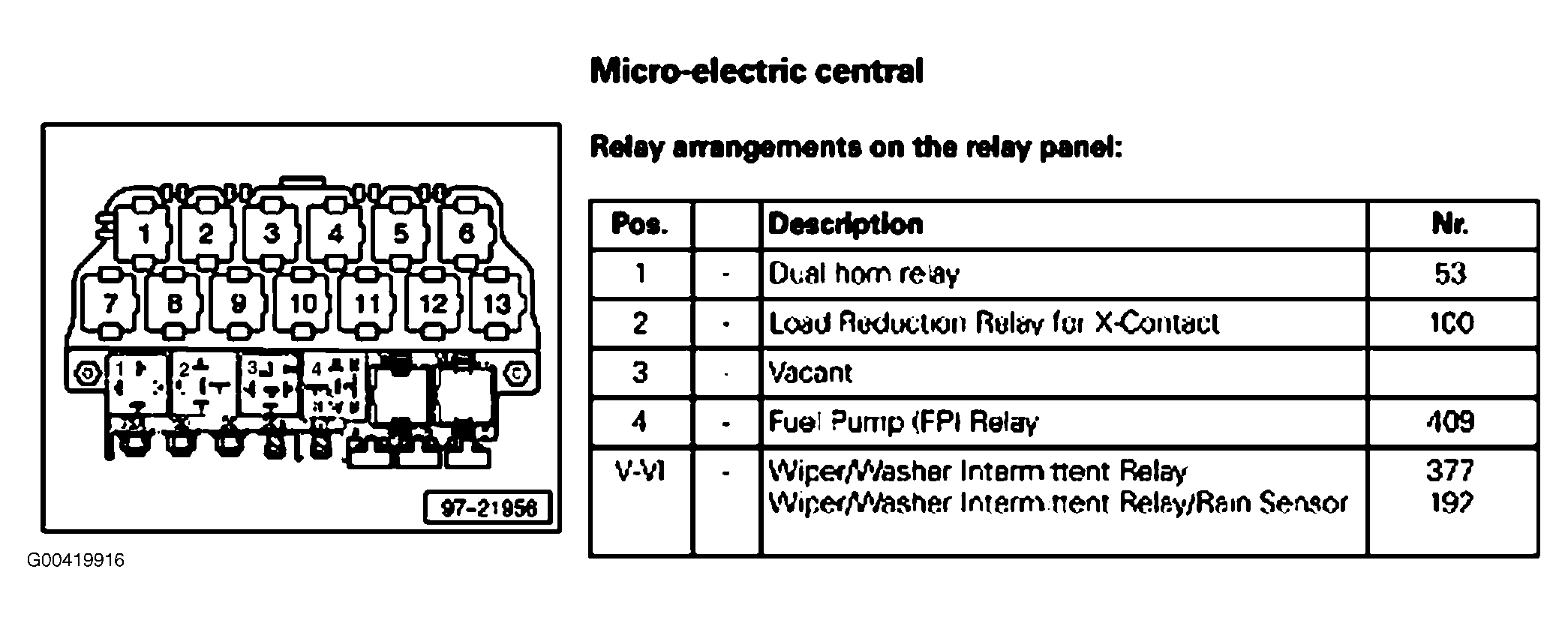

Fig 95: Micro-Electric Central

G00419916

Courtesy of VOLKSWAGEN UNITED STATES, INC.

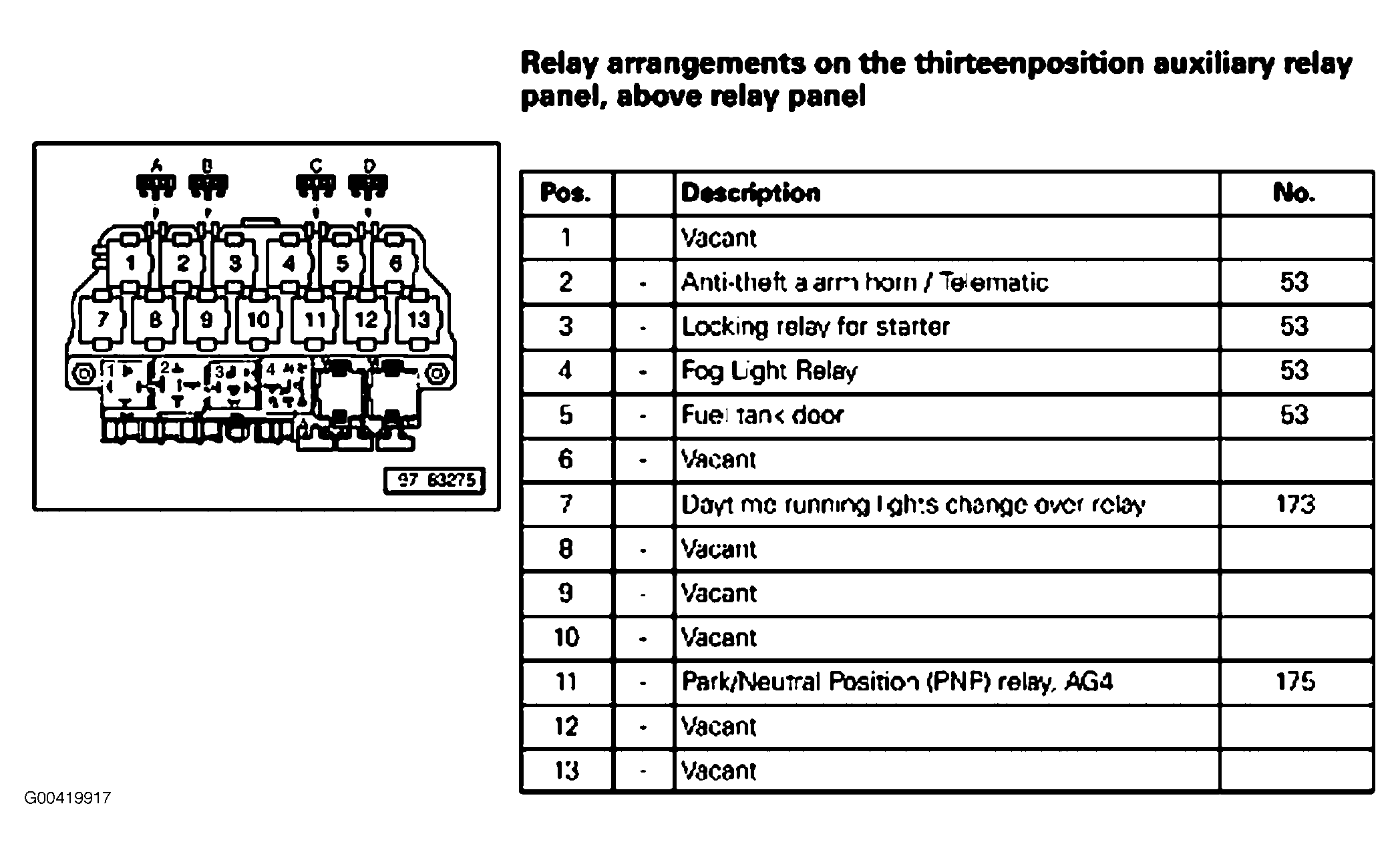

Fig 96: Thirteen Position Auxiliary Relay Panel (Convertible)

G00419917

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 97: Right Side Of Rear Seat

G00419918

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 98: Right Side Of Rear Seat

G00419919

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 99: Right Front Wheel

G00419920

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 100: Passenger's Seat Belt

G00419921

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 101: Right Rear Wheel

G00419922

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 102: Right Side Of Rear Seat

G00419923

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 103: Left Side Of Engine

G00419924

Courtesy of VOLKSWAGEN UNITED STATES, INC.

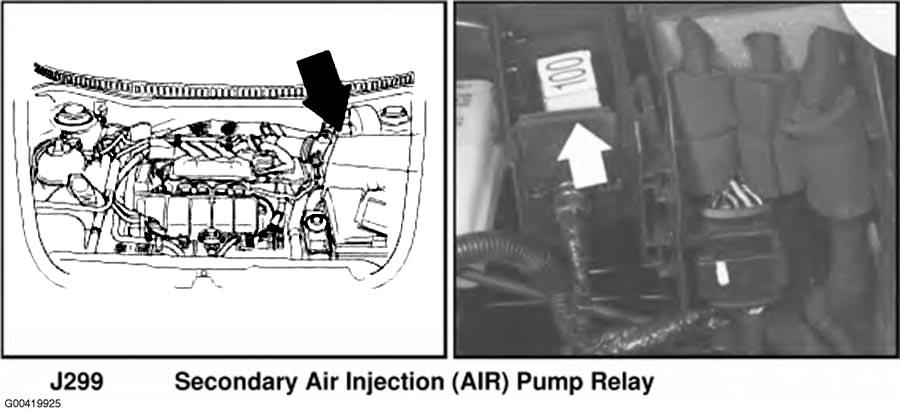

Fig 104: Left Rear Of Engine Compartment

G00419925

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 105: Under Left Side Of Dash

G00419926

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 106: Under Right Rear Seat

G00419927

Courtesy of VOLKSWAGEN UNITED STATES, INC.

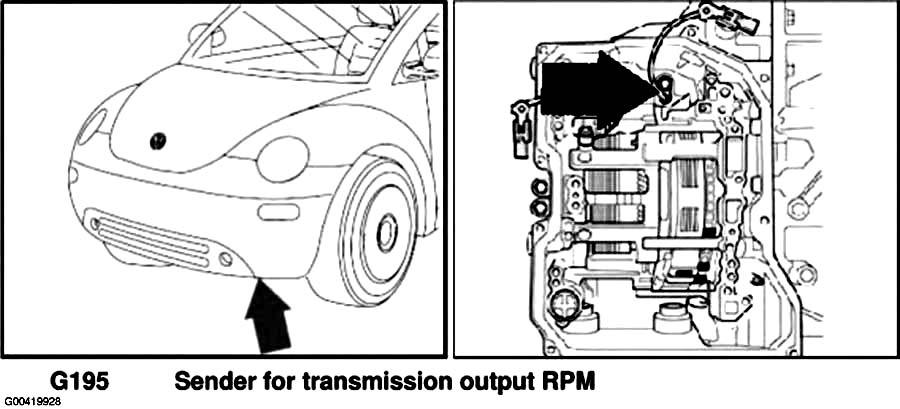

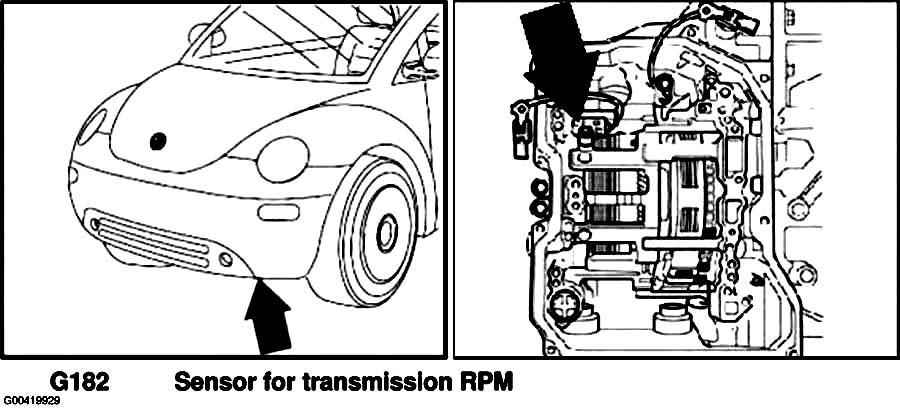

Fig 107: Transmission

G00419928

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 108: Transmission

G00419929

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 109: Under Right Side Of Dash

G00419930

Courtesy of VOLKSWAGEN UNITED STATES, INC.

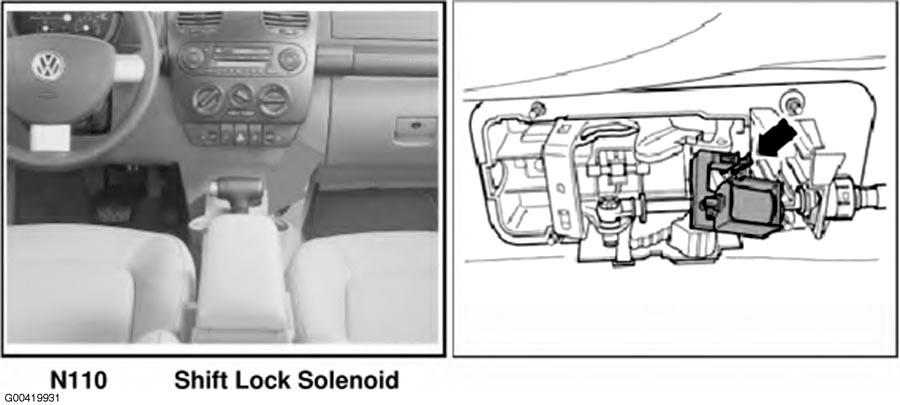

Fig 110: In Center Console

G00419931

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 111: Under Front Of Vehicle

G00419932

Courtesy of VOLKSWAGEN UNITED STATES, INC.

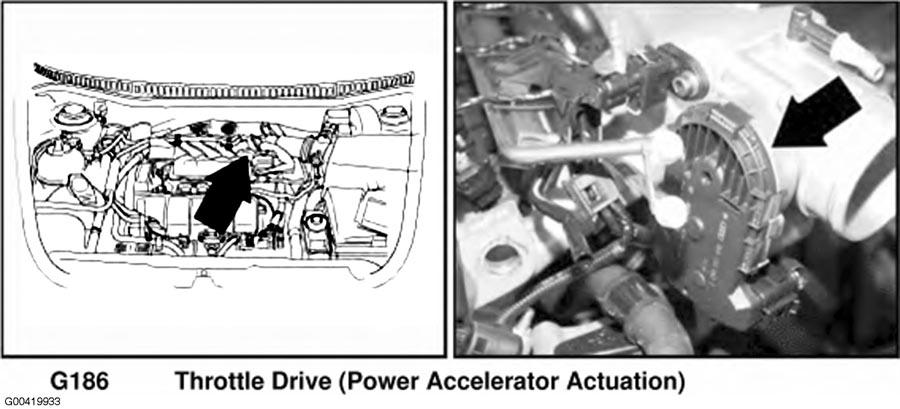

Fig 112: Rear Of Engine Compartment

G00419933

Courtesy of VOLKSWAGEN UNITED STATES, INC.

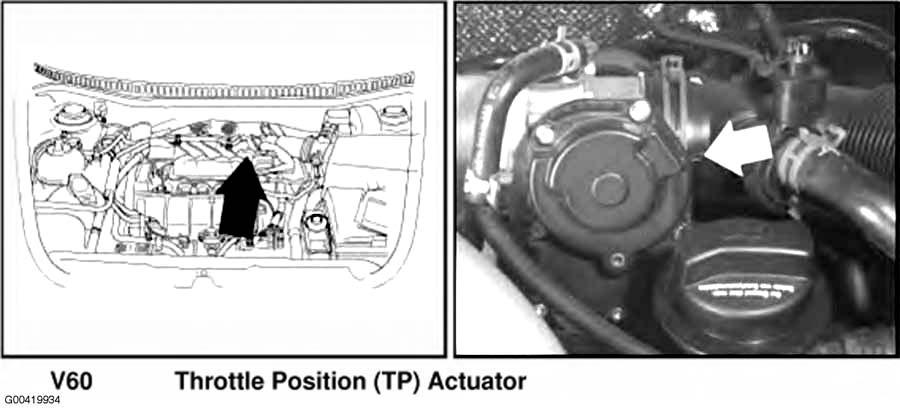

Fig 113: Rear Of Engine Compartment

G00419934

Courtesy of VOLKSWAGEN UNITED STATES, INC.

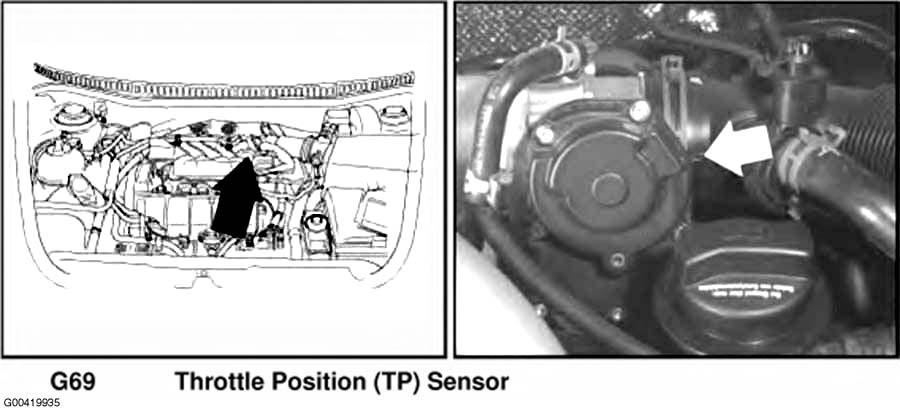

Fig 114: Rear Of Engine Compartment

G00419935

Courtesy of VOLKSWAGEN UNITED STATES, INC.

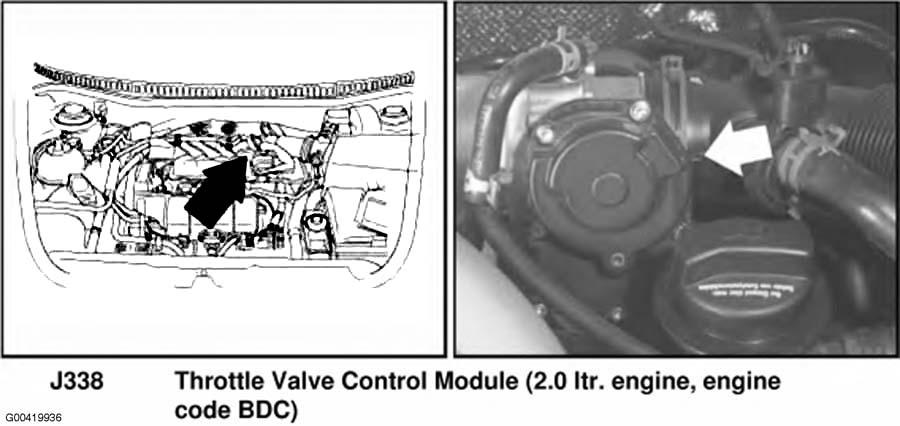

Fig 115: Rear Of Engine Compartment

G00419936

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 116: Rear Of Trunk Lid

G00419937

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 117: Top Of Transmission

G00419938

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 118: Right Front Of Engine Compartment

G00419939

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 119: Left Rear Of Engine Compartment

G00419940

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 120: Left Side Of Engine Compartment

G00419941

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 121: Left Side Of Engine (1.9L)

G00419942

Courtesy of VOLKSWAGEN UNITED STATES, INC.

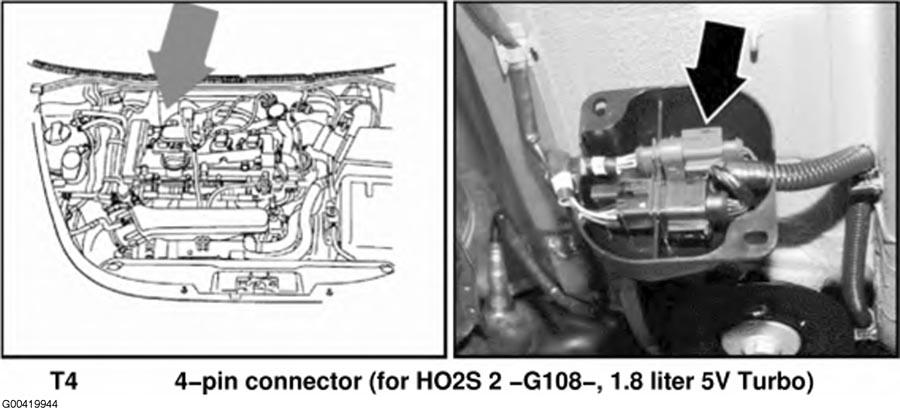

Fig 122: Rear Of Engine Compartment

G00419944

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 123: Under Left Side Of Dash

G00419945

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 124: Left Rear Of Engine Compartment

G00419946

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 125: Left Rear Of Engine Compartment

G00419947

Courtesy of VOLKSWAGEN UNITED STATES, INC.

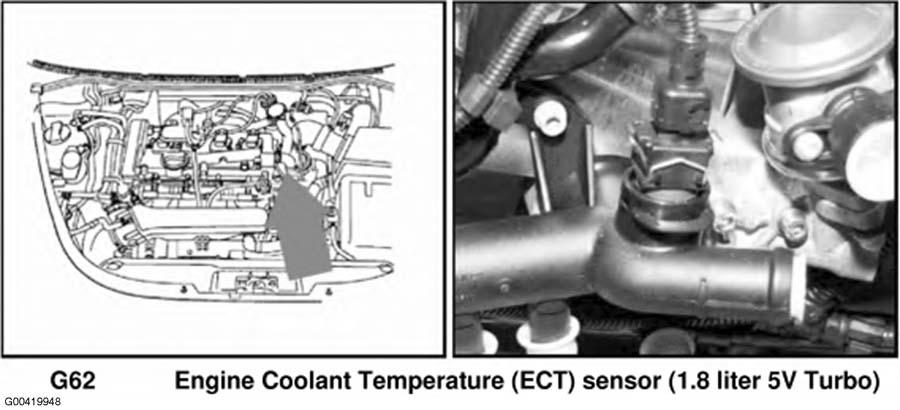

Fig 126: Rear Of Engine (1.8L)

G00419948

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 127: Rear Of Engine (1.9L)

G00419949

Courtesy of VOLKSWAGEN UNITED STATES, INC.

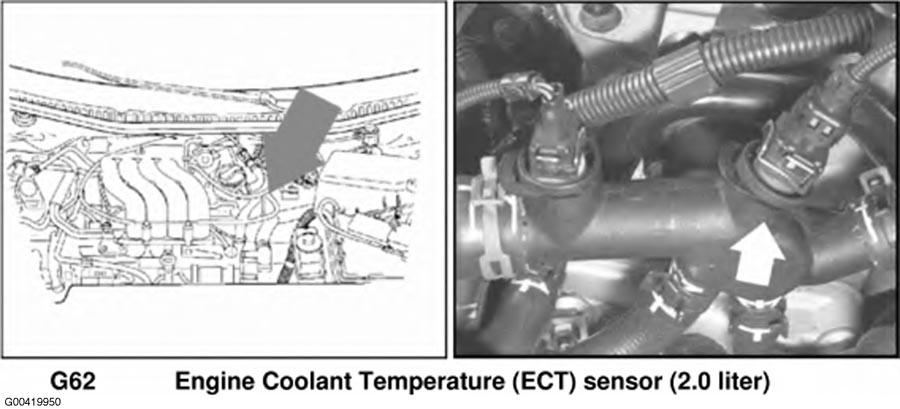

Fig 128: Rear Of Engine (2.0L)

G00419950

Courtesy of VOLKSWAGEN UNITED STATES, INC.

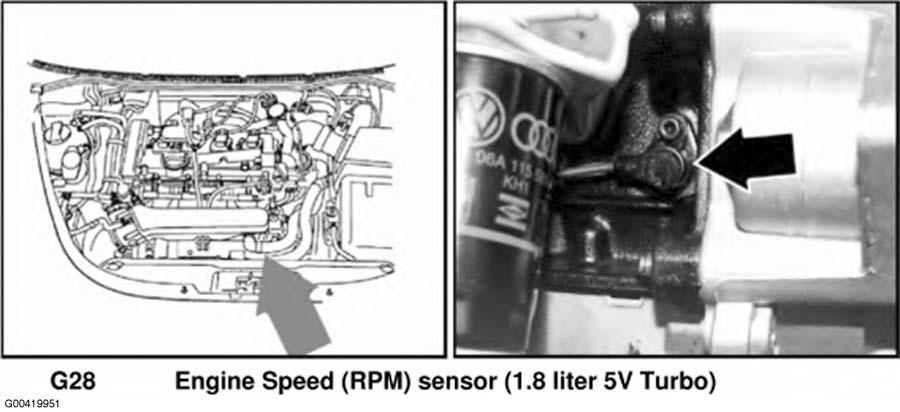

Fig 129: Left Side Of Engine (1.8L)

G00419951

Courtesy of VOLKSWAGEN UNITED STATES, INC.

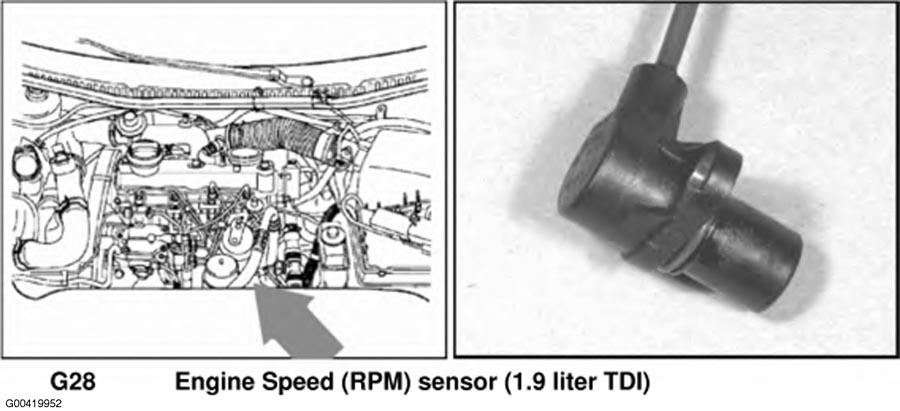

Fig 130: Left Side Of Engine

G00419952

Courtesy of VOLKSWAGEN UNITED STATES, INC.

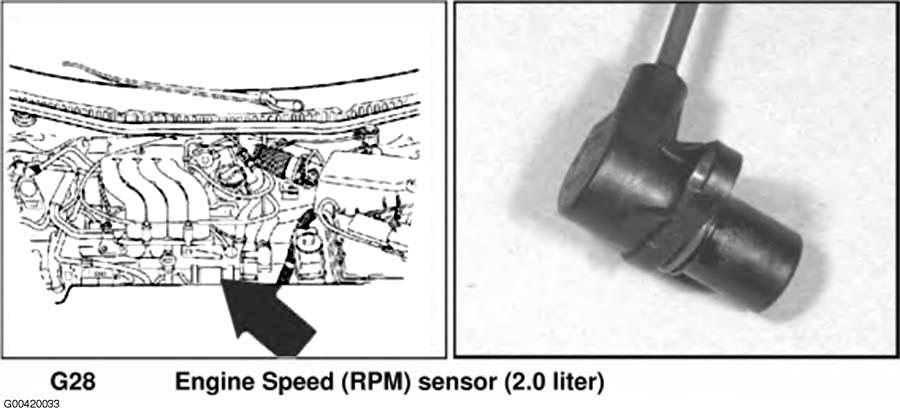

Fig 131: Left Side Of Engine

G00420033

Courtesy of VOLKSWAGEN UNITED STATES, INC.

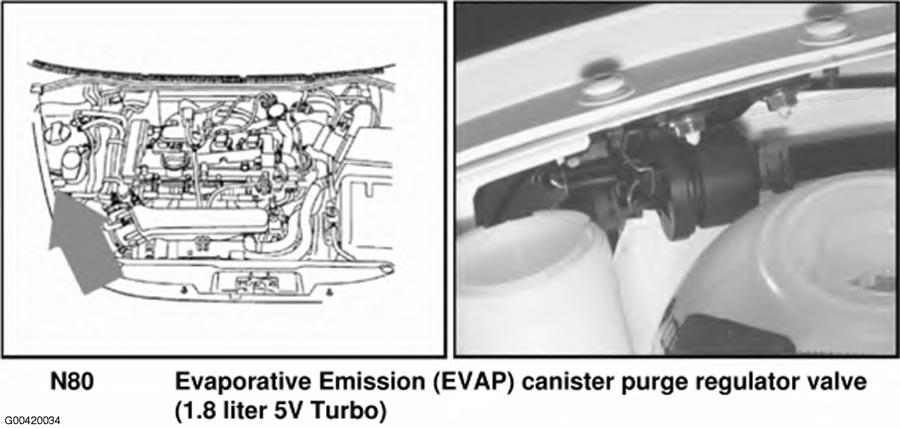

Fig 132: Right Side Of Engine Compartment

G00420034

Courtesy of VOLKSWAGEN UNITED STATES, INC.

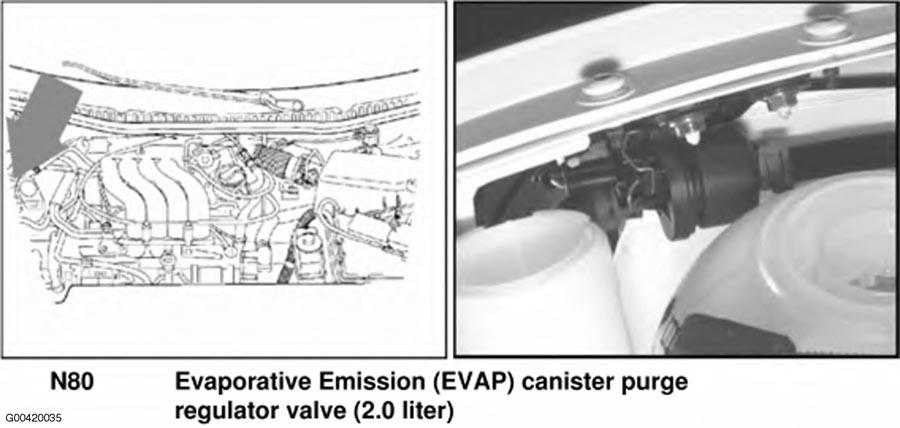

Fig 133: Right Side Of Engine Compartment

G00420035

Courtesy of VOLKSWAGEN UNITED STATES, INC.

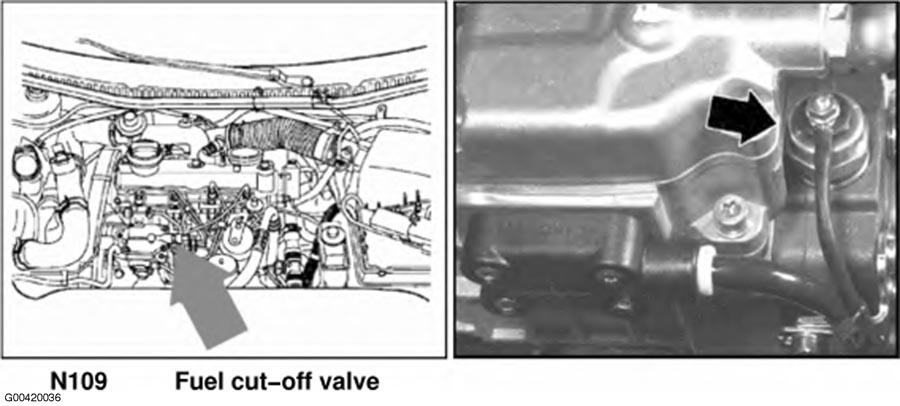

Fig 134: Left Side Of Engine

G00420036

Courtesy of VOLKSWAGEN UNITED STATES, INC.

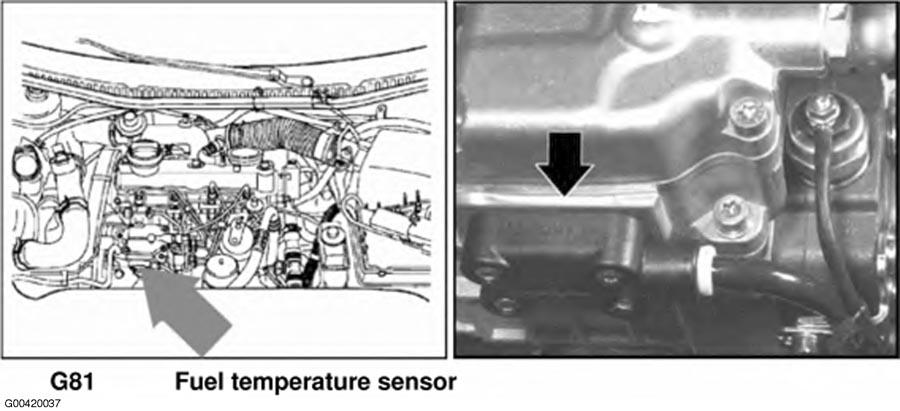

Fig 135: Left Side Of Engine

G00420037

Courtesy of VOLKSWAGEN UNITED STATES, INC.

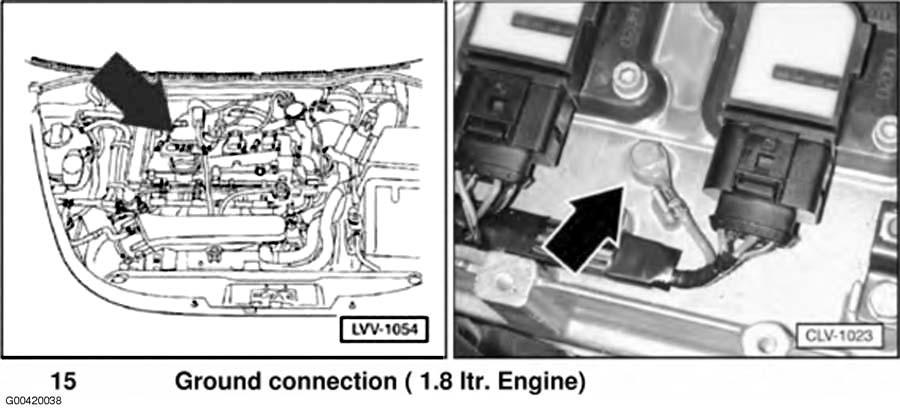

Fig 136: Top Of Engine (1.8L)

G00420038

Courtesy of VOLKSWAGEN UNITED STATES, INC.

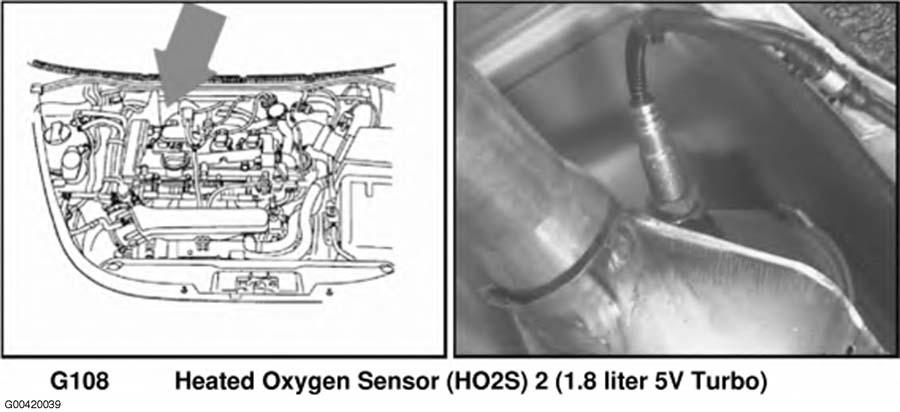

Fig 137: Under Vehicle

G00420039

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 138: Right Side Of Engine Compartment

G00420040

Courtesy of VOLKSWAGEN UNITED STATES, INC.

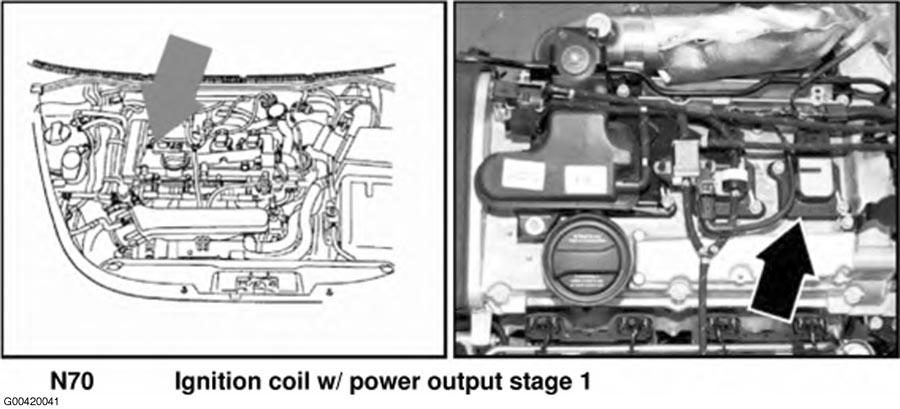

Fig 139: Top Of Engine

G00420041

Courtesy of VOLKSWAGEN UNITED STATES, INC.

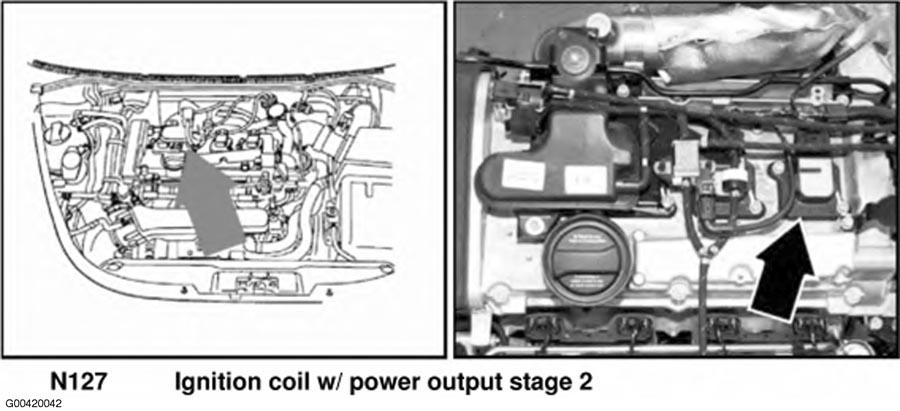

Fig 140: Top Of Engine

G00420042

Courtesy of VOLKSWAGEN UNITED STATES, INC.

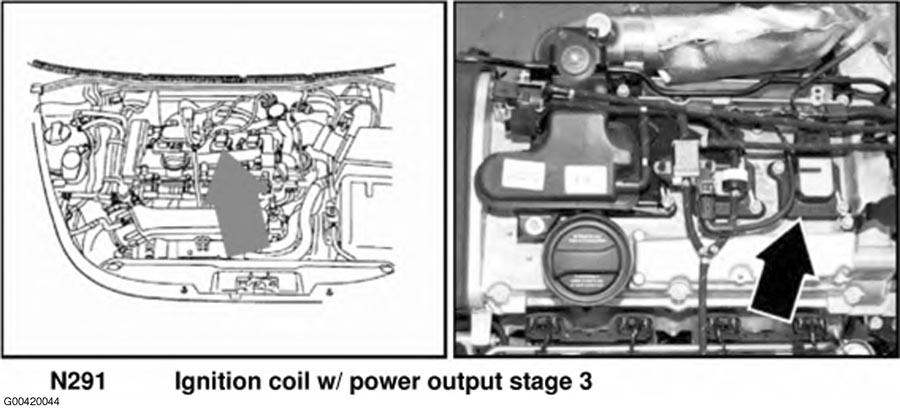

Fig 141: Top Of Engine

G00420044

Courtesy of VOLKSWAGEN UNITED STATES, INC.

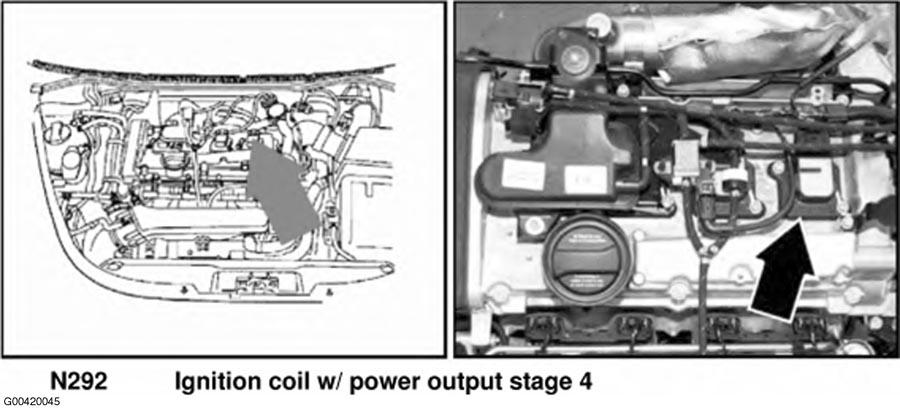

Fig 142: Top Of Engine

G00420045

Courtesy of VOLKSWAGEN UNITED STATES, INC.

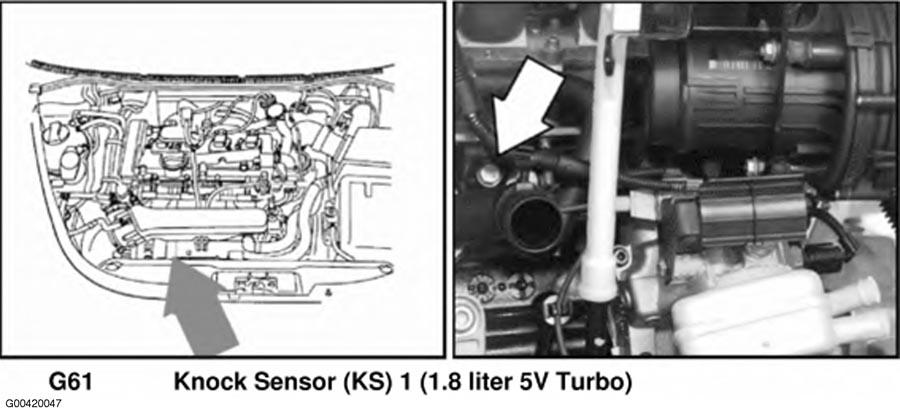

Fig 143: Left Side Of Engine

G00420047

Courtesy of VOLKSWAGEN UNITED STATES, INC.

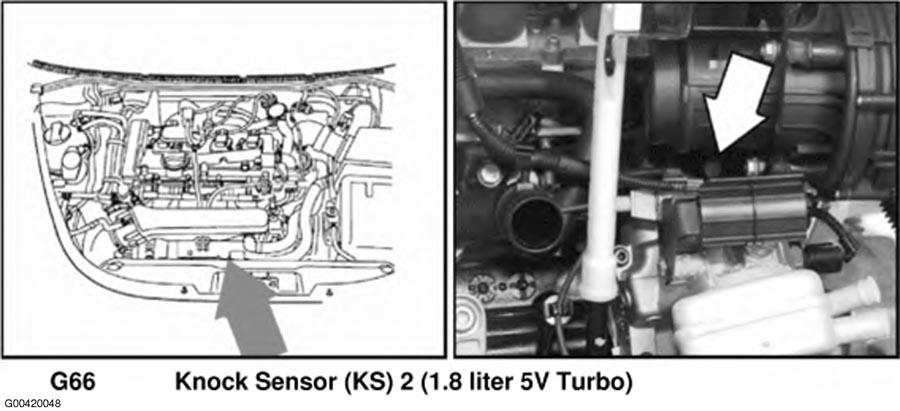

Fig 144: Left Side Of Engine

G00420048

Courtesy of VOLKSWAGEN UNITED STATES, INC.

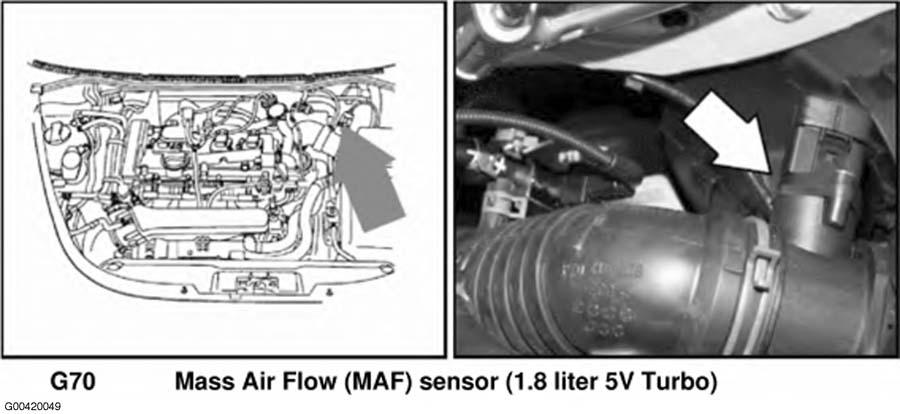

Fig 145: Left Rear Of Engine Compartment

G00420049

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 146: Left Side Of Engine Compartment

G00420050

Courtesy of VOLKSWAGEN UNITED STATES, INC.

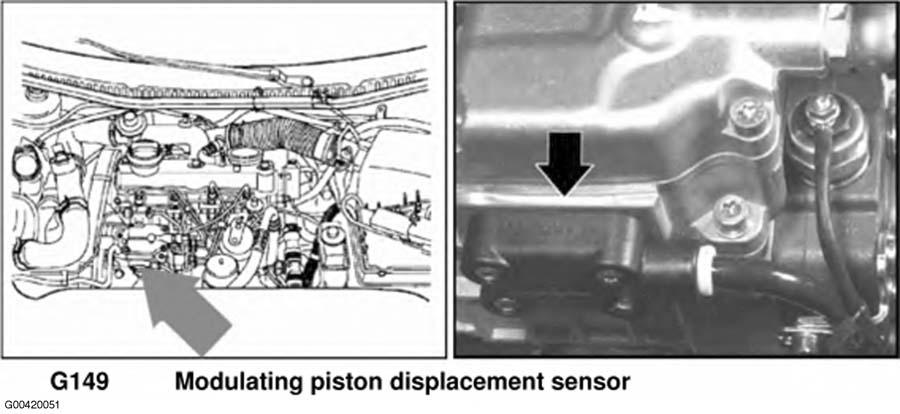

Fig 147: Left Side Of Engine

G00420051

Courtesy of VOLKSWAGEN UNITED STATES, INC.

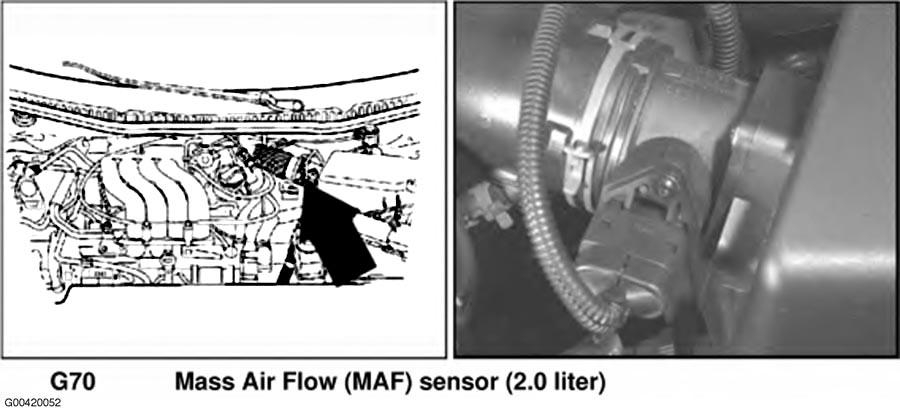

Fig 148: Left Side Of Engine Compartment

G00420052

Courtesy of VOLKSWAGEN UNITED STATES, INC.

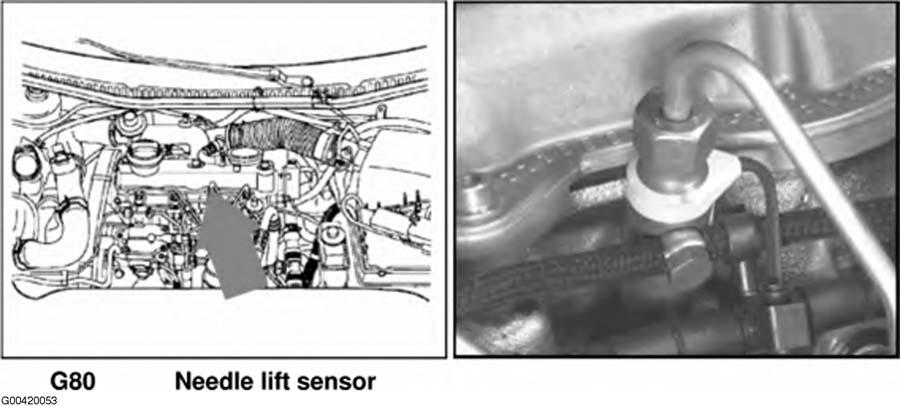

Fig 149: Top Of Engine

G00420053

Courtesy of VOLKSWAGEN UNITED STATES, INC.

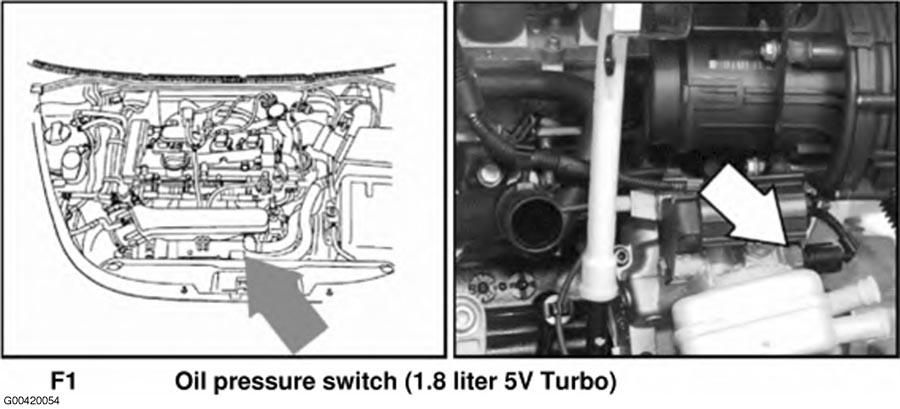

Fig 150: Left Side Of Engine

G00420054

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 151: Left Side Of Engine

G00420055

Courtesy of VOLKSWAGEN UNITED STATES, INC.

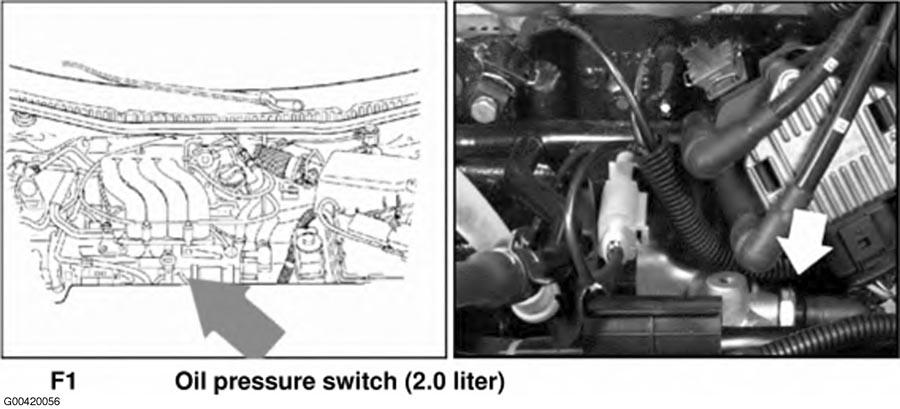

Fig 152: Left Side Of Engine

G00420056

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 153: Rear Of Engine Compartment

G00420057

Courtesy of VOLKSWAGEN UNITED STATES, INC.

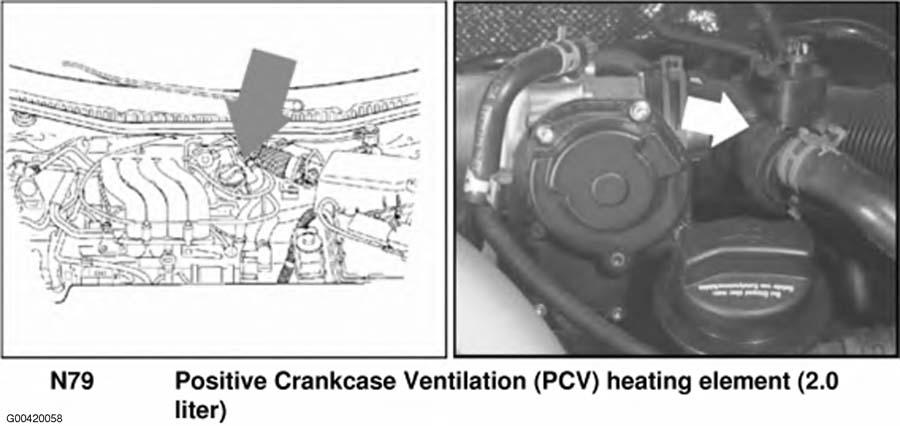

Fig 154: Rear Of Engine Compartment

G00420058

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 155: Center Of Roof

G00420059

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 156: Left Side Of Engine

G00420060

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 157: Rear Of Vehicle

G00420061

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 158: Rear Of Vehicle

G00420062

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 159: Top Of Engine

G00420063

Courtesy of VOLKSWAGEN UNITED STATES, INC.

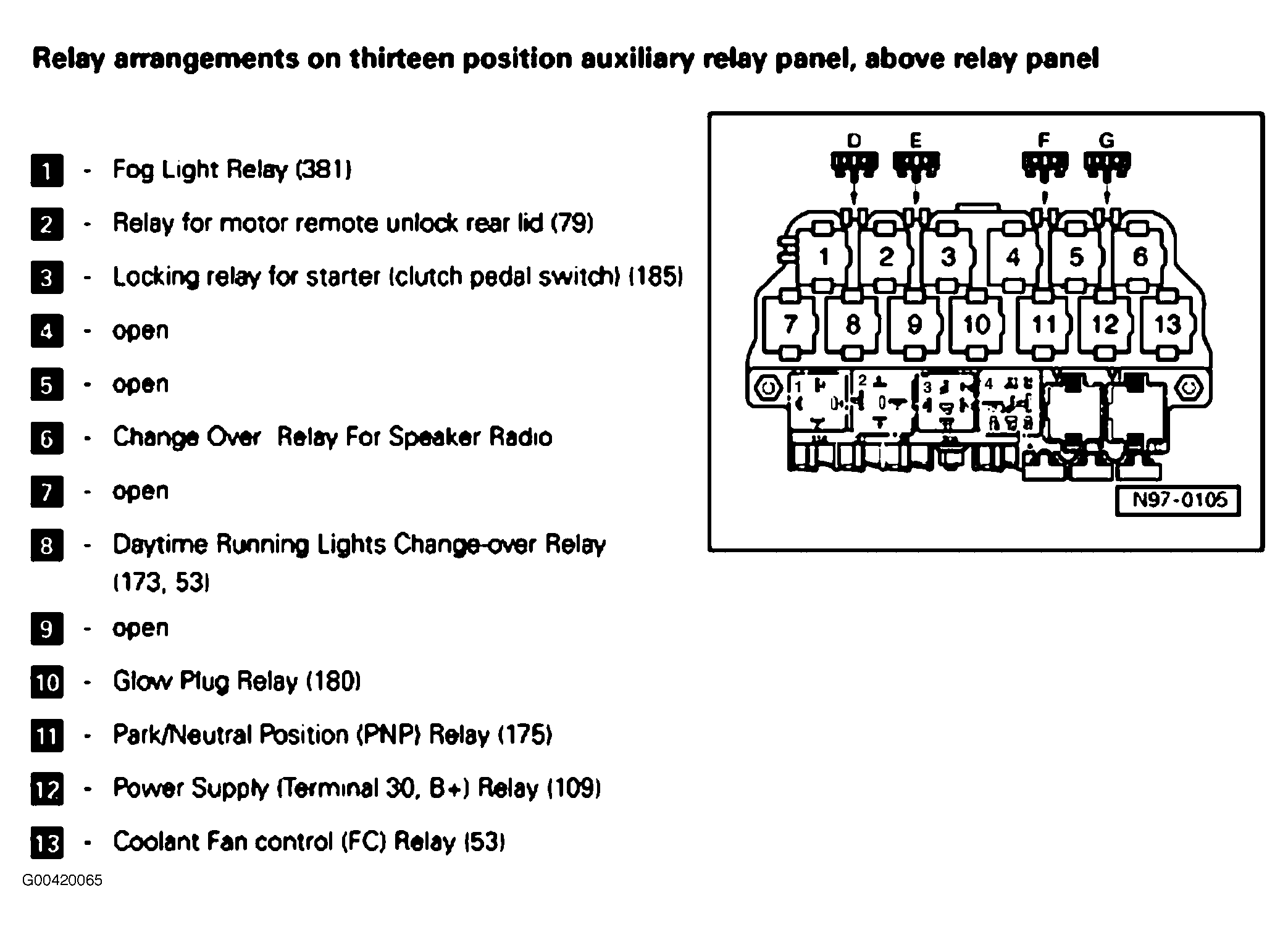

Fig 160: Thirteen Position Auxiliary Relay Panel (Except Convertible)

G00420065

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 161: Left Rear Of Engine Compartment

G00420066

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 162: Left Rear Of Engine Compartment

G00420067

Courtesy of VOLKSWAGEN UNITED STATES, INC.

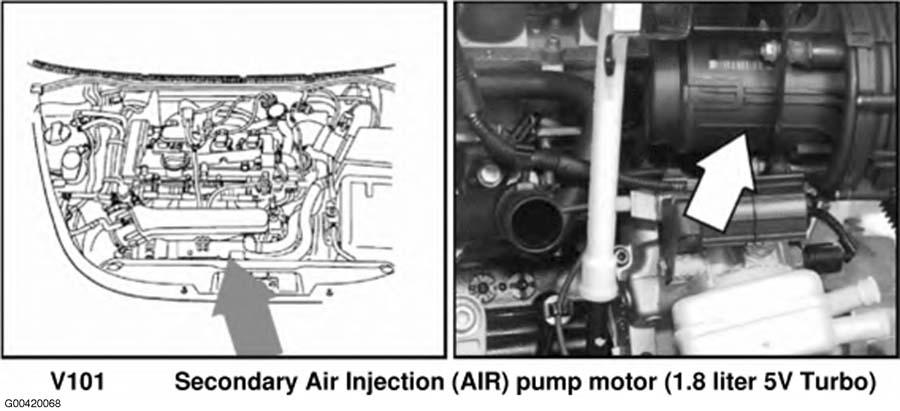

Fig 163: Front Of Engine Compartment

G00420068

Courtesy of VOLKSWAGEN UNITED STATES, INC.

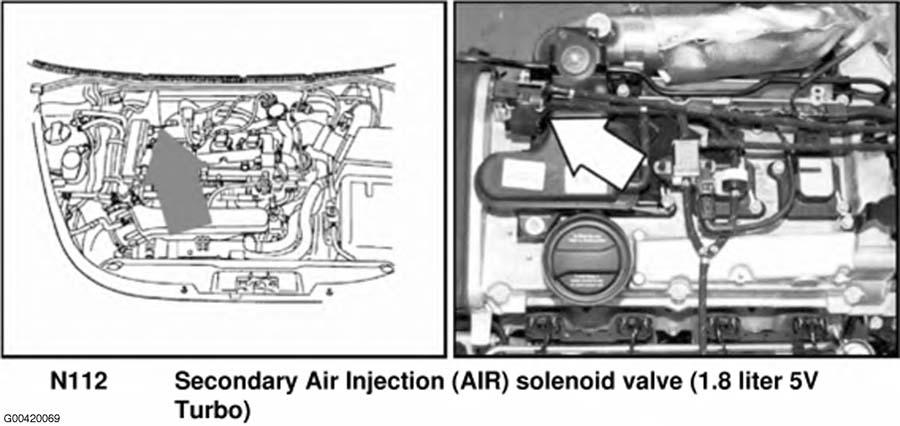

Fig 164: Top Front Of Engine (1.8L)

G00420069

Courtesy of VOLKSWAGEN UNITED STATES, INC.

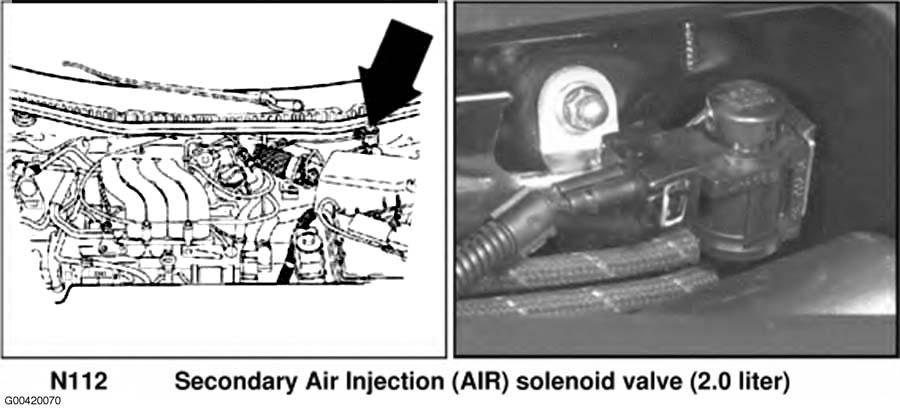

Fig 165: Left Rear Of Engine Compartment

G00420070

Courtesy of VOLKSWAGEN UNITED STATES, INC.

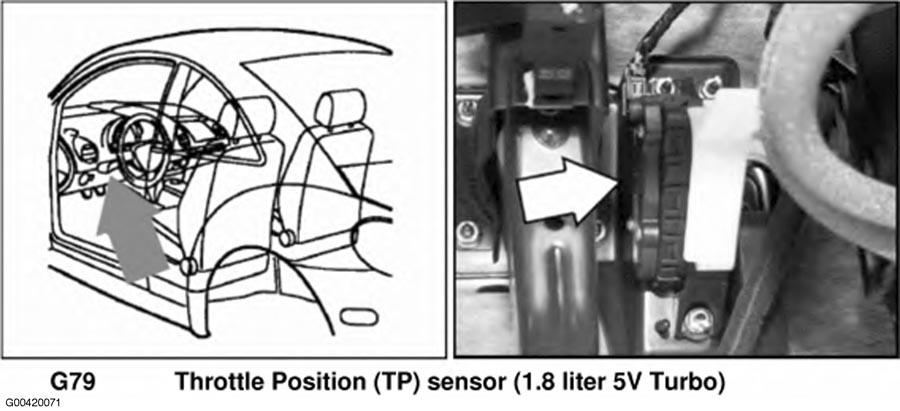

Fig 166: Under Left Side Of Dash

G00420071

Courtesy of VOLKSWAGEN UNITED STATES, INC.

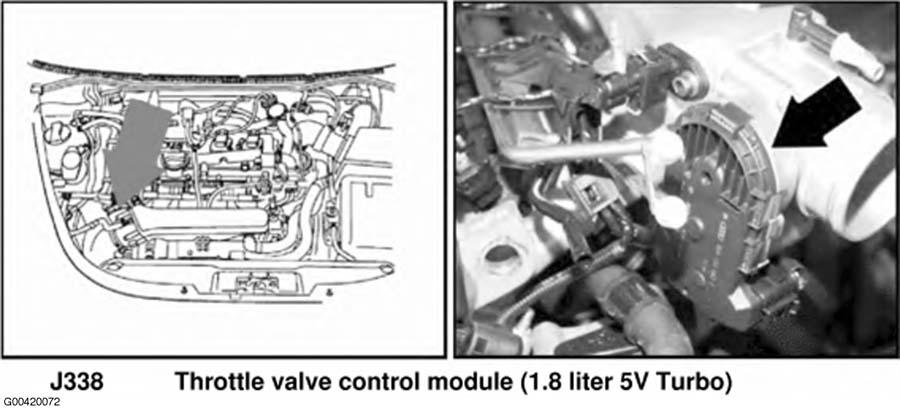

Fig 167: Right Front Of Engine Compartment

G00420072

Courtesy of VOLKSWAGEN UNITED STATES, INC.

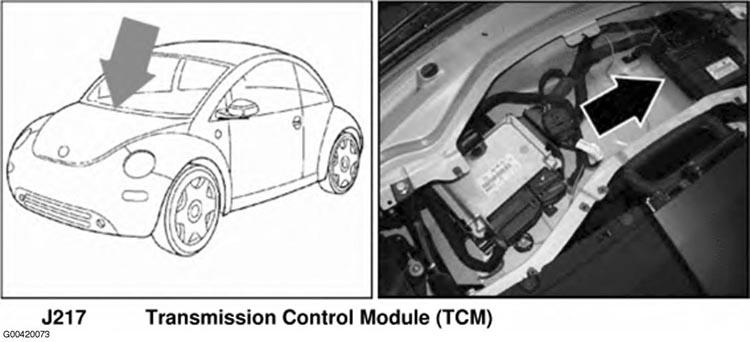

Fig 168: Under Dash Panel Cover

G00420073

Courtesy of VOLKSWAGEN UNITED STATES, INC.

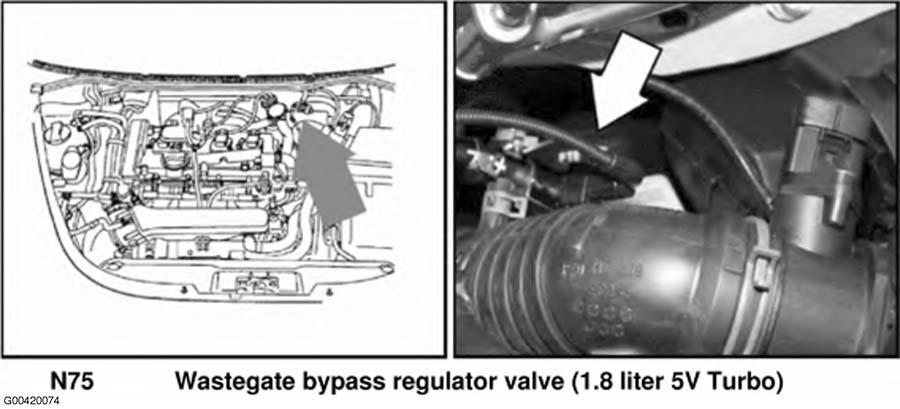

Fig 169: Rear Of Engine Compartment

G00420074

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 170: Rear Of Engine Compartment

G00420075

Courtesy of VOLKSWAGEN UNITED STATES, INC.

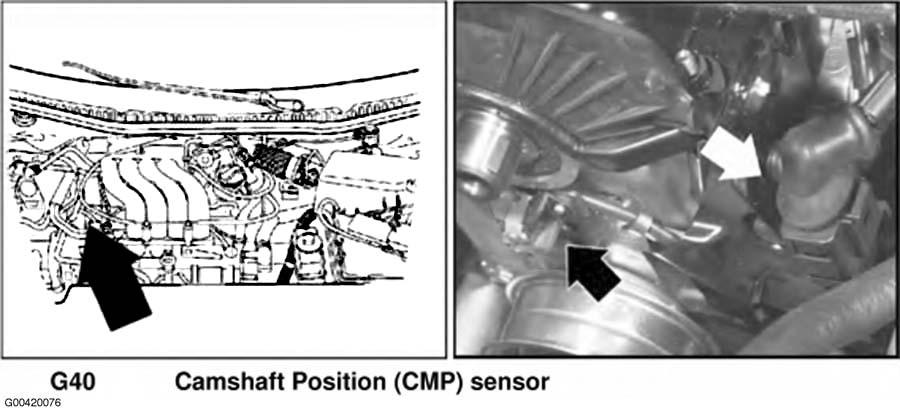

Fig 171: Front Of Engine

G00420076

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 172: Front Of Engine

G00420077

Courtesy of VOLKSWAGEN UNITED STATES, INC.
