Steering Column Switch, with KESSY Overview
Steering Column Switch, with KESSY Overview

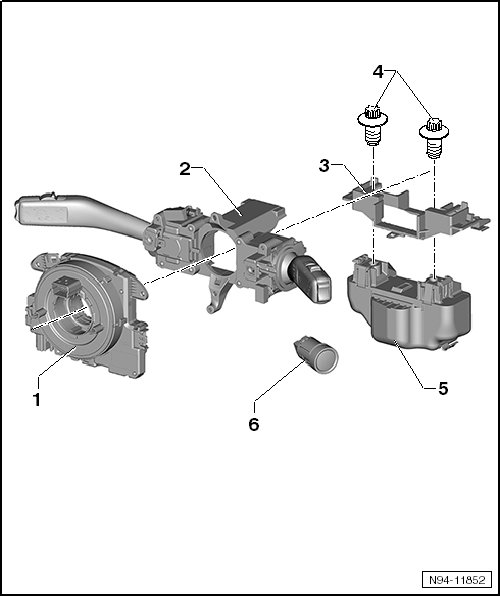

• There are different versions of the steering column electronic systems control module (J527) , the steering column combination switch (E595) and the steering column switch base carrier depending on the manufacturer (Valeo or Kostal). The Valeo version is shown in the illustration.
1 Steering Column Electronic Systems Control Module (J527)
• Observe removal and installation sequence. Refer to=> [ Steering Column Switch Components, Removal and Installation Sequence ] Steering Column Switch Components, Removal and Installation Sequence.
• Removal and installation, refer to => [ Steering Column Electronic Systems Control Module ] Steering Column Electronic Systems Control Module (J527).
• Coding, refer to=> [ Steering Column Electronic Systems Control Module, with KESSY, coding ] Testing and Inspection.
• Mounting bolt tightening specification: 1.5 Nm
2 Steering Column Combination Switch (E595)
• Observe removal and installation sequence. Refer to=> [ Steering Column Switch Components, Removal and Installation Sequence ] Steering Column Switch Components, Removal and Installation Sequence
• Removal and installation, refer to => [ Steering Column Combination Switch, Valeo ] Steering Column Combination Switch (E595), Valeo or => [ Steering Column Combination Switch, Kostal ] Steering Column Combination Switch (E595), Kostal.
3 Base Carrier For Steering Column Switches
• Observe removal and installation sequence. Refer to=> [ Steering Column Switch Components, Removal and Installation Sequence ] Steering Column Switch Components, Removal and Installation Sequence.
• Removal and Installation, refer to => [ Steering Column Switch Base Carrier, Valeo ] Steering Column Switch Base Carrier, Valeo or => [ Steering Column Switch Base Carrier, Kostal ] Steering Column Switch Base Carrier, Kostal.
4 Shear Bolts
• Break-off torque: approximately 15 Nm
5 Electronic Steering Column Lock Control Module (J764)
Removed and installed together with the steering column switch base carrier.
• Observe removal and installation sequence. Refer to=> [ Steering Column Switch Components, Removal and Installation Sequence ] Steering Column Switch Components, Removal and Installation Sequence.
• Removal and installation, refer to => [ Electronic Steering Column Lock Control Module ] Electronic Steering Column Lock Control Module (J764).
• Coding, refer to=> [ Electronic Steering Column Lock Control Module, with KESSY Coding ] Electronic Steering Column Lock Control Module (J764), with KESSY Coding.
6 Access/Start Authorization Button (E378)
• Removal and installation, refer to => [ Buttons in the Center Console Storage Compartment ] Buttons in the Center Console Storage Compartment.
