From November 2004

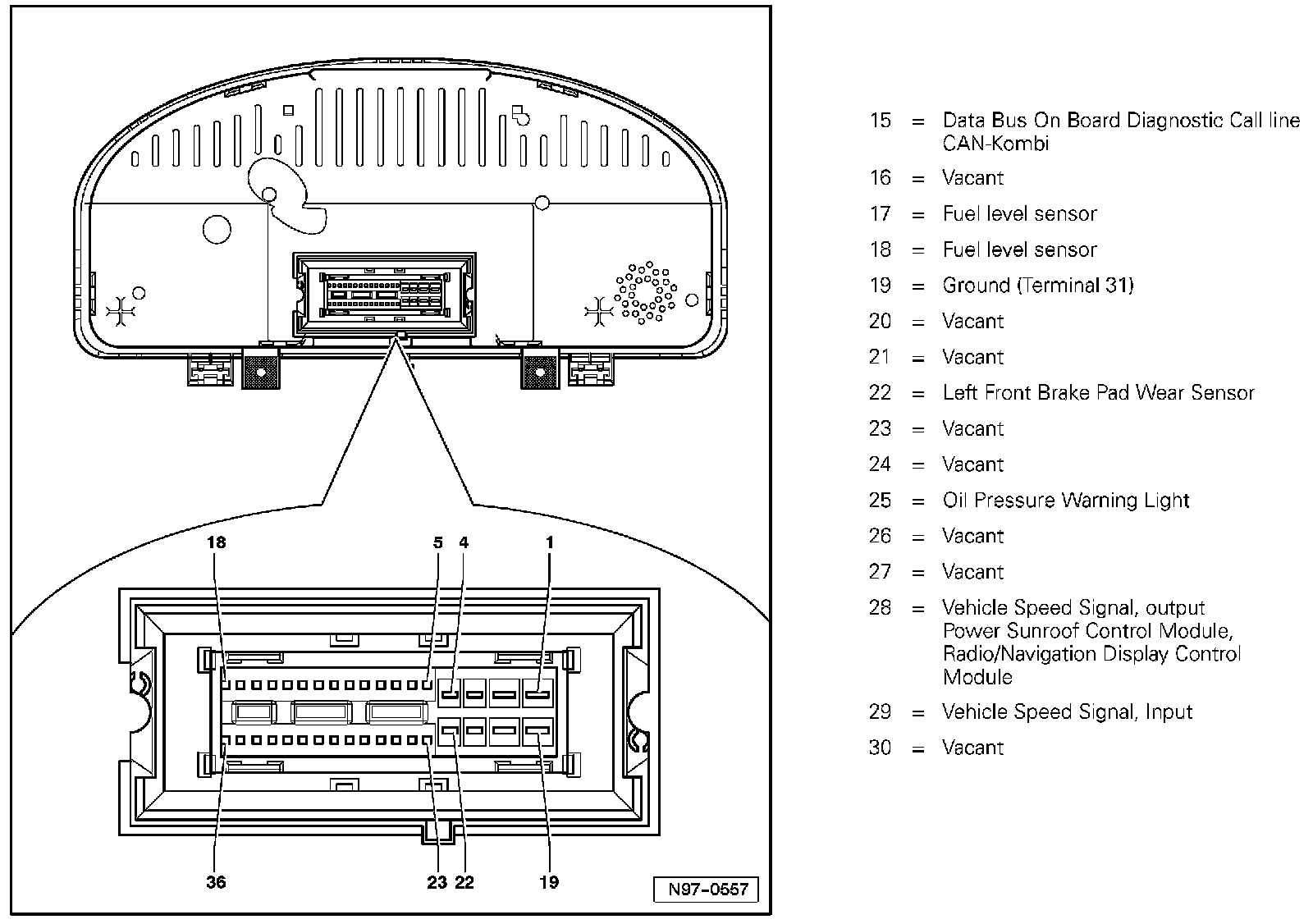

Instrument Cluster Control Module J285 - Part 1:

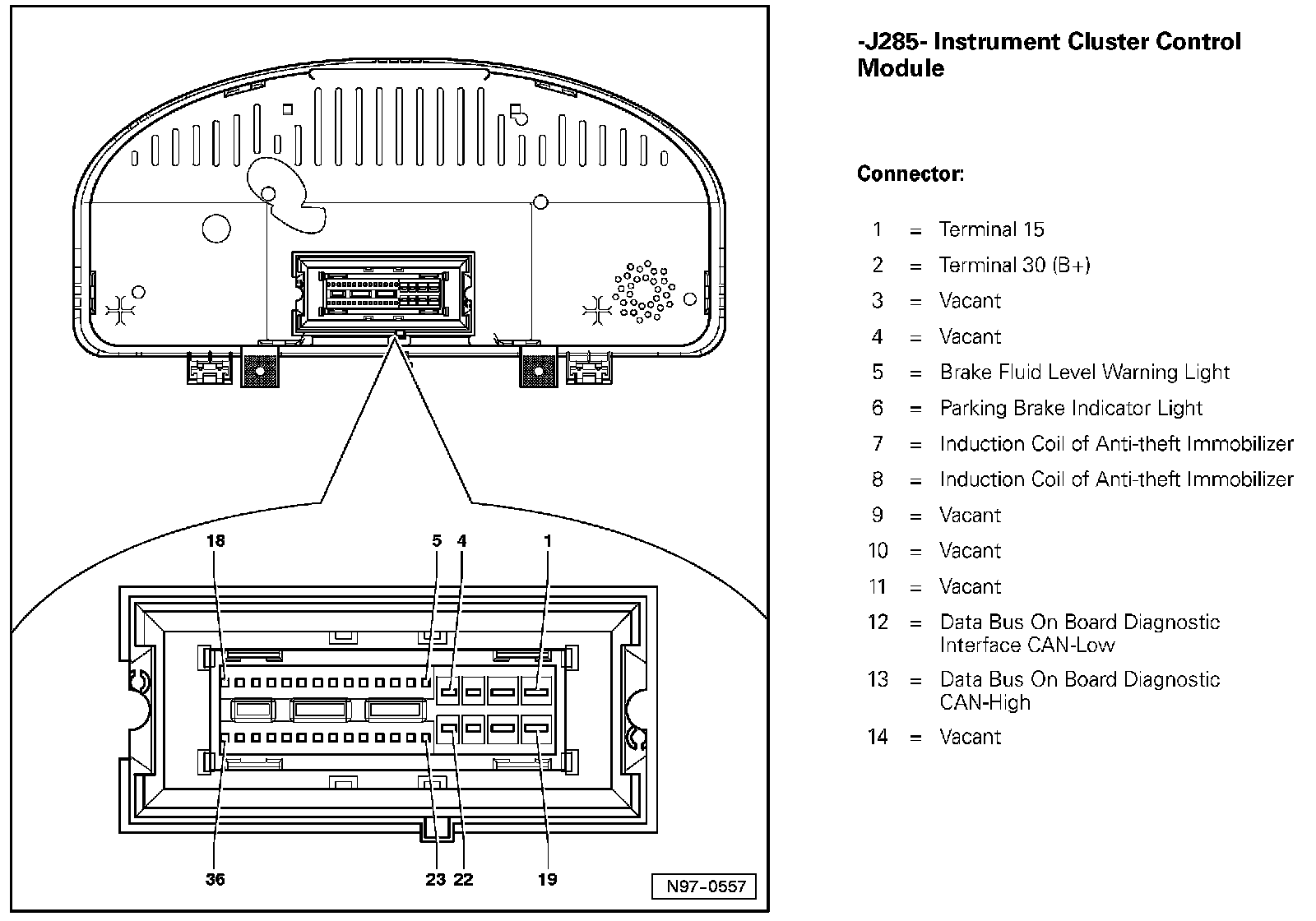

Instrument Cluster Control Module J285 - Part 2:

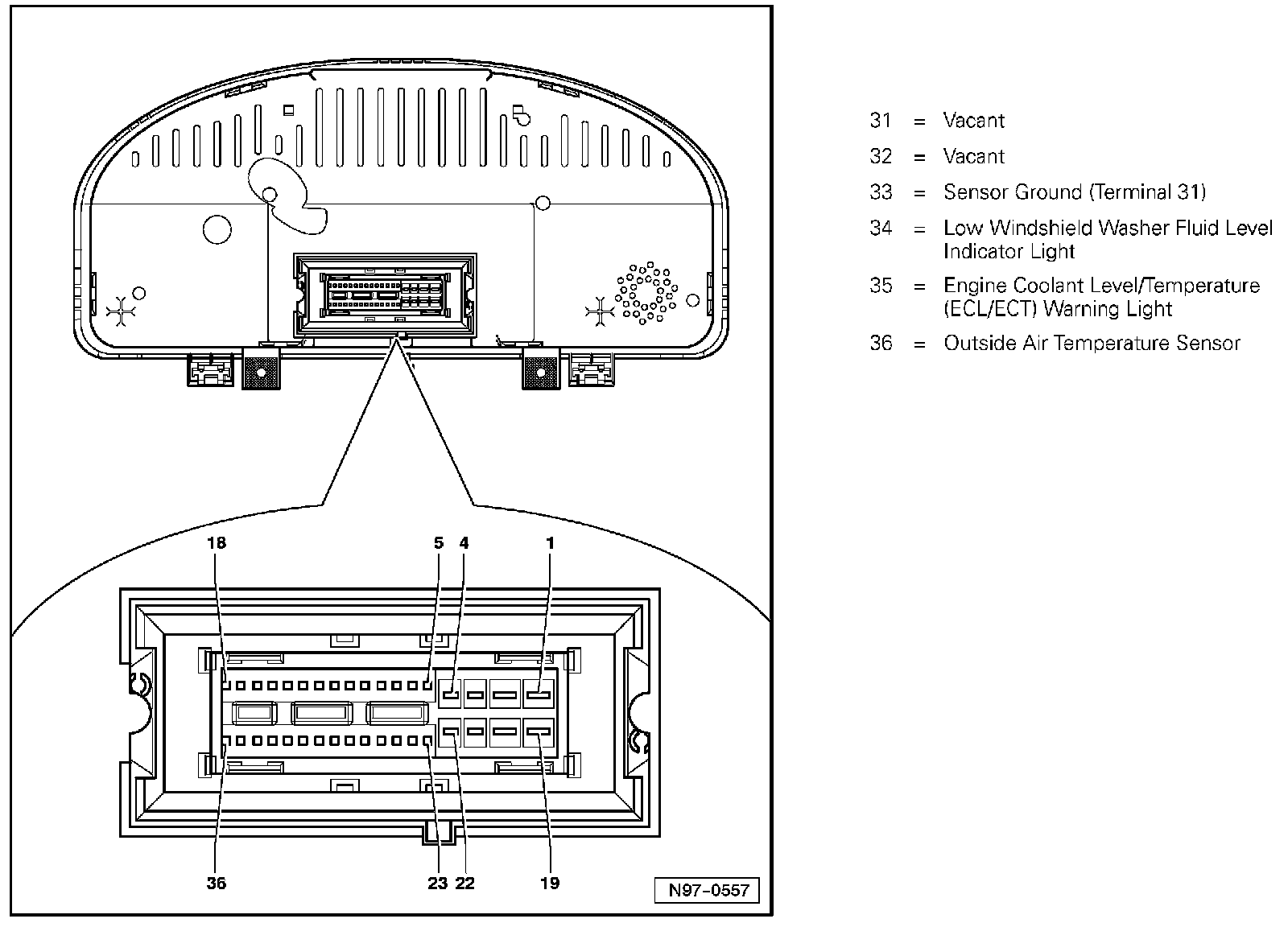

Instrument Cluster Control Module J285 - Part 3:
