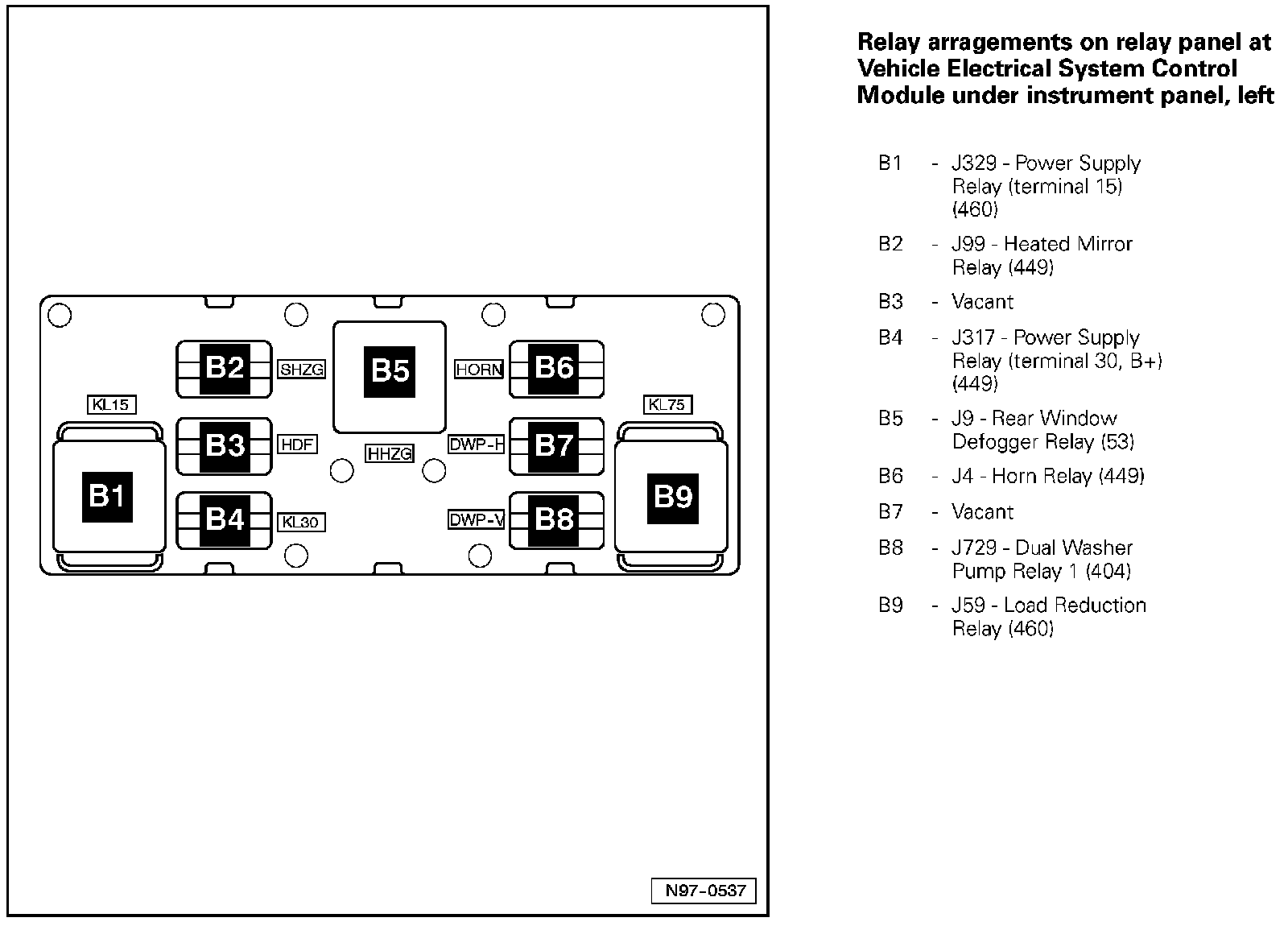

Relay Arrangements on Relay Panel At Vehicle Electrical System Control Module Under Instrument Panel, Left
Relay Arrangements On Relay Panel At Vehicle Electrical System Control Module Under Instrument Panel, Left:
