Update Programming For ECM Part Number Beginning With "06A" (U. S. Only) (GROUP 01, NO. 07-60)

WARNING: This page is about the Jetta GL, 4D Sedan, 1.8 E, which is a different variant/trim than selected.
Publication date: 2007-09-04
Reference number: GROUP 01, NO. 07-60
Supersedes refnos: 2012699, 2013222, 2015970, GROUP 01, NO. 06-06, GROUP 01, NO. 06-22, GROUP 01, NO. 06-27

UPDATE PROGRAMMING FOR ECM PART NUMBER BEGINNING WITH "06A" (U. S. ONLY)

UPDATE PROGRAMMING FOR ECM PART NUMBER BEGINNING WITH "06A" (U. S. ONLY)

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 01, NO. 07-60 (2015970), Date of Issue:  September 4, 2007
VOLKSWAGEN: Jetta (A5) 2005
GROUP: 01 - On-Board Diagnostic

SERVICE INFORMATION

APPLICABLE MODELS AND YEARS

Model(s) Year Eng. Code Trans. Code VIN Range From VIN Range To
Jetta (A5) 2005 All All All All

CONDITION

01 07 60  Sept. 4, 2007 2015970  Supersedes;

Update Programming for ECM Part Number Beginning with "06A" (U. S. Only)

The update programming procedure addresses the following concerns:

CONCERNS

DTC - P3081 Engine Temperature Too Low when Cold, Manual Transmission Only
Exhaust System Noise after Starting Cold, Automatic Transmission Only
NOTE: Prior to performing Update Programming, please inform the customer that this software update addresses all of the concerns listed above. Once the Control Module programming is complete, the module cannot be returned to its original state. Please inform the customer that their concern addressed by this technical bulletin will not be resolved without this software update.

DO NOT  perform Update Programming if the customer does not want the Update Programming installed in their vehicle.

TECHNICAL BACKGROUND

Updated ECM software that addresses:

ENGINE CONTROL MODULE AFFECTED

Model Year Model ECM Part No. Index
2005 Jetta 06A906032 QC, QD, QE, QF
TRANSMISSION CONTROL MODULE AFFECTED

Model Year Model TCM Part No. Index
2005 Jetta 09G927750 AS, EL

PRODUCTION SOLUTION

Software concern was identified after production was concluded.

SERVICE

Tip:

Update programming procedure has been revised for vehicles equipped with the higher speed diagnostic CAN-bus.

ENGINE CONTROL MODULE UPDATE - PROGRAMMING (FLASHING)

Tip:

Update programming procedure has been revised for vehicles equipped with the higher speed diagnostic CAN-bus.

When performing the update programming procedure, ALL DTCs for all systems are erased. DTCs linked to Guided Fault Finding function tests will be lost. Therefore, always address stored DTCs for Customer concerns unrelated to the update programming procedure first. The following "Update - Programming" (flashing) process may overwrite any "TUNED" ECM programming. A "TUNED" ECM is described as any ECM altered so as to perform outside the normal parameters and specifications approved by Volkswagen of America, Inc.

If you encounter a vehicle with a "Tuned" ECM, prior to performing the "Update - Programming" (flashing) procedure:

Your Dealership should place the vehicle owner on notice in writing, that their ECM was found to have been tuned, and that any damage caused by the tuning of the ECM (including any adverse emissions consequences) will not be covered by Volkswagen of America, Inc. warranties.

For any repair requested by the owner under warranty or outside warranty that requires update programming, which will automatically wipe out the "Tuning" program, your Dealership should advise the owner of the above and get Owner's written consent (see attached Control Module Tuning form) to the update programming procedure.

TOOL REQUIREMENTS

  • VAS 5051 or VAS 5052 (with Base CD V.11.00 and the Brand CD V.11.79.01 or higher).
  • "Update - Programming" (flashing) CD W422005A5SWU.

    Tip:

    Additional copies of the "Update - Programming" CD (Literature Number W422005A5SWU) may be ordered from the Volkswagen Technical Literature Ordering Center at www.vw.resolve.com, or by calling 1-800-544-8021 from 8:00 a.m. to 8:00 p.m. EST Monday through Friday. This number can be dialed in both the United States and Canada.

VEHICLE REQUIREMENTS

MUST have minimum no-load charge of 12.5V (failure to maintain voltage during update process can lead to ECM failure) (use an approved battery charger INC940 to maintain battery voltage).

VAS 5051: connected to vehicle and to 110V AC Power supply at all times during procedure.

VAS 5052: connected to vehicle with battery voltage requirements met.

Any appliances with high electromagnetic radiation (i.e. mobile phones) switched OFF.

When performing the update programming procedure, ALL DTCs for all systems are erased.

DTCs linked to Guided Fault Finding function tests will be lost. Therefore, always address stored DTCs for Customer concerns unrelated to the update programming procedure first.

NOTE: Non-observance of the following points may lead to ECM failure! VAS 5051 or VAS 5052 must always be connected to the approved power supply at the approved voltages. Under no circumstances should the power supply be interrupted or the diagnostic connector unplugged during the update programming procedure. Any appliances with high electromagnetic radiation (i.e. mobile phones) must be switched OFF.

Tip:

Before update programming, delete the fault memory in the ECM and TCM. Update programming is not possible when an EEPROM fault is active.

Reprogram ECM and TCM with CD - Part number W422005A5SWU.

NOTE: TCM reprogramming is only necessary if the feature for update programming is available.
  • Insert the programming CD into the VAS 5051 / 5052, and access the ECM.

    Tip:

    If the update programming button does not appear, the latest version has already been installed to the level below.

  • Programming starts by pressing the "Update Programming" button and following the on screen prompts.
    NOTE: Once update programming begins, on NO occasion should the Cancel button be selected.
  • Press the "Update Programming" button.
  • Once ECM update has been performed, access TCM and perform "Update Programming" if the VAS 5051 / 5052 shows the "Update Programming" feature.

    Tip:

    Once update programming is complete, it is recommended to use 1001- Compiling Services prompt to clear faults stored in various control modules.

  • Reset readiness code.
UPDATE ENGINE CONTROL MODULE

ECM Index New Index Software Level
06A906032 QC - 9422
QD - 9423
QE - 9424
QF - 9425
UPDATED TRANSMISSION CONTROL MODULE

TCM Index New Index Software Level
09G927750 AS or EL GJ 0833

WARRANTY

WARRANTY INFORMATION

To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual
Claim Type: Use applicable Claim Type(2)
Part Identifier: 2470
Damage Code: 2470 39 _ _ _(1) 1
Labor Operation: 24702599 = 50 TU
Diagnostic Time: No diagnostic time allowed
Claim Comment: Input "As per Technical Bulletin 2015970" in comment section of Warranty Claim.
(1) Code per warranty vendor code policy.
(2) Vehicle may be outside any Warranty in which case this Technical Bulletin is informational only.

REQUIRED PARTS AND TOOLS

REQUIRED PARTS

Part Description Part No: Quantity
CD W422005A5SWU 1

No Special Tools Required.

ADDITIONAL INFORMATION

All part and service references provided in this Technical Bulletin are subject to change and/or removal.

Always check with your Parts Dept. and Repair Manuals for the latest information.

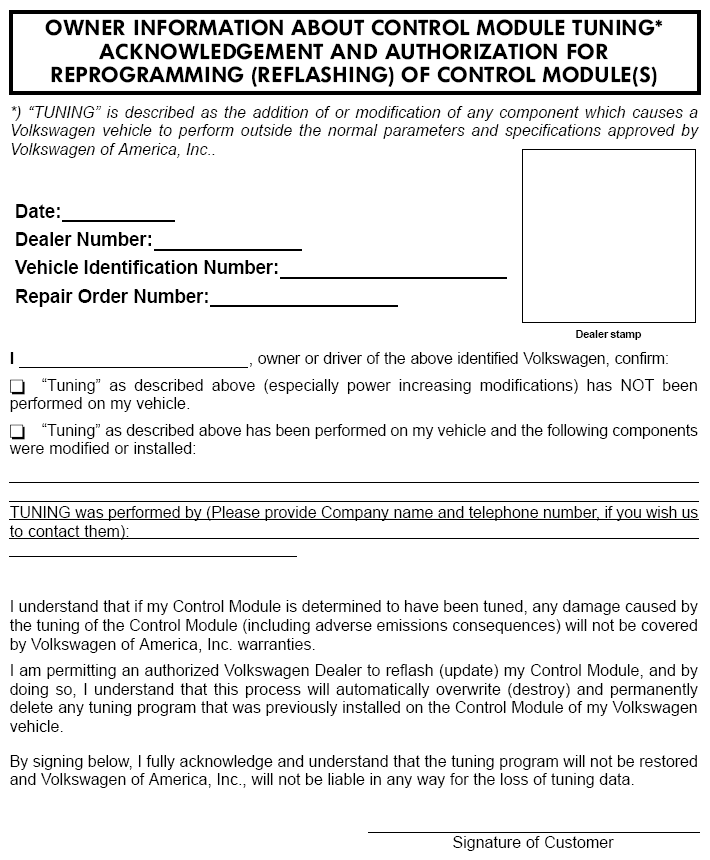

Fig 1: Control Module Tuning Form
G05607334
