Display Group 007



01M, 4 Spd. A/T

Display Group Number 007, Display Field (1):

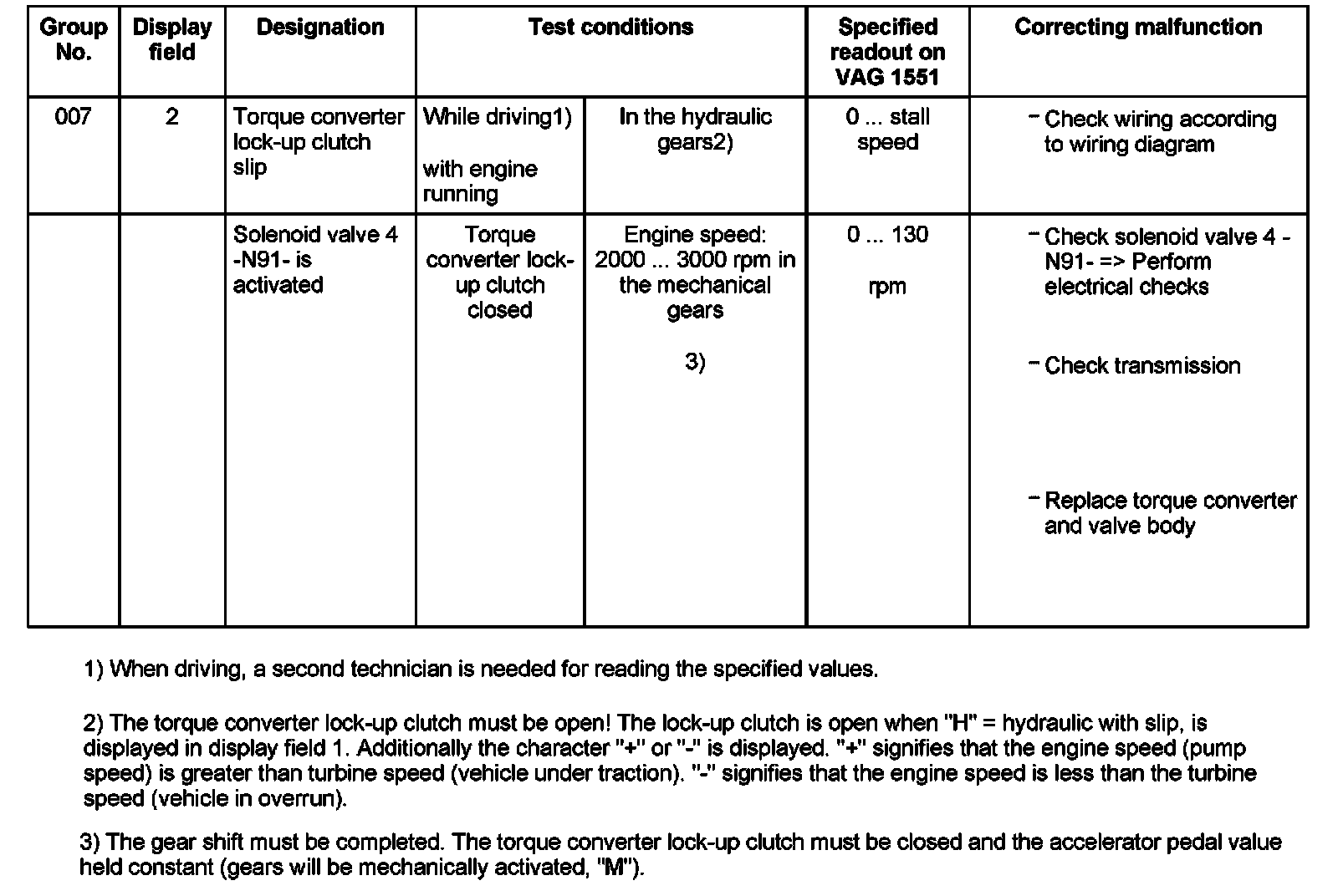

Display Group Number 007, Display Field (2):




Display Group Number 007, Display Field (3-4):
