Control Modules - Connector Pin-Out

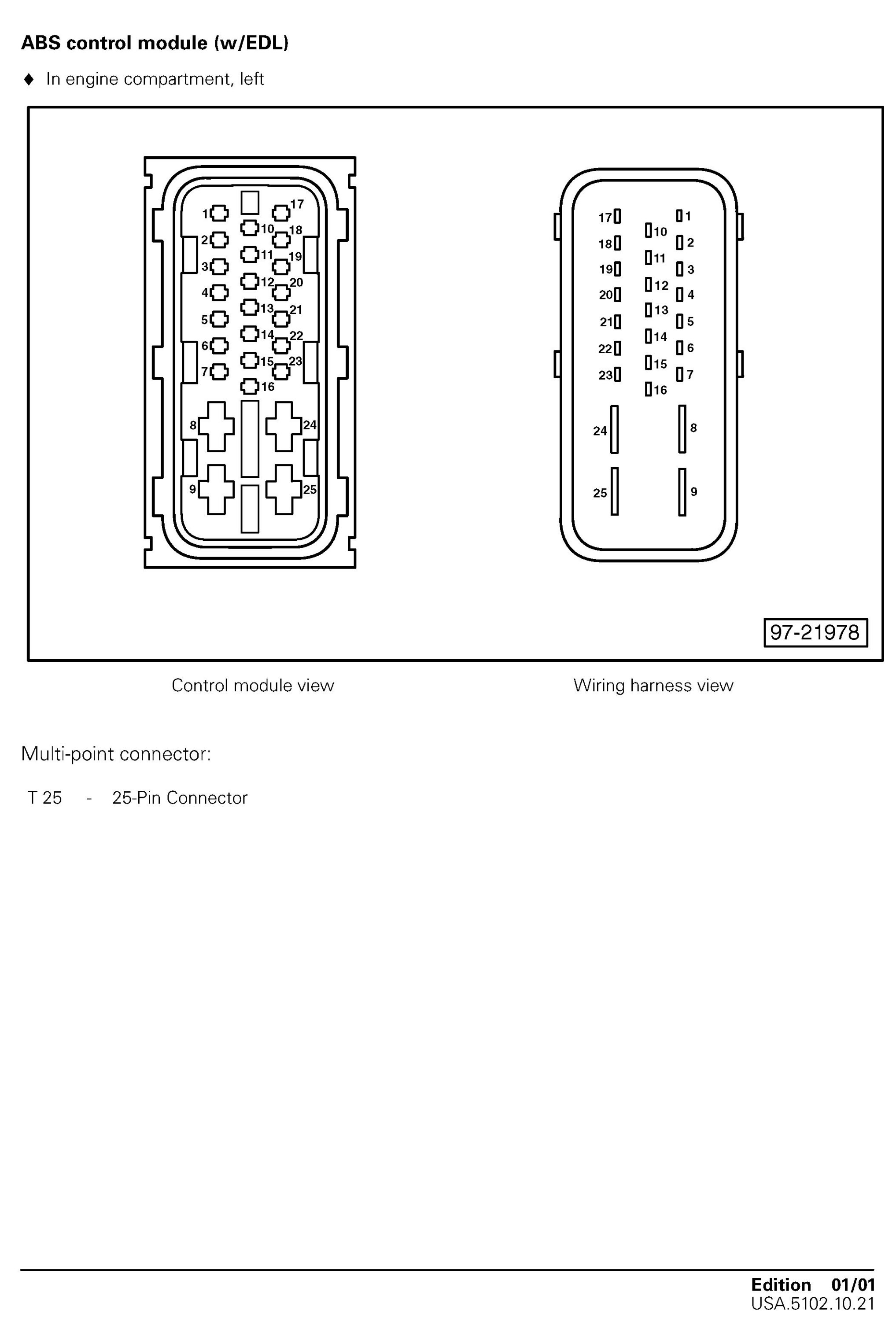

ABS Control Module (w/EDL):

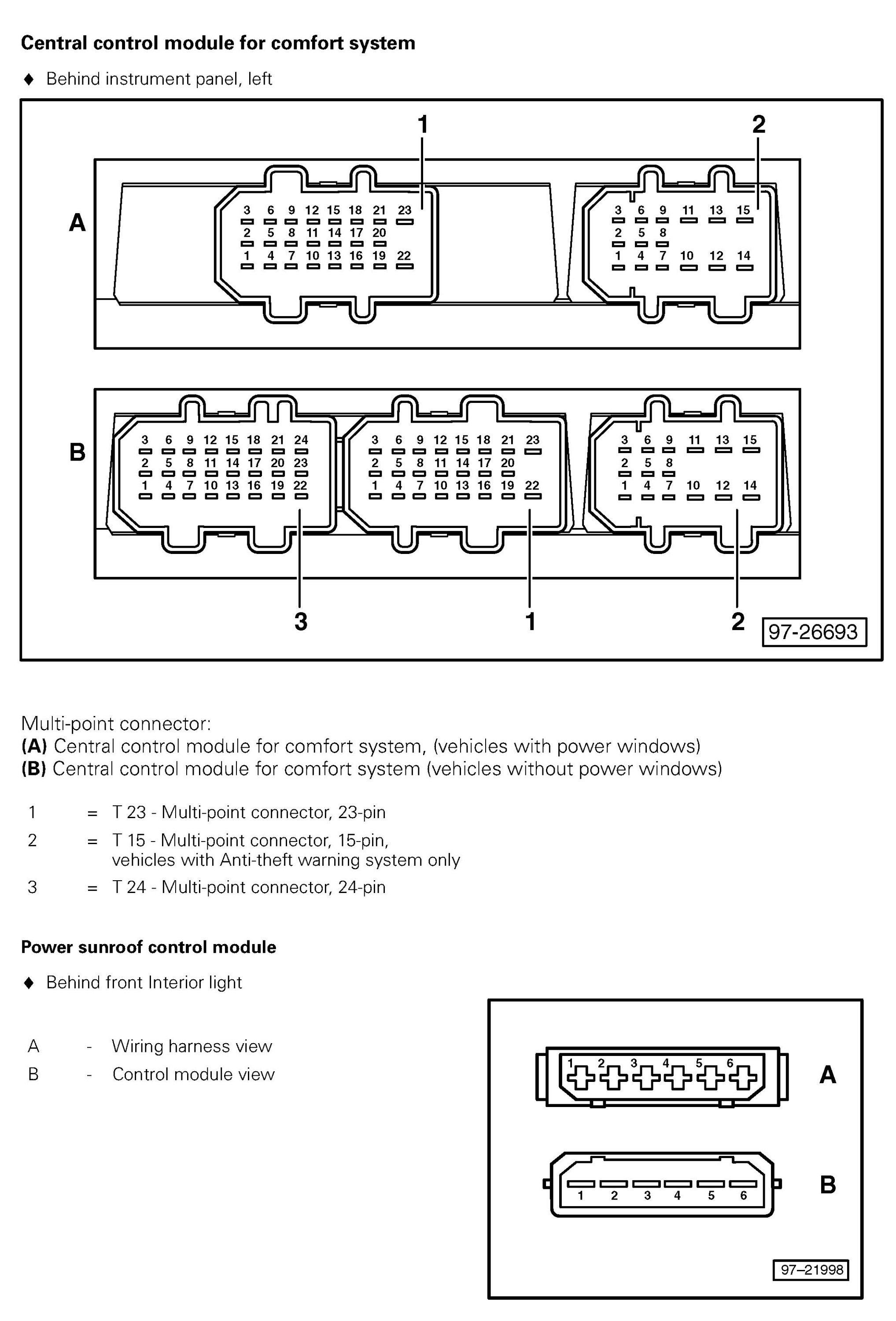

Central Control Module For Comfort System; Power Sunroof Control Module:

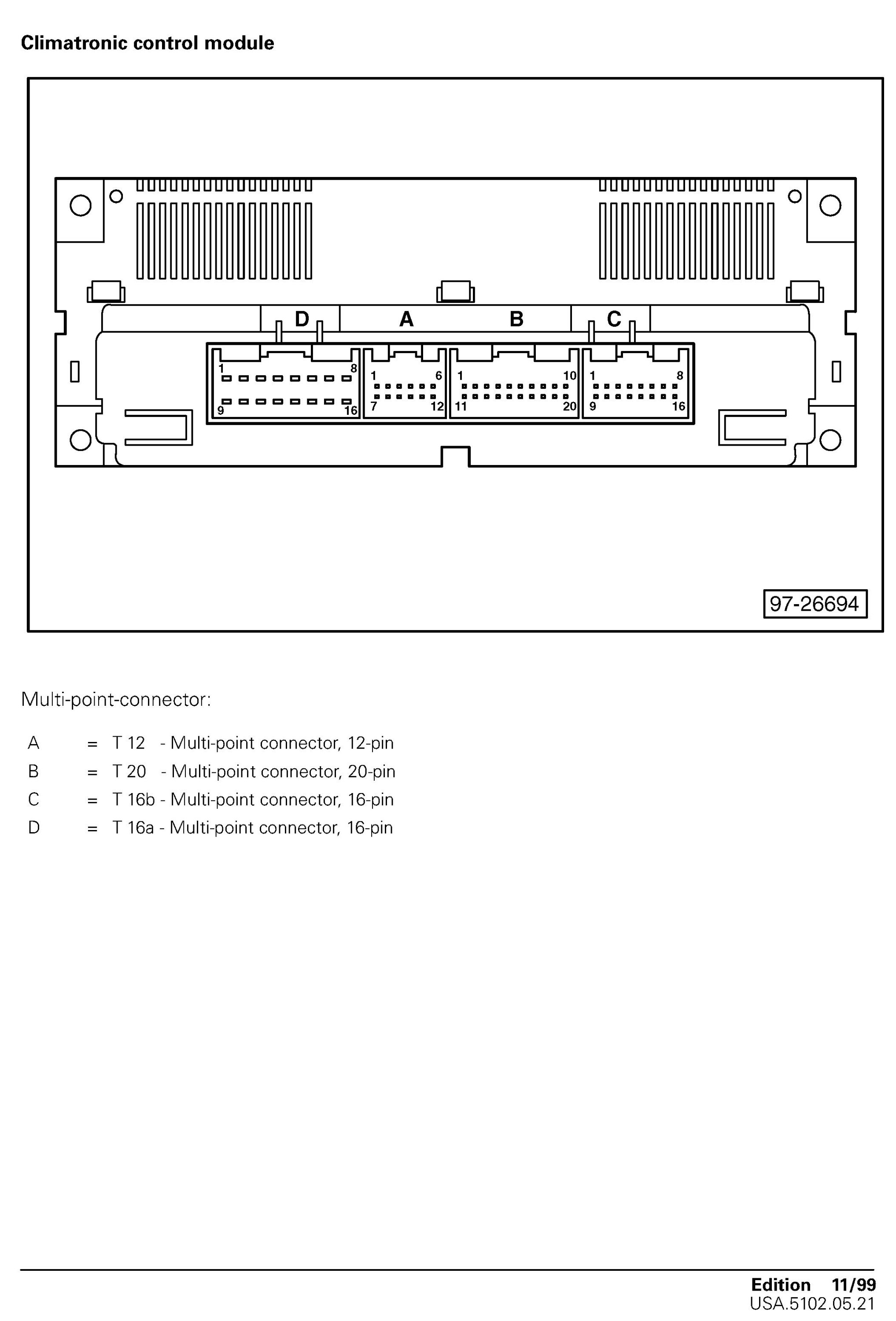

Climatronic Control Module:

Door Control Module, Driver And Passenger Side:

Door Control Module, Left And Right Rear:

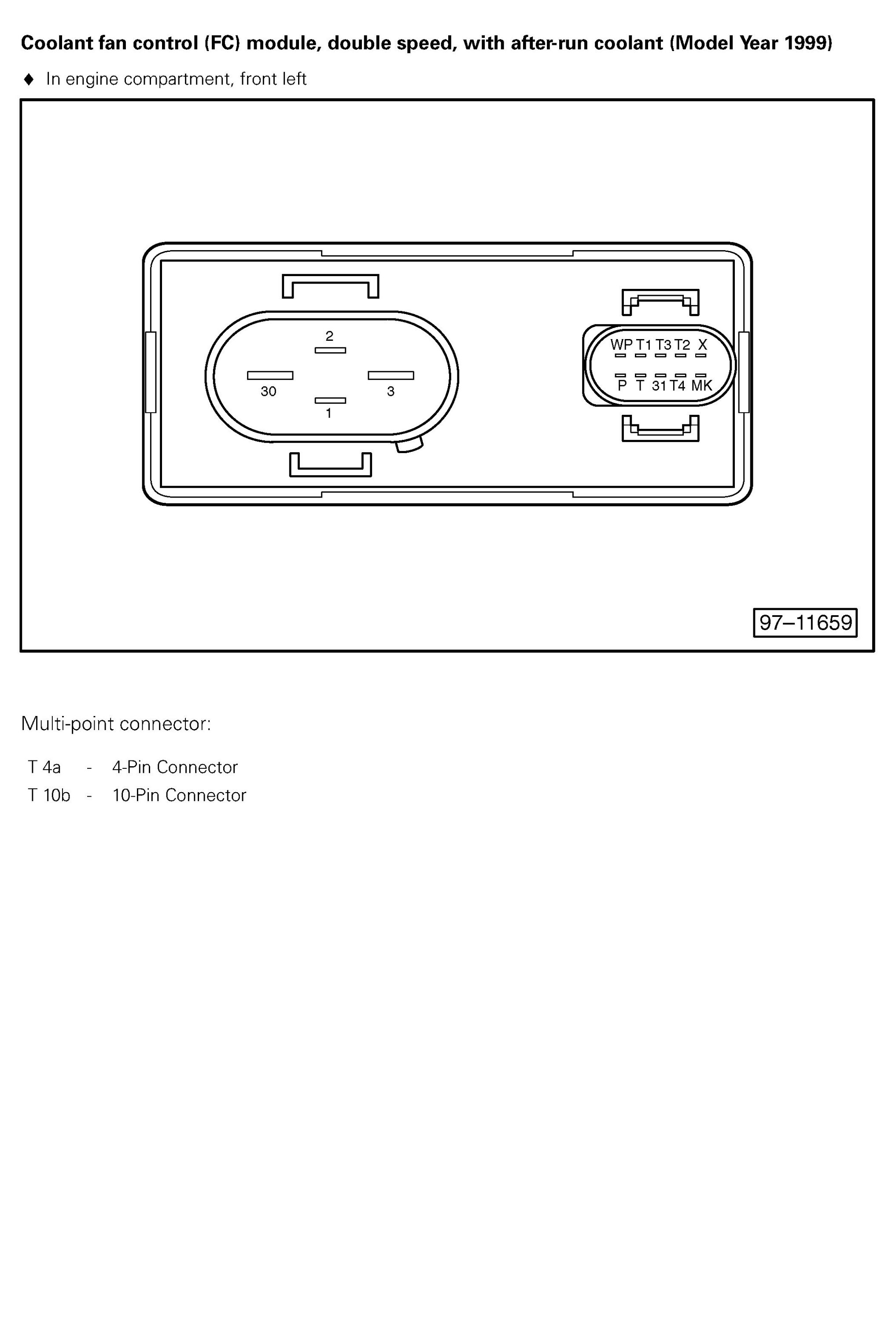

Coolant Fan Control (FC) Module, Double Speed, W/After-run Coolant (Model Year 1999):

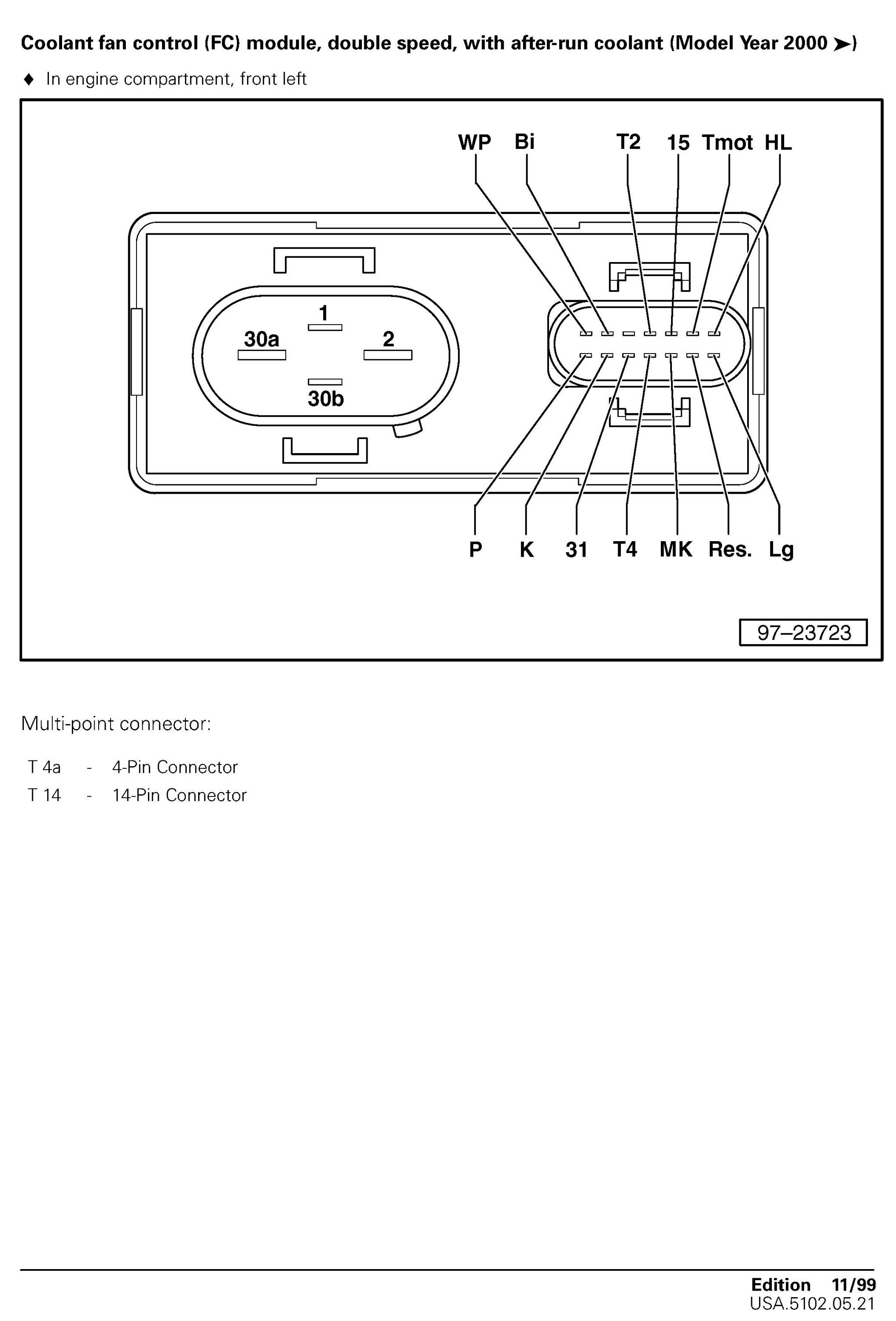

Coolant Fan Control (FC) Module, Double Speed, W/After-run Coolant (Model Year 2000->):

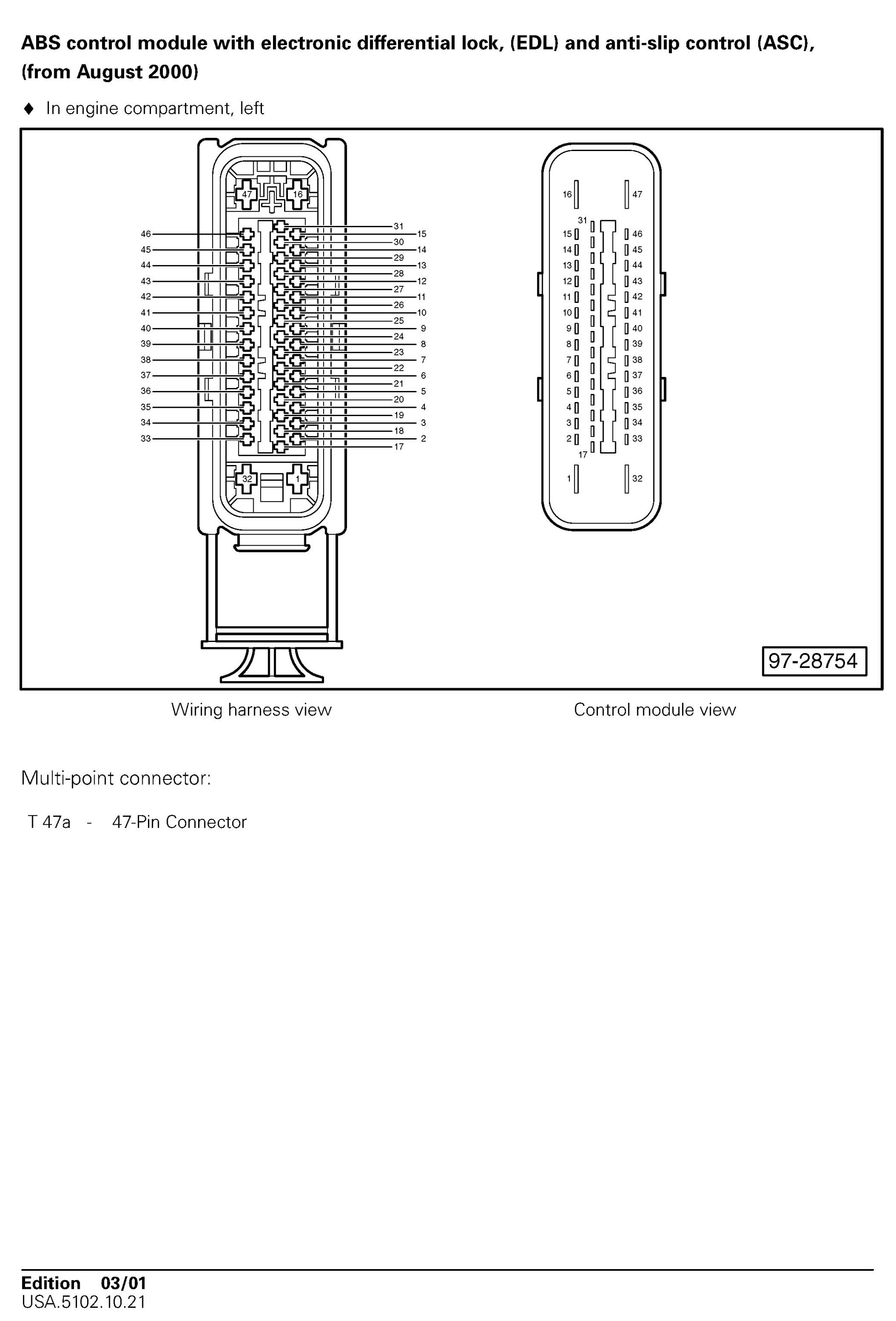

ABS Control Module W/Electronic Differential Lock And Anti-slip Control (ASC) From August 2000:
