8-Way Seat Control Module, Removing and Installing

8-way Seat Control Module, Removing And Installing

NOTE: Control module is installed under drivers seat.

Removing
- Remove seat.

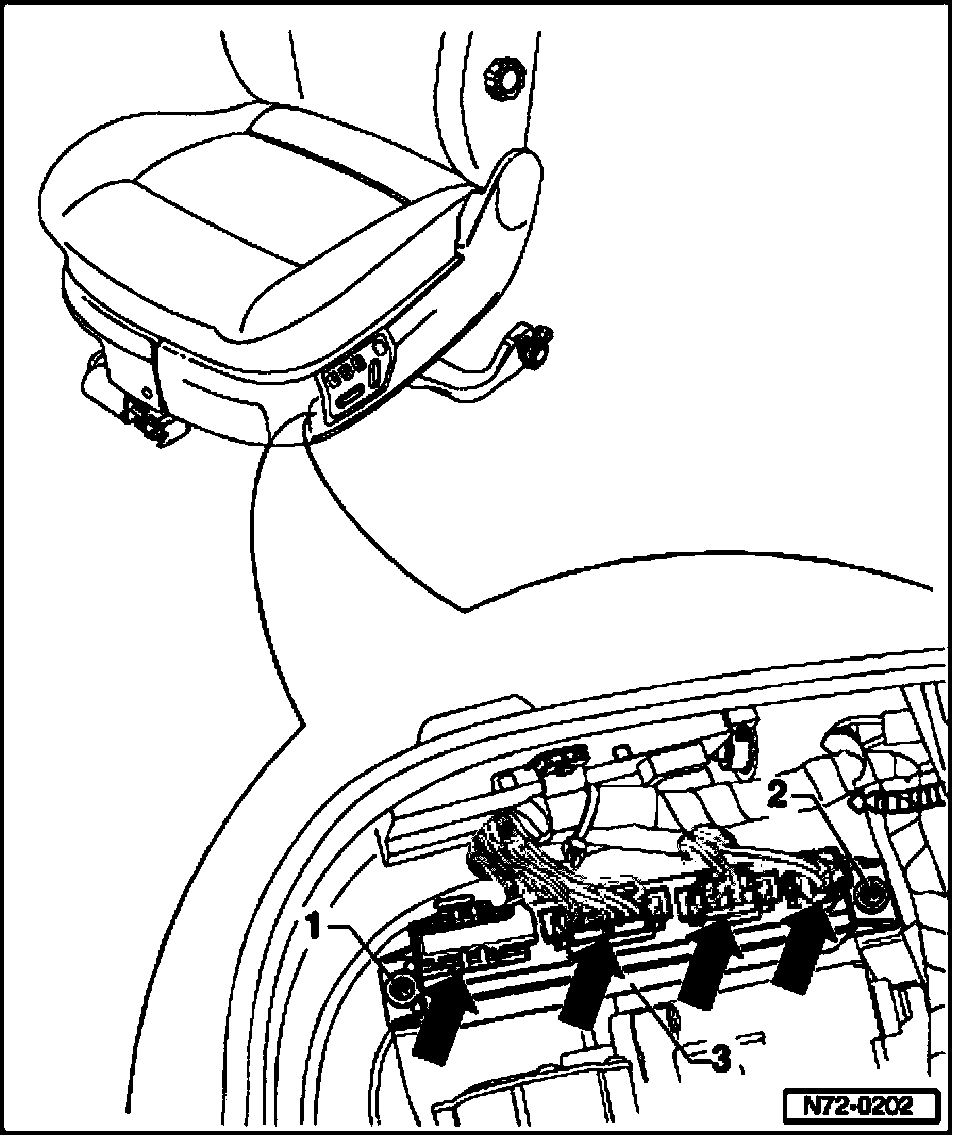

- Disconnect four harness connectors - arrows -.
- Remove bolts - 1 - and - 2 -.







- Remove control module - 3 -.

Installing
- Installation is reverse of removal.
