Access/Start Control Module - Module Side Connector End Views (T6u, T81)

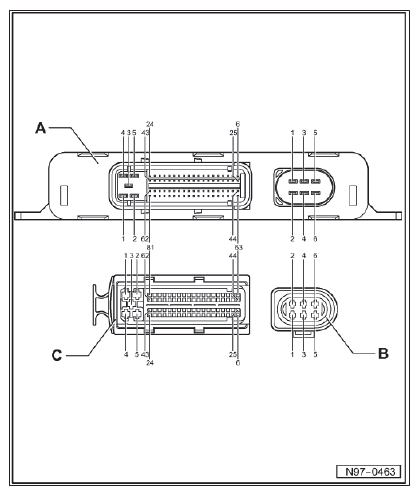

Fig 1: Access/Start Control Module - Module Side Connector End Views (T6u, T81)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
A
Access/Start Control Module - Module side
B
6-pin connector -T6u-
C
81-pin connector -T81-
Fig 1: Access/Start Control Module - Module Side Connector End Views (T6u, T81)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
A
Access/Start Control Module - Module side
B
6-pin connector -T6u-
C
81-pin connector -T81-
