Telematics Control Module, 42-Pin Connector Assignment

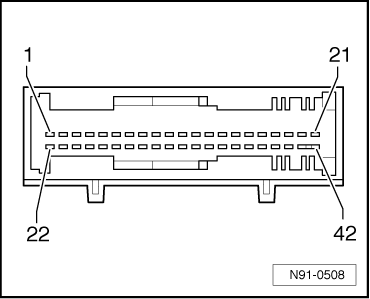

Fig 1: Identifying Telematic Control Module -J499- Multi-Pin Connector Assignments

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Signal activation - Dual Horn Auxiliary Relay
2. Signal activation "lock vehicle"
3. Cellular telephone, input signal audio, not assigned
4. Cellular telephone, signal battery charge condition of cellular telephone, not assigned
5. Cellular telephone, negative
6. Cellular telephone, TXD transfer, not assigned
7. Cellular telephone, RTS, ready to transmit, not assigned
8. Cellular telephone, shielding telephone line, not assigned
9. CAN bus High
10. Audio signal to radio, positive
11. Emergency speaker, positive, not assigned
12. Microphone signal, positive
13. K-wire, diagnosis connection
14. Voltage supply terminal 15, positive
15. Status red LED
16. Status green LED
17. not used
18. Negative, terminal 31
19. Negative, terminal 31
20. not used
21. not used
22. Signal activation - Auxiliary Emergency Flasher Relay
23. Signal activation "unlock vehicle"
24. Cellular telephone, output signal audio, not assigned
25. Cellular telephone, negative, not assigned
26. Cellular telephone, voltage supply, positive, not assigned
27. Cellular telephone, RXD transfer, not assigned
28. Cellular telephone, RTS, ready to transmit, not assigned
29. Signal status telephone base plate, cellular telephone inserted or removed, not assigned
30. CAN bus Low
31. Audio signal to radio, negative
32. Emergency speaker, negative, not assigned
33. Microphone signal, negative
34. Signal for radio muting
35. Input signal "SOS" from Telematics control head
36. Input signal "SOS" from Telematics control head
37. not used
38. Input airbag signal "Crash"
39. Terminal 30 voltage supply
40. Terminal 30 voltage supply
41. Emergency battery, positive, not assigned
42. Emergency battery, negative, not assigned
