Assembly overview

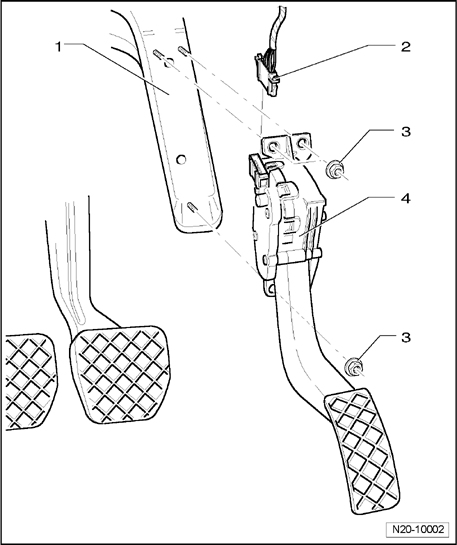

Fig 1: Electronic Power Control System Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bracket

• Removing and installing: Refer to 46 BRAKES - MECHANICAL COMPONENTS

2 - Connector

• Black, 6-pin

3 - 10 Nm

4 - Throttle position (TP) sensor G79

• Not adjustable
• Remove footwell cover to remove sensor
