Mode 6

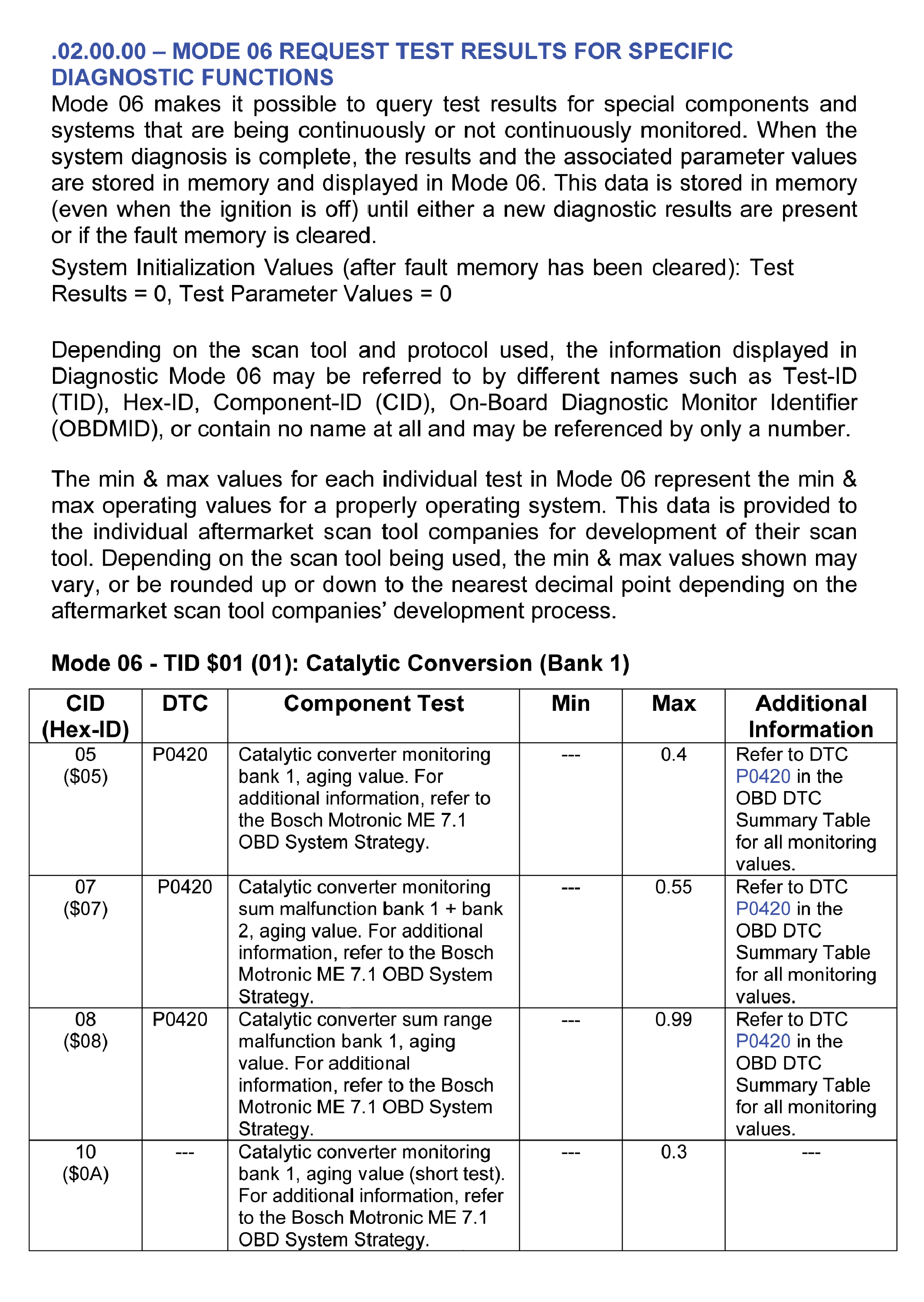

Fig 1: Mode 6 Data (2004 3.2L BJS)

G00105084

Courtesy of VOLKSWAGEN UNITED STATES, INC.

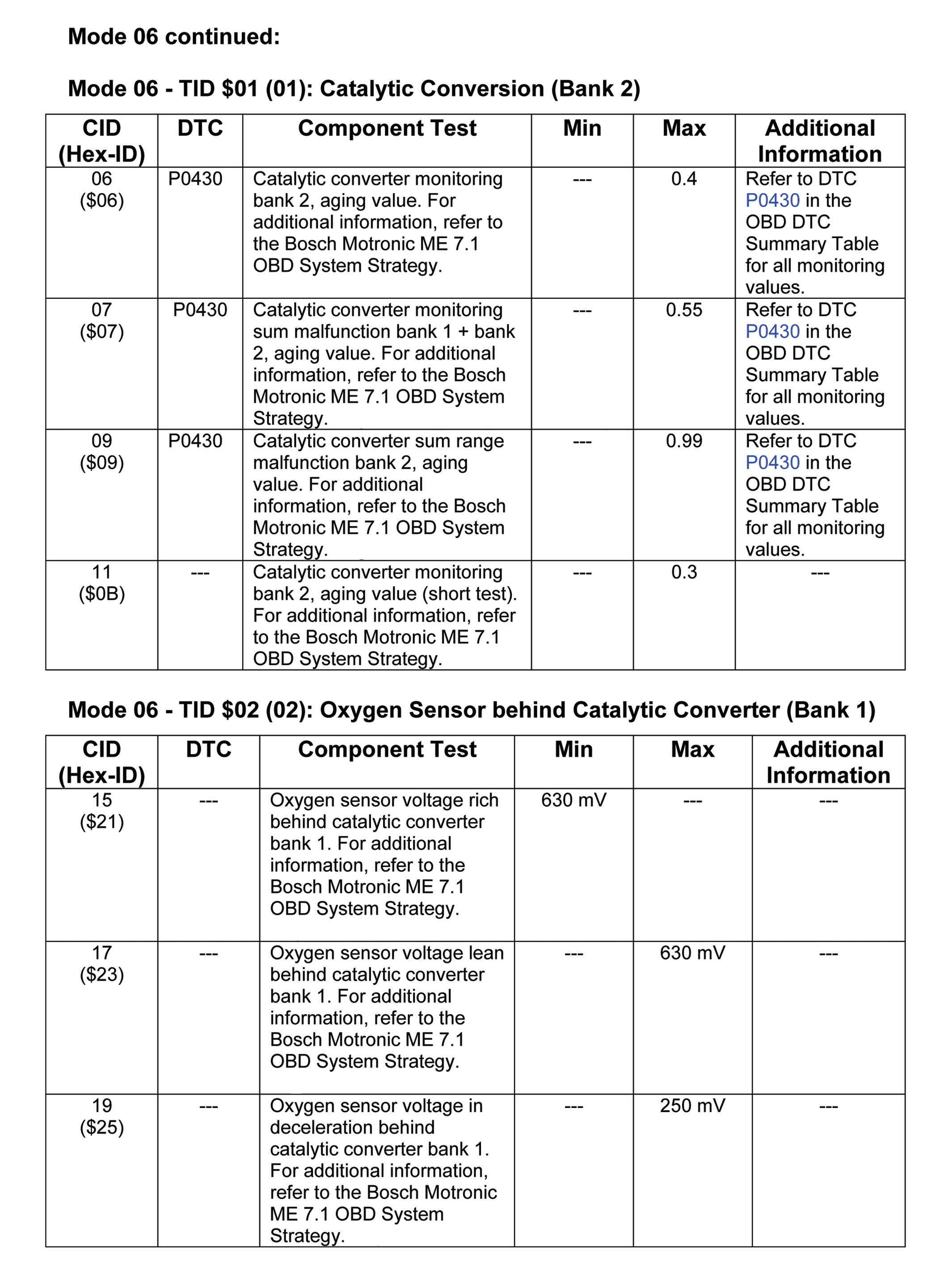

Fig 2: Mode 6 Data (2004 3.2L BJS)

G00105085

Courtesy of VOLKSWAGEN UNITED STATES, INC.

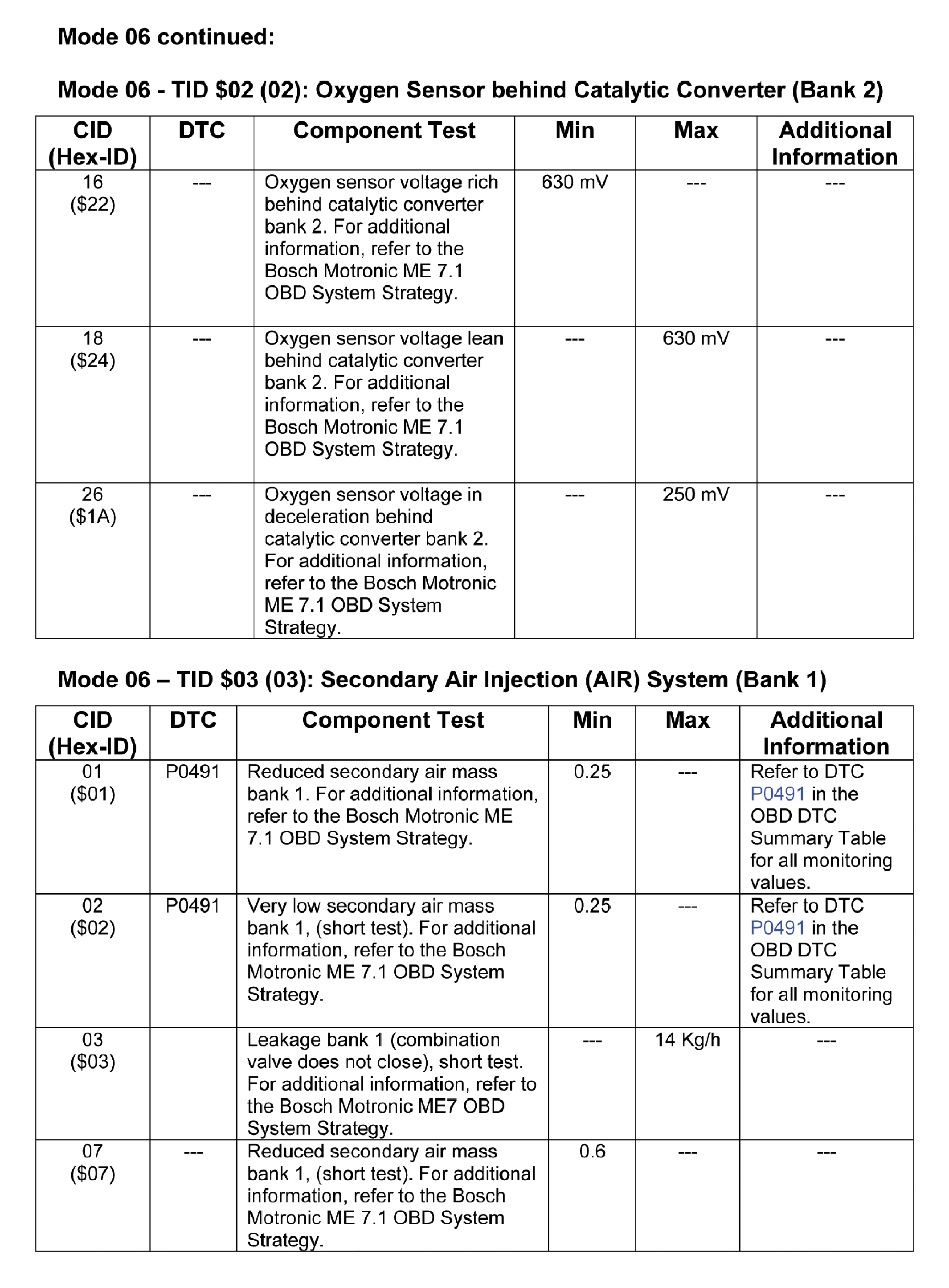

Fig 3: Mode 6 Data (2004 3.2L BJS)

G00105086

Courtesy of VOLKSWAGEN UNITED STATES, INC.

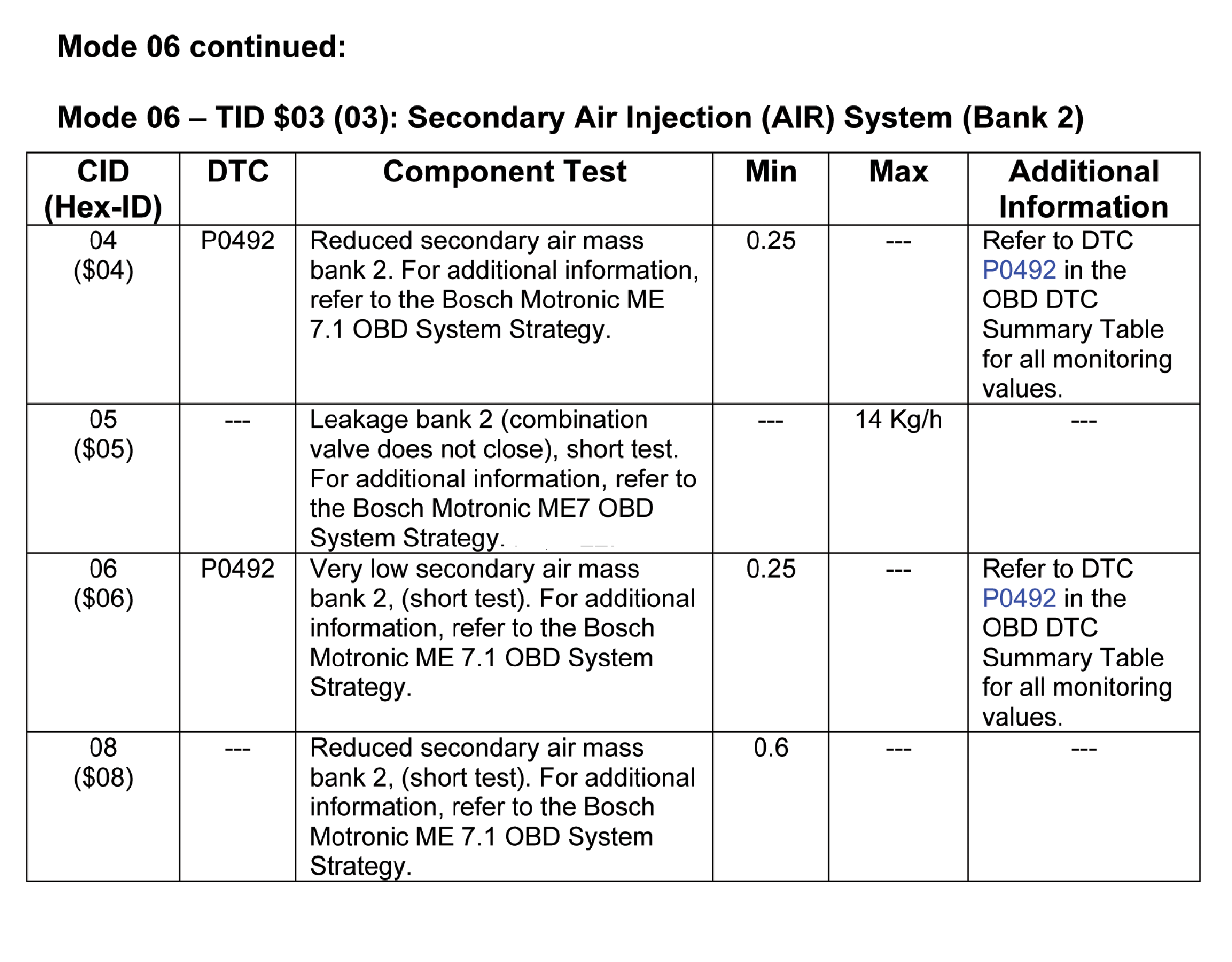

Fig 4: Mode 6 Data (2004 3.2L BJS)

G00105087

Courtesy of VOLKSWAGEN UNITED STATES, INC.

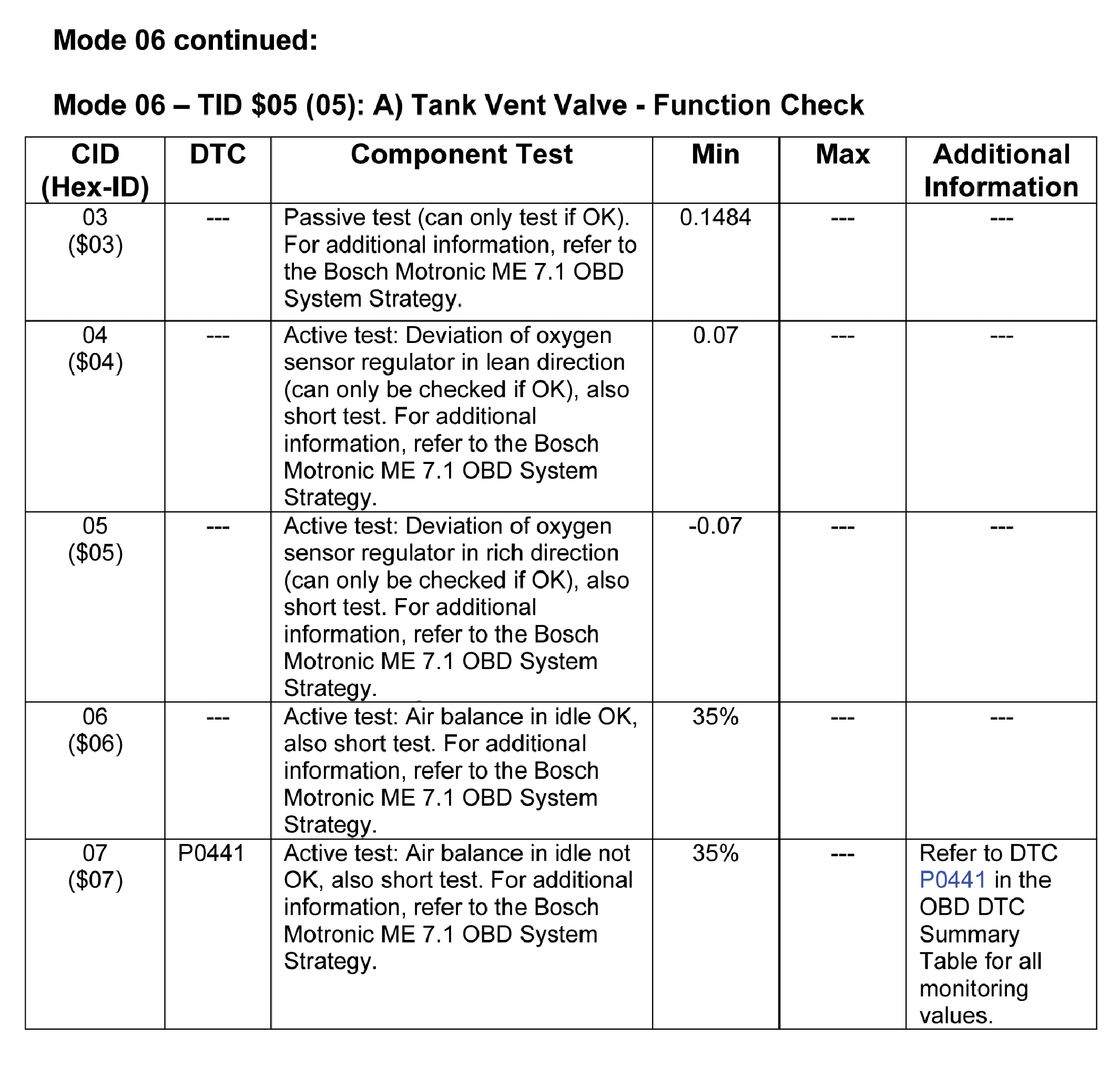

Fig 5: Mode 6 Data (2004 3.2L BJS)

G00105088

Courtesy of VOLKSWAGEN UNITED STATES, INC.

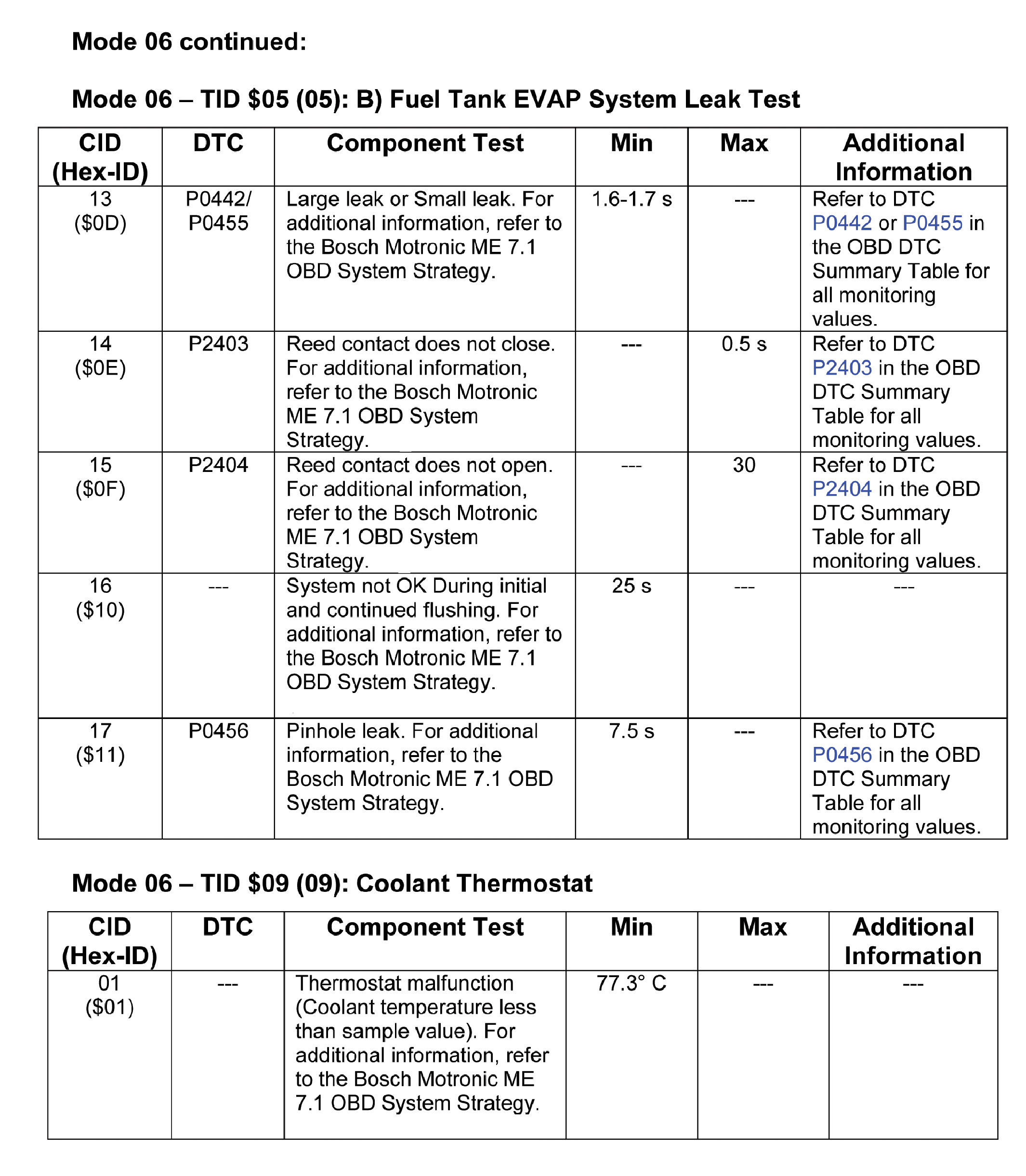

Fig 6: Mode 6 Data (2004 3.2L BJS)

G00105089

Courtesy of VOLKSWAGEN UNITED STATES, INC.
