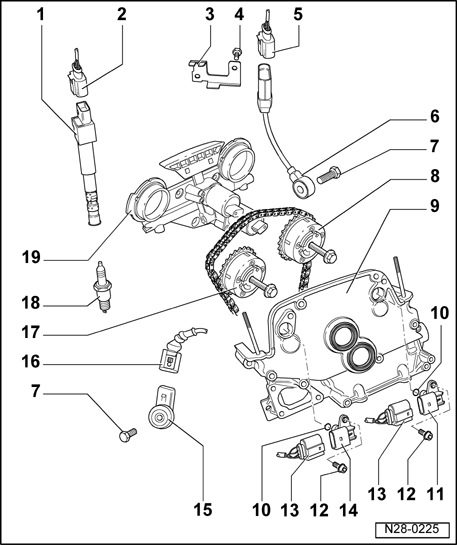

Ignition system components, assembly overview
1 - Ignition Coil 1 with Power Output Stage N70
- Ignition Coil 2 with Power Output Stage N127
- Ignition Coil 3 with Power Output Stage N291
- Ignition Coil 4 with Power Output Stage N292
- Ignition Coil 5 with Power Output Stage N323
- Ignition Coil 6 with Power Output Stage N324
- Use puller for ignition coil T10095 A for removal refer to Ignition coils with power output stage, removing and installing
2 - Connector
- 4-pin
3 - Bracket
- For knock sensor (KS) 1 G61 connector
4 - 10 Nm
5 - Connector
- Black, 3pin
- Sensor contacts and connector contacts gold plated
6 - Knock sensor 1 G61
- Sensor contacts and connector contacts gold plated
- Component location: Cylinder block, exhaust side
7 - 20 Nm
- Torque setting influences the function of knock sensor
8 - Exhaust camshaft adjuster
- With sensor wheel for Hall sender 2 G163
- If camshaft adjuster has been removed, adjust valve timing after installation, refer to Valve timing, adjusting .
9 - Cover
- Removing and installing, refer to Cover, assembly overview .
10 - Oil seal
- Replace
11 - Camshaft position (CMP) sensor 2 G163
- For exhaust camshaft
- Sensor contacts and connector contacts gold plated
12 - 10 Nm
13 - Connector
- Black, 3pin
- Sensor contacts and connector contacts gold plated
- Mark connector before removing
14 - Camshaft Position (CMP) sensor G40
- For intake camshaft
- Sensor contacts and connector contacts gold plated
15 - Knock sensor 2 G66
- Sensor contacts and connector contacts gold plated
- Component location: Cylinder block, intake side
16 - Connector
- Black, 2-pin
- Sensor contacts and connector contacts gold plated
17 - Intake-camshaft adjuster
- With sensor wheel for camshaft position (CMP) sensor G40
- If camshaft adjuster has been removed, adjust valve timing after installation, refer to Valve timing, adjusting .
18 - Spark plug
- Removing and installing with spark plug removal tool 3122 B
- Type, torque specification and electrode gap, refer to Technical data, spark plugs
19 - Control housing
- For camshaft adjustment
- Removing and installing, refer to Camshafts, removing and installing
