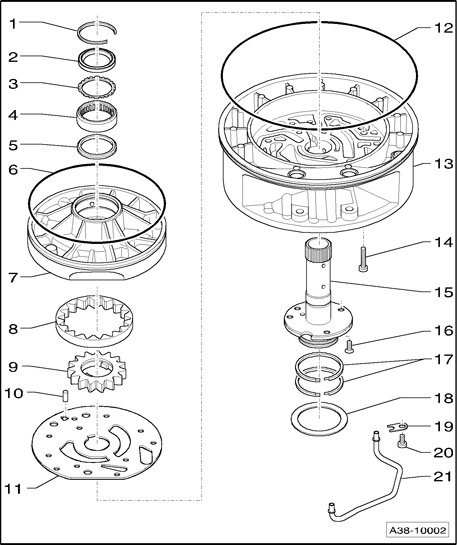

ATF pump, assembly overview
NOTE:
- Some of the depicted components are part of component groups and are not available separately as replacement part.
- Check individual components of ATF pump for wear and damage → ATF pump .
1 - Circlip
2 - Sealing ring for torque converter
- Replace
3 - Locking washer
4 - Needle bearing
5 - Seal
6 - O-ring
- Replace
7 - ATF pump housing
8 - Ring gear
9 - Pump wheel
10 - Positioning sleeve
11 - Intermediate panel
12 - O-ring
13 - ATF pump
14 - Bolt
- Tightening torque M5 - 5 Nm; M6 - 10 Nm
15 - Stator shaft
- Removing and installing → Stator shaft, removing and installing
16 - Countersunk screw -10 Nm
17 - Rectangular ring for ATF pump
- Replace
18 - Adjustment shim
19 - Angle bracket for ATF oil tube
20 - Bolt, 10 Nm
21 - ATF oil tube
- Carefully insert alternately using drive-in tool T10274
- Replace
