Tower "II" , disassembling
Courtesy of VOLKSWAGEN UNITED STATES, INC.
- Place tower "II" in mounting device T10283 (ATF pump side faces downward).
Courtesy of VOLKSWAGEN UNITED STATES, INC.
- Remove circlip - arrow
-.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
- Remove inner plate carrier "C" - 2
- from clutch "A/B" - 1
-.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
- Remove inner plate carrier "B" - 2
- from clutch "A/B" - 1
-.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
- Twist inner plate carrier "B" - 1
- and remove axial needle bearing - 2
-.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
- Remove intermediate shaft with inner plate carrier "A" - 2
- from clutch "A/B" - 1
-.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
- Remove axial needle bearing - 2
- from clutch "A/B" - 1
-.
Courtesy of VOLKSWAGEN UNITED STATES, INC.

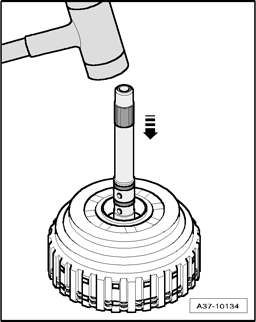

- Remove clutch "A/B" from mounting device T10282.
- Twist clutch "A/B" and place on workbench.
- Lightly hit input shaft using a plastic hammer.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
- Remove clutch "B" - 2
- from clutch "A" - 1
-.
