Tower "II" , assembling

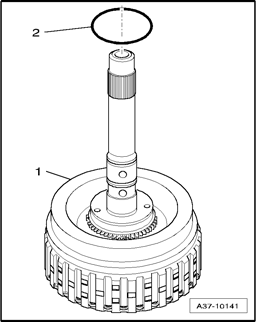

Fig 1: O-Ring And Into Cylinder "A"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert O-ring - 2 - into cylinder "A" - 1 - with Vaseline. Use only Vaseline, other lubricating substances cause functional problems in the hydraulic transmission control.

Fig 2: Clutch "B" And Clutch "A"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Axial Needle Bearing And Clutch "A/B"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place axial needle bearing - 2 - on clutches "A/B".
Position clutch plate "B" vertically using e.g. measuring tongue of caliper gauge.

Fig 4: Intermediate Shaft With Inner Plate Carrier "A" And Clutch "A/B"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert inner plate carrier "A" - 2 - into clutch plate pack "A" , using short lifting/turning motions.

All clutch plate "A" must engage in sequence in plate carrier of planetary drive.

Check whether all plates are engaged, lift inner plate carrier "A" a few millimeters and let fall.

Fig 5: Inner Plate Carrier "B" And Axial Needle Bearing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Thinly coat axial needle bearing - 2 - with Vaseline on flat side. Use only Vaseline, other lubricating substances cause functional problems in the hydraulic transmission control.
Affix axial needle bearing to inner plate carrier "B" - item 1 - at rear.

Fig 6: Inner Plate Carrier "B" And Clutch "A/B"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Position clutch plate "B" vertically using e.g. measuring tongue of caliper gauge.
Twist inner plate carrier "B" - 2 - and insert into clutch plate pack "B" , using short lifting/turning motions.

All clutch plates "B" must engage in sequence in plate carrier of planetary drive.

Check whether all plates are engaged, lift inner plate carrier "A" a few millimeters and let fall.

Fig 7: Inner Plate Carrier "C" And Clutch "A/B"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 8: Tower "II" Circlip

Courtesy of VOLKSWAGEN UNITED STATES, INC.
