Planetary drive, disassembling and assembling

Fig 1: Prying Off Plate Carrier "E" From Planetary Drive Using 2 Screwdrivers

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disassembling

Pry off plate carrier "E" from planetary drive using 2 screwdrivers.

NOTE:

Do not insert screwdriver too deep, attach only at edge of planetary carrier "E".

Fig 2: Planetary Carrier "I", O-Ring, Plate Carrier "E" And Thrust Washer

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove plate carrier "E" - item 3 - and pull thrust washer - 4 - out of plate carrier "E".
Remove O-ring - 2 - from planetary carrier "I" - 1 -.

Fig 3: Planetary Carrier "I", Planetary Drive "I" + "II" And Sun Gear

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lift off planetary drive "I" + "II" - 3 - from planetary carrier "I" - 1 -.
Remove sun gear - 2 -.
Remove planetary carrier "III" from mounting device T10282.

Fig 4: Identifying "I" + "II" Placed In Mounting Device T10282 And Circlip

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Twist planetary drive "I" + "II" and place in mounting device T10282.
Remove circlip - arrow -.

Fig 5: Ring Gear "III", Planetary Carrier "II" And Ring Gear "I"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove ring gear "III" - 3 - and planetary carrier "II" - 2 - from ring gear "I" - 1 -.

Fig 6: Axial Needle Bearing, Sun Gear And Ring Gear "I"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove axial needle bearing - 3 - and sun gear - 2 - from ring gear "I" - 1 -.

Fig 7: Circlip And Ring Gear "I"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove circlip - arrow - , hold ring gear "I" - 1 - and set aside downward.

Fig 8: Planetary Carrier "I" Circlip

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Twist planetary carrier "I" and place on workbench.
Remove circlip - arrow - and remove ring gear "II" from planetary carrier "I".

Fig 9: Planetary Carrier "I", Ring Gear "II" And Circlip

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Assembling

Install planetary carrier "I" - 2 - in ring gear "II" - 1 -.
Replace circlip - 3 - and install.

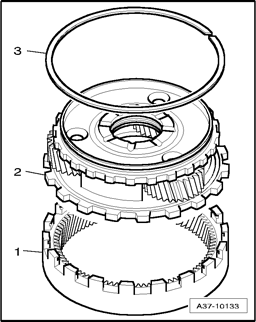

Fig 10: Circlip And Ring Gear "I"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Twist planetary carrier "I" , install in ring gear "I" - 1 - and secure with circlip - arrow -.
Place ring gear "I" with planetary carrier "I" in mounting device T10282.

Fig 11: Axial Needle Bearing, Sun Gear And Ring Gear "I"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install sun gear - 2 - in planetary carrier "I" in ring gear "I" - 1 -.

Notches - arrow - on teeth face downward.

Insert axial needle bearing - 3 -.

Open side points upward.

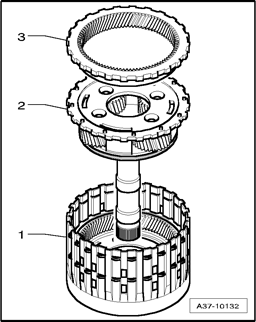

Fig 12: Ring Gear "III", Planetary Carrier "II" And Ring Gear "I"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install planetary carrier "II" - 2 - in ring gear "I" - 1 -.
Install ring gear III - 3 - in ring gear "I" - 1 -.

Outer coupling plate on ring gear III faces upward.

Fig 13: Identifying "I" + "II" Placed In Mounting Device T10282 And Circlip

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert circlip - arrow -.
Remove planetary drive "I" + "II" from mounting device T10282.

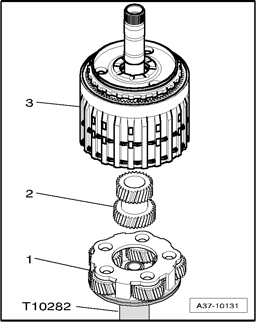

Fig 14: Planetary Carrier "I", Planetary Drive "I" + "II" And Sun Gear

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install planetary carrier "III" in mounting device T10282.
Install sun gear 2 in planetary carrier "III" - 1 -.
Install planetary drive "I" + "II" - 3 - on planetary carrier "III" using turning motions.

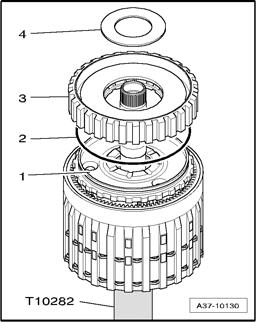

Fig 15: Planetary Carrier "I", O-Ring, Plate Carrier "E" And Thrust Washer

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place new O-ring - 2 - on planetary carrier "I" - 1 -.
Press plate carrier "E" - 3 - onto planetary carrier "I".
Position thrust washer - 4 -.
