Rear Axle ABS Components, Removing and Installing: Notes

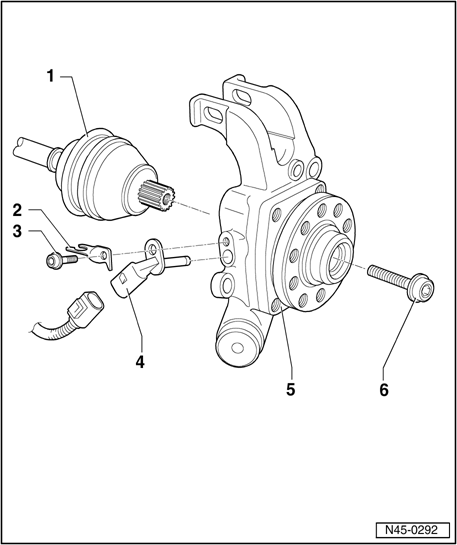

Fig 1: Rear Axle ABS Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Drive axle

2 - Bracket

• For speed sensor harness

3 - Hex socket bolt, 10 Nm

4 - ABS wheel speed sensor

• Before inserting sensor, clean inner surface of mounting hole and coat with Polycarbamide grease G 000 650
• Replace → Rear Axle Speed Sensor, Removing and Installing

5 - Wheel bearing/hub unit

• The ABS sensor ring is installed in the wheel bearing

6 - Socket head bolt

• Always replace. → 42 - REAR SUSPENSION
