Front Bumper

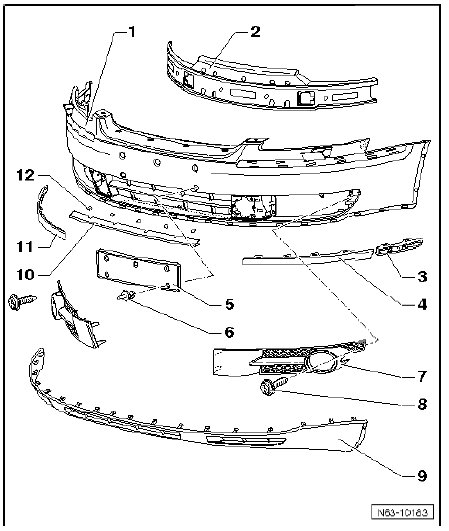

Front Bumper Attachments



1 - Cover
- Material - PP/EPDM

2 - Shock absorber
- Self-adhesive

3 - Side marker lights
- Left and right
- US vehicles only
- Only remove when the bumper is removed.

4 - Protective molding
- Left and right
- Clipped into the bumper cover
- Only remove when the bumper cover is removed

5 - License plate holder
- Material PC/ABS

6 - Clip
- Qty. 5

7 - Cover
- Left and right
- Different versions are available
- Removing. Service and Repair
- Installing.

8 - Bolt
- Left and right
- 2 Nm

9 - Spoiler
- Clipped into the bumper cover
- Only remove when the bumper cover is removed

10 - Chrome strip
- Secured with double-sided tape and clamped

11 - Protective molding
- Left and right
- Clipped into the bumper cover
- Only remove when the bumper cover is removed

12 - Securing clip
- For the chrome strip
