Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module (W/EDL) (4.0L) | Left side of engine compartment. |
| ABS Control Module (W/O EDL) | Left front of engine compartment. |
| ABS Control Module (2.8L) | On left front of engine compartment. |
| ABS Control Module (4.0L) | On left front of engine compartment. |
| A/C Cut-Off Control Module (W/Manual A/C) | On thirteenfold (thirteen position) auxiliary relay panel. |
| Airbag Control Module | Mounted on floor in front of center console, near ventilation ducts. |
| Antenna Selection Control Module | Under center of rear speaker shelf. |
| Climatronic Control Module | In center console, below radio. |
| Comfort System Central Control Module | Mounted on floorpan in protective box, under driver's seat & carpet. |
| Coolant Fan Control Module (1.8L) | On left front frame rail, near vacuum reservoir. |
| Coolant Fan Control Module (2.8L) | On left front frame rail, near vacuum reservoir. |
| Coolant Fan Control Module (4.0L) | Between right & left cooling fans. |
| Cruise Control Module | Behind right side of dash. |
| Door Control Module (Driver's Side) | Part of power window assembly, in driver's door. |
| Door Control Module (Left Rear) | Part of power window motor assembly, in left rear door. |
| Door Control Module (Passenger's Side) | Part of power window motor assembly, in passenger's front door. |
| Door Control Module (Right Rear) | Part of power window motor assembly, in right rear door. |
| Fresh Air Blower Control Module | Integral to fresh air blower, under right side of dash. |
| Fuel Pump Control Module (4.0L) | In luggage compartment, under spare tire. |
| Heated Seat Control Module (Driver's) | Left of center of dash. |
| Heated Seat Control Module (Passenger's) | Right of center of dash. |
| Lamp Failure Control Module (2.8L) | On thirteenfold (thirteen position) auxiliary relay panel. |
| Lamp Failure Control Module (4.0L) | On thirteenfold (thirteen position) auxiliary relay panel. |
| Memory Seat Control Module | Left side of driver's seat. |

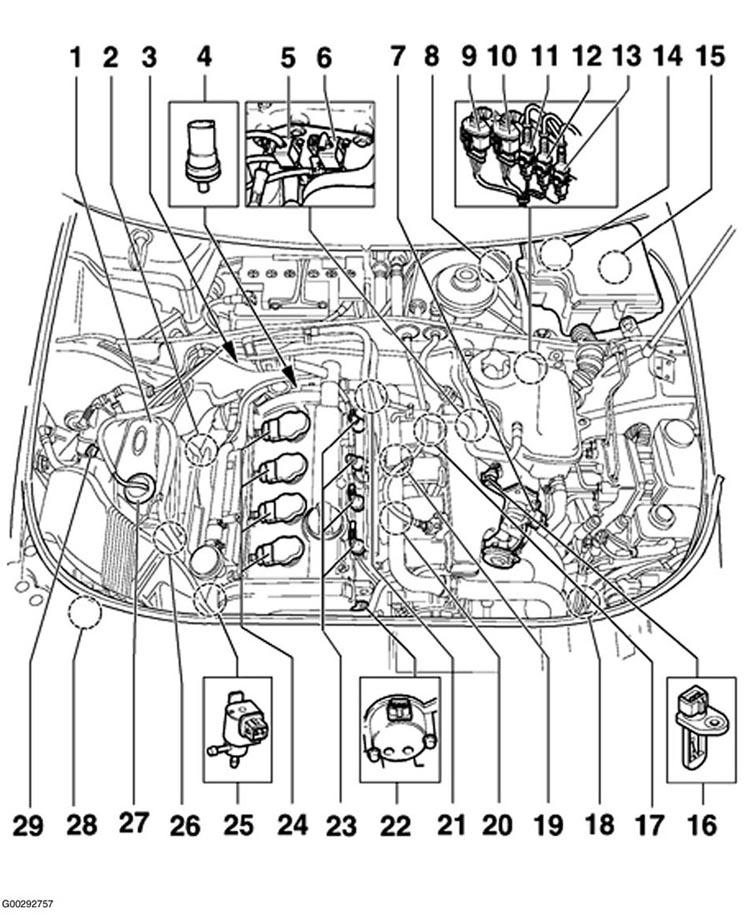

| Motronic Engine Control Module (1.8L AEB) (11) | In protective box, in left rear corner of engine compartment. See Figure. |

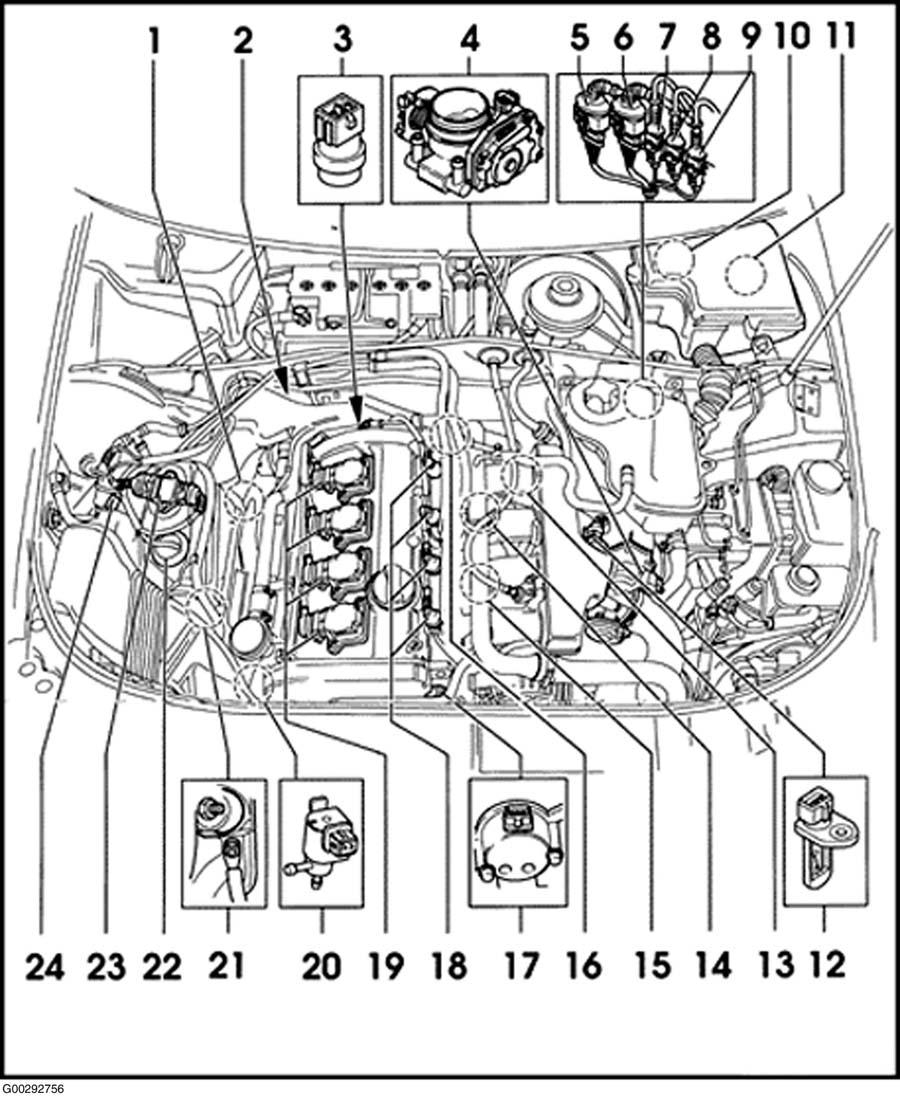

| Motronic Engine Control Module (2.8L) (13) | In protective box, in left rear corner of engine compartment. See Figure. |
| Motronic Engine Control Module (4.0L) | In protective box, in left rear corner of engine compartment. |
| Multifunction Steering Wheel Control Module | On thirteenfold auxiliary relay panel. |
| Throttle Valve Control Module (1.8L AEB) (4) | On throttle body. See Figure. |
| Throttle Valve Control Module (1.8L ATW, AUG & AWM) (7) | On throttle body. See Figure. |

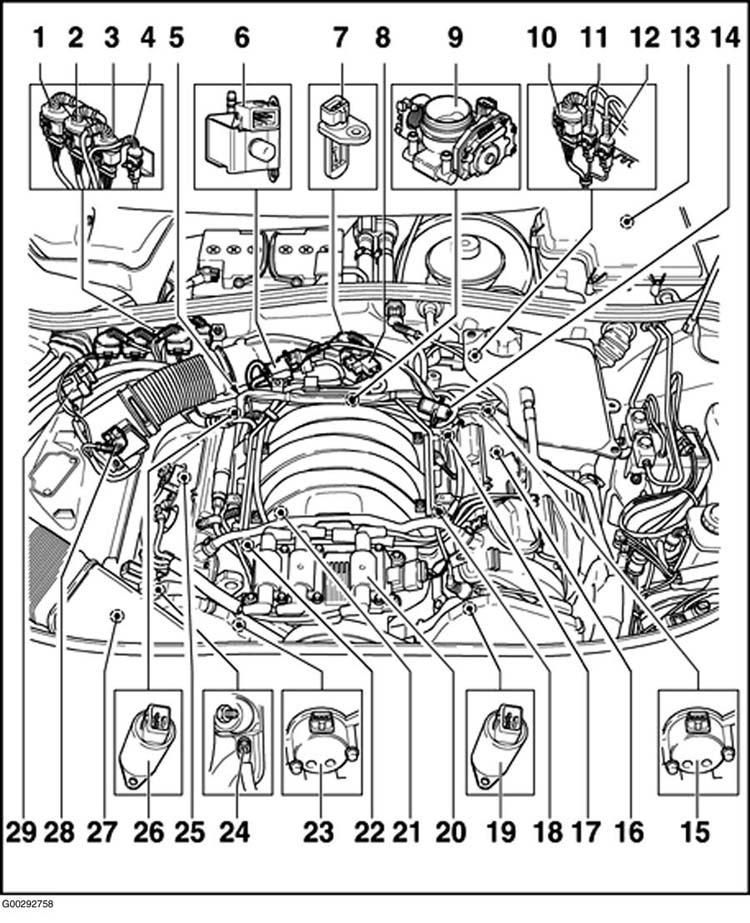

| Throttle Valve Control Module (2.8L) (9) | On throttle body, on rear of intake manifold. See Figure. |
| Throttle Valve Control Module (4.0L) | On throttle body, on rear of intake manifold. |
| Transmission Control Module | On passenger's side floor cavity. |
